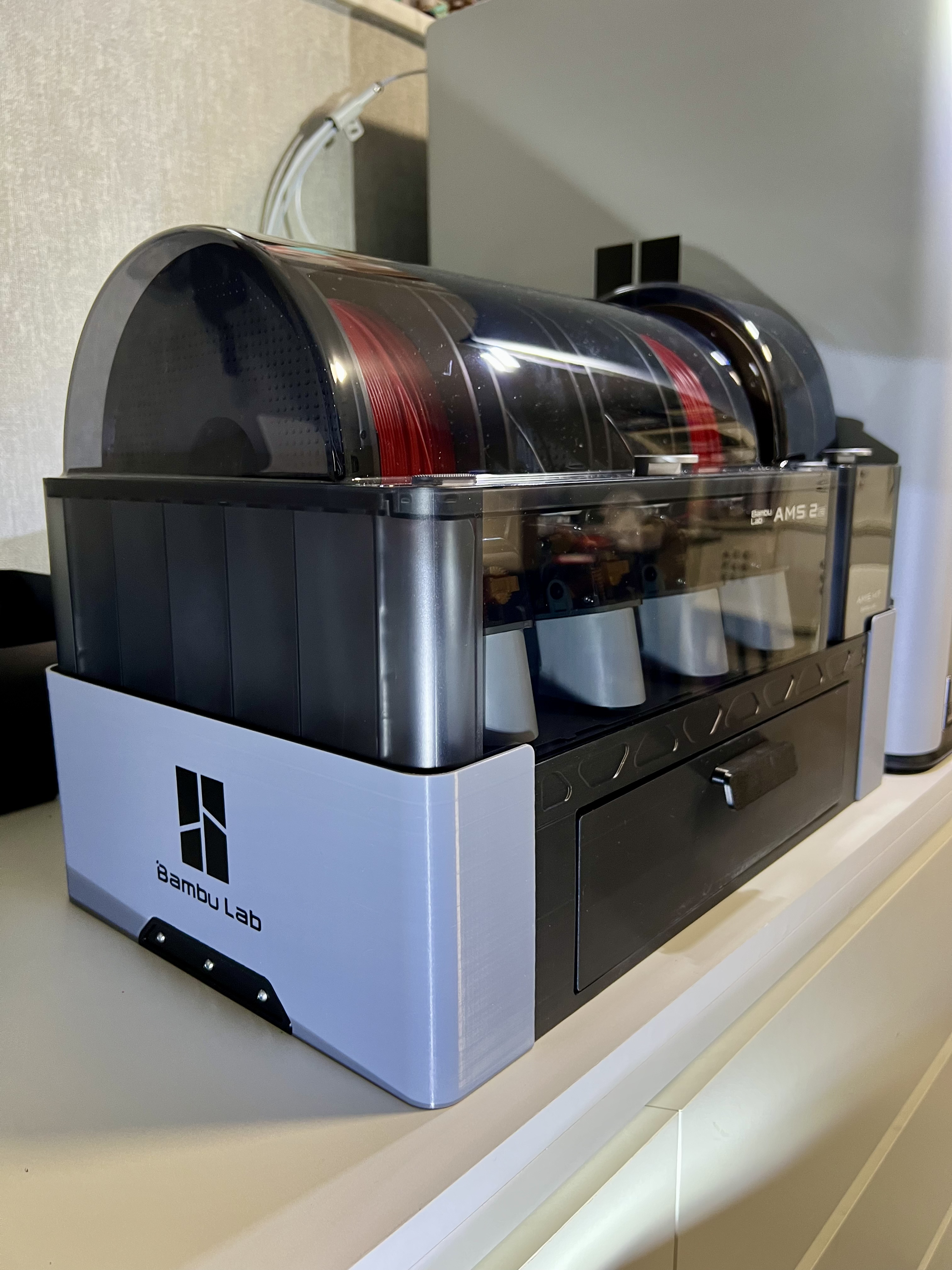

AMS 2 Pro + HT Stackable gridfinity XL Storage unit

• Riser drawer unit for the AMS Pro 2 plus AMS HT with very large drawer.
• Gridfinity compatible 7x6 grid.
• Designed to match the look of the H2 series.
• No visible overlaps from split parts, large one-piece parts for a nice clean look.
• possibility to expand with multiple drawer units stacked on top of each other.
• Can be placed on top of printer of next to printer.

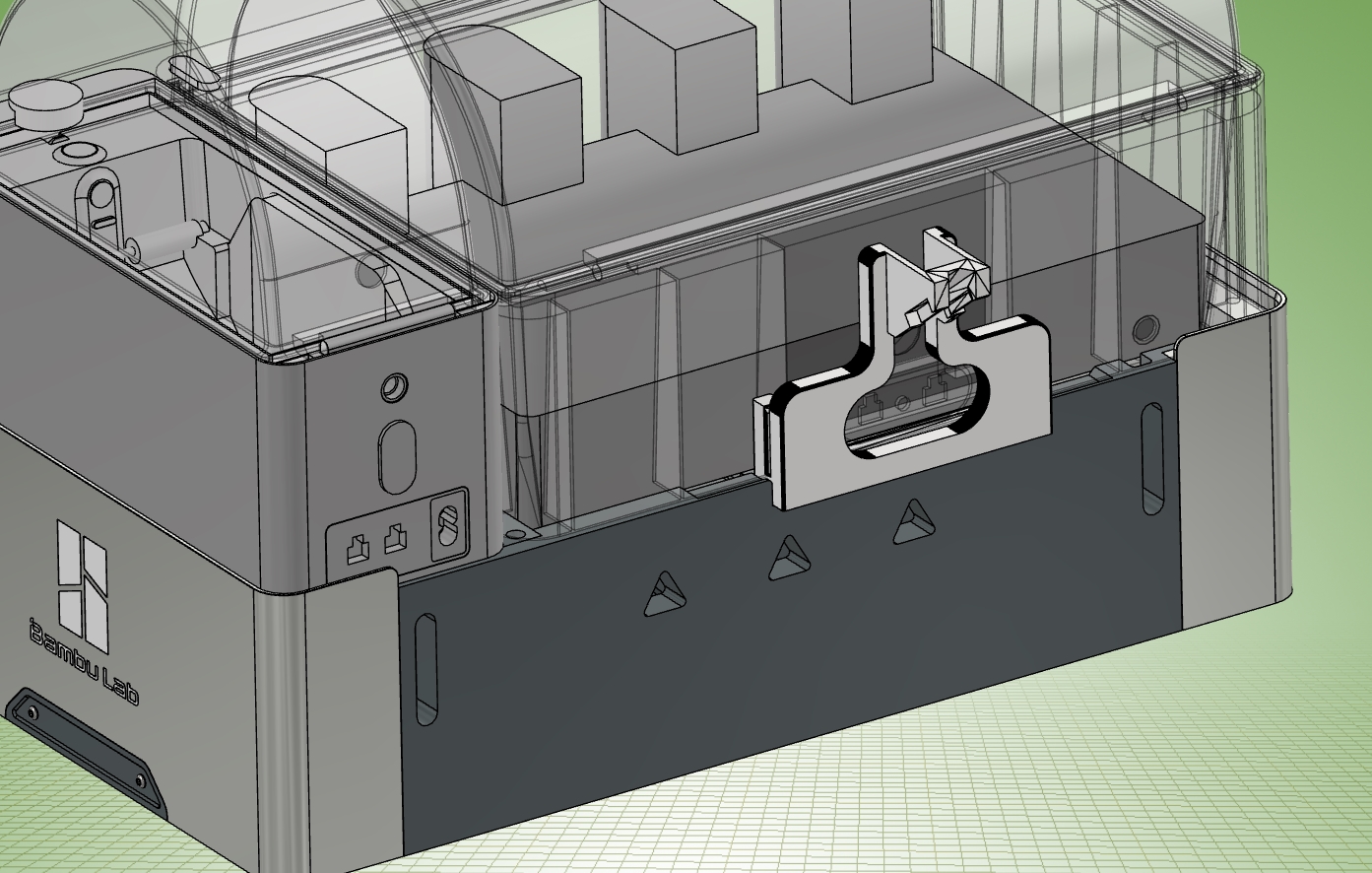

• Designed in Inventor Professional, exported at max. quality setting.
• Store tools, cutter module and parts in reach with many gridfinity holders available.

Note: Can ONLY be printed on H2S, H2D or H2C !

Parts are just too large to fit on smaller bed printers and i really dont like all those ugly split parts :)
but i will make a 2 drawer version with split parts in the near future.

Print in PETG, ASA or ABS.

The 3mf file contains large high resolution files and could take some more time to download, load and slice.

Do not use PLA when using on top of printer, it will deform.

Keep in mind that ASA or ABS will shrink a little, i had to scale it to 100,6 % when printed in Bambu Lab ASA.

When placed on top of printer, drawer can not fully open due to the handle on the glass.
A riser kit is in the print profiles to solve this issue.
You also need to replace the drawer slides with the no tilt version included.
for correct assembly you also need 4 x heat inserts and 4 x M4x20 inbus bolts.

New update feb. 16:
Mirrored AMS setup
AMS HT on left side & AMS 2 Pro on right side.

New update dec.7:
Storage kit under the module for buildplates.

Find the model here, including a handy scraper holder.
[https://makerworld.com/en/models/2086211-build-plate-holder-for-ams-2-pro-ht-storage-unit#profileId-2254785](https://makerworld.com/en/models/2086211-build-plate-holder-for-ams-2-pro-ht-storage-unit#profileId-2254785)

Front panel inlay.
personalize with your own pattern and color, included in the new print profiles.

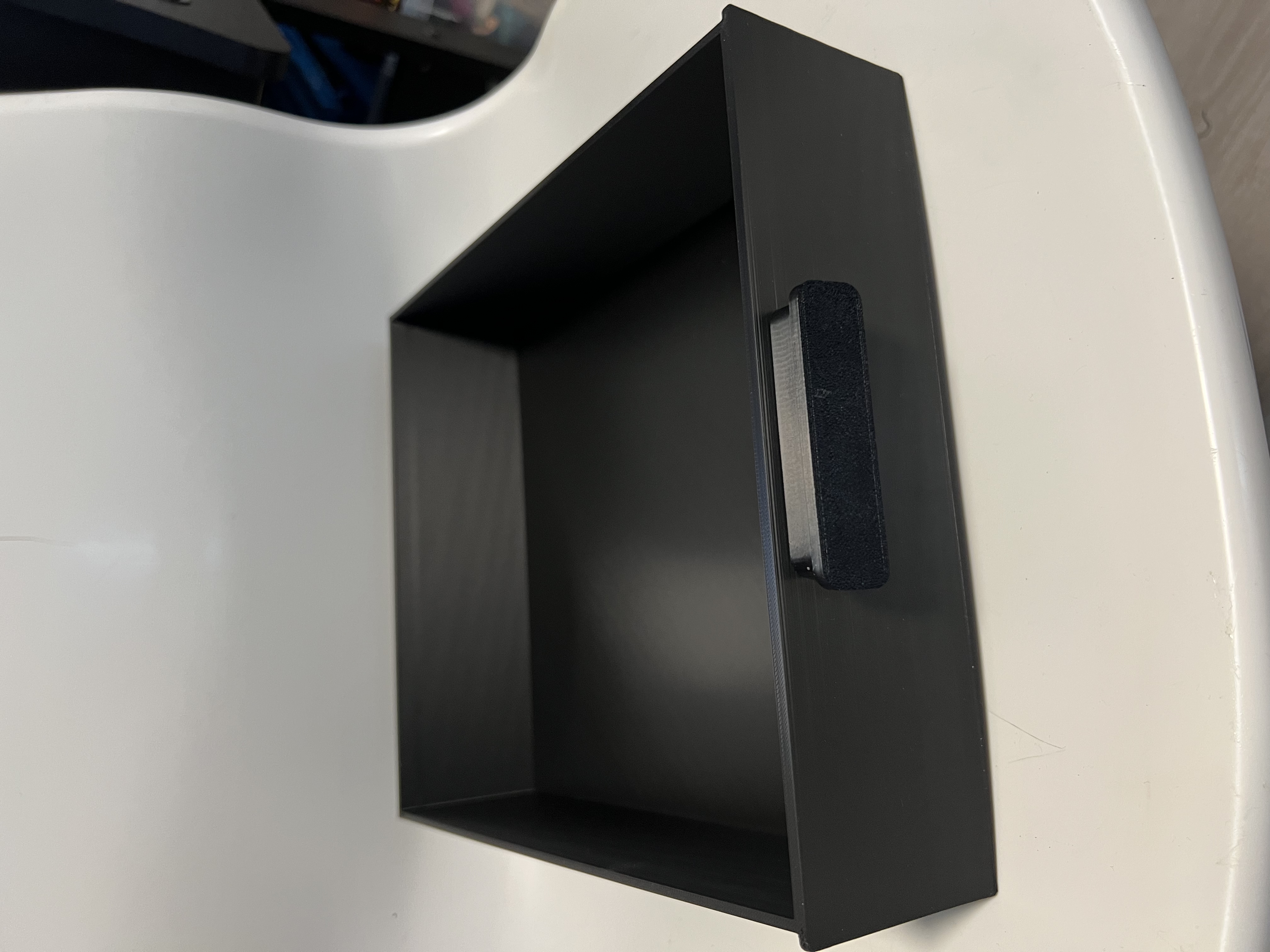

Updated drawers.

Now equipped with magnets so that the drawer always closes neatly, requires 6x3 magnets.

The sidepanels have the logo painted.

If you dont want the dual color, just remove the painting in the slicer.

The smaller version, AMS 2 Pro Stackable gridfinity Storage unit, can be found here:
[https://makerworld.com/en/models/1966291-ams-2-pro-stackable-gridfinity-storage-unit#profileId-2113902](https://makerworld.com/en/models/1966291-ams-2-pro-stackable-gridfinity-storage-unit#profileId-2113902)

Want your hotends and nozzles nicely sorted? try this:
[https://makerworld.com/en/models/2110207-gridfinity-h2-p2-large-hotend-holder#profileId-2282873](https://makerworld.com/en/models/2110207-gridfinity-h2-p2-large-hotend-holder#profileId-2282873)

Hardware required:

Use M3x10 bolts 16pc., 2 countersunk for the drawer handle.

M4x20 4pc. for the riser
