Descrição

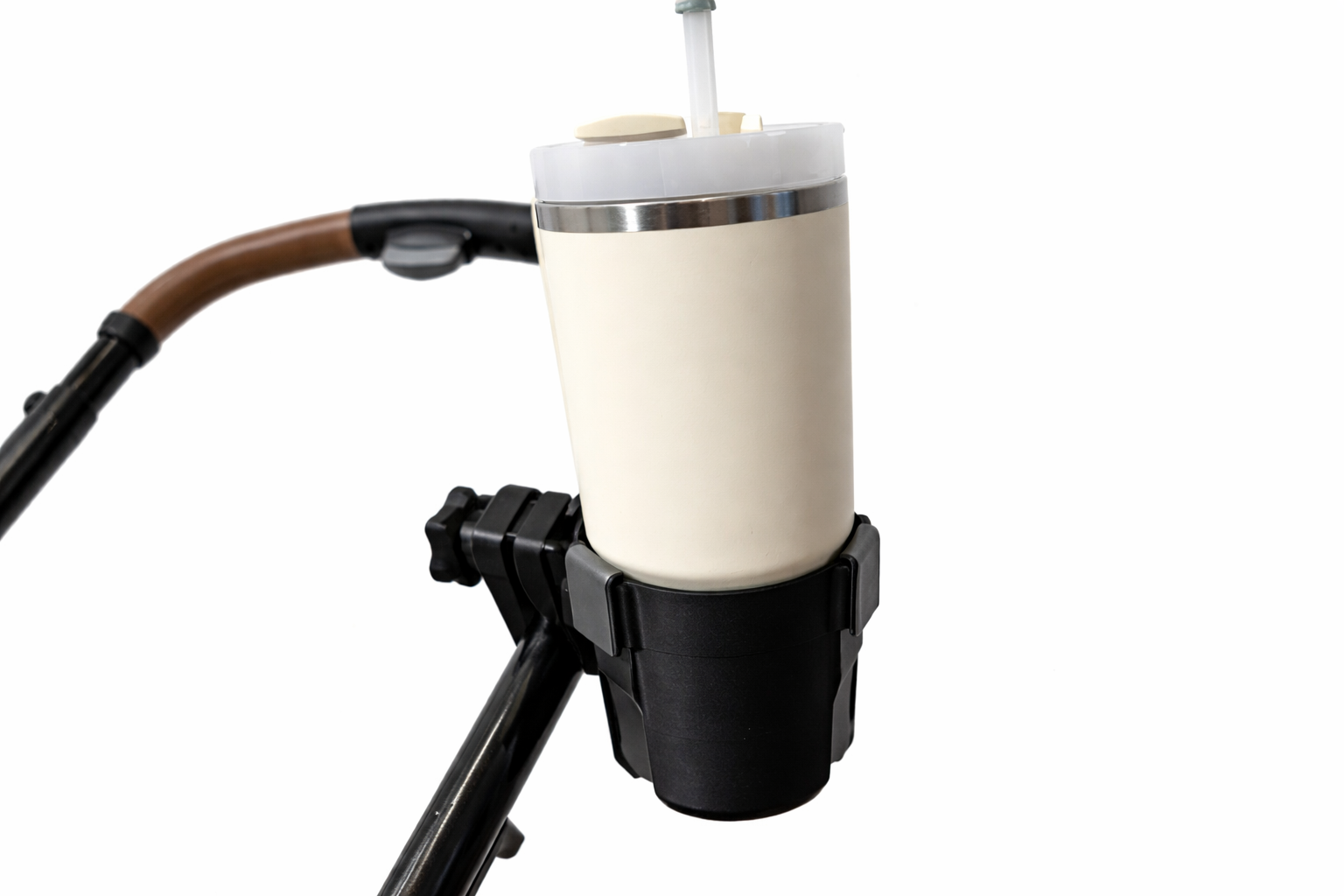

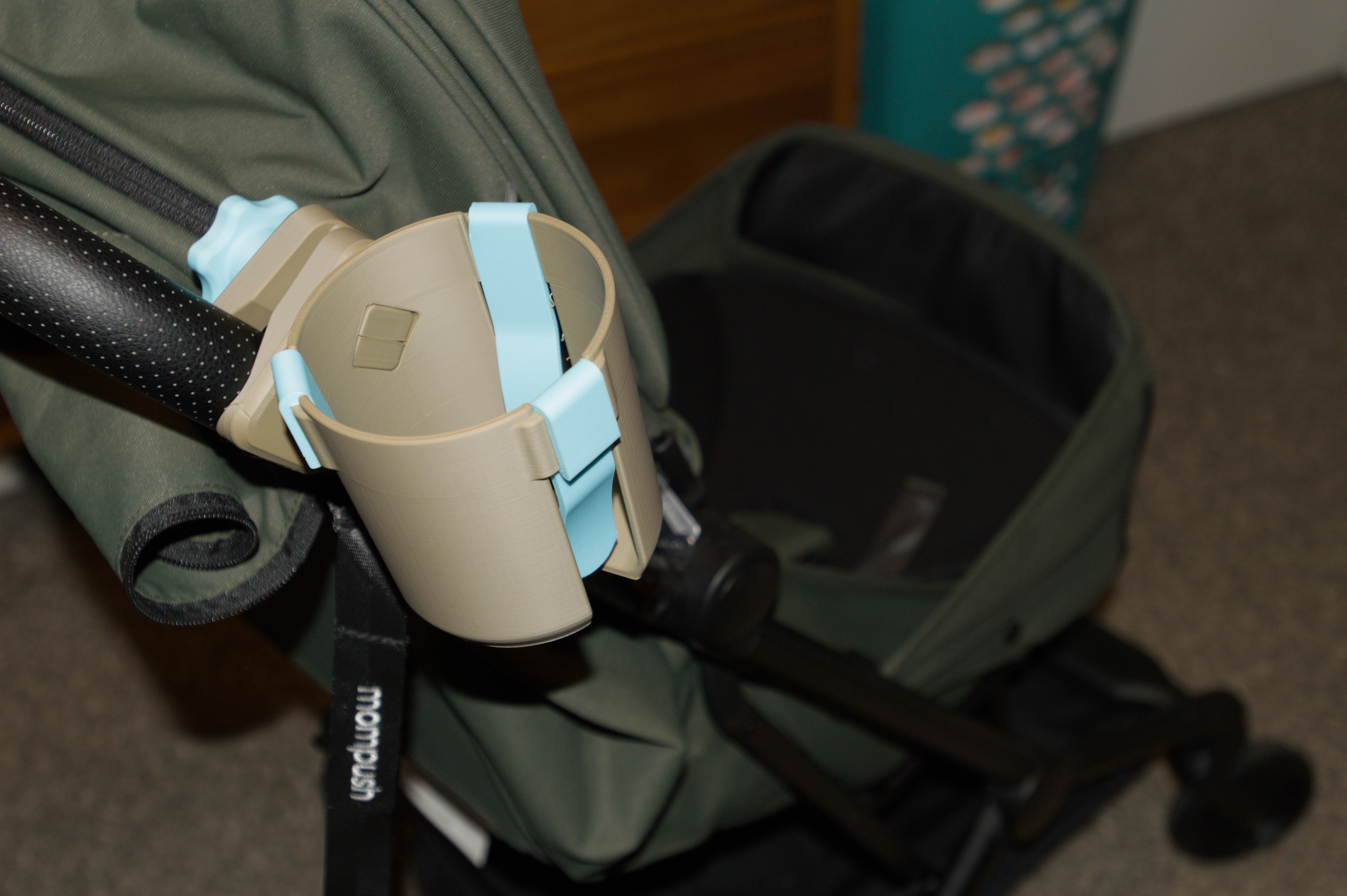

This multifunctional cup holder is designed for versatility, fitting strollers, wheelchairs, walkers, bikes, scooters, trolleys, golf carts, treadmills, and more. It accommodates bottles up to 85mm (3.4 in) in diameter, including Stanley branded cups, baby bottles, water bottles, and coffee tumblers. The adjustable clip 12-45mm (0.55–1.7 in) fits various bar sizes. This design also uses a split bolt design which has greater strength than a complete bolt printed upright at 100% infill.

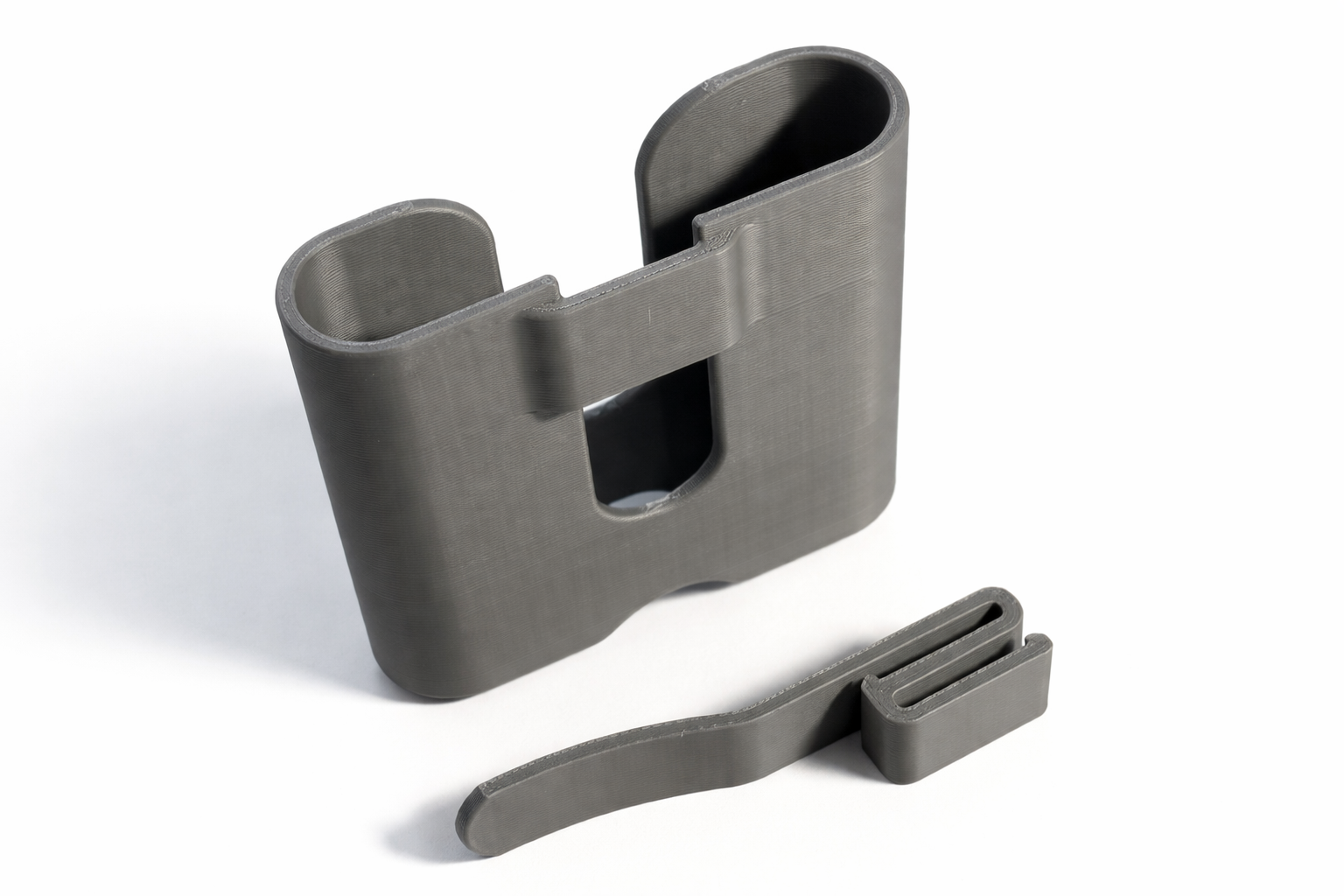

A phone holder attachment and bag hook are also available in the print profiles.
Phone holder slot dimensions [87mm (3.43in) x 18mm (0.71in) x 97mm (3.82in) deep]
VERSION 2 UPDATE
- This new cup holder design incorporates separate and replaceable gripping arms that are stronger than the original version. This mitigates breaking issues with the previous cup version.
- Reduced cup and cell phone holder thickness by a small amount to decrease overall material usage and print time.

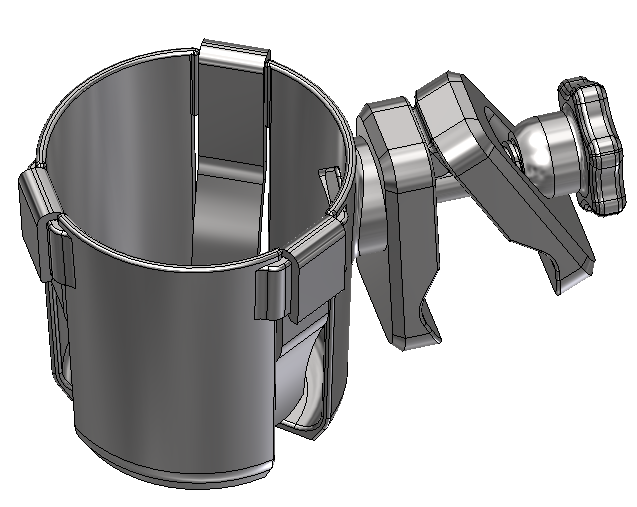

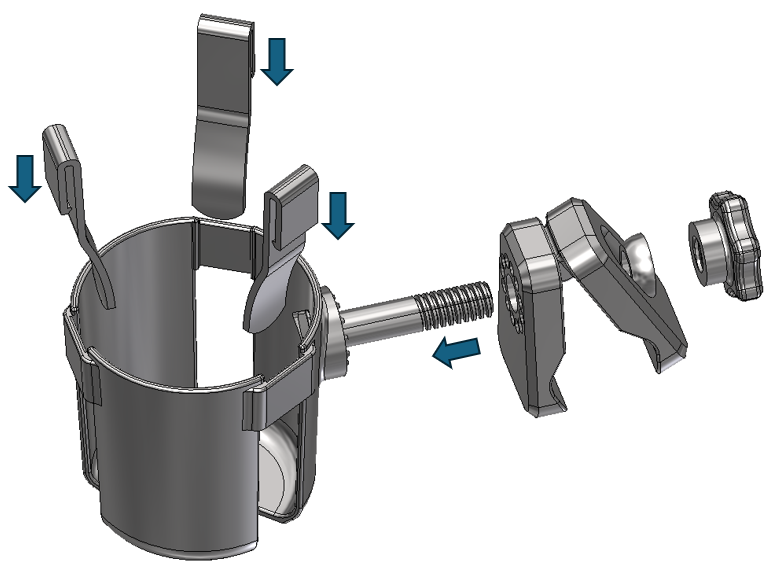

CUP ASSEMBLY

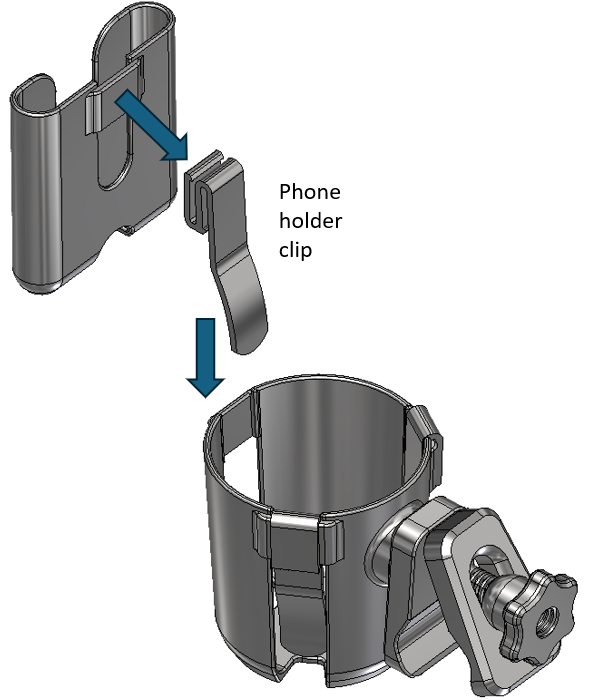

CUP W/ PHONE HOLDER ASSEMBLY

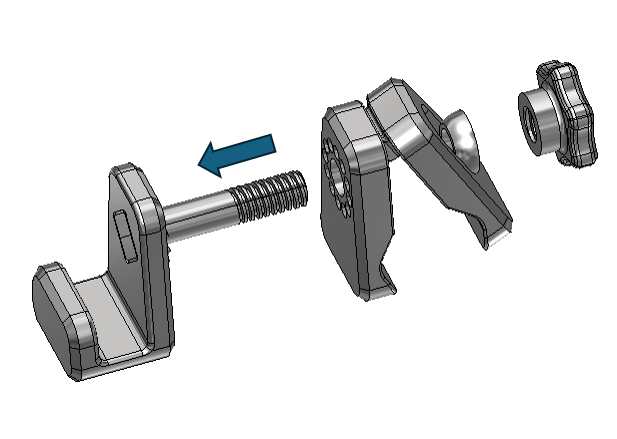

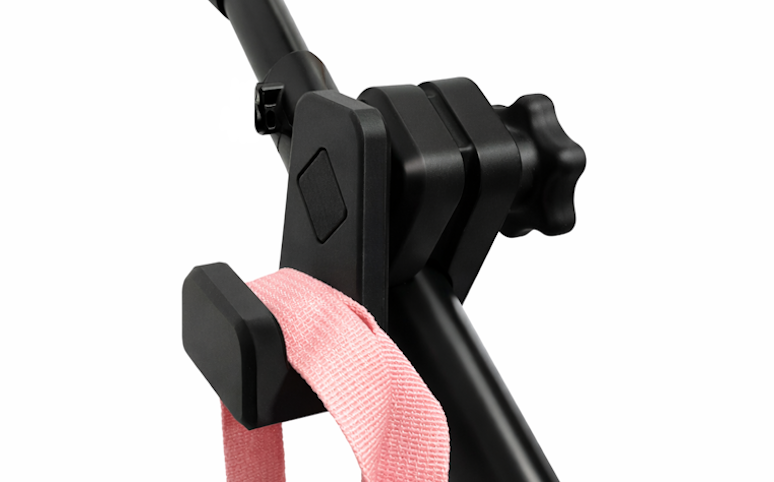

BAG HOOK ASSEMBLY
