Low Profile P2S Riser with Diffused LED

The dimensions are slightly different from the P1S/X1C frame, but overall the outer design is the same,

This riser adds 19.5mm to the top glass height. This does help some with the “filament pull out error” as the PTFE tubes is not bend by the glass.

This riser design allows for a LED strip to be installed with a 3D printed diffuser for a softer light.

Benefits of this design:

Soft inner corners allows the LED strip to follow along without any sharp bends. And no soldering is needed.
The riser is designed so you can install 4 diffusers so the LED strip does not shine too hard.
The design of the riser does not need any support for printing. (no additional clean-up is needed)
All parts snap perfectly together and does not require screws or glue.
All 4 main parts are labeled with numbers to ensure an easy assembly.
The riser only needs assembly.

When installing the diffusers, make sure you assemble them in the correct orientation.

The two long cutouts on the diffusers should be on the front of the riser:

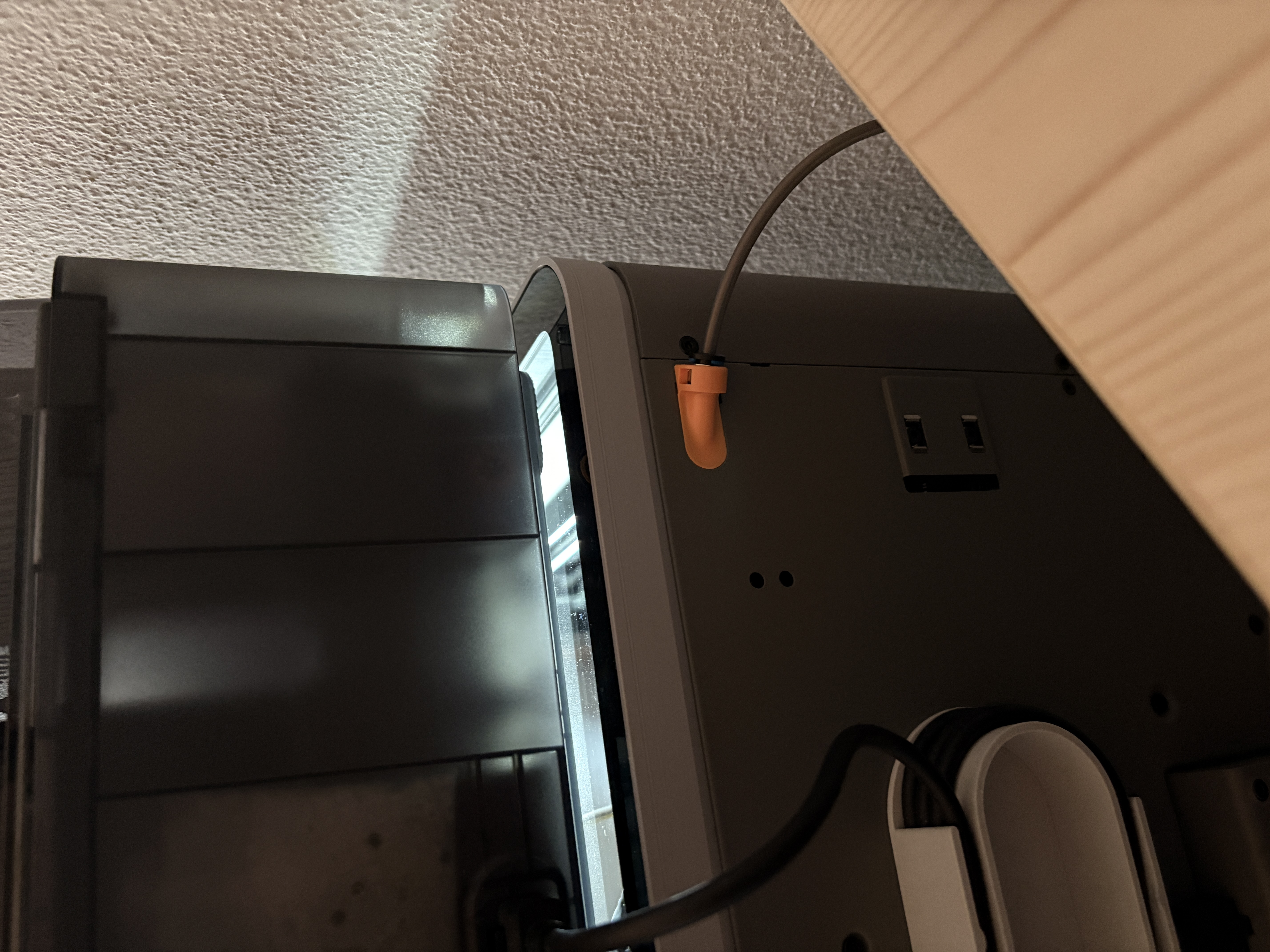

Unfortunately, the P2S doesn’t have a USB power port like the P1S. Instead, there’s an opening on the back that lets you route wires through.

This design accommodates an LED strip up to 9 mm in width (most standard LED strips are 8 mm).
