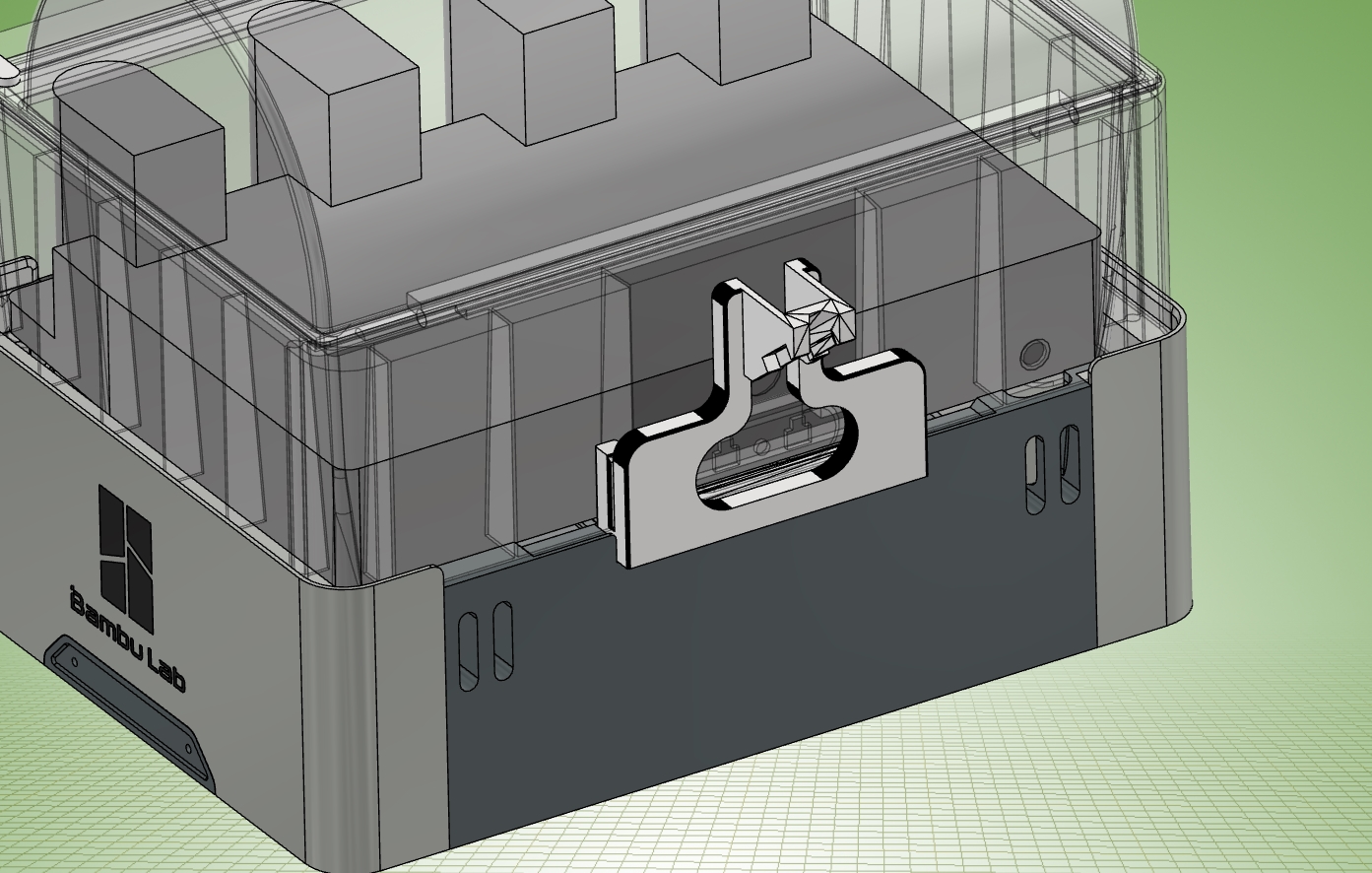

AMS 2 Pro Stackable Storage Gridfinity drawer unit

All printfiles updated to V2 version

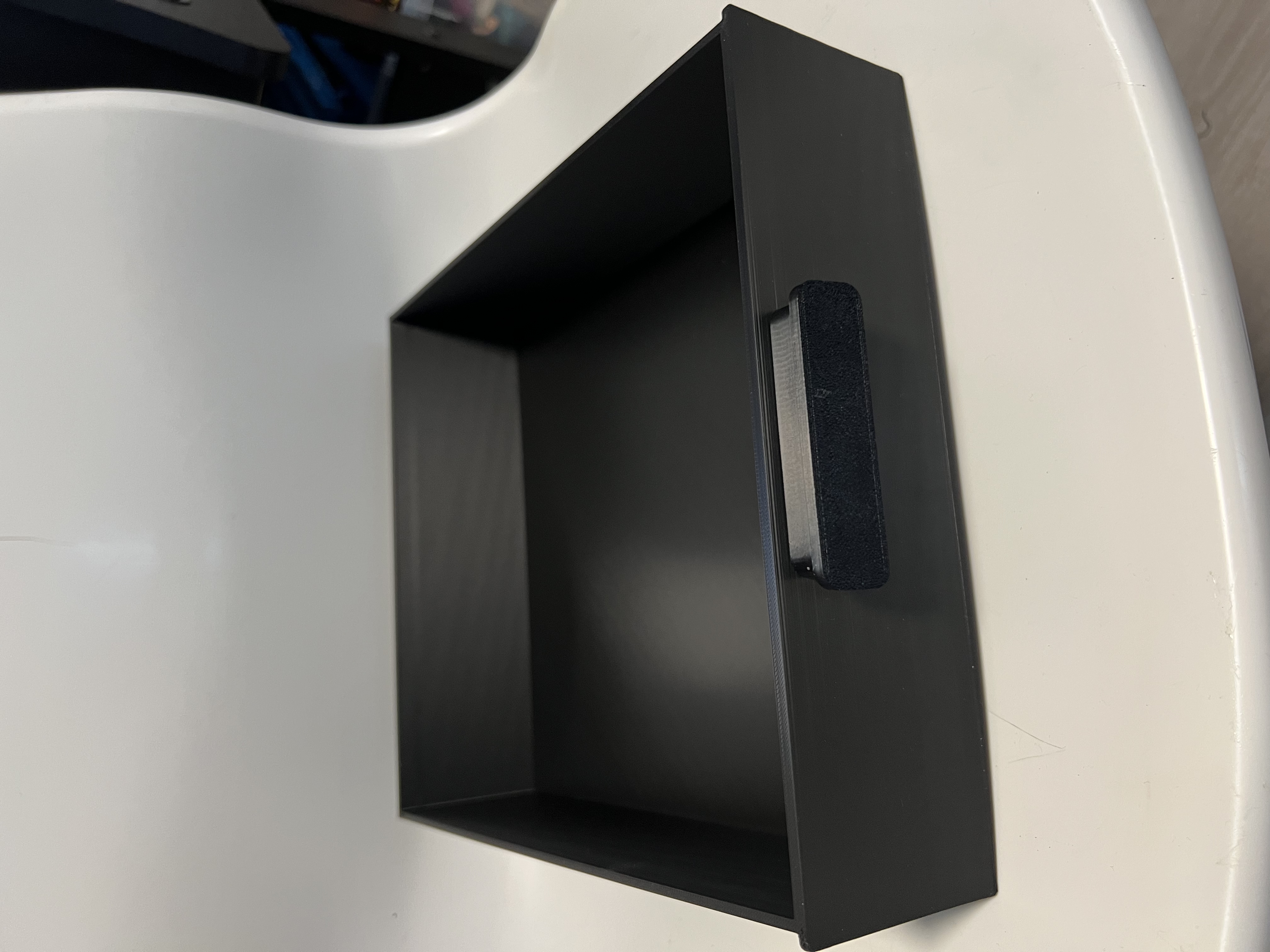

• Riser unit for the AMS Pro 2 with large drawer.
• Gridfinity compatible 5x6 grid.
• Designed to match the look of the H2 series.
• No visible overlaps from split parts, large one-piece parts for a nice clean look.
• possibility to expand with multiple drawer units stacked on top of each other.
• AMS HT compatible, see below
• Designed in Autodesk Inventor Professional, exported to high quality STL files.
• Store tools, cutter module and parts in reach with many gridfinity holders available.
• Magnetic drawers, alway nicely closed ( V2 )
• Sideholder plates, holds all modules together ( V2 )
• Possibility for scraper holder ( V2 )
• Option for colored inlay on front panel ( V2 )
• Build plate holder module, can hold 7 plates

For AMS 1 use this model:
[https://makerworld.com/en/models/2003773-ams-stackable-gridfinity-storage-unit#profileId-2157751](https://makerworld.com/en/models/2003773-ams-stackable-gridfinity-storage-unit#profileId-2157751)


Best printed on H2 series, also possible on the smaller 256mm bed printers but not A1 mini.
When printed on the smaller bed it has a slightly smaller drawer and 5x5 grid.

Print on H2S, H2D, H2C:

Print on X1C, P1S, P2S, A1..

V2 Version

Insert magnets here

Expansion drawer unit dowload here:

[https://makerworld.com/en/models/1970110-ams-2-pro-stackable-gridfinity-expansion#profileId-2118186](https://makerworld.com/en/models/1970110-ams-2-pro-stackable-gridfinity-expansion#profileId-2118186)

Build Plate Module included in printfiles

can hold 7 256mm buildplates for X1, P1, P2, A1 series.

example:

AMS HT adapterplates.

[https://makerworld.com/en/models/1971755-ams-ht-stackable-gridfinity-storage-unit#profileId-2120097](https://makerworld.com/en/models/1971755-ams-ht-stackable-gridfinity-storage-unit#profileId-2120097)

With these adapters you can setup 1, 2 or 3 AMS HT units on the drawer system.
Position Left, right or middle and place a bin on the empty space.
Ideal for those who have the AMS on top of the printer and want some organised storage for the AMS HT.

Want your hotends and nozzles nicely sorted? try this:
[https://makerworld.com/en/models/2110207-gridfinity-h2-p2-large-hotend-holder#profileId-2282873](https://makerworld.com/en/models/2110207-gridfinity-h2-p2-large-hotend-holder#profileId-2282873)

Also released :

• AMS 2 Pro + AMS HT version with XL drawer, can only be printed on H2 series for now.
  Larger drawer and holds the AMS 2 Pro and AMS HT in one unit.
  [https://makerworld.com/en/models/1995911-ams-2-pro-ht-stackable-gridfinity-xl-storage-unit#profileId-2148463](https://makerworld.com/en/models/1995911-ams-2-pro-ht-stackable-gridfinity-xl-storage-unit#profileId-2148463)
•
• First gen AMS version

Print profile is set for PETG printing, but choose a filament you prefer.
I also printed in Bambu Lab ABS no issues or any warping.
I would suggest to print it in PETG, ASA or ABS.
Do not put on top of printer or use heater when printed in PLA.
Just make sure you have a nice clean build plate for good adhesion.

Choose side panels with logo, painted or not, or clean.

The 2 color side panels and pattern front are by default in the profile.
Clean sidepanels are a separate print profile, choose your combination.

Or just cut a sticker with the logo on the clean sidepanels.

[https://makerworld.com/en/models/1995850-bambu-logo-for-ams-2-pro-ht-stackable-storage#profileId-2148373](https://makerworld.com/en/models/1995850-bambu-logo-for-ams-2-pro-ht-stackable-storage#profileId-2148373)

Hardware required:

Use M3x10 bolts 16pc., 2 countersunk for the drawer handle.

4 magnets , 6x3

superglue for magnets and tpu pads

Note: NOT compatible with the older first gen AMS.
