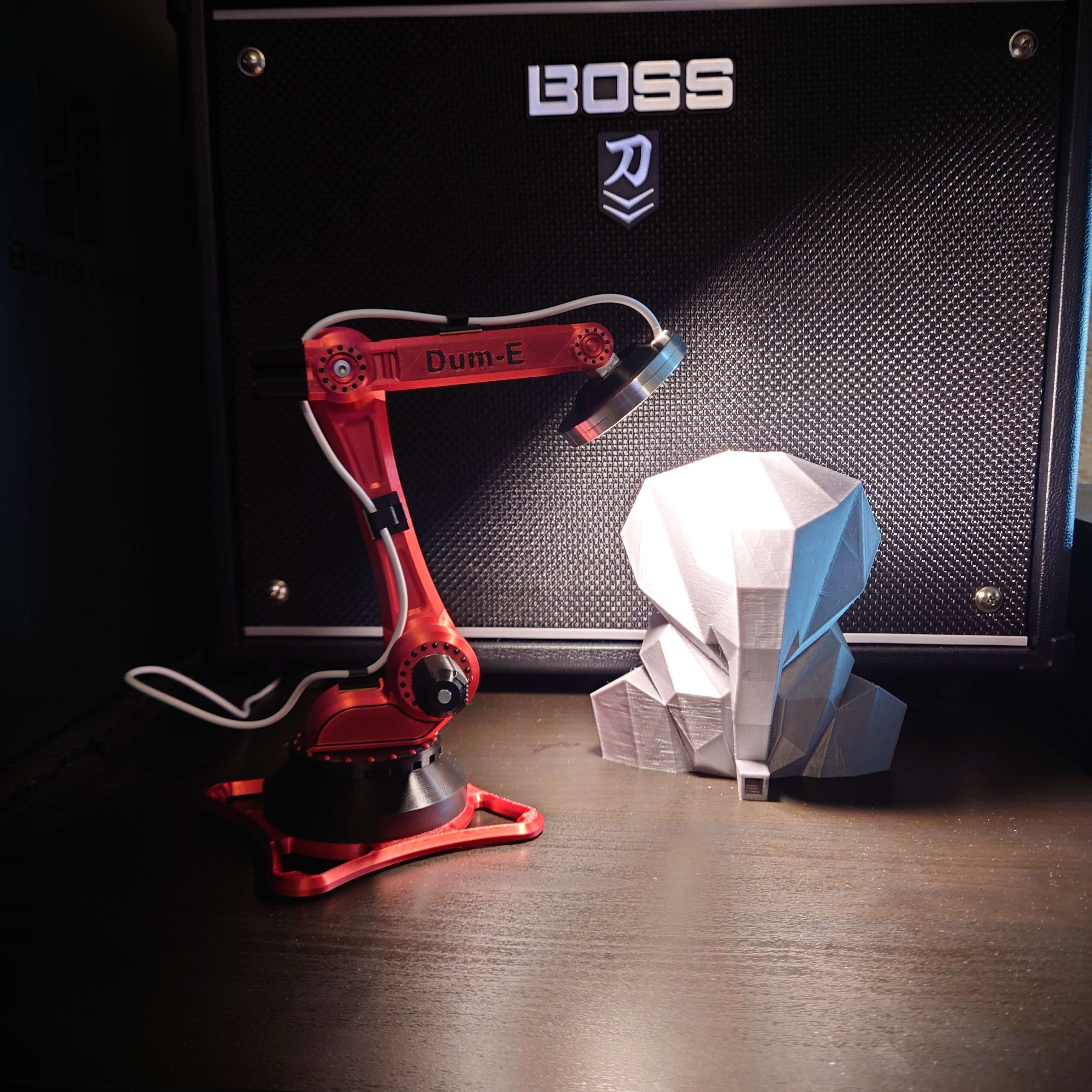

Dum-E optional attachments.

Here is a collection of handy attachments for the Dum-E desk helper. All are simple to connect to the wrist, requiring only a single M3x10mm countersunk screw to secure. I aim to publish more adapters and attachments as time goes on. Let me know if there's anything in particular you would like to see made available.

Included are the following

Phone stand

Business card holder

Elastic band powered gripper

Logitech c920 Webcam clamp

Lamp attachment

Required for assembly

Phone stand

Print stand parts 1x Backing and Bottom. Recommend 20-30% infill for both. No supports.

Screws required: 2 M3x10mm countersunk screws.

Business card holder

Print card holder parts 1x left arm, right arm, backing and base. Recommend 20-30% infill for each. No supports.

Screws required:

2x M2.5x8mm countersunk screws.

2x M3x10mm countersunk screws.

Webcam mount for Logitech C920

Print webcam mount parts A and B. Recommend 20-30% infill for both. No supports.

Screws required:

2x M3x10mm countersunk screws.

Gripper attachment

Parts to print:

Gripper left x 1

Gripper right x 1

Gripper frame x 1

Gripper connecting arm x 8

Recommend 30% infill, no supports.

Screws required:

16x M3x8mm countersunk screws.

1x small elastic band (if you want it to function) This slots into groves on the sides of the arms.

Desk Lamp Attachment

Parts to print:

1xLamp attachment

1xBambulab LED lamp Kit 001

Optional 2x M3x5mm screws

Print at 15-20% infill

Coming soon:

Stationary holder.
Helping hands for electronics soldering.
