Mantis repo

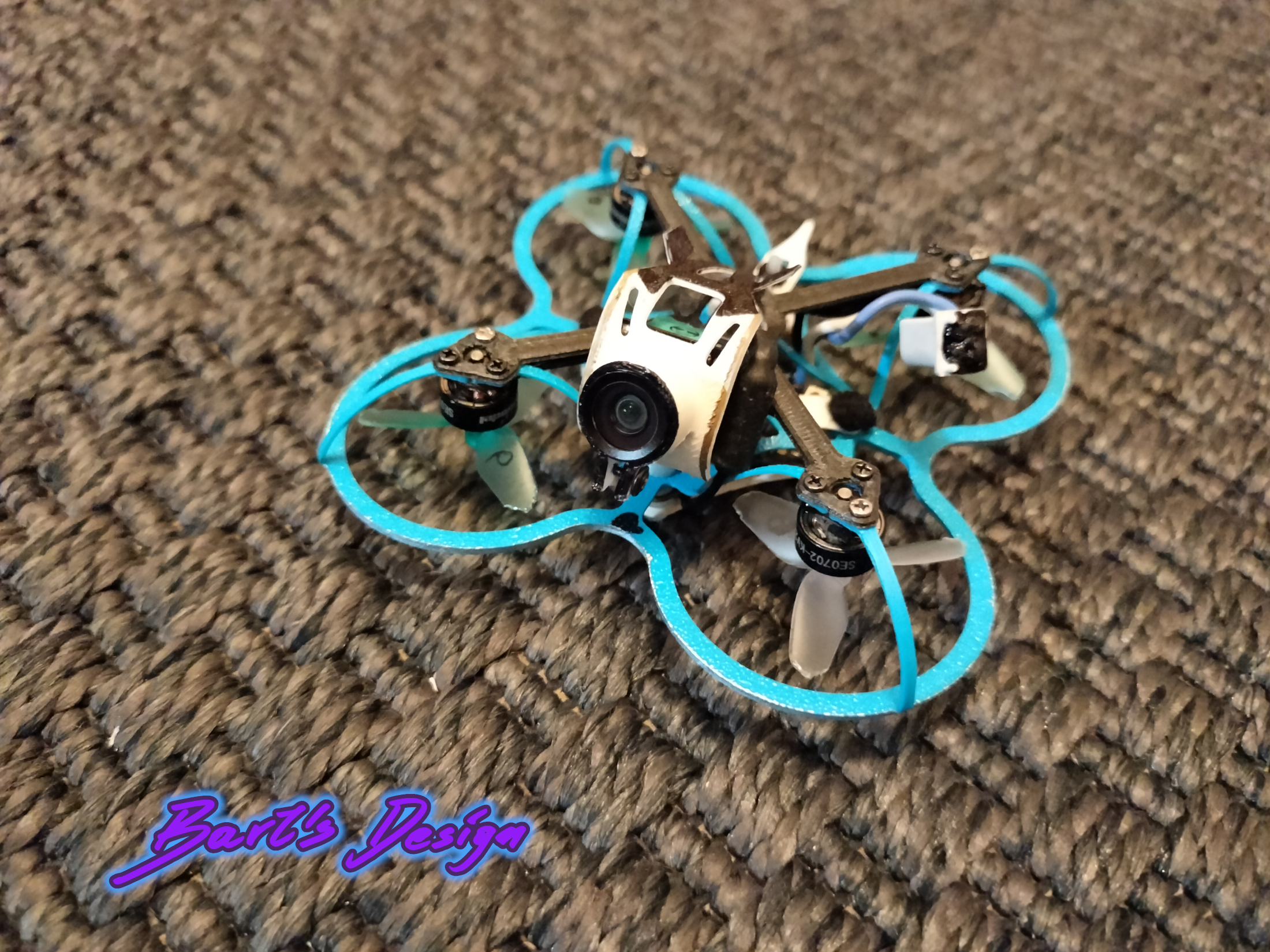

"Mantis" is 1,2" printable freestyle/racing 1S tinywhoop

You can find RC configs, FC CLI and editable FreeCAD models in repo:

[https://github.com/bartoszp1992/mantisDrone](https://github.com/bartoszp1992/mantisDrone)

3D printing

• frame : PA12
• canopy : PA12
• FC cover : PA12
• motor base : PC-CF / PETG-CF
• tail support : TPU
• sleeve : any

BOM

mechanical

• motor base : printed mantis motor base or NEWBEEDRONE Cockroach V3 Carbon Fiber Motor Base - optional part, but recommended
• frame : printed mantis frame or NEWBEEDRONE Cockroach V3 65mm Ultra Light Frame PC/PP- order at least 1 spare
• propellers : HQ 31mm Ultralight 3-Blade Propellers (1.0mm Shaft)
• PA screws (only for printed frame) : 4x PA M2x15 screws
• PA nuts (only for printed frame)

electronic

• FC : BETAFPV Matrix 1S Brushless Flight Controller (5IN1)
• motors : HAPPYMODEL SE0702 KV28000- make sure to order at least 1 spare
• camera : CADDXFPV ant lite / BETAFPV C03
• batteries : BETAFPV LAVA 1S 260mAh 3.8V HV 80C BT2.0 (x5) - at least one set
• charger : BETAFPV 6 Ports 1S Battery Charger (optionally with adapter)
• cable : USB-C cable for communication

control

• controller : Jumper Bumblebee, or any other with ELRS and edgeTX
• batteries : 2x 18650 any branded Li-Ion cells for controller supply
• goggle : BETAFPV VR03 or any other analog goggles
• memory : 32G SDcard if you want to record your flights

software

• FC config : betaflight configurator
• radio config : ExpressLRS Configurator
