Gridfinity Rugged Storage Boxes V2

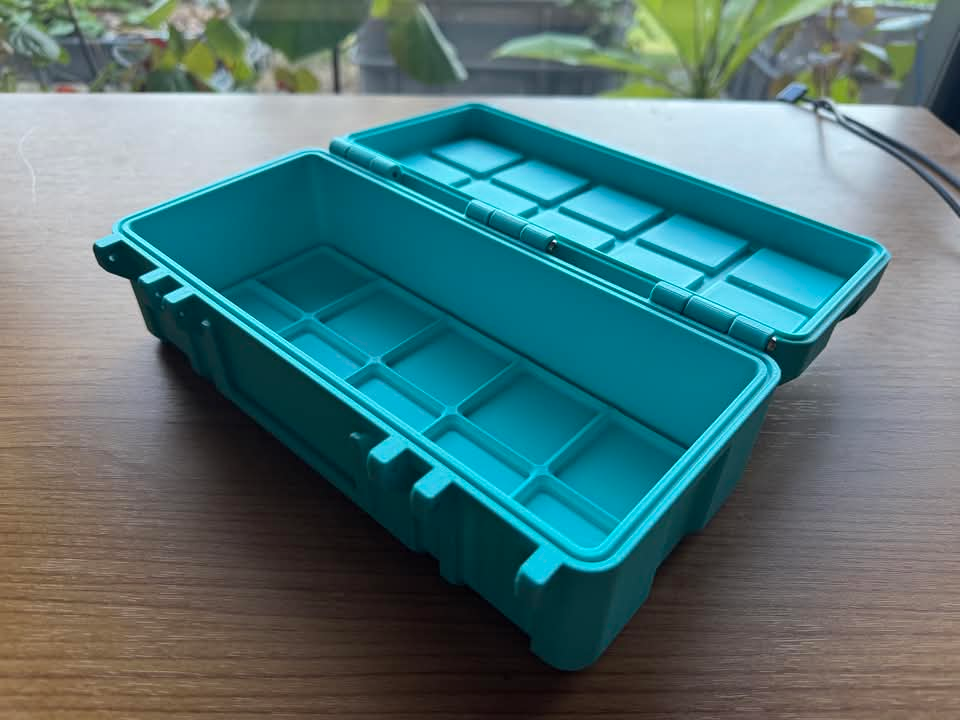

This project is a remix of the OpenSCAD-based Gridfinity rugged storage boxes linked here from Printables. The original model from Github is open-source (MIT license), and provides the framework to build custom boxes with many configuration options. The Printables project provides some of those configurations, along with some assembly instructions. This project here does not use any of those STL's, rather these models here are completely built and configured from scratch from the OpenSCAD framework.

This project here is a V2 of my original boxes (original was taken down suddenly by MW with little explanation) where I created a collection of various configurations of Rugged Boxes that I've found useful, and others in the community have asked me to build and publish. This is a re-publish of those, with some optimizations I've made over time.

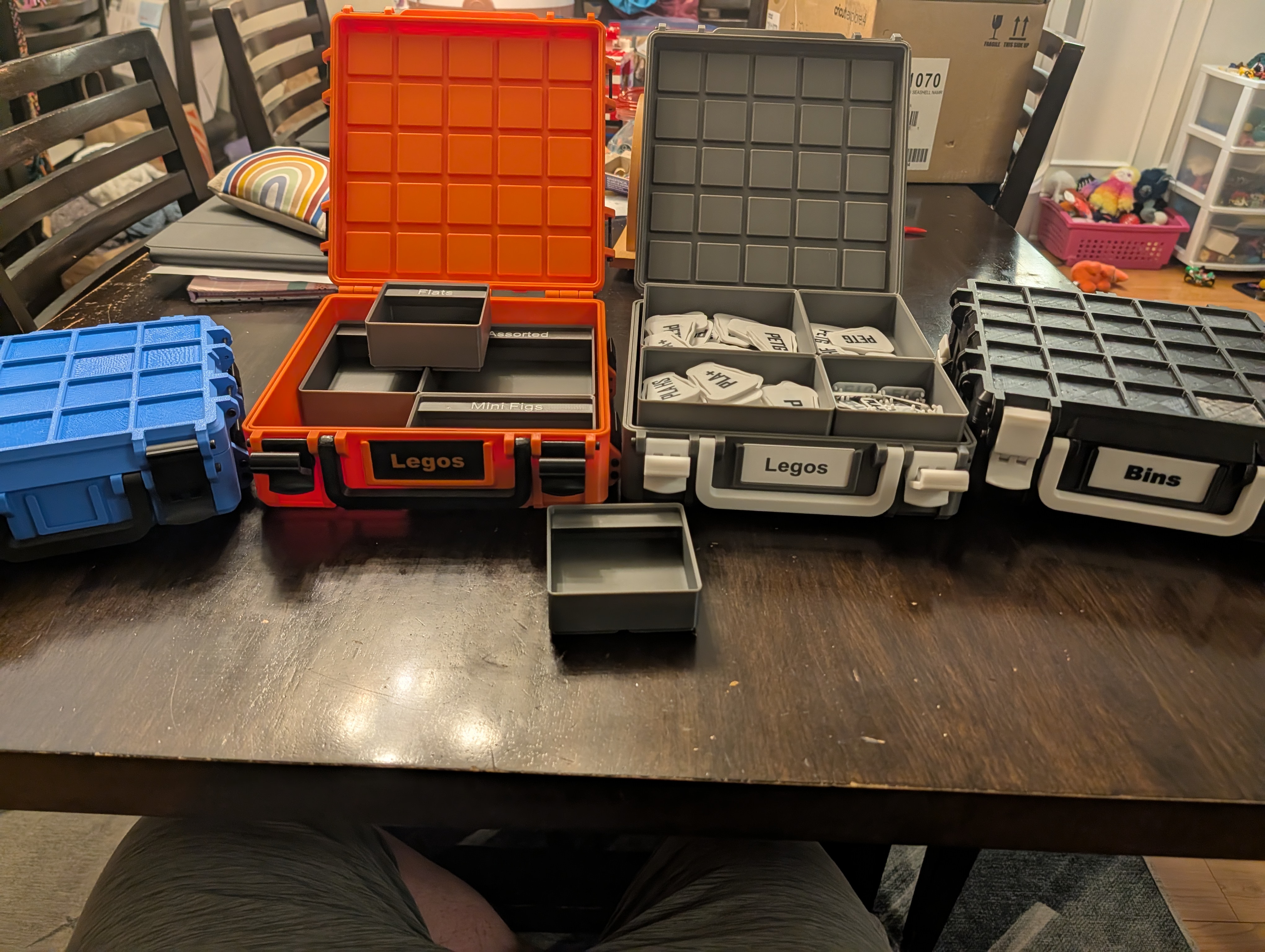

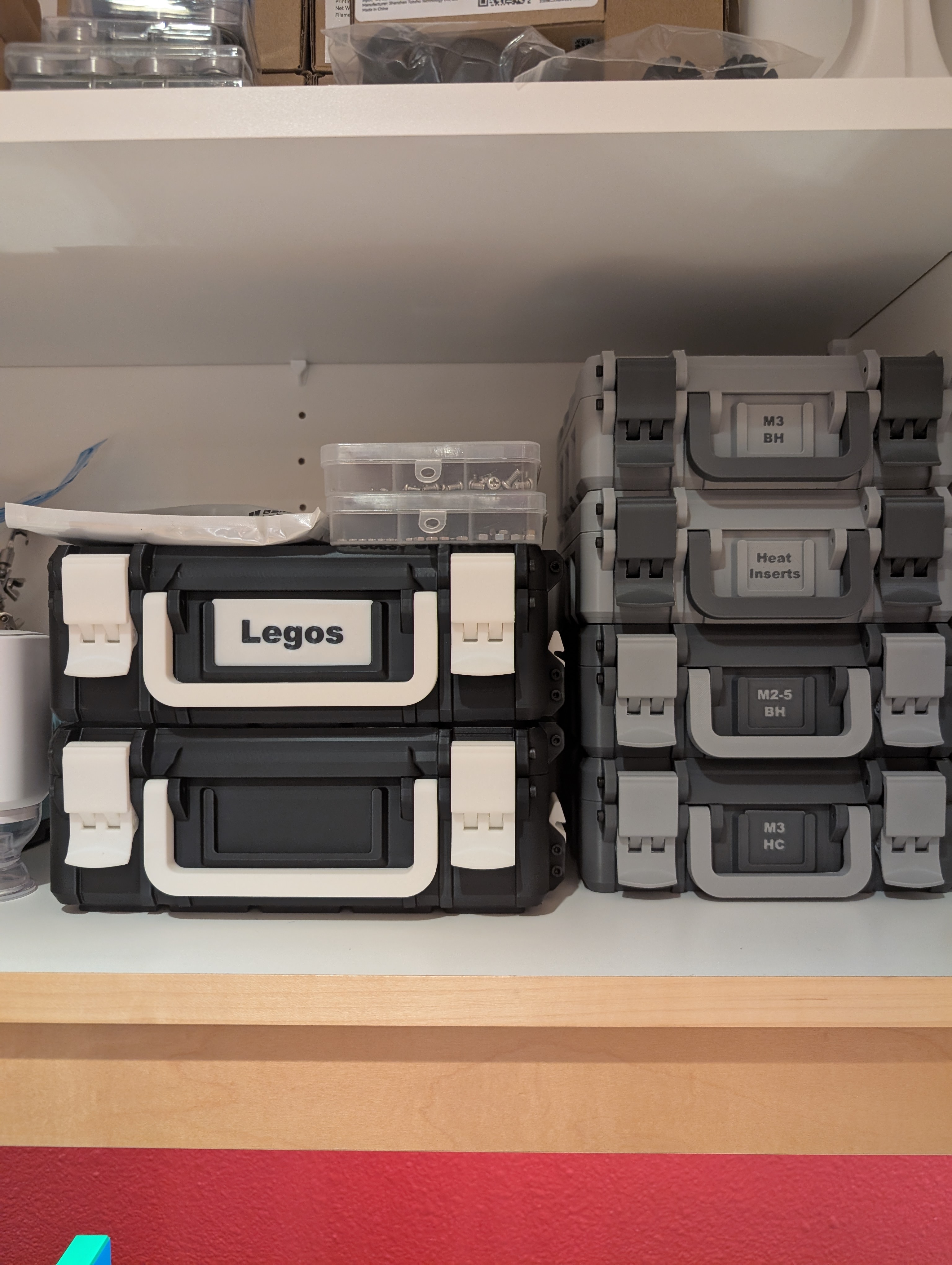

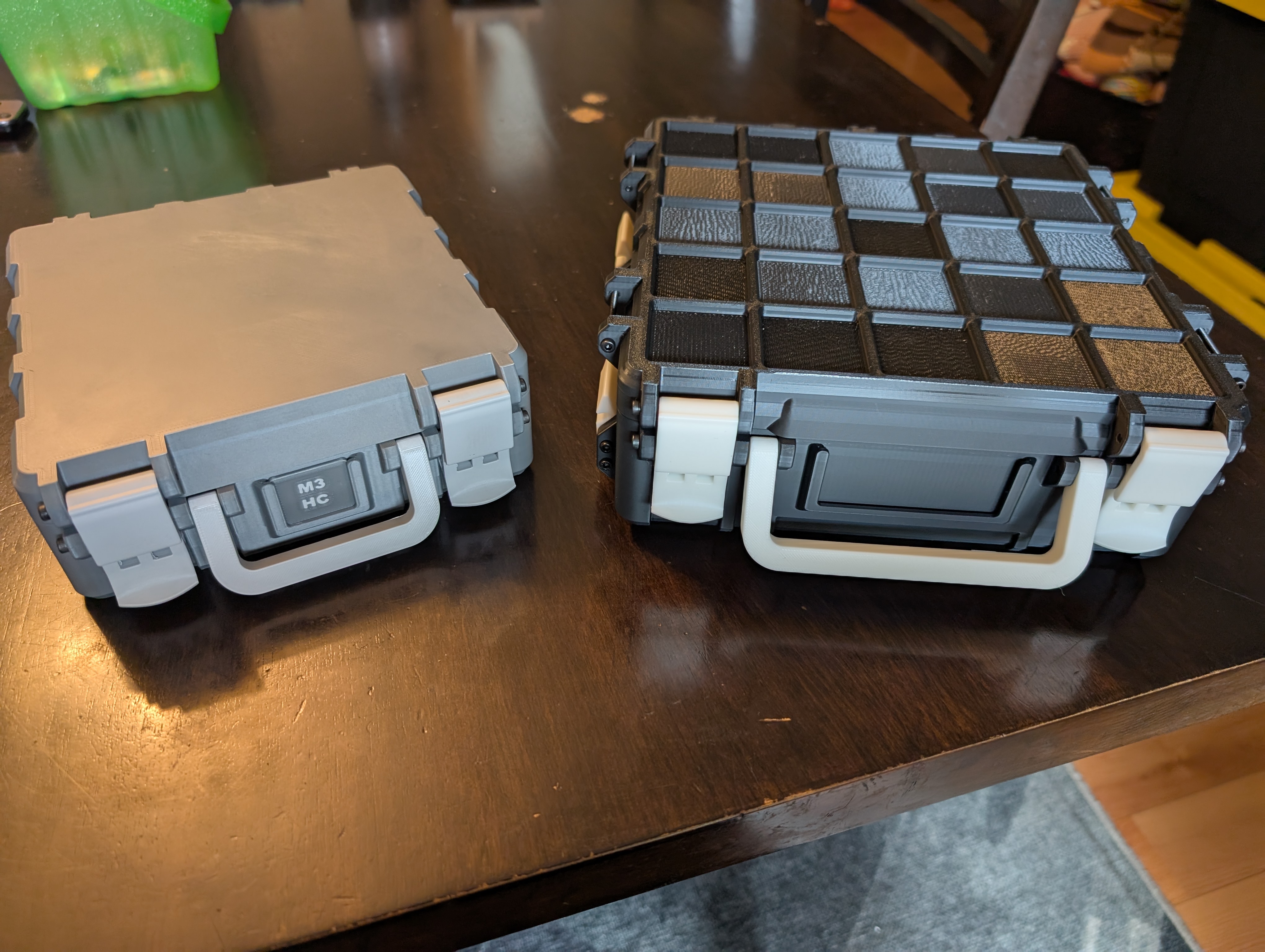

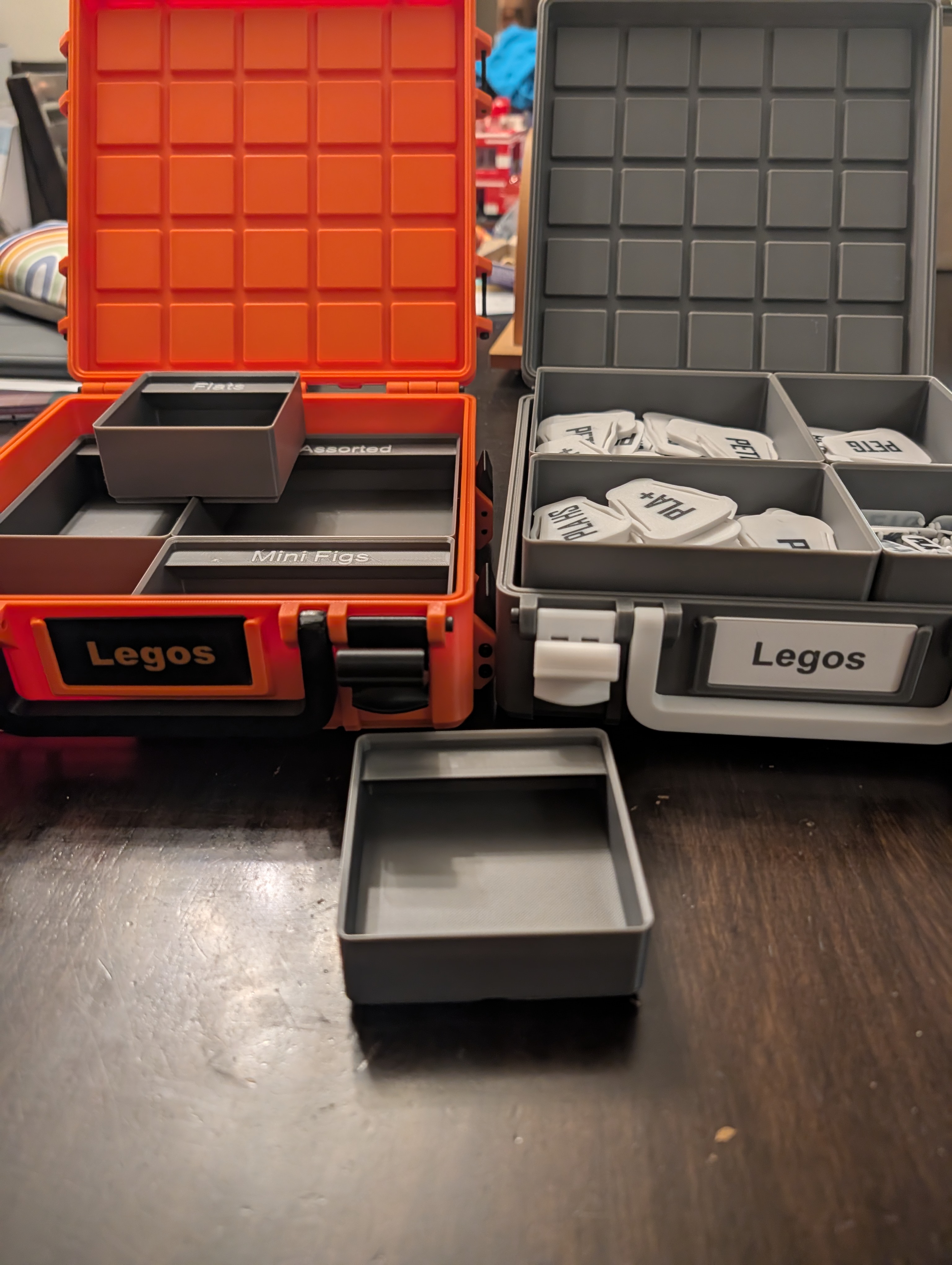

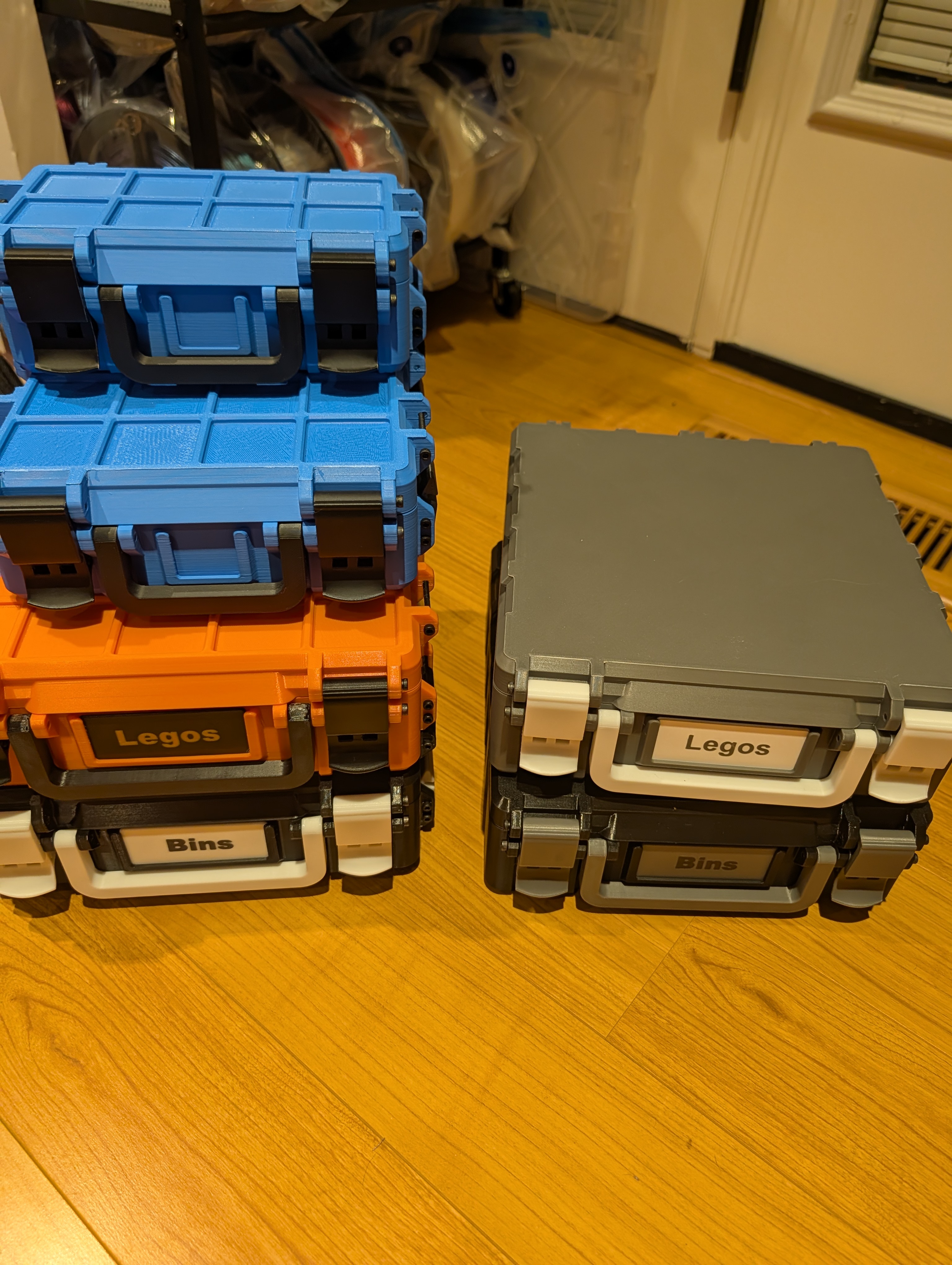

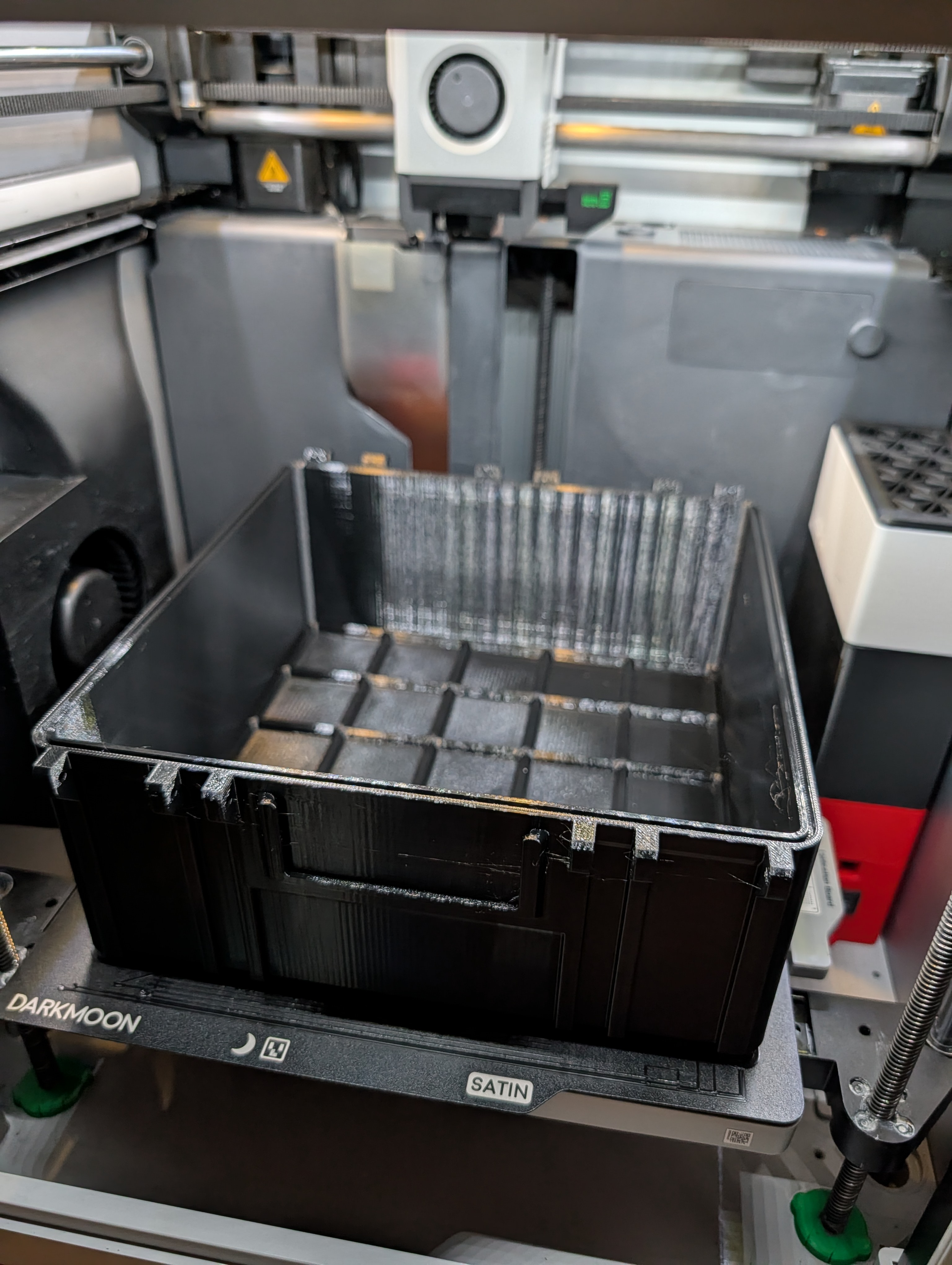

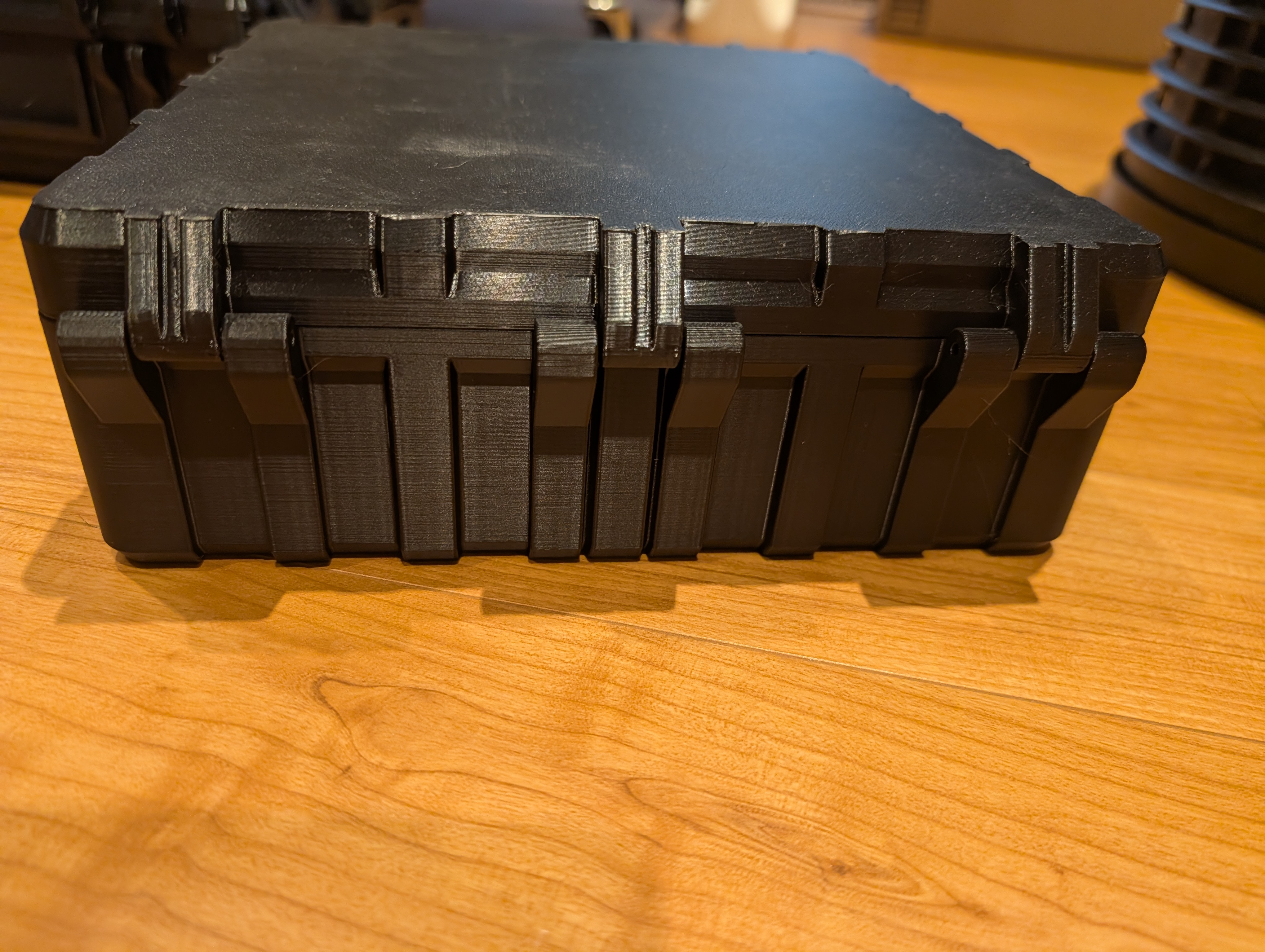

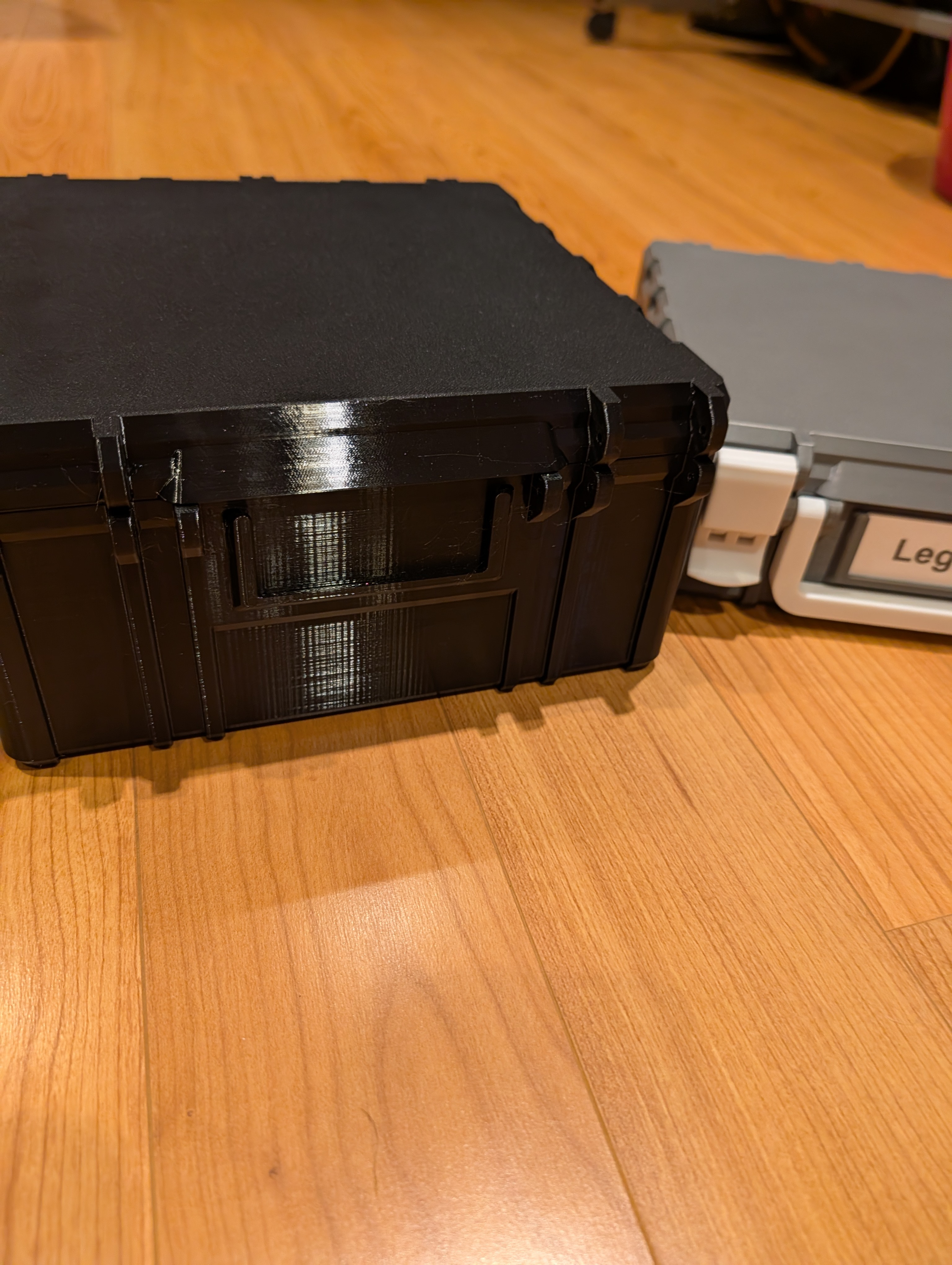

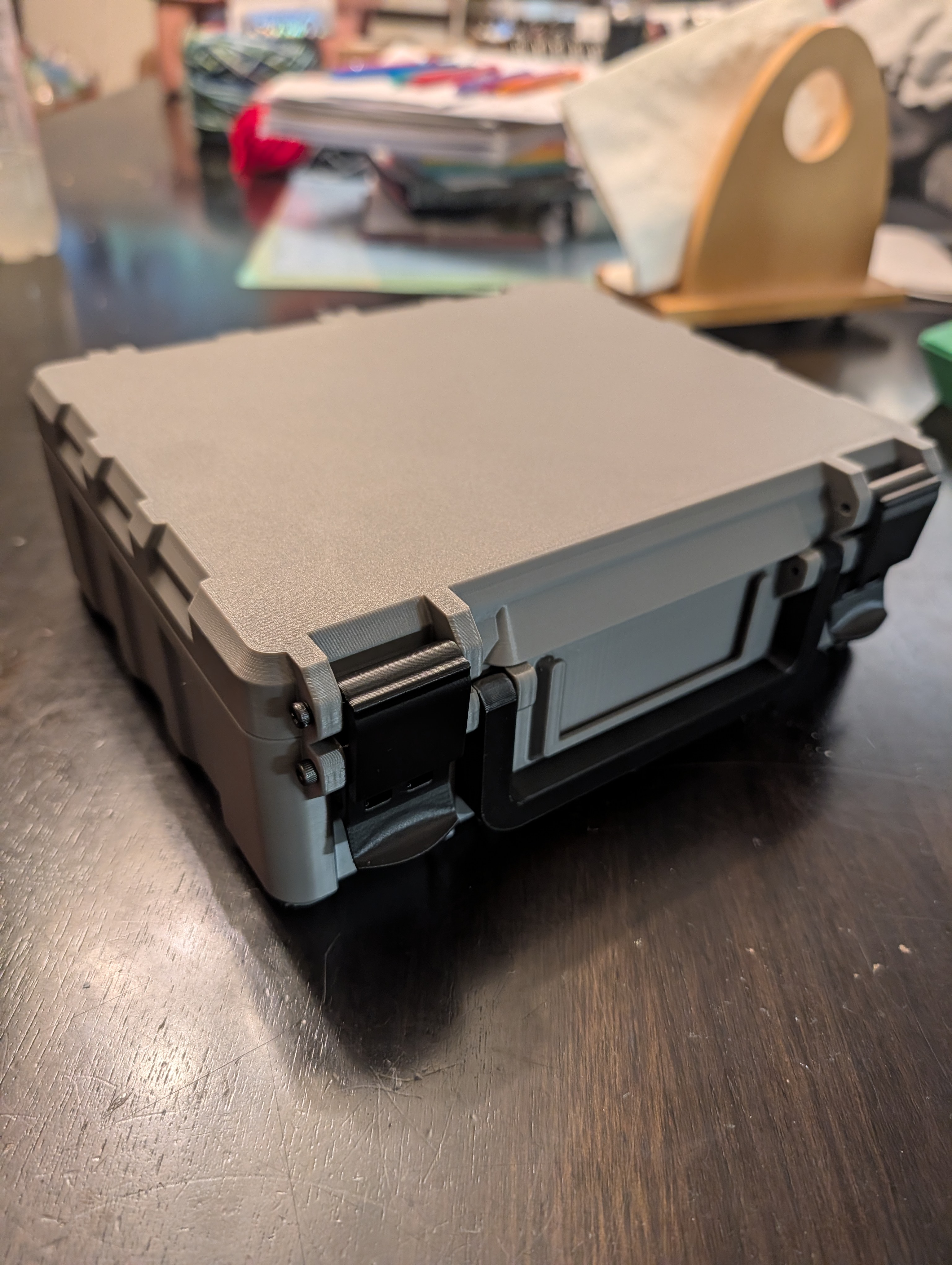

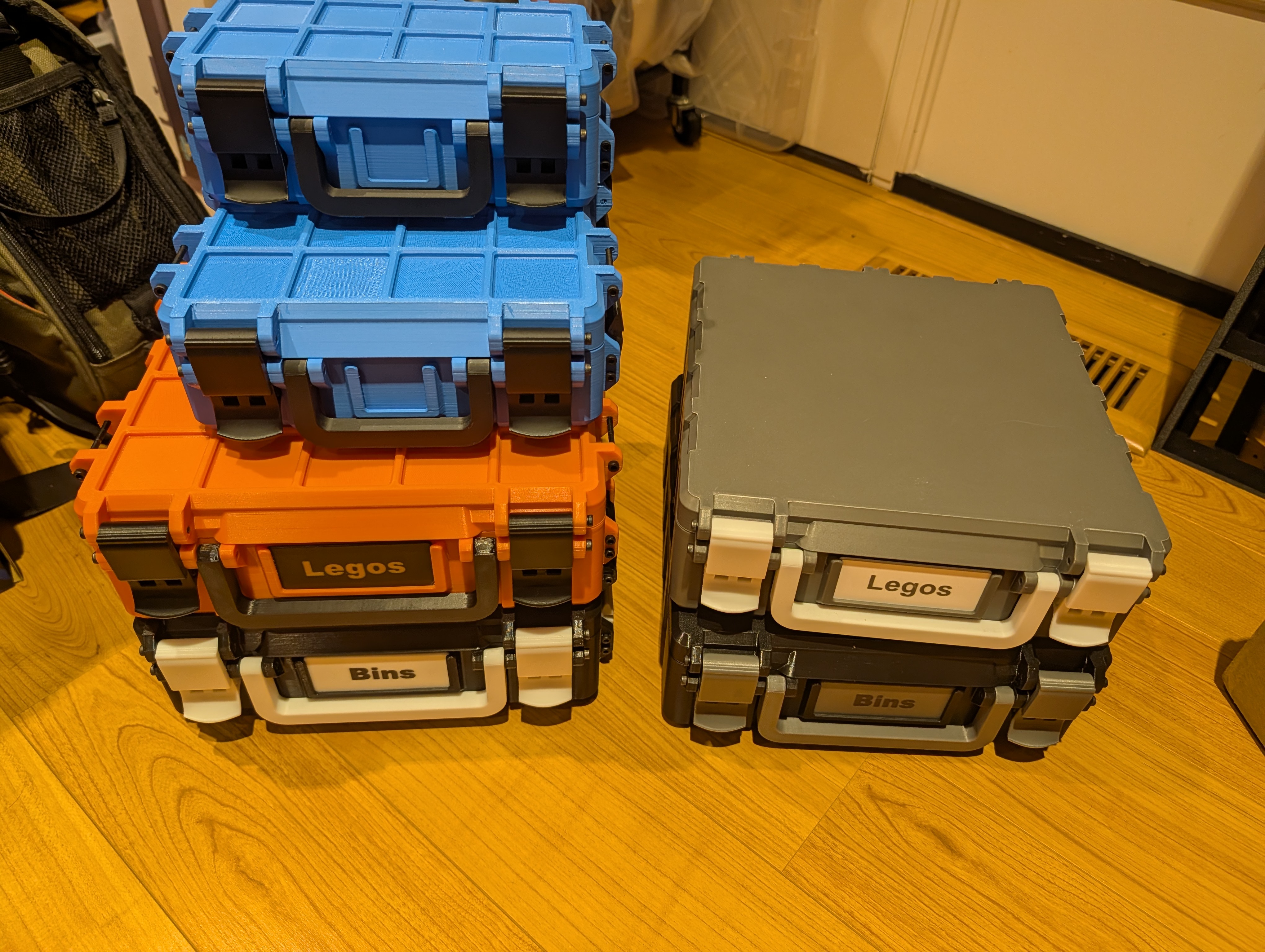

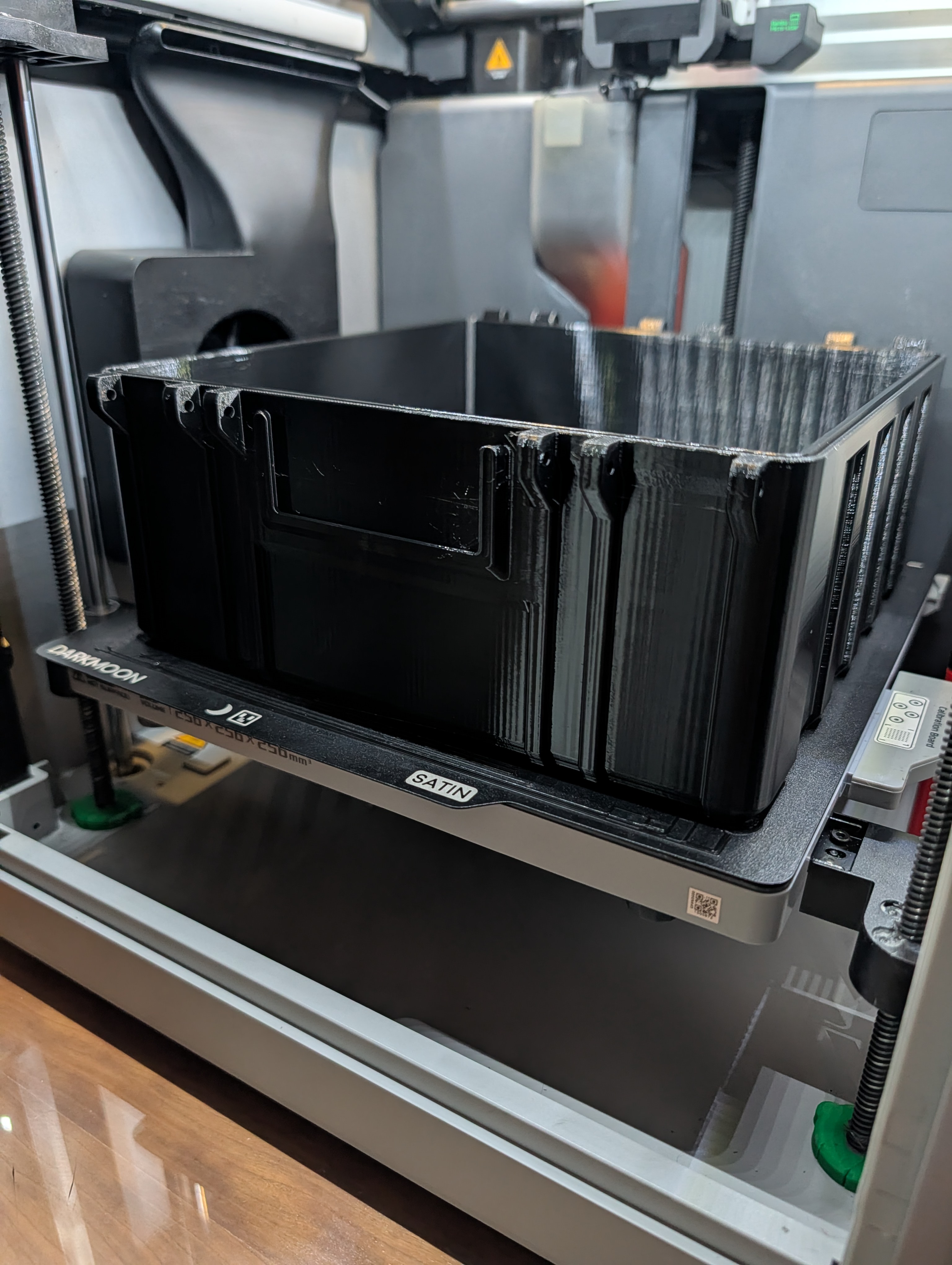

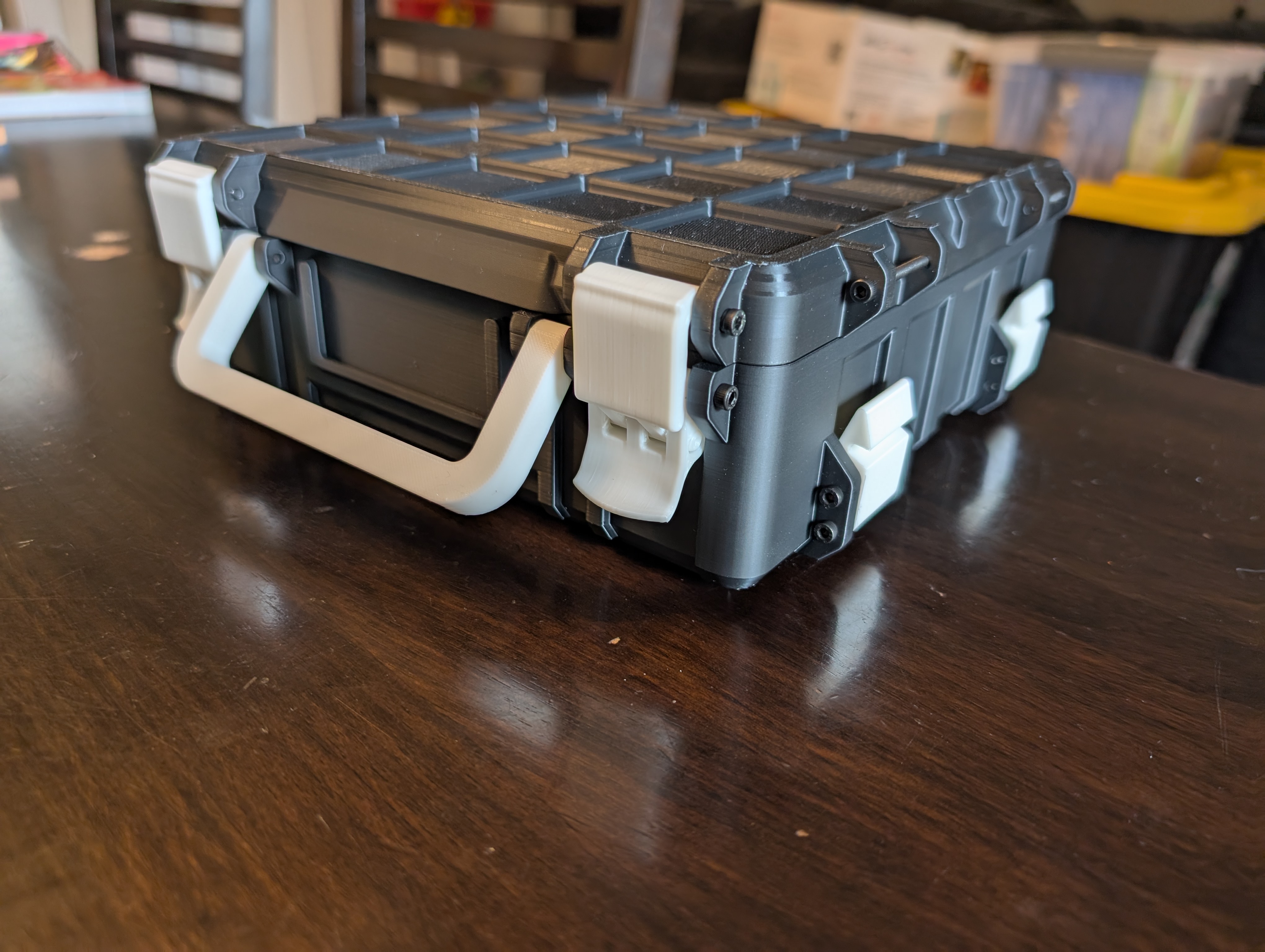

Much of this project involves creating and tuning how the models are actually printed. The main model stress points, such as hinge points, latch points, and the handle attach points (if the model is big enough for a handle), are configured with a modifier to vary the infill settings for strength. Other tunings are optimizing support settings for stackable models for quality vs. ease of support removal, brim optimizations, and print speed optimizations for quality. Many hours and much filament went into dialing these boxes in to create high-quality prints each time. As such, I highly recommend using the print profiles marked “Designer”. I have no control over 3rd-party profiles, and MW has made it clear they have no intentions to remove profiles that don't even attempt to match the print profile settings in all of my profiles.

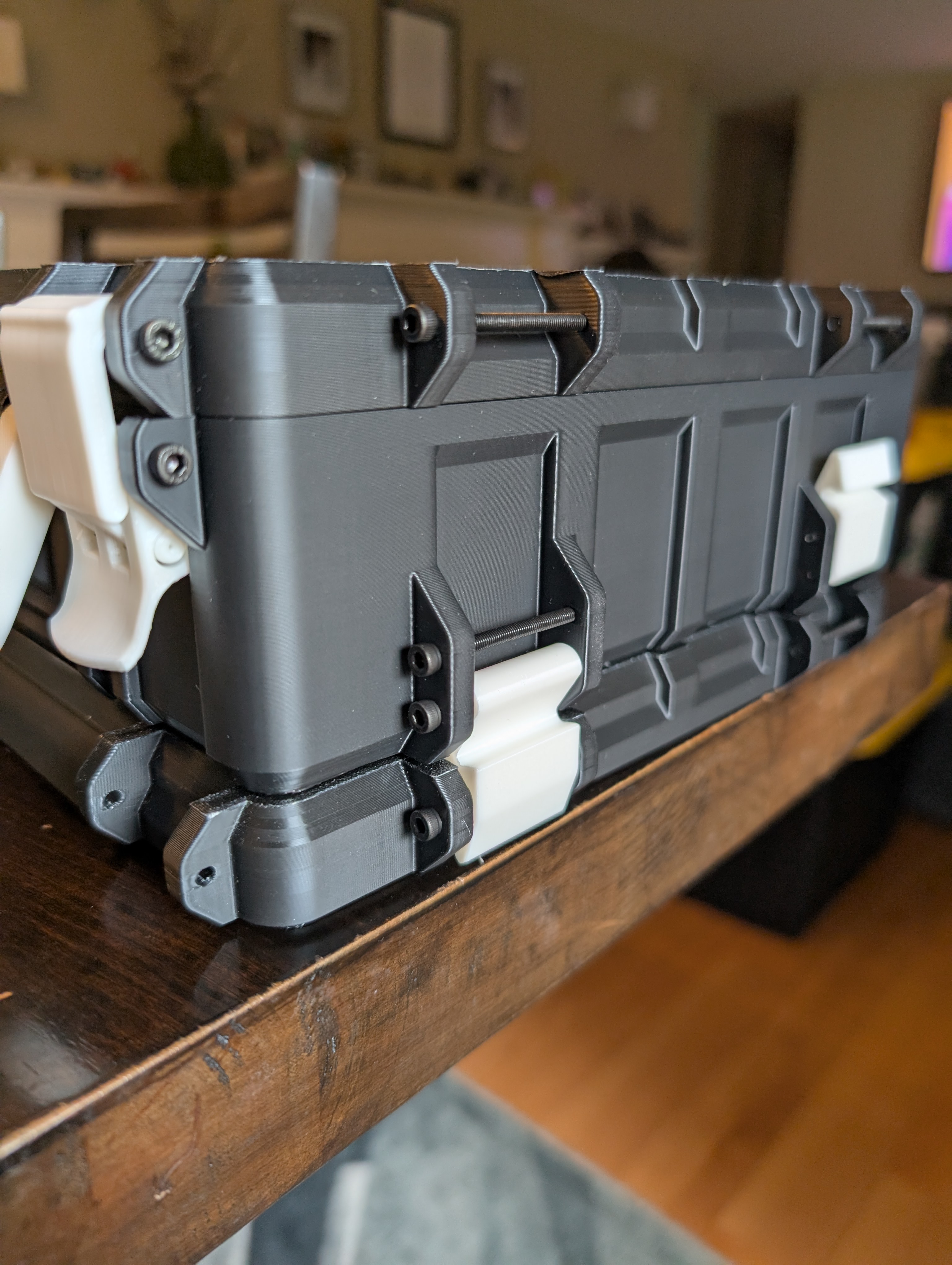

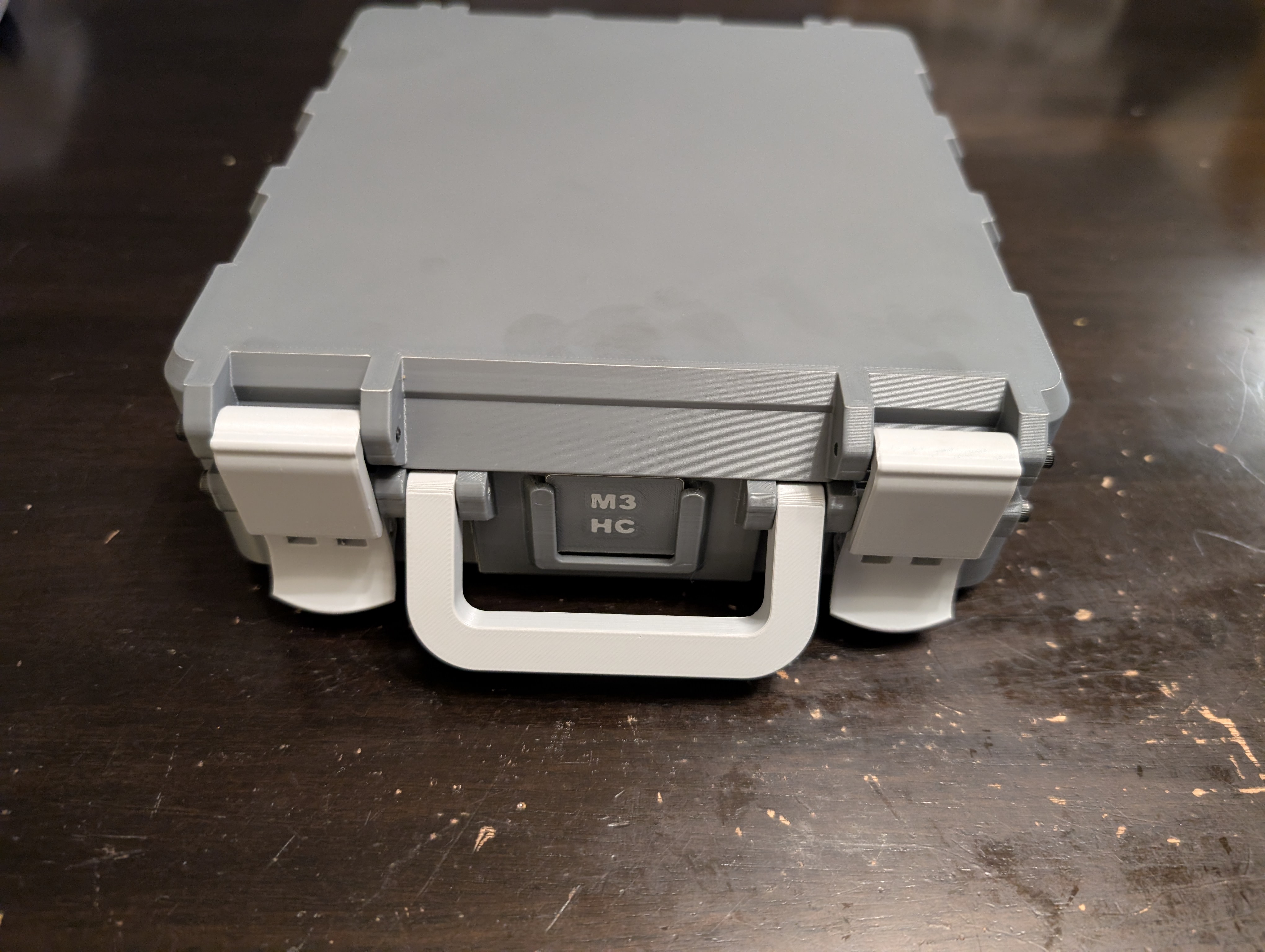

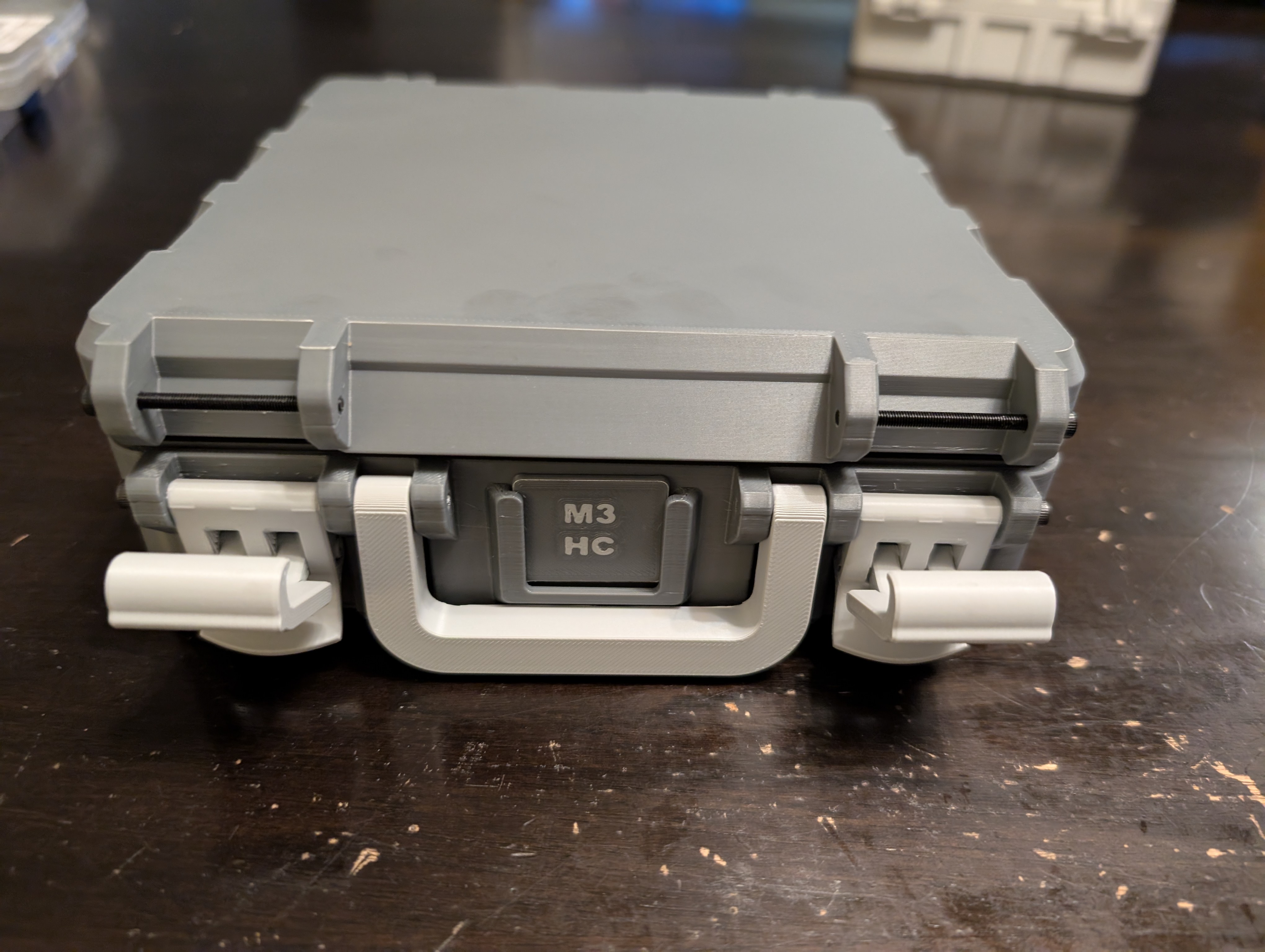

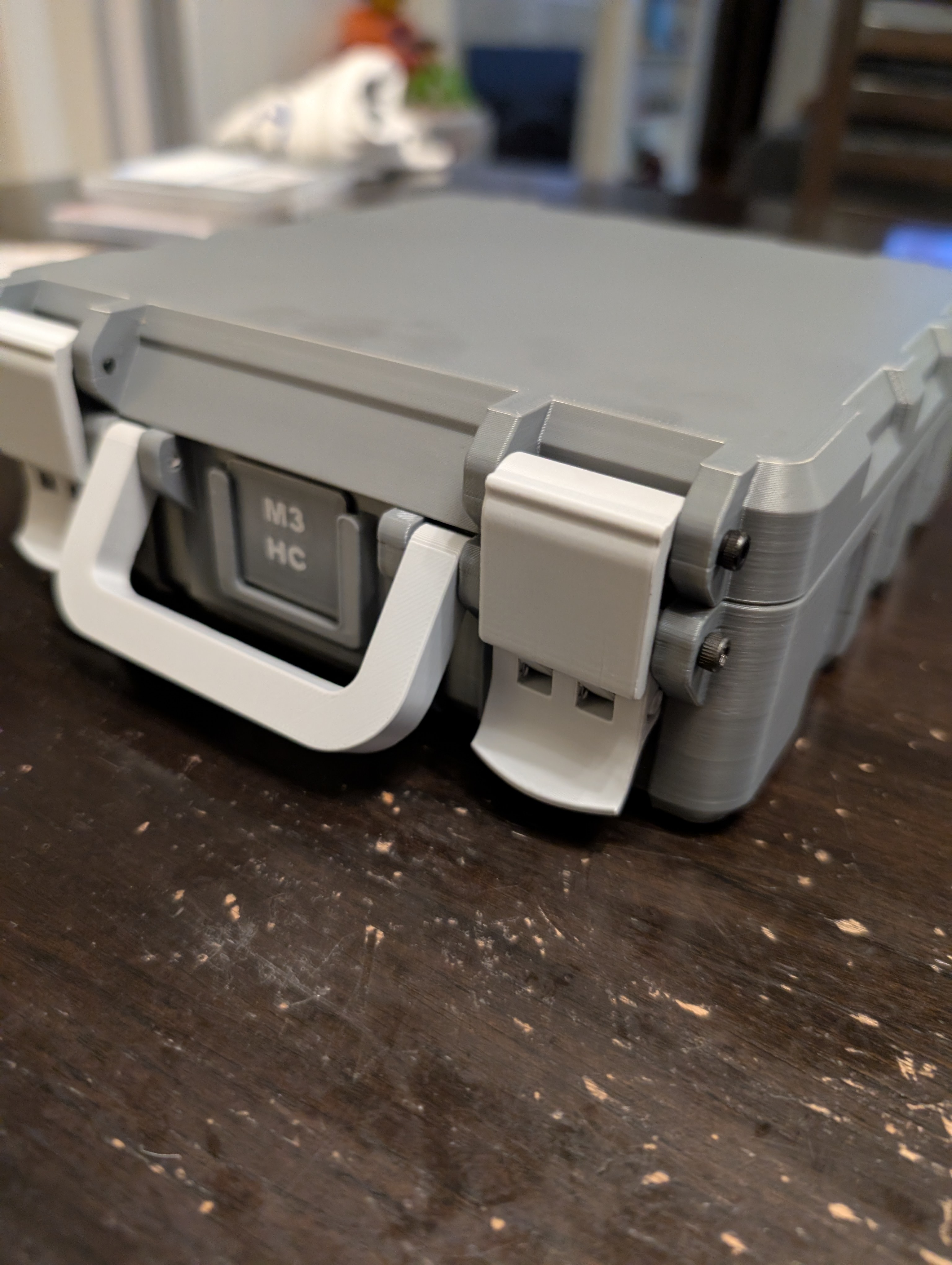

Assembly requires a number of M3 screws. I recommend Socket Head Cap screws. Needed are M3x40mm, with M3x55mm screws if a handle is involved. Counts are:

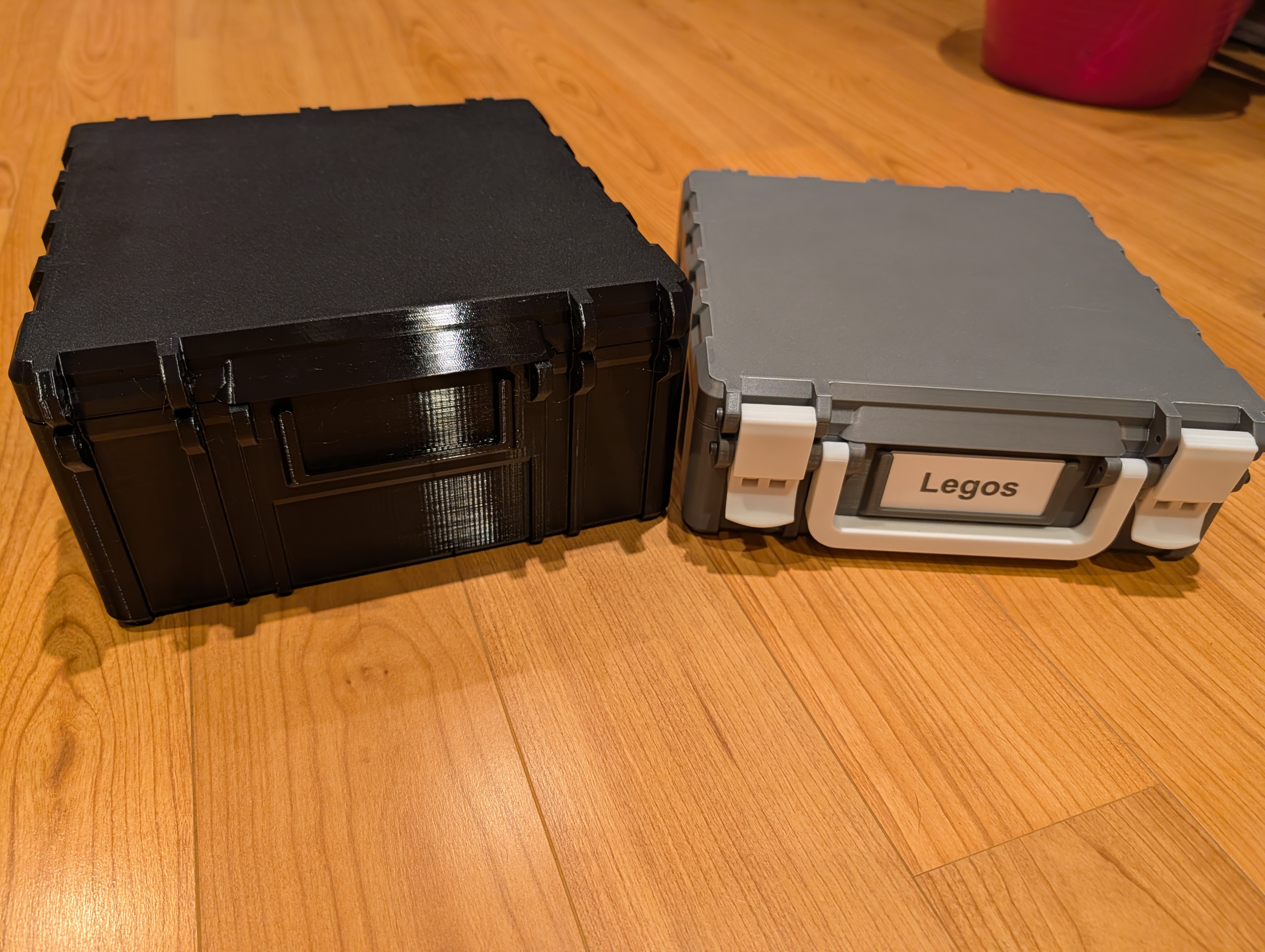

Box Configuration	Stacking	M3x40mm Screws	M3x55mm Screws	Printers Supported	Date Added
3x3x8U	Yes	12	0 (no handle option)	A1 Mini, A1, A2L, P1, P2, X1, X2, H2*	2025-10-19
3x3x8U	No	4	0 (no handle option)	A1 Mini, A1, A2L, P1, P2, X1, X2, H2*	2025-10-19
3x4x12U	Yes	12	0 (no handle option)	A1, A2L, P1, P2, X1, X2, H2*	2026-03-18
3x4x12U	No	4	0 (no handle option)	A1, A2L, P1, P2, X1, X2, H2*	2026-03-18
3x4x16U	Yes	12	0 (no handle option)	A1, A2L, P1, P2, X1, X2, H2*	2026-03-18
3x4x16U	No	4	0 (no handle option)	A1, A2L, P1, P2, X1, X2, H2*	2026-03-18
4x2x8U	Yes	6	2	A1, A2L, P1, P2, X1, X2, H2*	2025-10-19
4x2x8U	No	2	2	A1, A2L, P1, P2, X1, X2, H2*	2025-10-19
4x3x6U	Yes	8	0 (no handle options)	A1, A2L, P1, P2, X1, X2, H2*	2026-01-19
4x3x6U	No	4	0 (no handle options)	A1, A2L, P1, P2, X1, X2, H2*	2026-01-19
4x3x8U	Yes	10	2	A1, A2L, P1, P2, X1, X2, H2*	2026-01-19
4x3x8U	No	2	2	A1, A2L, P1, P2, X1, X2, H2*	2026-01-19
4x3x9U	Yes	10	2	A1, A2L, P1, P2, X1, X2, H2*	2026-01-19
4x3x9U	No	2	2	A1, A2L, P1, P2, X1, X2, H2*	2026-03-18
4x3x10U	Yes	10	2	A1, A2L, P1, P2, X1, X2, H2*	2026-03-18
4x3x10U	No	2	2	A1, A2L, P1, P2, X1, X2, H2*	2026-01-19
4x3x12U	Yes	10	2	A1, A2L, P1, P2, X1, X2, H2*	2026-04-28
4x3x12U	No	2	2	A1, A2L, P1, P2, X1, X2, H2*	2026-04-28
4x4x8U	Yes	16	2	A1, A2L, P1, P2, X1, X2, H2*	2025-10-14
4x4x8U	No	4	2	A1, A2L, P1, P2, X1, X2, H2*	2025-10-14
4x4x10U	Yes	16	2	A1, A2L, P1, P2, X1, X2, H2*	2026-01-13
4x4x10U	No	4	2	A1, A2L, P1, P2, X1, X2, H2*	2026-01-13
4x5x10U	Yes	16	2	A1, A2L, P1, P2, X1, X2, H2*	2026-05-17
4x5x10U	No	4	2	A1, A2L, P1, P2, X1, X2, H2*	2026-05-17
5x2x9U	Yes	17	2	A1, A2L, P1, P2, X1, X2, H2*	2026-06-10
5x2x9U	No	5	2	A1, A2L, P1, P2, X1, X2, H2*	2026-06-10
5x4x12U	Yes	17	2	A1, A2L, P1, P2, X1, X2, H2*	2026-06-10
5x4x12U	No	5	2	A1, A2L, P1, P2, X1, X2, H2*	2026-06-10
5x4x17U	Yes	17	2	A1, A2L, P1, P2, X1, X2, H2*	2026-06-10
5x4x17U	No	5	2	A1, A2L, P1, P2, X1, X2, H2*	2026-06-10
5x4x18U	Yes	17	2	A1, A2L, P1, P2, X1, X2, H2*	2026-06-10
5x4x18U	No	5	2	A1, A2L, P1, P2, X1, X2, H2*	2026-06-10
5x5x6U	Yes	17	2	A1, A2L, P1, P2, X1, X2, H2*	2025-10-19
5x5x6U	No	5	2	A1, A2L, P1, P2, X1, X2, H2*	2025-10-19
5x5x8U	Yes	17	2	A1, A2L, P1, P2, X1, X2, H2*	2025-10-20
5x5x8U	No	5	2	A1, A2L, P1, P2, X1, X2, H2*	2025-10-20
5x5x9U	Yes	17	2	A1, A2L, P1, P2, X1, X2, H2*	2026-02-12
5x5x9U	No	5	2	A1, A2L, P1, P2, X1, X2, H2*	2026-02-12
5x5x10U	Yes	17	2	A1, A2L, P1, P2, X1, X2, H2*	2025-10-20
5x5x10U	No	5	2	A1, A2L, P1, P2, X1, X2, H2*	2025-10-20
5x5x15U	Yes	17	2	A1, A2L, P1, P2, X1, X2, H2*	2026-03-06
5x5x15U	No	5	2	A1, A2L, P1, P2, X1, X2, H2*	2026-03-06
6x6x8U	Yes	23	2	A2L, H2*	2025-10-23
6x6x8U	No	5	2	A2L, H2*	2025-10-23
6x6x10U	Yes	23	2	A2L, H2*	2025-10-23
6x6x10U	No	5	2	A2L, H2*	2025-10-23
6x6x12U	Yes	23	2	A2L, H2*	2025-10-23
6x6x12U	No	5	2	A2L, H2*	2025-10-23

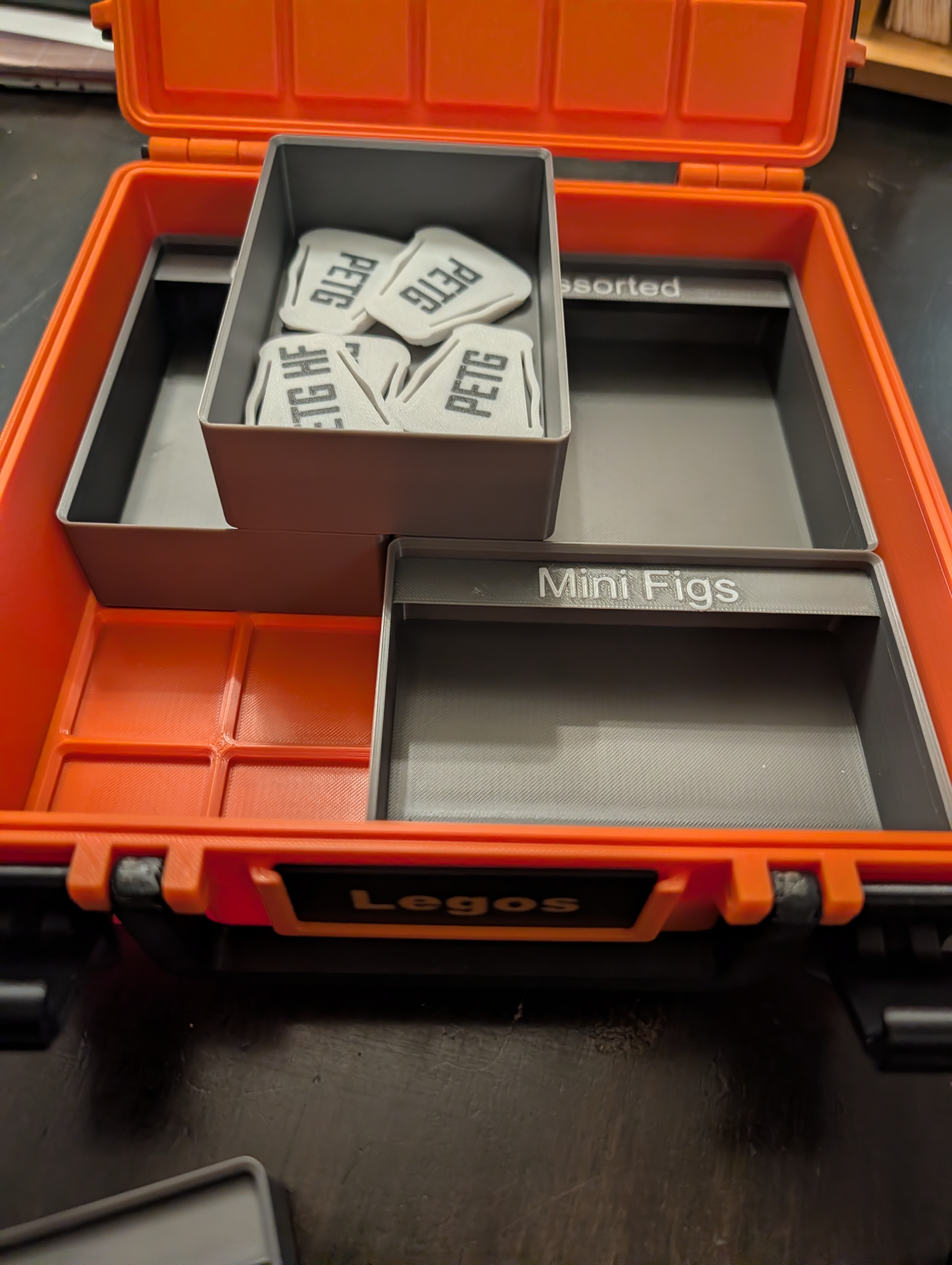

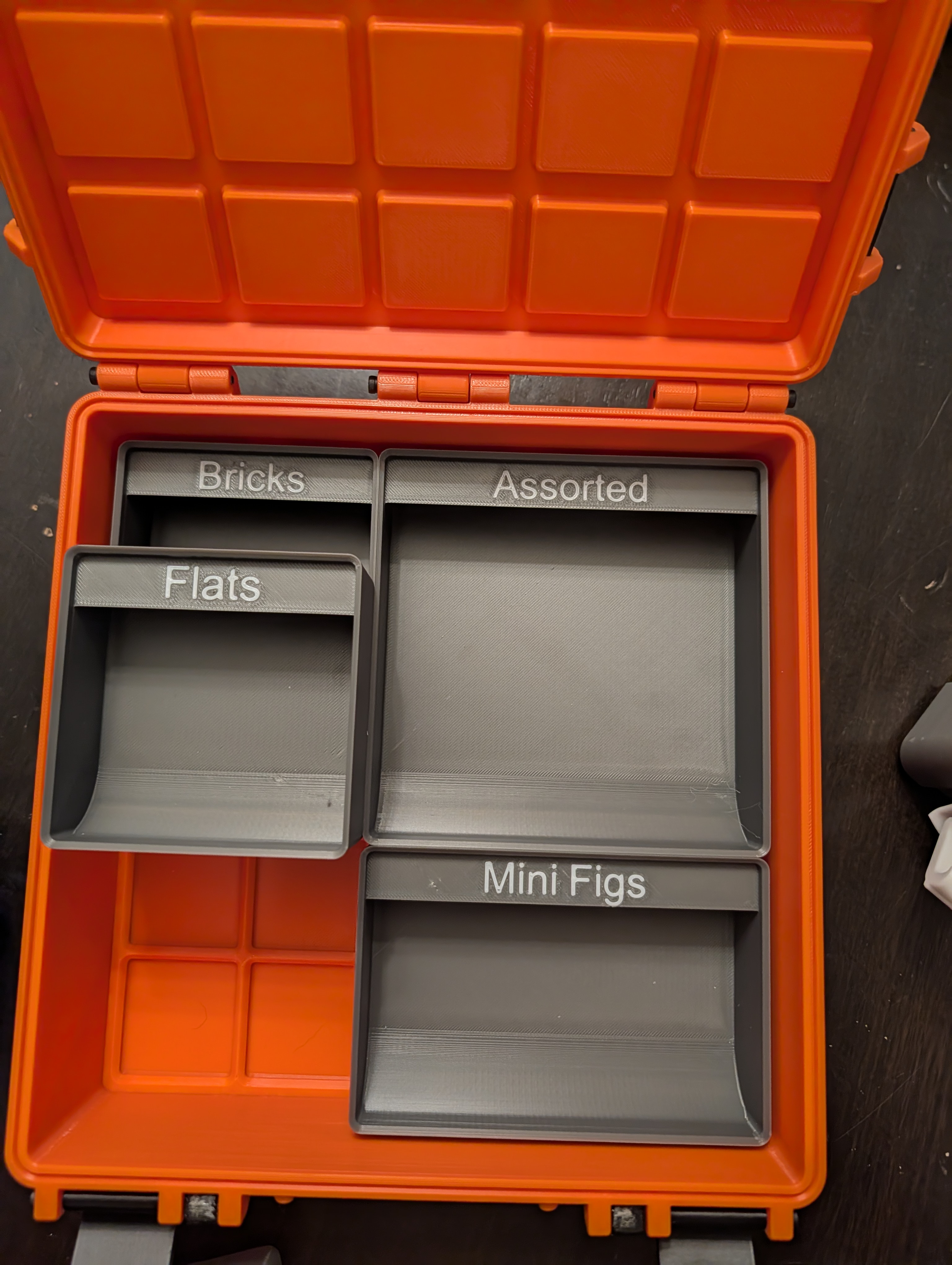

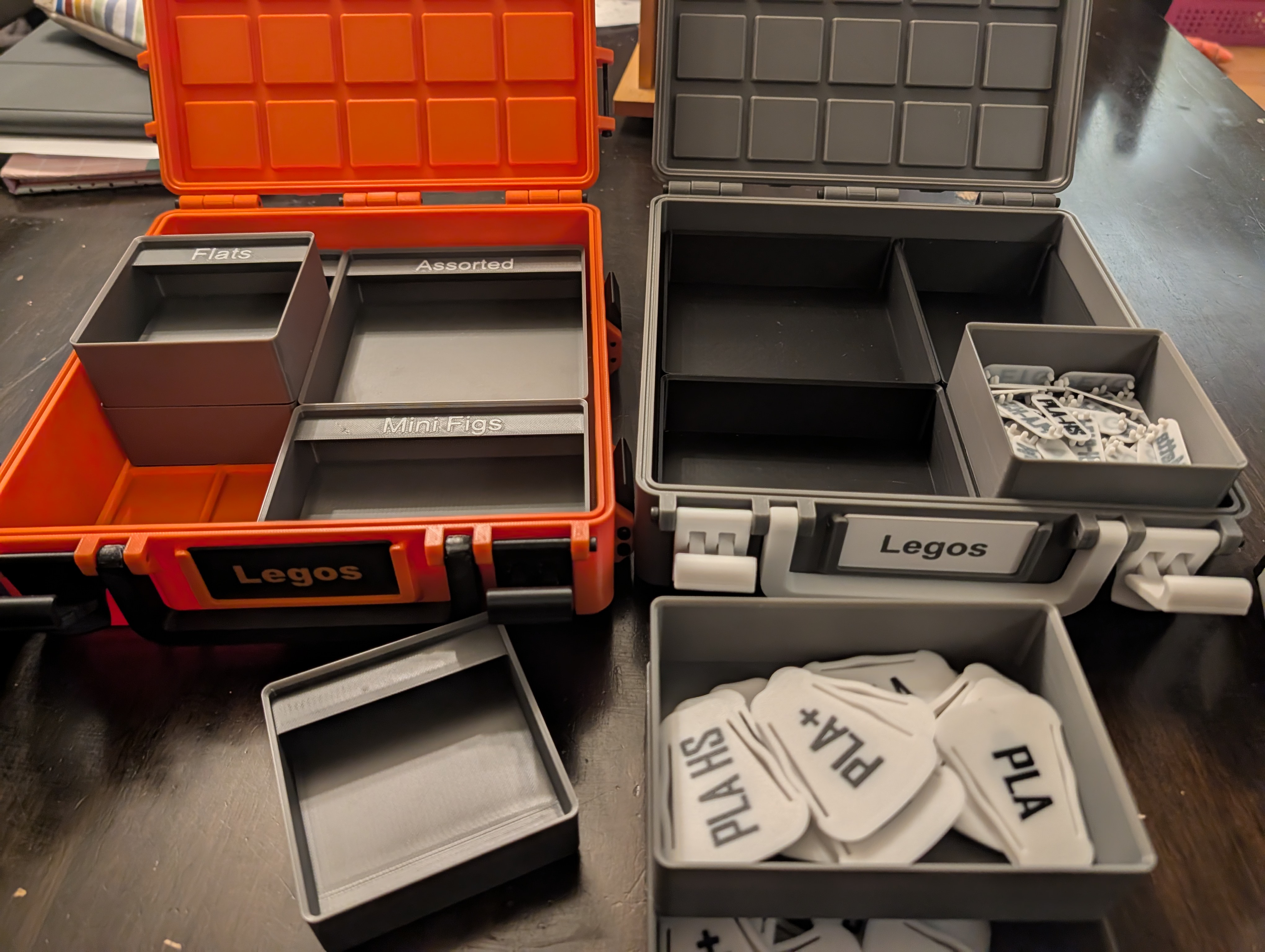

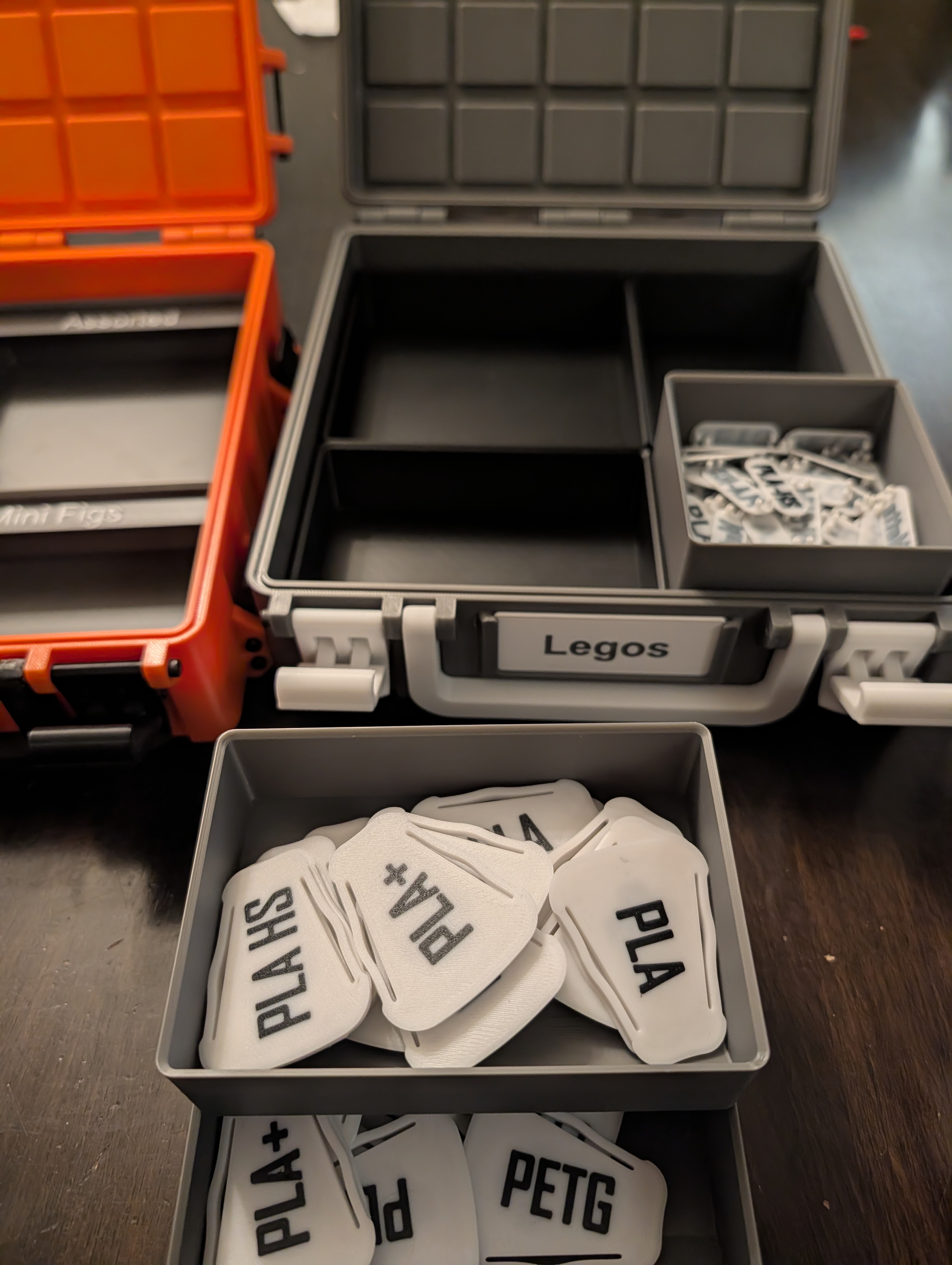

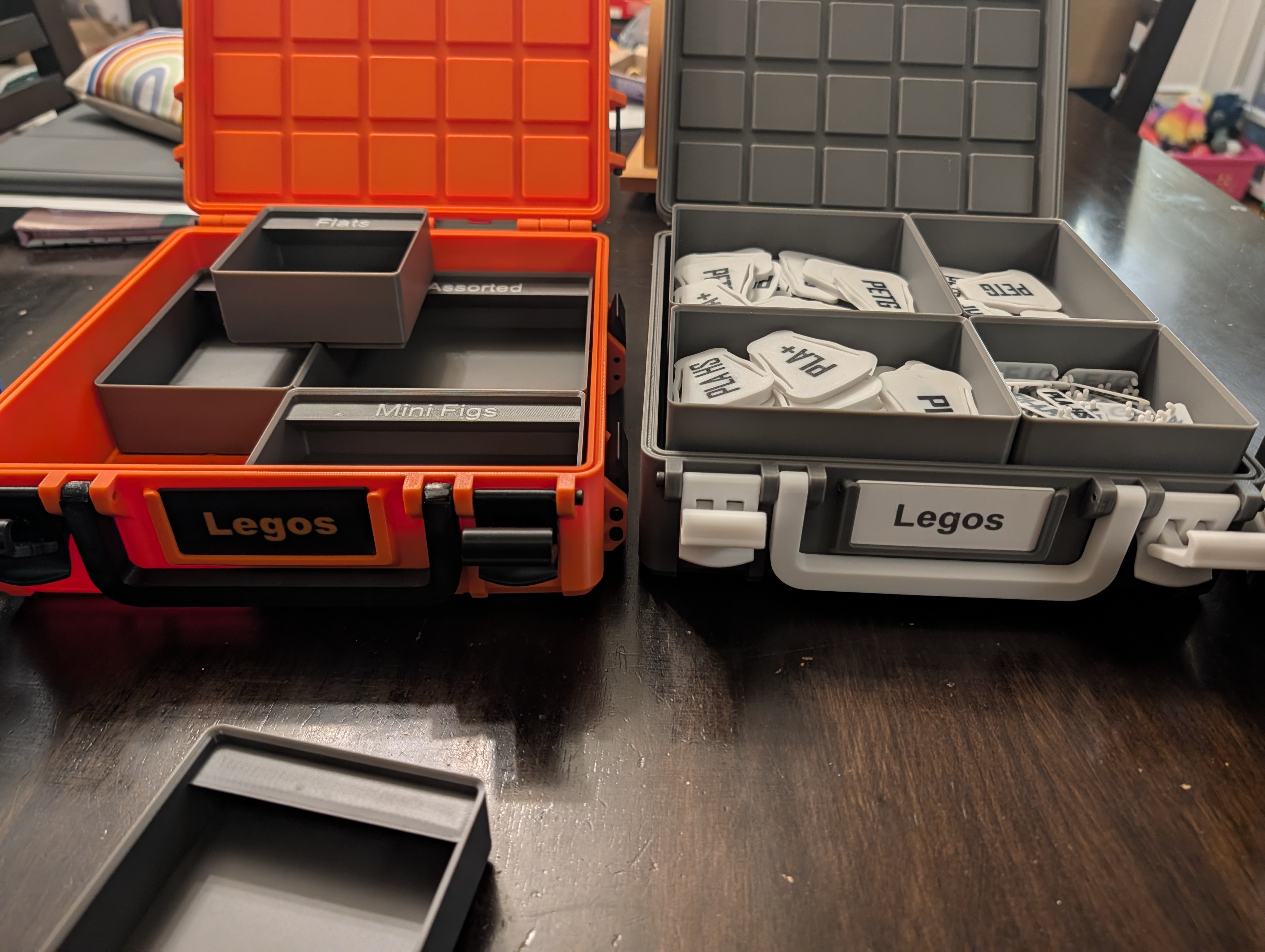

The print profiles all have a printable label that is configured for text customization. Examples are included in the print profiles, but are easily modifiable to customize for one's particular specific needs.

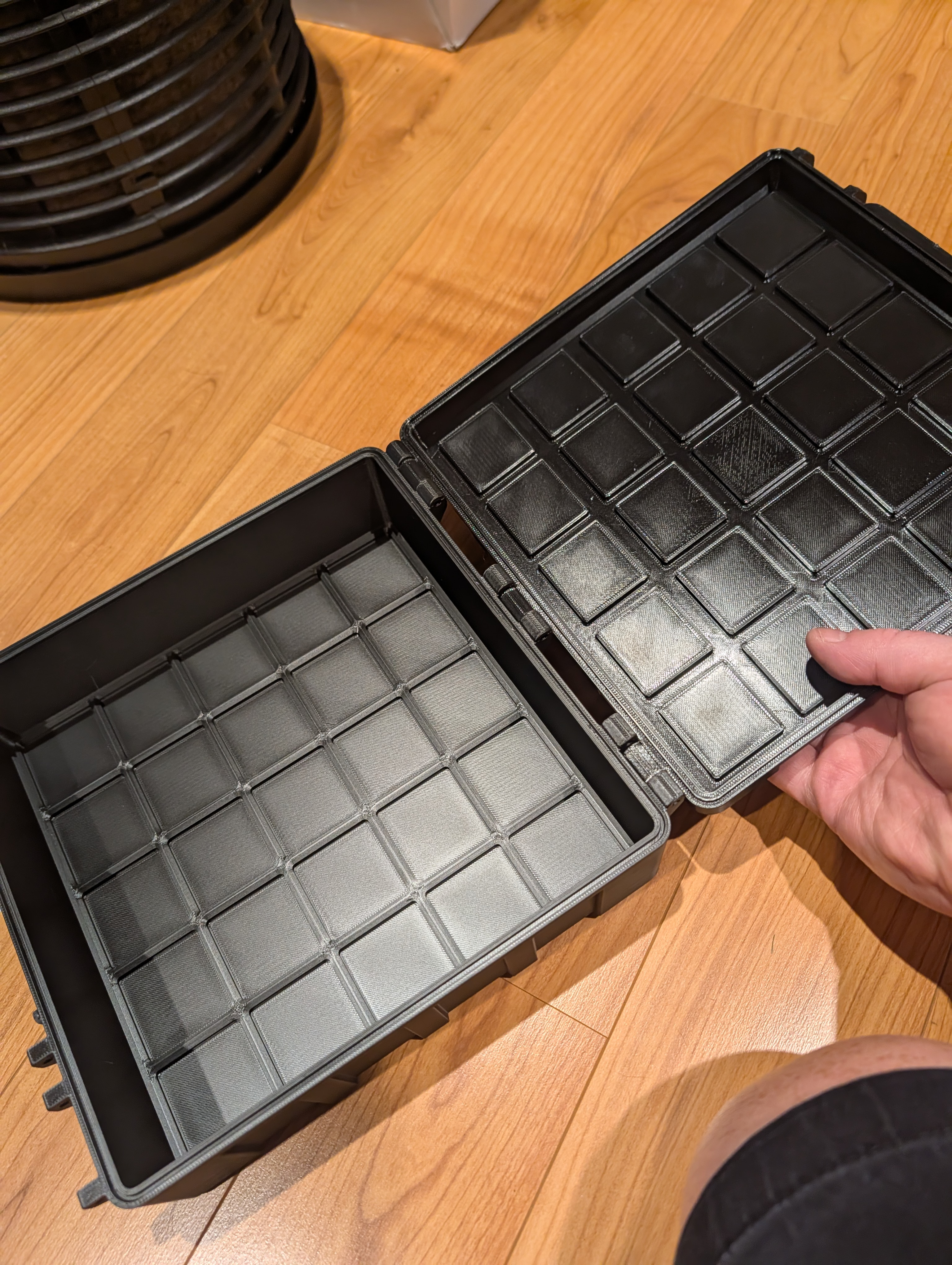

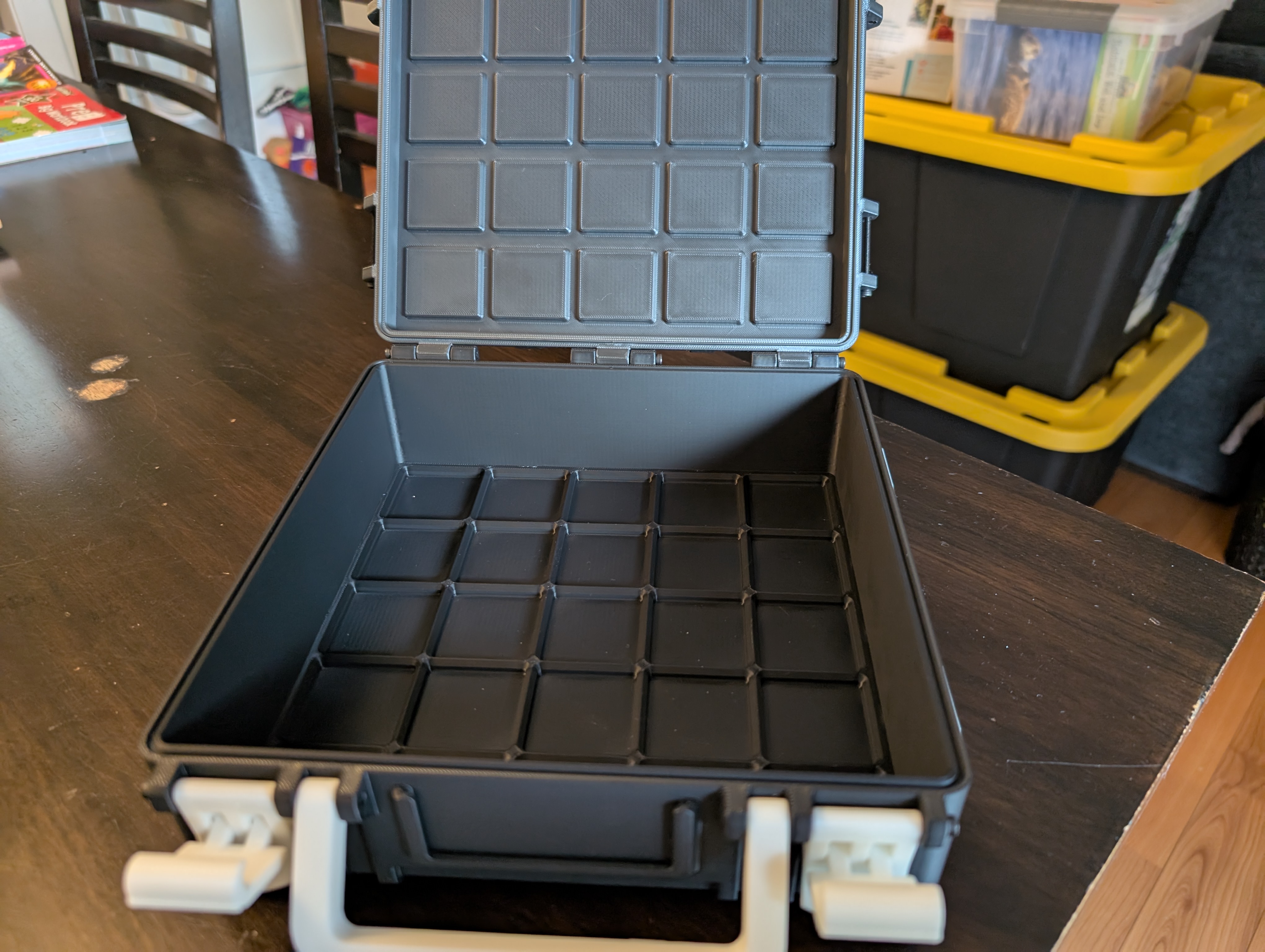

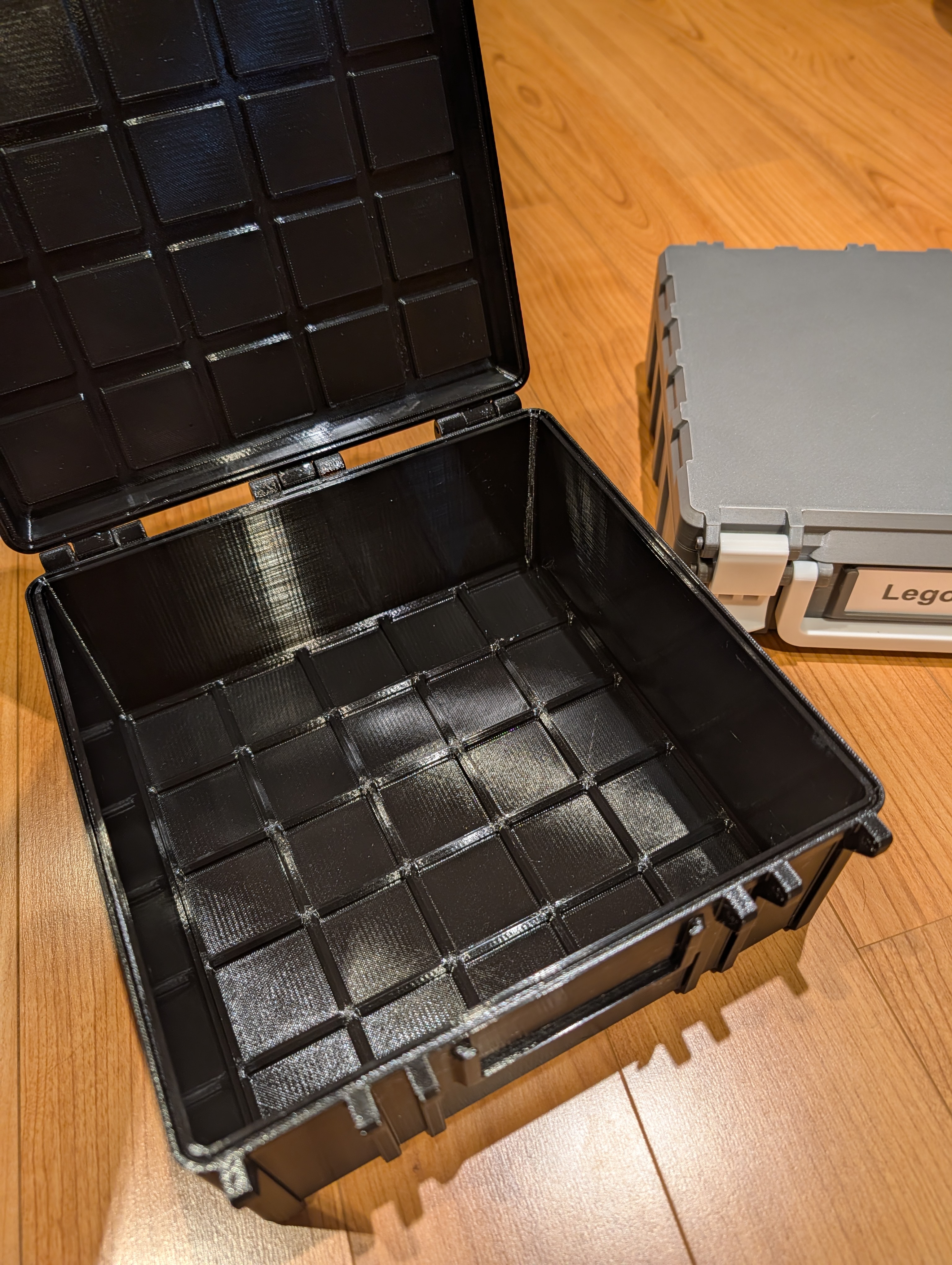

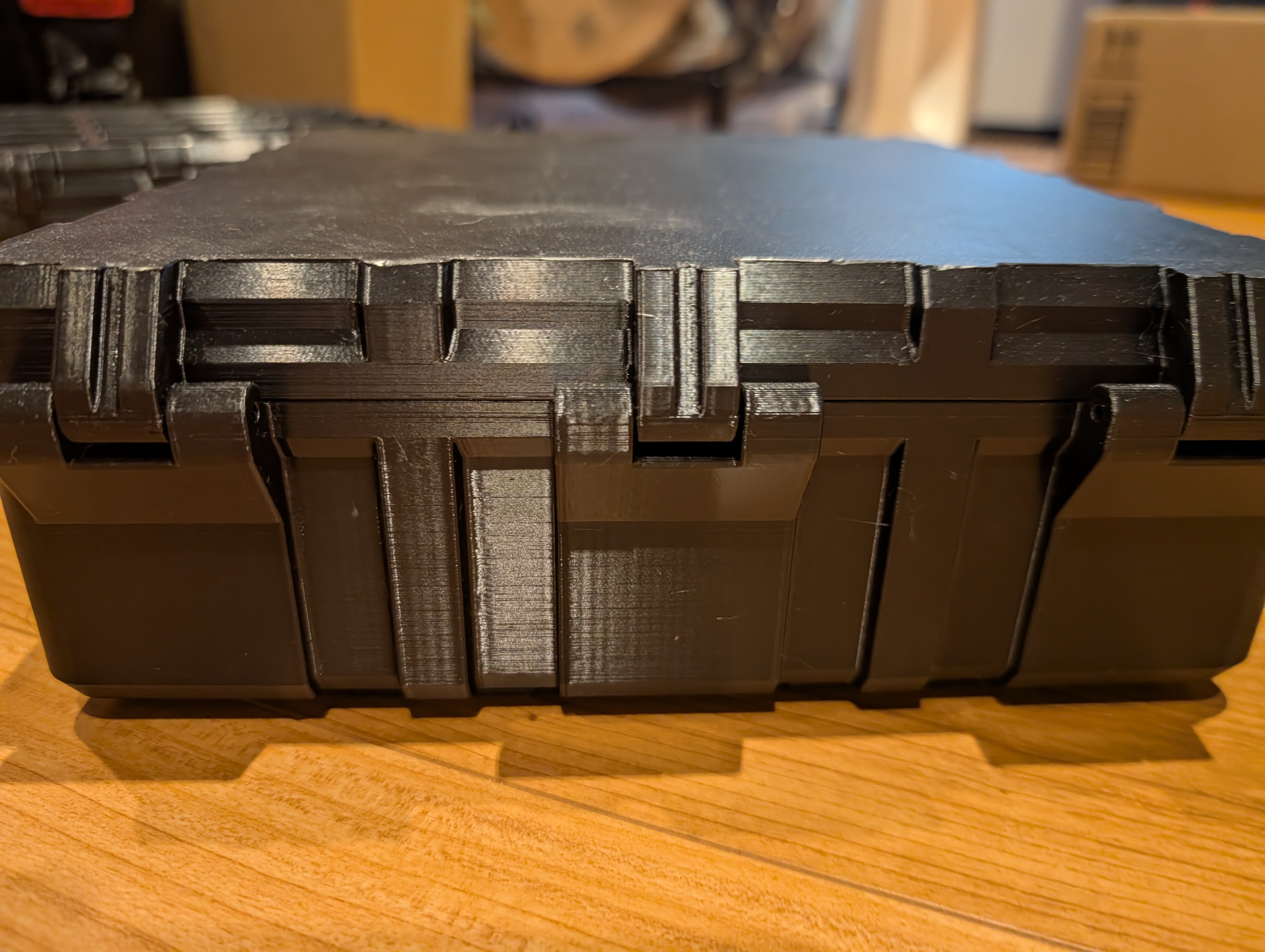

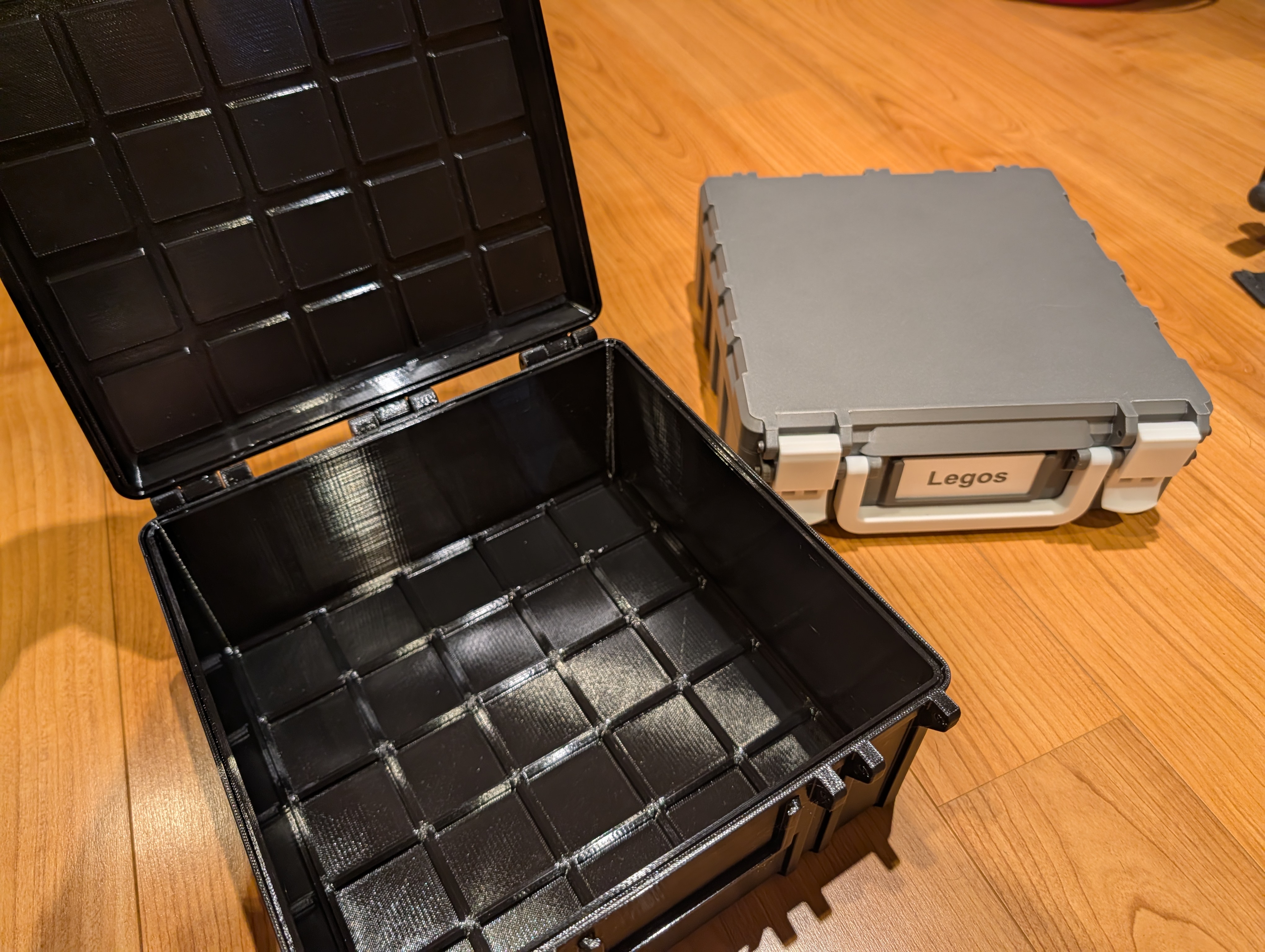

The V2 of this project allowed me to revisit some optimizations. Print profiles here include boxes in various Gridfinity sizes that are friendly to A1 Mini printers up to H2x printers. The original models I produced used full brims, but the latest models here use brim ears instead after more testing. This yields a much cleaner print with less post-print cleanup. The V2 models also now include versions of the bases that have no hinge stops, so one can choose to print a base that has a hinge stop or not. With a hinge stop, the lid will open to about 130-degrees and stop. Without a hinge stop, the lid will open past 180-degrees.

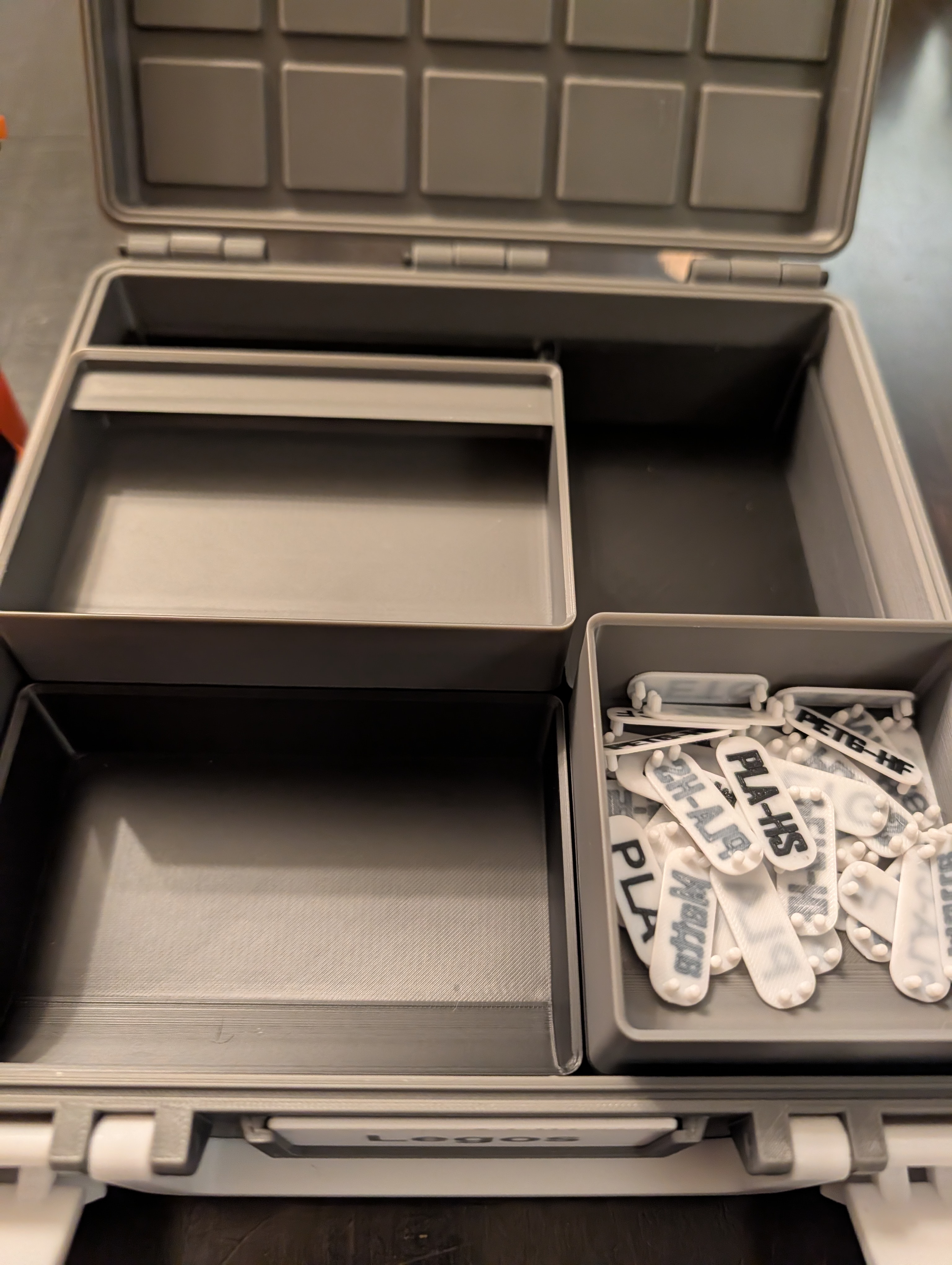

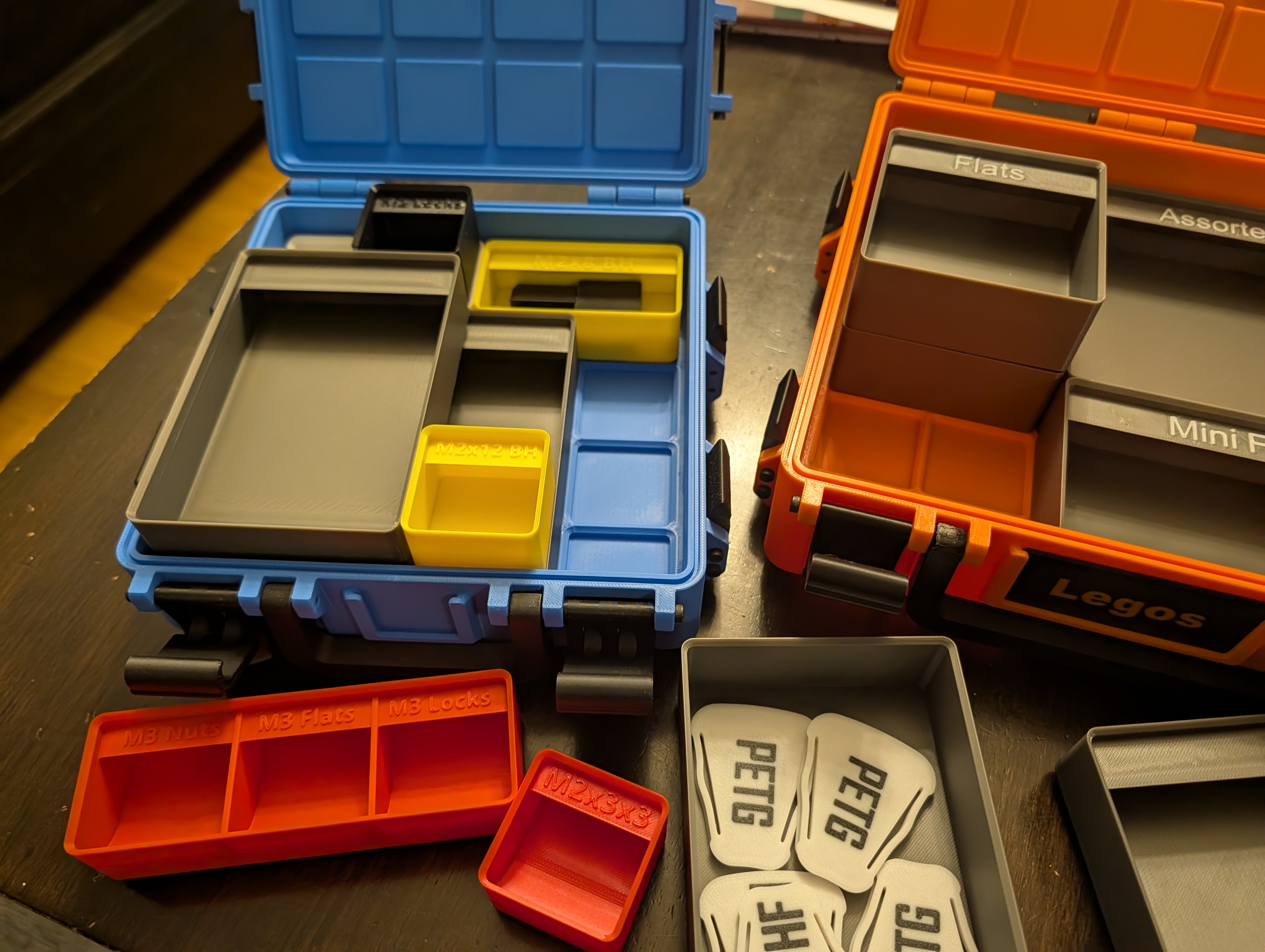

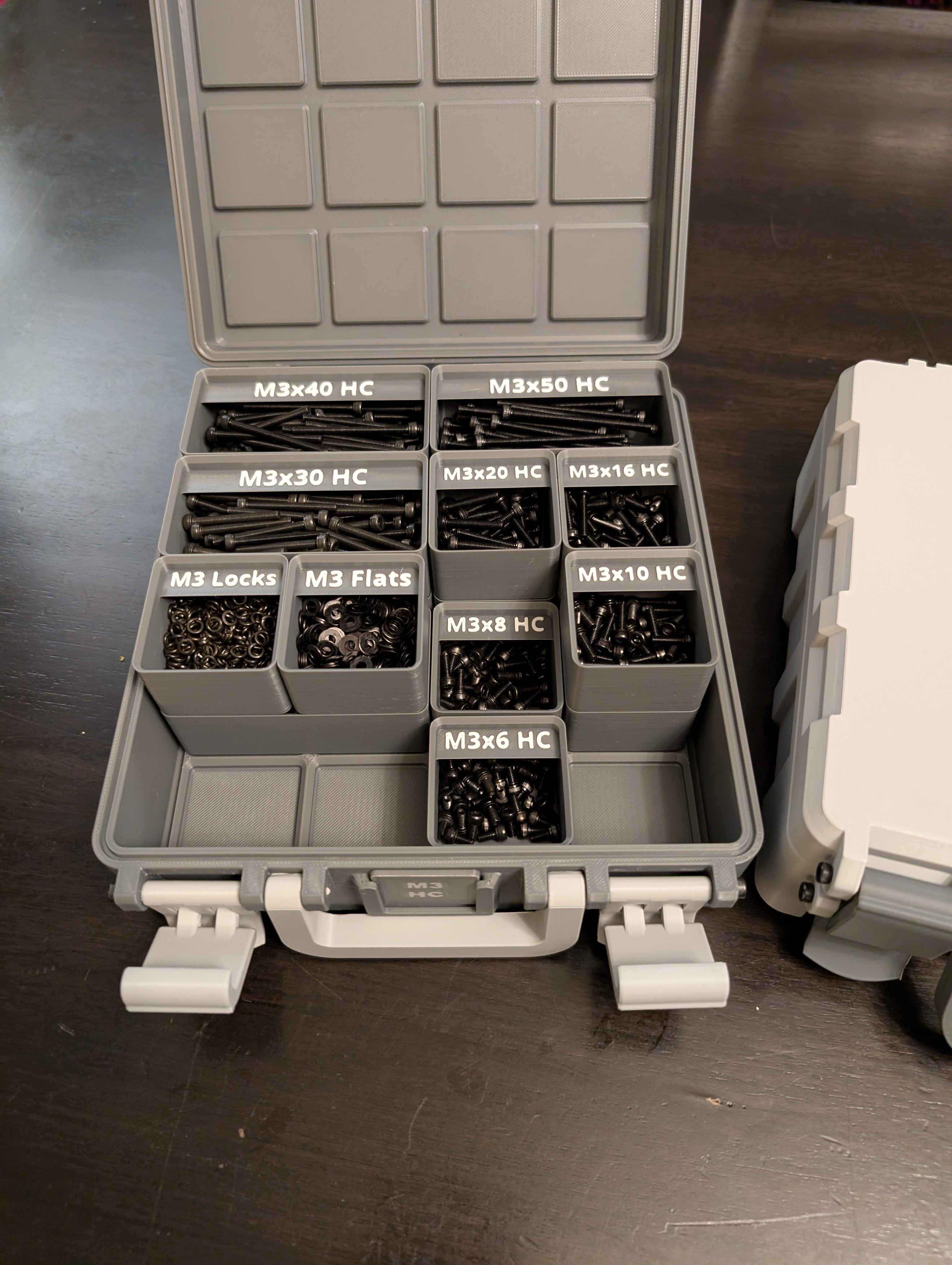

These are part of a set of Gridfinity organizer bins for screws, heat inserts, and rugged containers. Others in this set are:
