Overview

• Clean, modern elevated feeder designed for comfort and stability
• Sized specifically for standard 175–177 mm stainless bowls (Dollar Tree compatible)
• Proven functional design — shown in real-world use with full bowl load
• Ideal for large cats and medium dogs and up
• Lightweight yet rigid structure for everyday use

Features

• Perfect Fit: 177 mm inner opening provides a secure fit with slight tolerance for easy placement/removal
• Support-Free Print: Designed for efficient FDM printing with no supports required
• Strong Geometry: Curved structural ribs provide excellent strength without excess material
• Non-Slip Ready: Integrated 10 mm rubber foot insets for stability on smooth surfaces
• Pet-Friendly Height: Promotes improved feeding posture and comfort
• Clean Aesthetic: Minimalist olive-toned design with subtle paw accents
• User Verified: Successfully printed and tested with real pets (cats and dogs)

Description

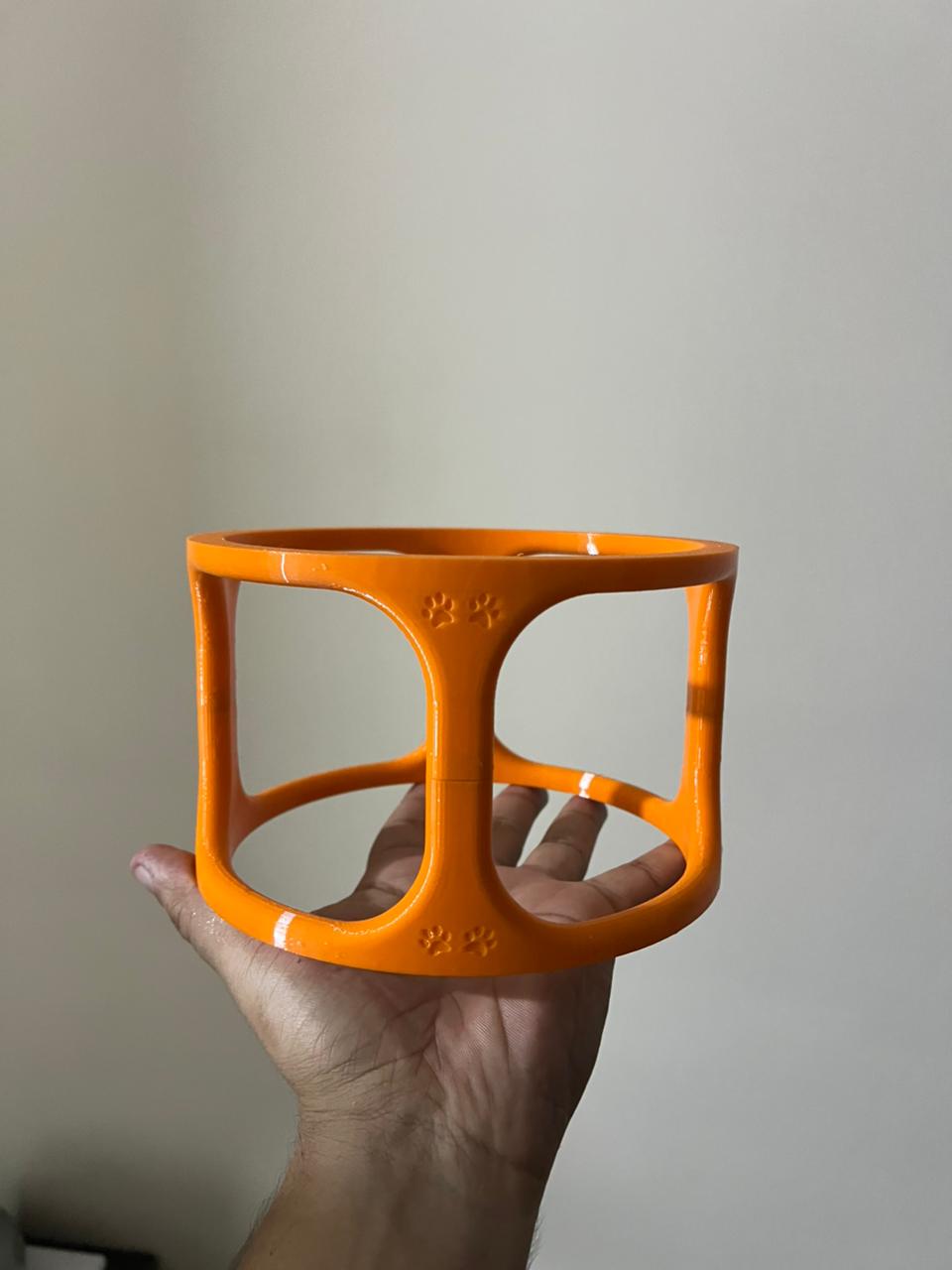

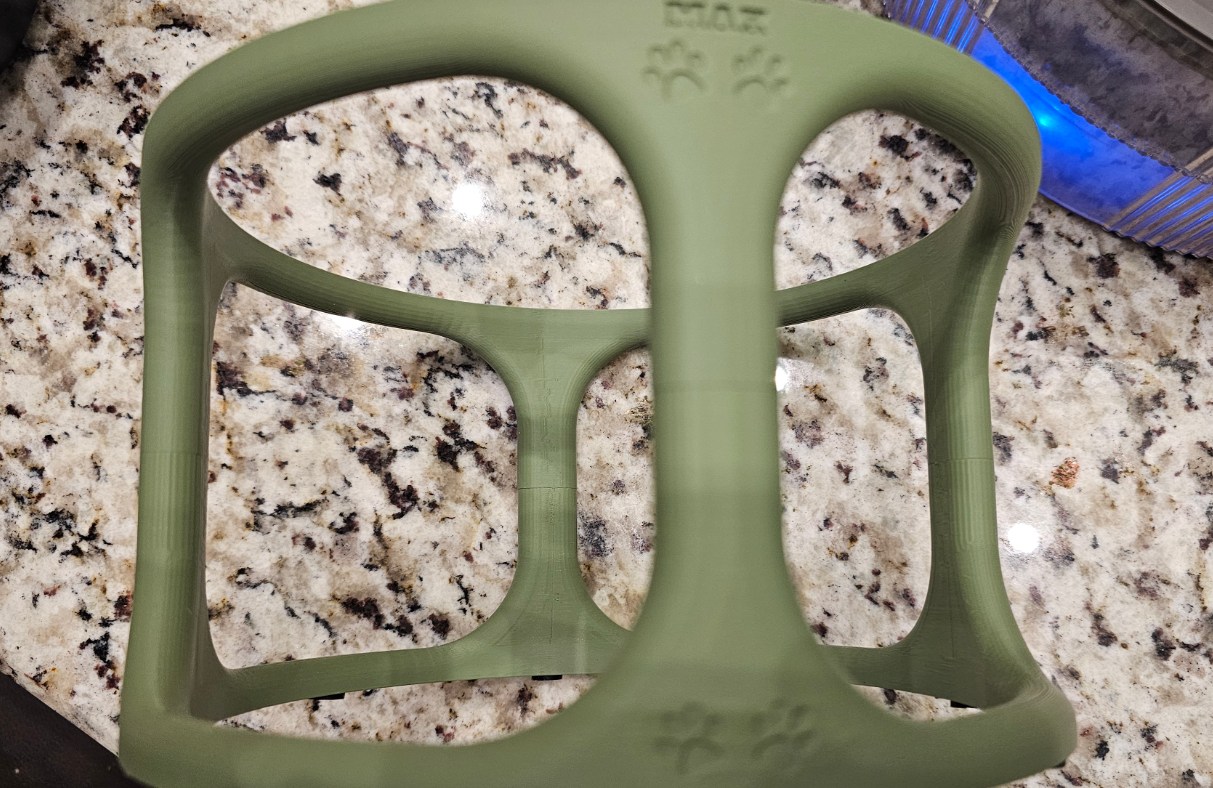

The Olive Arc Elevated Feeder blends form and function into a piece that feels more like modern decor than a typical pet accessory. Smooth, flowing curves wrap around the structure, creating a lightweight yet durable frame that looks sculpted rather than printed.

Designed with real pets in mind—tested with large cats and small medium dogs (20lb cockapoo and 75lb English bulldog) —this stand delivers both comfort and reliability. The elevated height reduces strain during feeding, while the open architecture keeps the design visually light and easy to clean.

The subtle paw print details add personality without overwhelming the minimalist look. Paired with a stainless steel bowl, the result is a clean, premium feeding setup that fits seamlessly into any home.

Every aspect of this model is intentional: from the perfect bowl tolerance to the support-free geometry, making it as efficient to print as it is satisfying to use.

Assembly Guide

1. Print the feeder stand using recommended settings and put together (tight tolerances, glue optional)
2. Insert 10 mm rubber feet into the bottom insets (press-fit or light glue if needed)
3. Place a 175–177 mm stainless steel bowl into the top opening
4. Set on a flat surface and ensure stability
5. Ready for use

Bill of Materials (BOM)

• 4x 10 mm rubber feet (optional but recommended) [https://amzn.to/4vN2G6g](https://amzn.to/4vN2G6g)
• Stainless steel bowl (175–177 mm diameter, Dollar Tree pictured ($1.50))

Technical Print Settings

Recommended Profile (Tested):

• Layer Height: 0.2 mm
• Wall Loops: 3 walls
• Infill: 15% (Cross Hatch)
• Supports: None required
• Adhesion: Optional brim depending on surface

Print Stats:

• Material: ~141 g filament
• Time: ~4 hours
