have 3 type

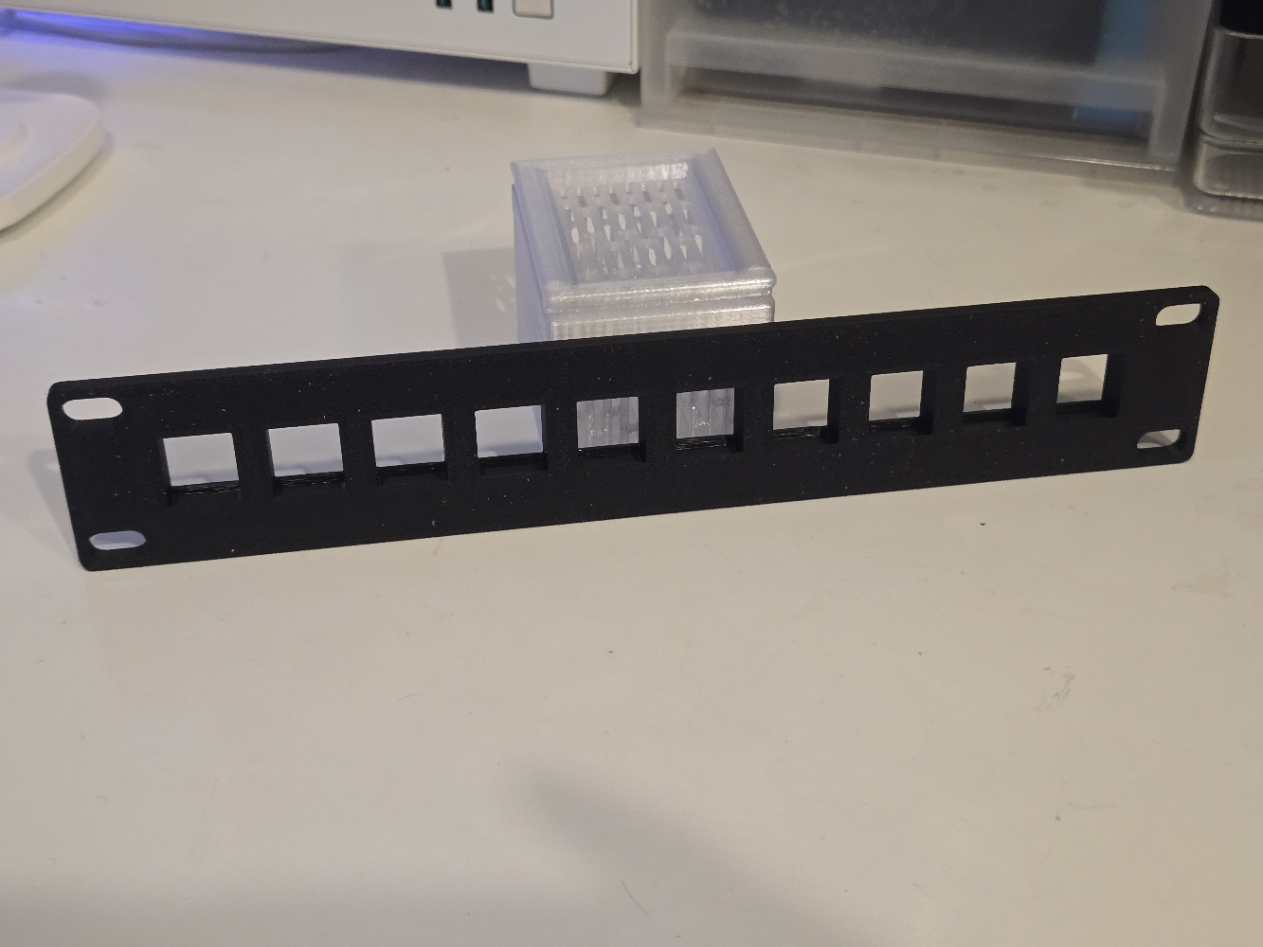

1. patch panel
2. patch panel NUC - some NUC higher than 1U and i dont want to create specific shelf for every of it, so i make this type to fix it by make more space under keystone (14.5mm)
3. patch panel with label - read below

My print settings

• layer height: 0.2
• wall: 3
• infill: 15%

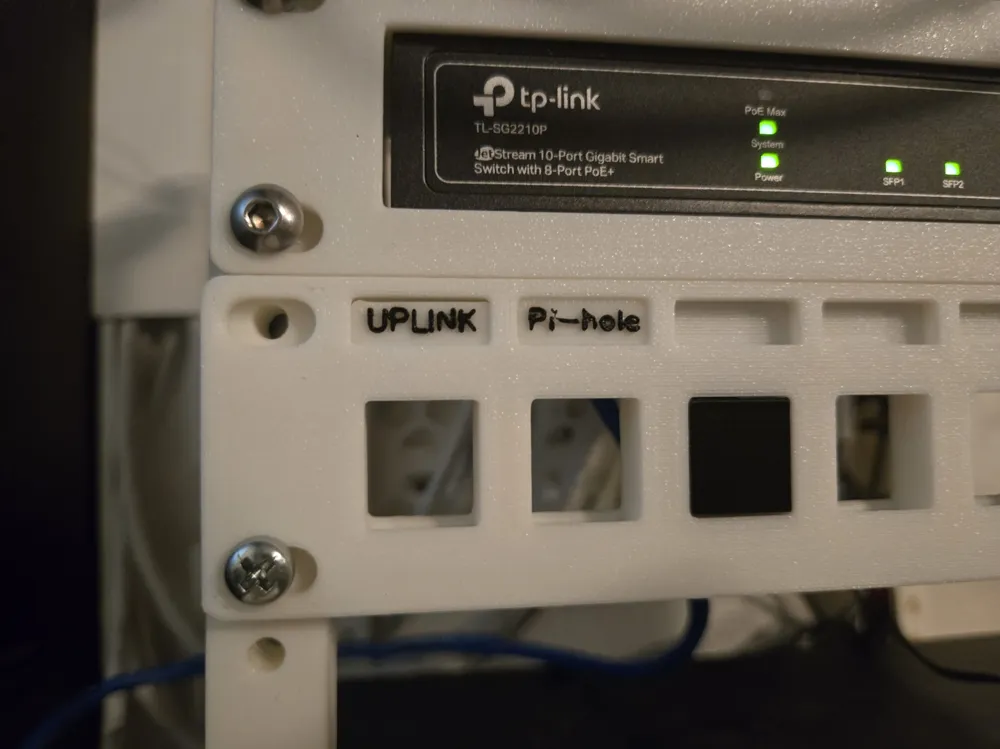

Patch Panel with Label

Create Label

i use Label•O•Matic website to generate label or you can create by your self use label size below

Label•O•Matic

• read how to print in website first
• card preset: custom
• label size
  • width: 19
  • height: 6
  • thickness: 3
  • corner radius 1
• font size 4 or bigger
• border
  • width: 0
  • offset: 0
  • thickness: 0.6, 0.8 or 1 (this will be your text when change filament color mid print)
  • line height: 1
• check preview and generate stl

Print Label

• at the start of printing text layer add code to pause/change filament or read how to
• my printer is Creality so i follow this guide Color Change ?  and add custom G-code “M600” before sent to print text layer
• after change filament color dont forget to extrude old filament color before resume print

Change Log

• 2025/10/16
  • add model with description
    • Patch Panel with Label 8 port
• 2025/03/11
  • add model with description
    • Patch Panel 8 port
    • Patch Panel NUC 8 port
• 2025/03/07
  • add model with description
    • Patch Panel
    • Patch Panel NUC
