2025.12.15更新

80x80盖子干涉问题已改善。

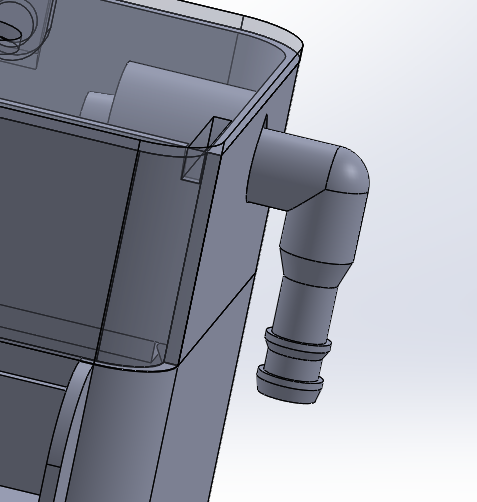

为我的小鱼缸设计的小型过滤器。我设计了两种尺寸：120x70和80x80，可以按需打印。

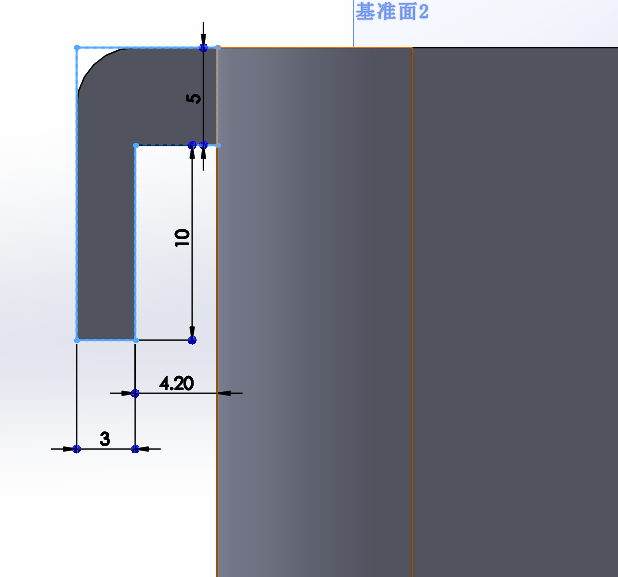

适合壁厚8mm以内的鱼缸，入水管需要10mm以内~有其他尺寸需要修改可以留言或者助力哈哈。

上层放过滤棉，下层放细菌屋，还有设计有盖子。同时三个部件都有6x2的磁铁孔，不过实际测试不放磁铁也很严丝合缝~

欢迎你用的开心。

A small filter designed for my little fish tank. I have designed two sizes: 120x70 and 80x80, which can be printed as needed.
Suitable for fish tanks with a wall thickness of 8mm or less. The inlet pipe needs to be 10mm or less. If you need other sizes, please leave a message or give a thumbs up. Ha ha.

The upper layer is for the filter cotton, the lower layer is for the bacteria house, and it is designed with a lid. Meanwhile, all three components have 6x2 magnetic holes, but in actual tests, it fits tightly even without magnets.

Hope you enjoy using it.
