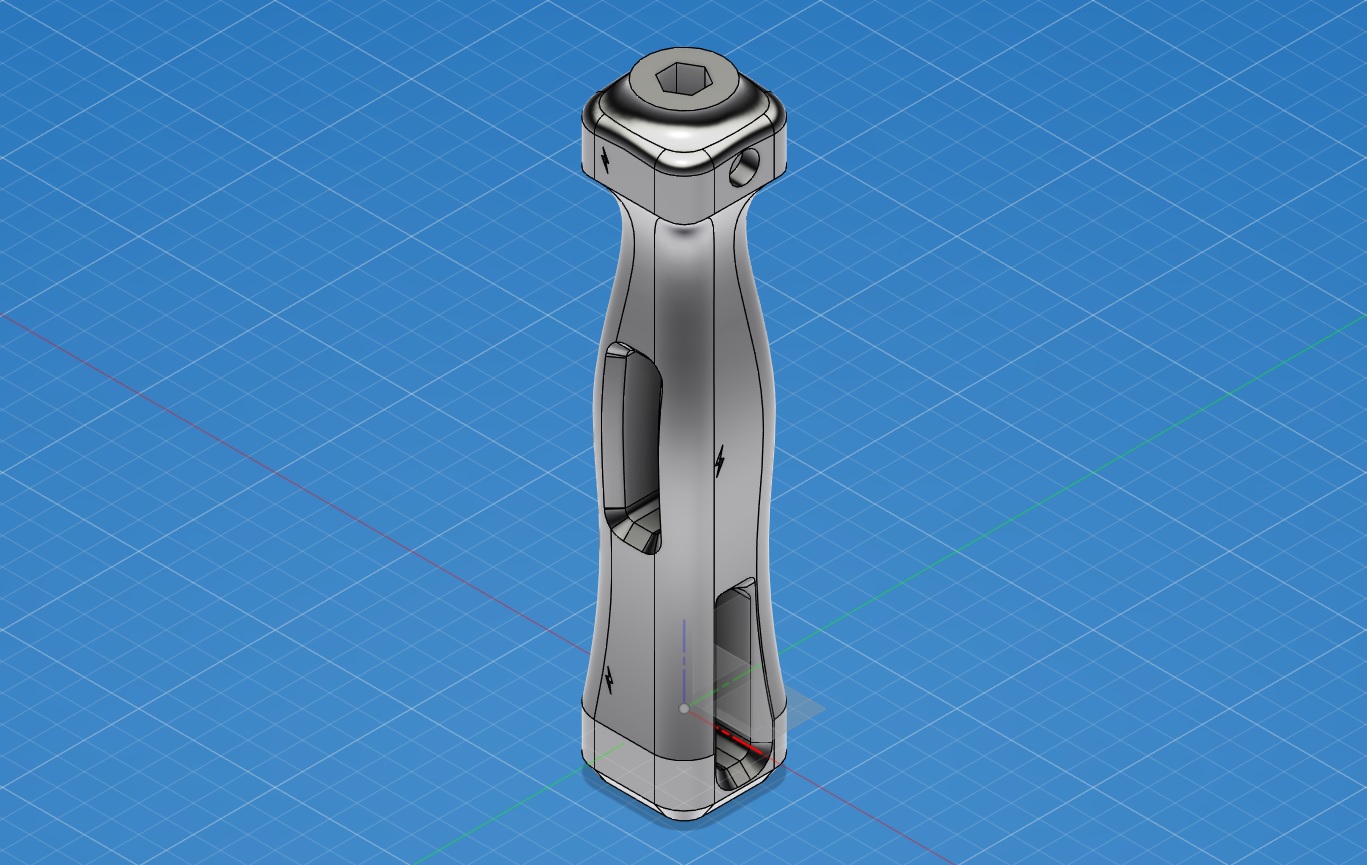

Magnetic bit holder

Ergonomic hand tool for standart 6mm bits, with hidden places for magnets.
Size: 110 x 22 x 22mm

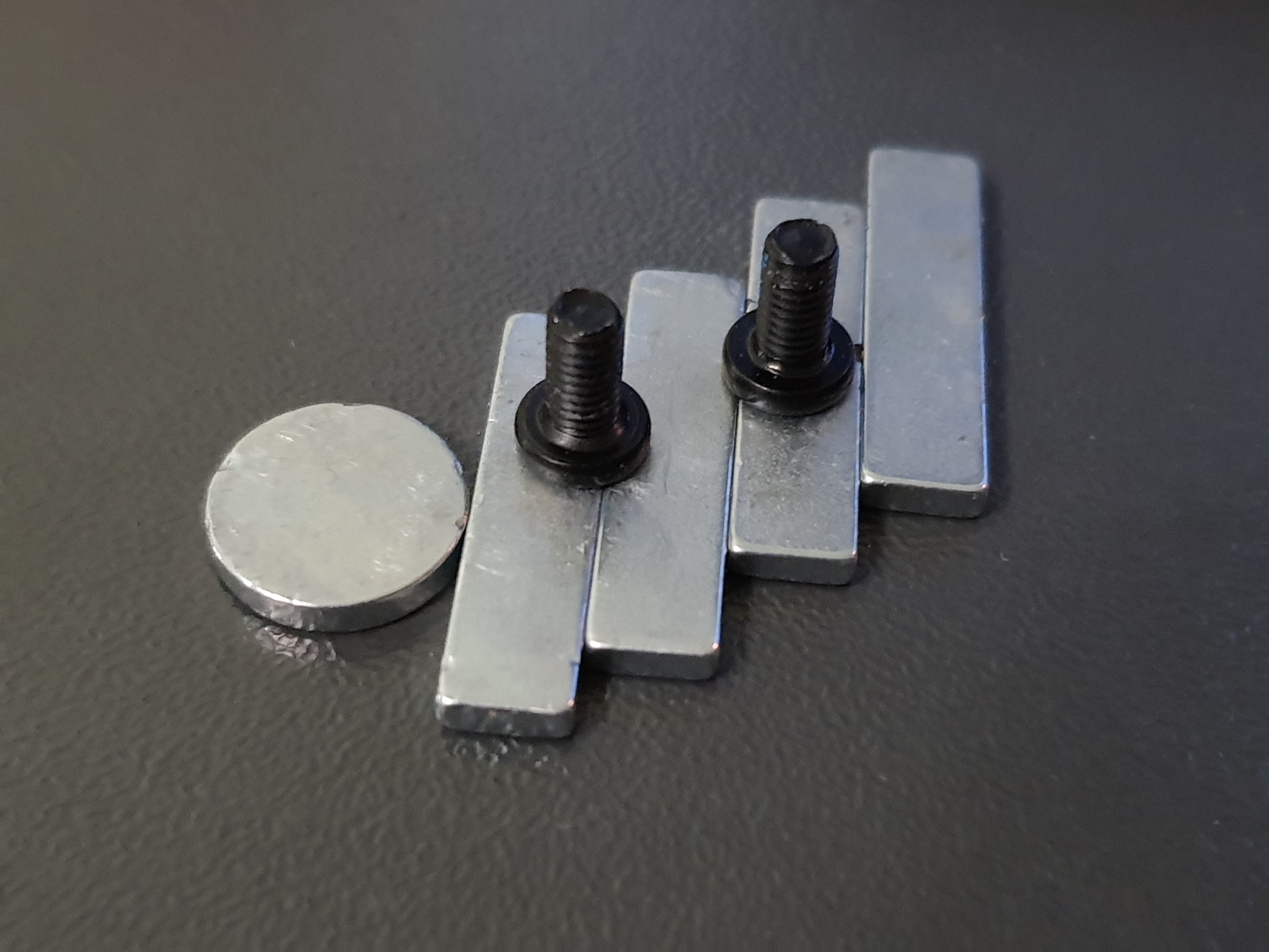

Not printed materials:

• M3 x 5 screws - 2
• Round magnet 10x2mm - 1
• Rectangular Magnet 20x5x2mm - 4

Printing process:

When printing, three pauses at different levels will be required to insert magnets. For a 0.2mm layer height, these will be layers 130 (insert 2 rectangular magnets), 318 (insert 2 rectangular magnets), and 500 (insert 1 round magnet).

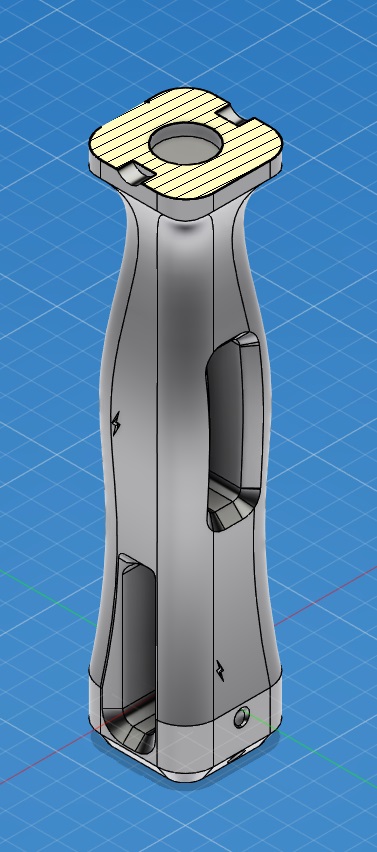

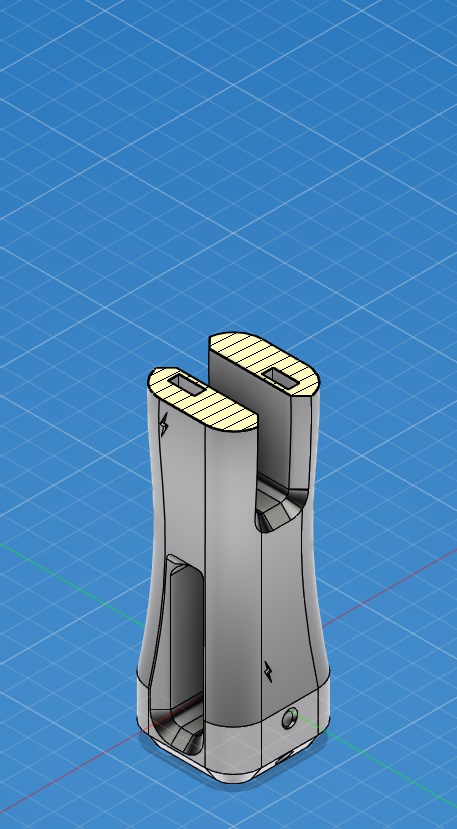

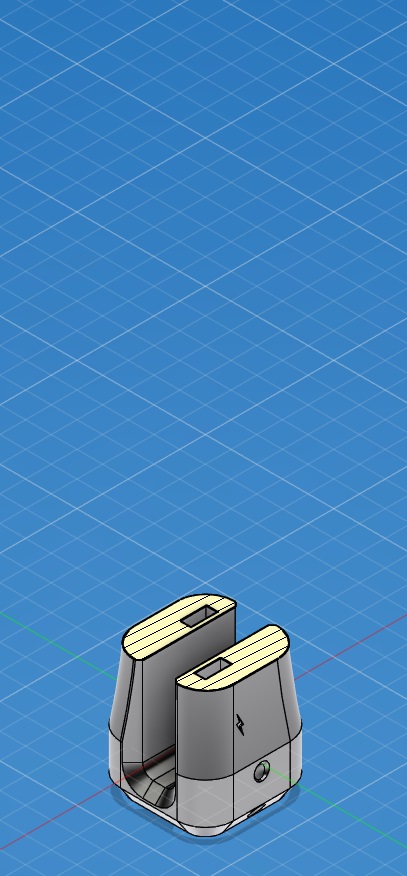

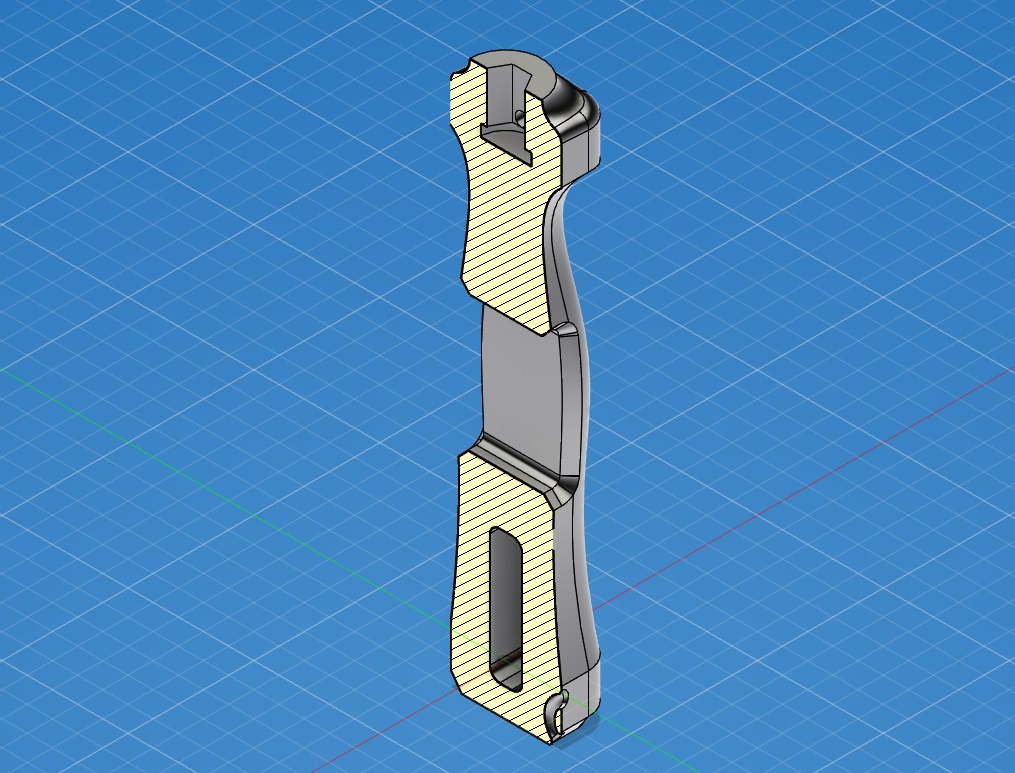

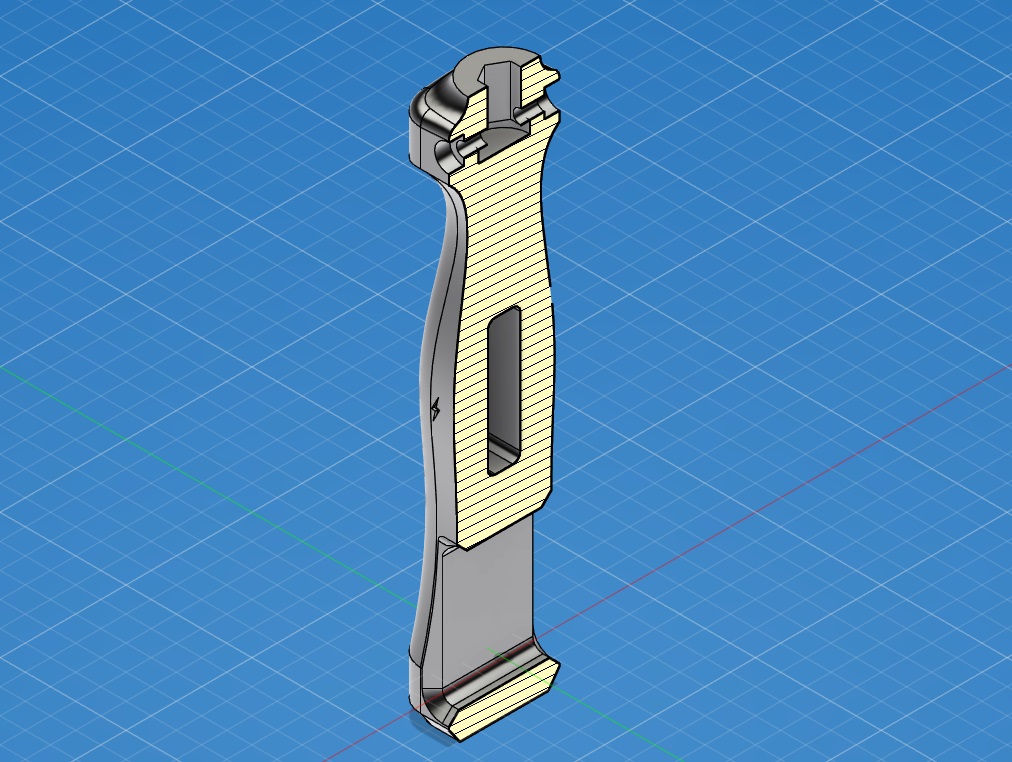

Section Analysis:

6 bit storage locations

Used filament on photo - Red PETG HF.

Screws M3 x 5 are used to provide additional fixation of the bits and prevent them from turning.
