Filament Spool Holder

Hey Everyone!

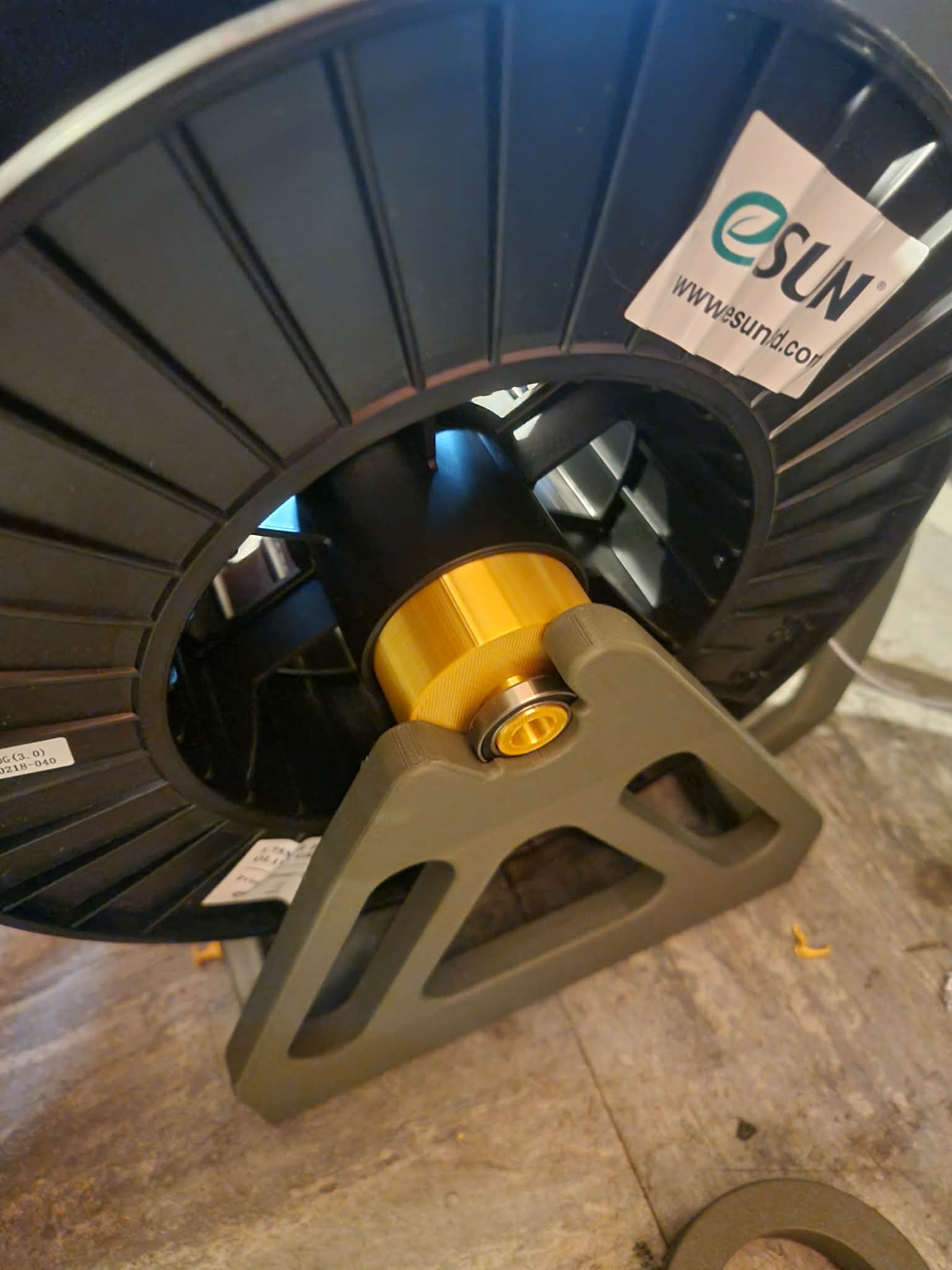

Take a quick peek at the photos of this BEAST! It is definitely the best spool holder available. You can mount 5kg or 1 kg spools with ease. The A frame will more than handle the weight of larger spools. Its designed to be smooth and sturdy throughout the entire filament length. Its design feature pulls the spool into the bearing pockets making it very reliable as the spool weight decreases. It uses 2 precision roller bearings for extremely smooth feeding of filament. It also allows for remote mounting of the spool, further from the printer and out of the way.

Update:

~I added a wall mount base at the request of @MartinJ, I HAVE NOT VERIFIED ITS USE.

I do believe it will function as needed. I would suggest feeding the filament over the top of the roll and NOT under, this will help retain the spool when it gets low.

~Thank you @MartinJ, They have posted a couple pictures and review of the updated base for you to see

Dimensions:

7in W x 11in D x 8.5in H

Print Specifications:

PLA

0.4mm nozzle

0.2 layer height

2 wall loops

15% infill

supports where needed

Supplies:

2 - 17 x 26 x 5mm bearings

Amazon Link:

[https://www.amazon.com/gp/product/B07TRQ1YZ1/ref=sw_img_1?smid=A1THAZDOWP300U&th=1](https://www.amazon.com/gp/product/B07TRQ1YZ1/ref=sw_img_1?smid=A1THAZDOWP300U&th=1)

1 - 1.75 Bowden Collet

Amazon Link:

[https://www.amazon.com/gp/product/B0CP6XRR8D/ref=ox_sc_saved_image_3?smid=A2ROOKA2OGQAPU&psc=1](https://www.amazon.com/gp/product/B0CP6XRR8D/ref=ox_sc_saved_image_3?smid=A2ROOKA2OGQAPU&psc=1)

PTFE Tube

[https://us.store.bambulab.com/products/ptfe-tubes](https://us.store.bambulab.com/products/ptfe-tubes)

2 - ¾ in screws
