IKEA Skadis Angled Bin

UPDATE 2026-03-05: Added Print Profile for Large and Small Trays.

-------------------------------------------------------------------------------------------------------------

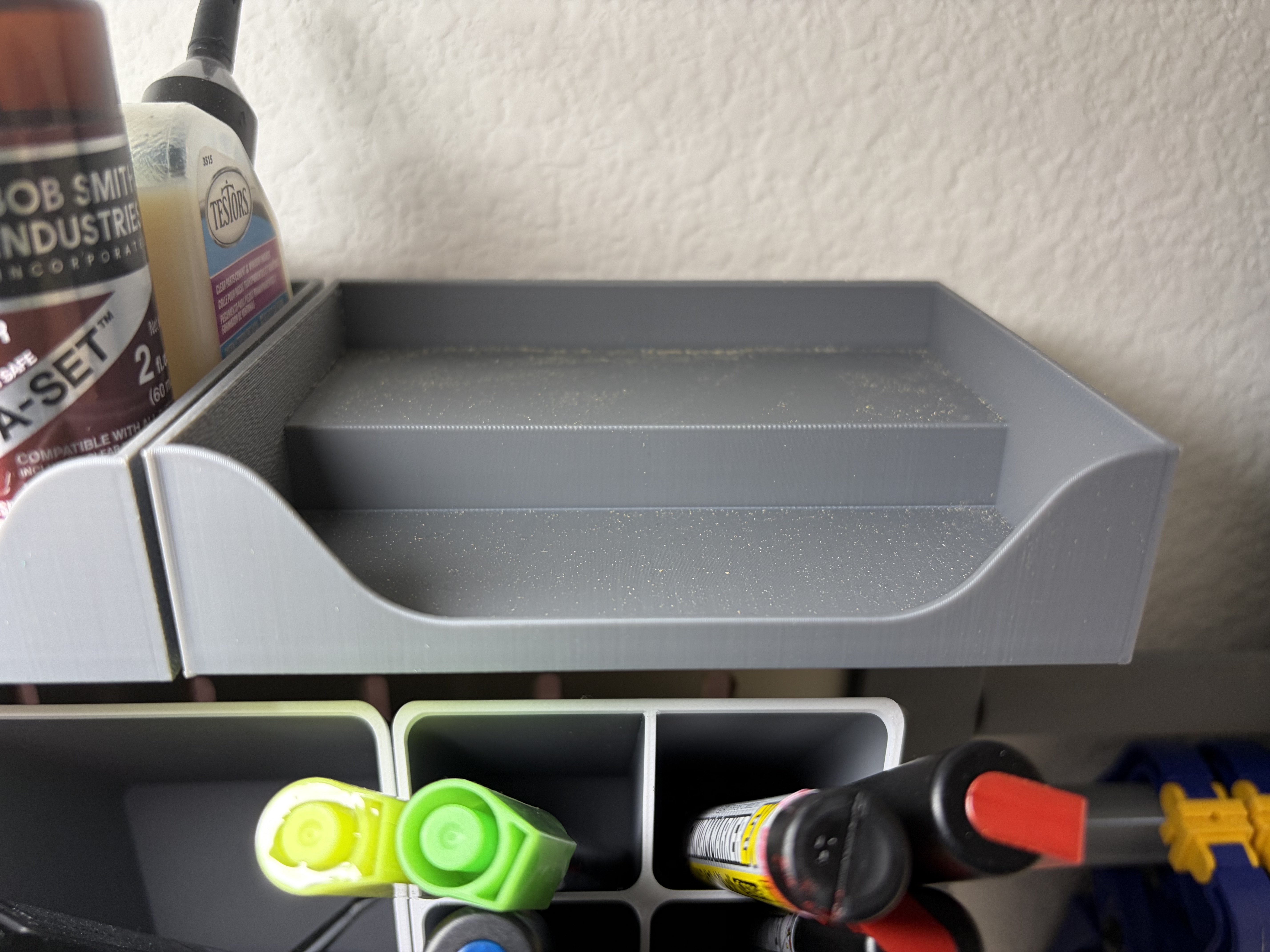

🧰 3D Printed Angled Storage Bin for the IKEA SKÅDIS

Upgrade your SKÅDIS setup with this sleek, space-optimizing angled bin, custom-designed to snap seamlessly into your pegboard grid. Whether you're organizing craft supplies, office essentials, or workshop bits and bobs, this bin brings both form and function to your wall.

For magnetic mounted version of these bins, click here: IKEA Skadis Angled Bins (Magnet Mounted)

Links: Heat Inserts, Hex Bolts

Plates

Plate	Width (mm)	Height (mm)	Depth (mm)
Small Size Bin	38	38	50
Small Size Bin (Wide)	78	38	50
Small Size Bin (Extra Wide)	118	38	50
Small Size Bin (6 Slots)	78	78	50
Medium Size Bin	38	38	75
Medium Size Bin (Wide)	78	38	75
Medium Size Bin (Sanding Block)	38	118	75
Medium Size Bin (3 Compartments)	78	38	75
Medium Size Bin (4 Slots)	118	78	75
Large Size Bin	38	78	100
Large Size Bin (Wide)	78	78	100
Large Size Bin (4 Compartments)	78	78	100
Large Size Bin (4 Slots)	78	78	100
Large Size Bin (2 Slots)	78	78	100
Skadis T-Nut (Remixed) 4 ea	N/A	N/A	N/A

🔧 Features:

Angled Design: The forward-tilted geometry offers easy visibility and access to contents—no more digging around for that elusive paperclip.
Perfect Fit: Engineered to align precisely with SKÅDIS peg spacing for a secure, wobble-free mount.
Modular & Stackable: Combine multiple bins side-by-side or vertically to build your ideal storage layout.
Multiple Sizes Available: Mix and match different sizes according to your needs
Durable Material: Printed in sturdy PLA or PETG for long-lasting use, with optional textured or matte finishes.

🎨 Parts Printed:

Bins: The main storage
T-Nuts: Used to attach the Base Plate. Remix of Skadis T-Nuts Mounting System for Ikea Skadis Pegboards from Printables.

🎨 Materials Required:

Heat Insert: M2.5 heat insert, Diameter 3.5mm, Depth 4mm. Amazon link
Hex Bolt: M2.5 Hex head bolt, Length 16mm. Amazon link

🎨 Tools:

Hex Screwdriver: M2 hex screwdriver
Soldering Iron: Used for embedding the heat insert into the T-Nut

🎨 Assembly:

Attach the heat insert into the T-Nut. Clear debris by screwing the bolt until material comes out the other end.
Clean the bottom of the bin after printing. Use a deburer.
Screw the T-Nut into the back of the bin.
Attach to Skadis using 2mm Hex Screwdriver. If tight, debur the hold first.
