Modelo 3D Logic Gate Toys por StrangeCraft no MakerWorld

Descrição

Clip together tiles of logic gates you can use to play with logic circuits; can be used to teach logic concepts.



Toys to teach logic circuit concepts, a little more tactile than drawing diagrams. You could also modify them to add magnets so you can put them on a white board. Perhaps can be used to make puzzle for kids w/the bonus of getting a little exposure to ECE(Electrical/Computer Engineering.)

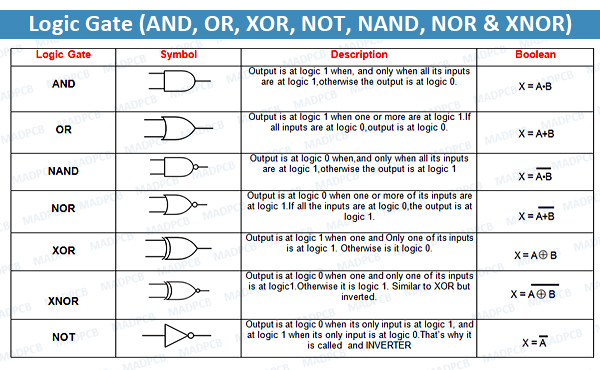

Logic Gate Reference:


Printing Estimates/Stats:

Ave Tile(2 Color) = 15% Infill - 5.31g - $0.10 cost(PLA) - 12m32s printing time

Ave Tile(1 Color) = 15% Infill - 3.69g - $0.07 cost(PLA) - 8m10s printing time



“True State - Input+Output” and “False State  - Input+Output” to give internal state outputs.

MakerWorld

Logic Gate Toys

Publicado em 30 de ago de 2025

42
Curtidas
80
Downloads
141
Coleções
29
Impressões
Categoria Engineering
Tags
Toy education educational engineering electronics circuit educationaltoy electrical wiring computerscience ece ece lab logic
Licença BY-NC-SA
