While there are many honeycomb shelf designs available, I couldn’t find one that fully matched what I had in mind.

My goal was to create a truly modular system that can be expanded over time without drilling additional holes and, most importantly, without any visible screws.

With this design, just two nails or screws can securely support multiple shelves and significantly more weight than you might expect.

Printing details

For the best print quality, please follow the settings in the print profiles.

Required Components

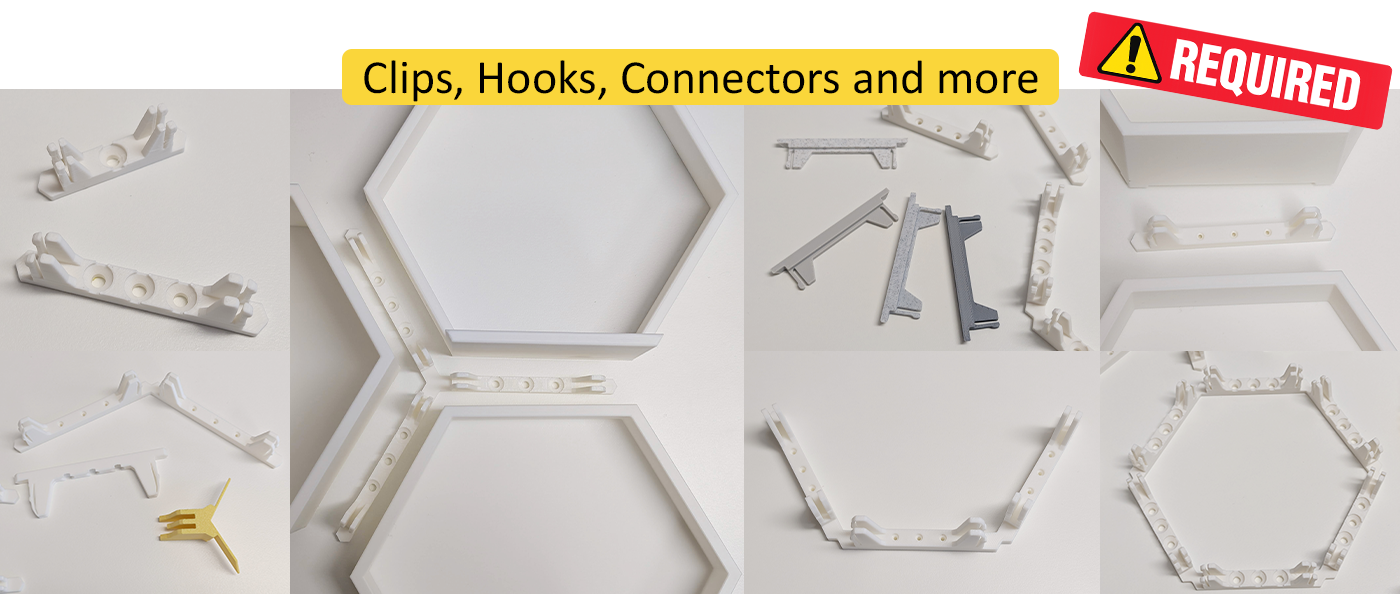

Important: Hexo Clips are required to assemble the shelves.

Use the Clips to cover the external edges of the shelves, and the Connectors to join multiple shelves of the same size. The same Connector can also be used as a wall Hook to fix the shelves to the wall.

You can use either nails or screws. Print the version that best fits your needs.

• Clips are available here: [https://makerworld.com/en/models/2352863](https://makerworld.com/en/models/2352863)

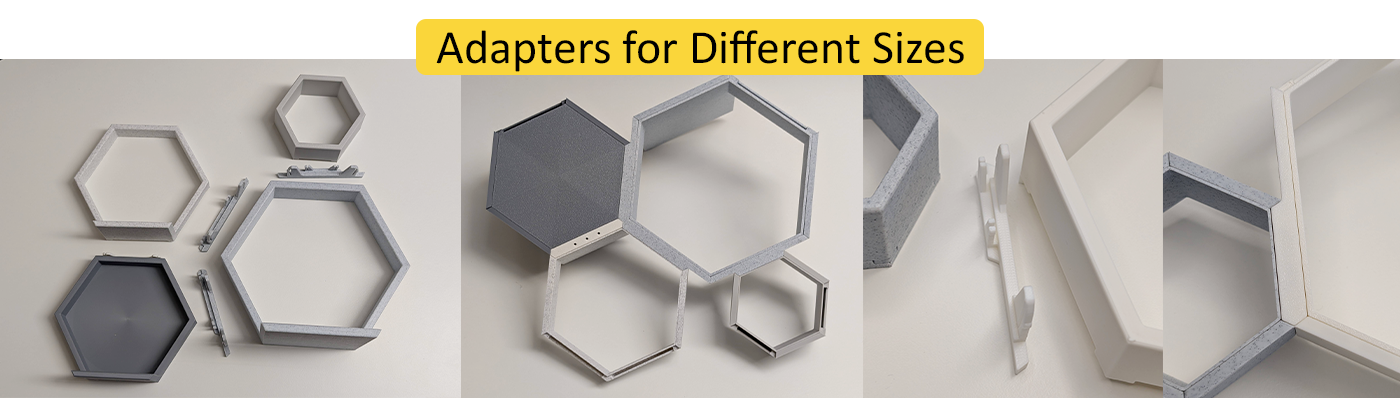

Adapters are only required if you want to connect Hexo shelves of different sizes.

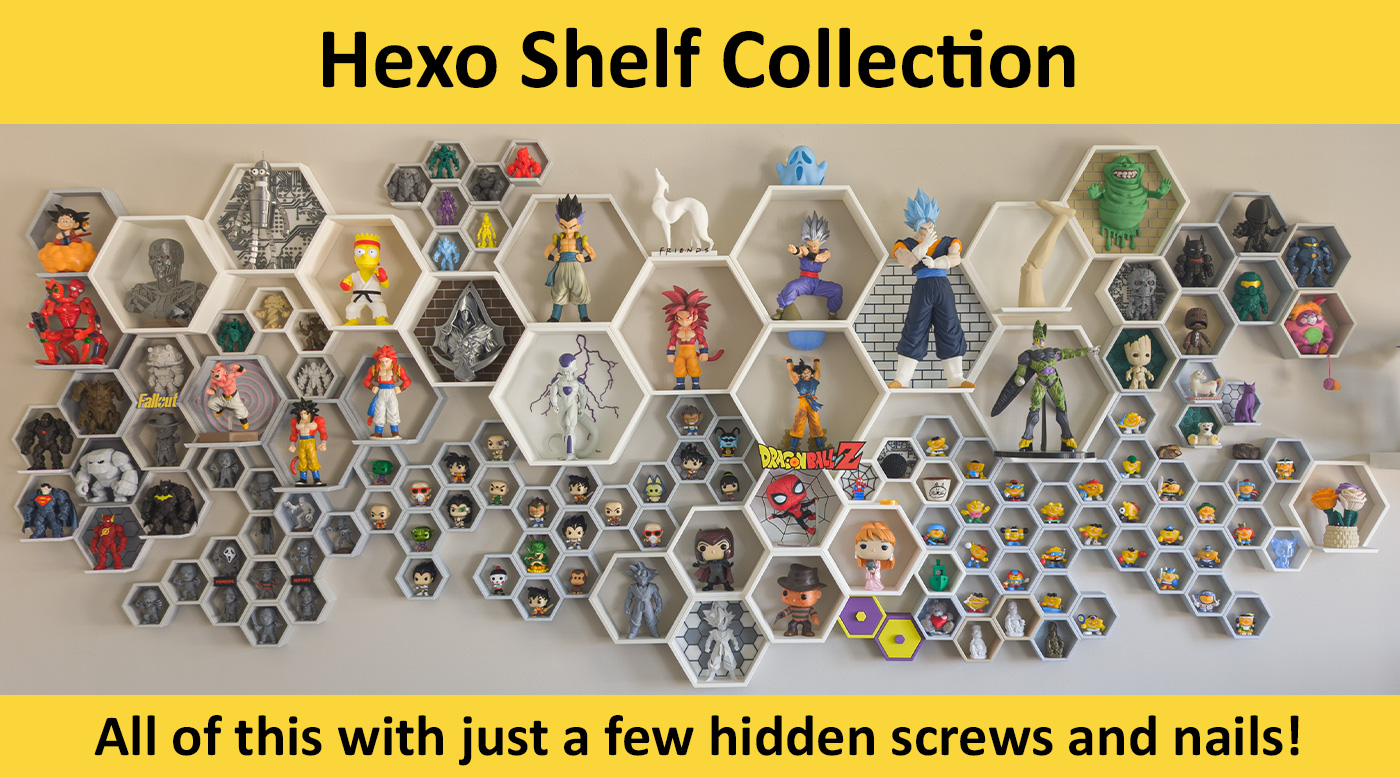

Combine different variants to build your own unique and spectacular display.

• Size Adapters are available here: [https://makerworld.com/en/models/2115832](https://makerworld.com/en/models/2115832)

Hexo Screen

Add a screen protector to keep your collection dust-free, or simply because you like the look!

You can use any transparent PVC sheet. I tested thicknesses from 0.015 mm to 0.1 mm, and found that 0.1 mm works best.

For example, you can find suitable sheets on [Amazon] or [eBay].

The profile includes a cutting template for the hexagon-shaped screen sheet.

Secure the sheet with some tape to prevent movement during cutting.

Once cut, slot the sheet into the Screen Cover and lock it in front of the shelf.

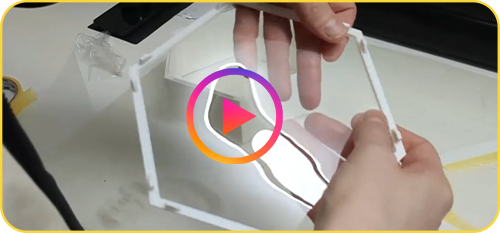

Watch this short video to see how to assemble the Screen

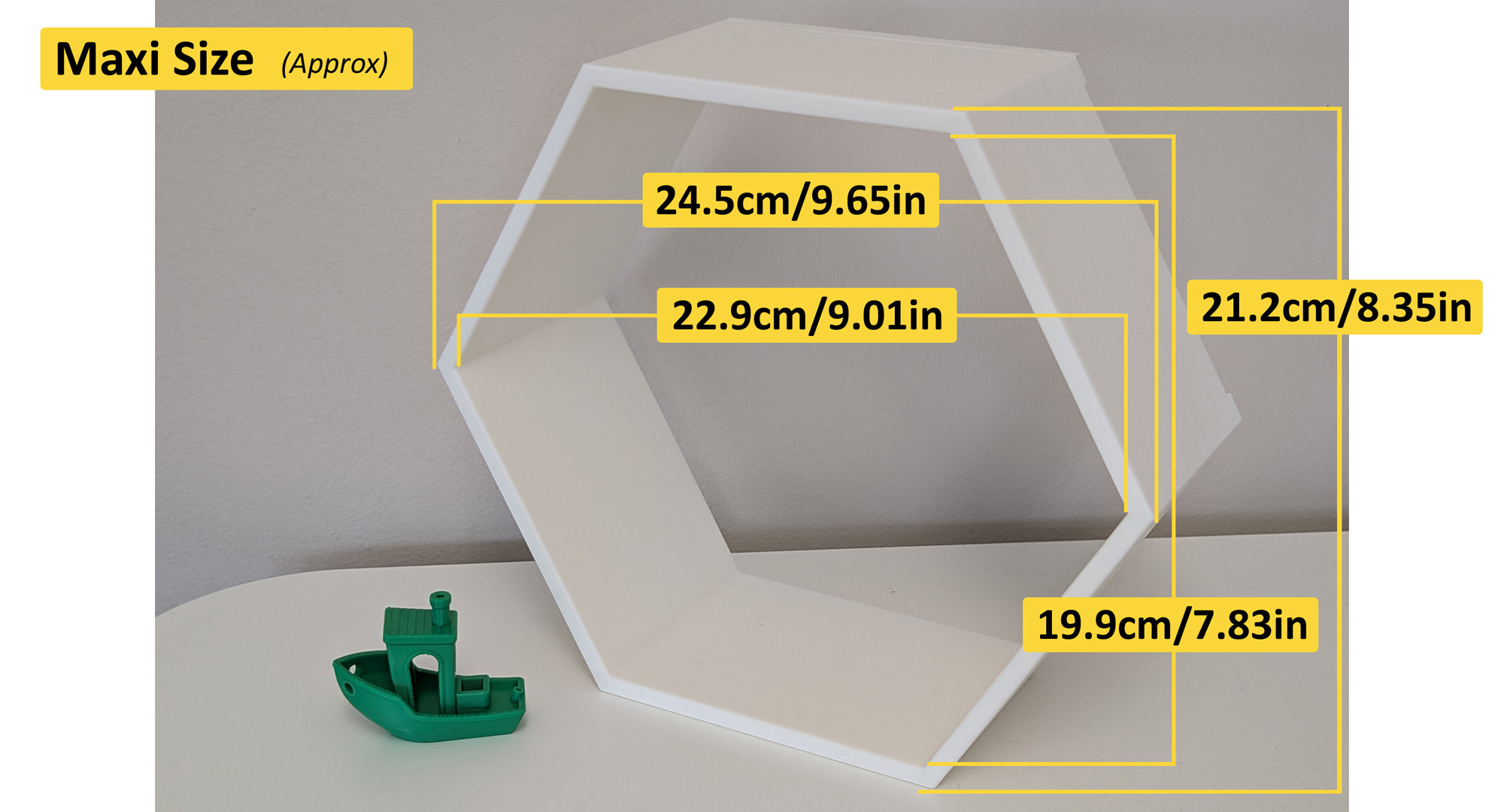

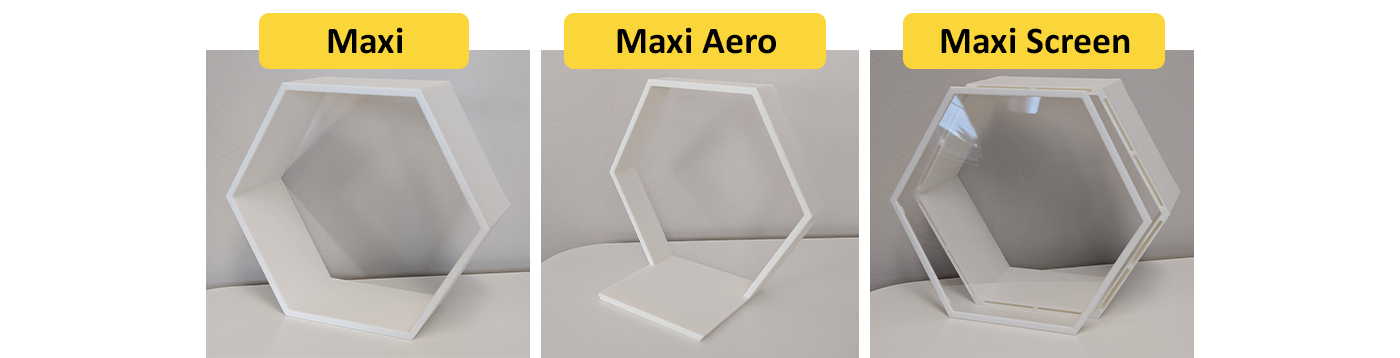

Here are all the available versions of the Maxi Shelf

• Maxi is available here: [https://makerworld.com/en/models/1291264](https://makerworld.com/en/models/1291264)
• Maxi Aero is available here: [https://makerworld.com/en/models/1459611](https://makerworld.com/en/models/1459611)

Available Depth Sizes:

• 75 mm / 2.95 in
• 95 mm / 3.74 in
• 115 mm / 4.52 in

Follow us on

Assembly instructions

[https://makerworld.com/en/collections/2285984](https://makerworld.com/en/collections/2285984)

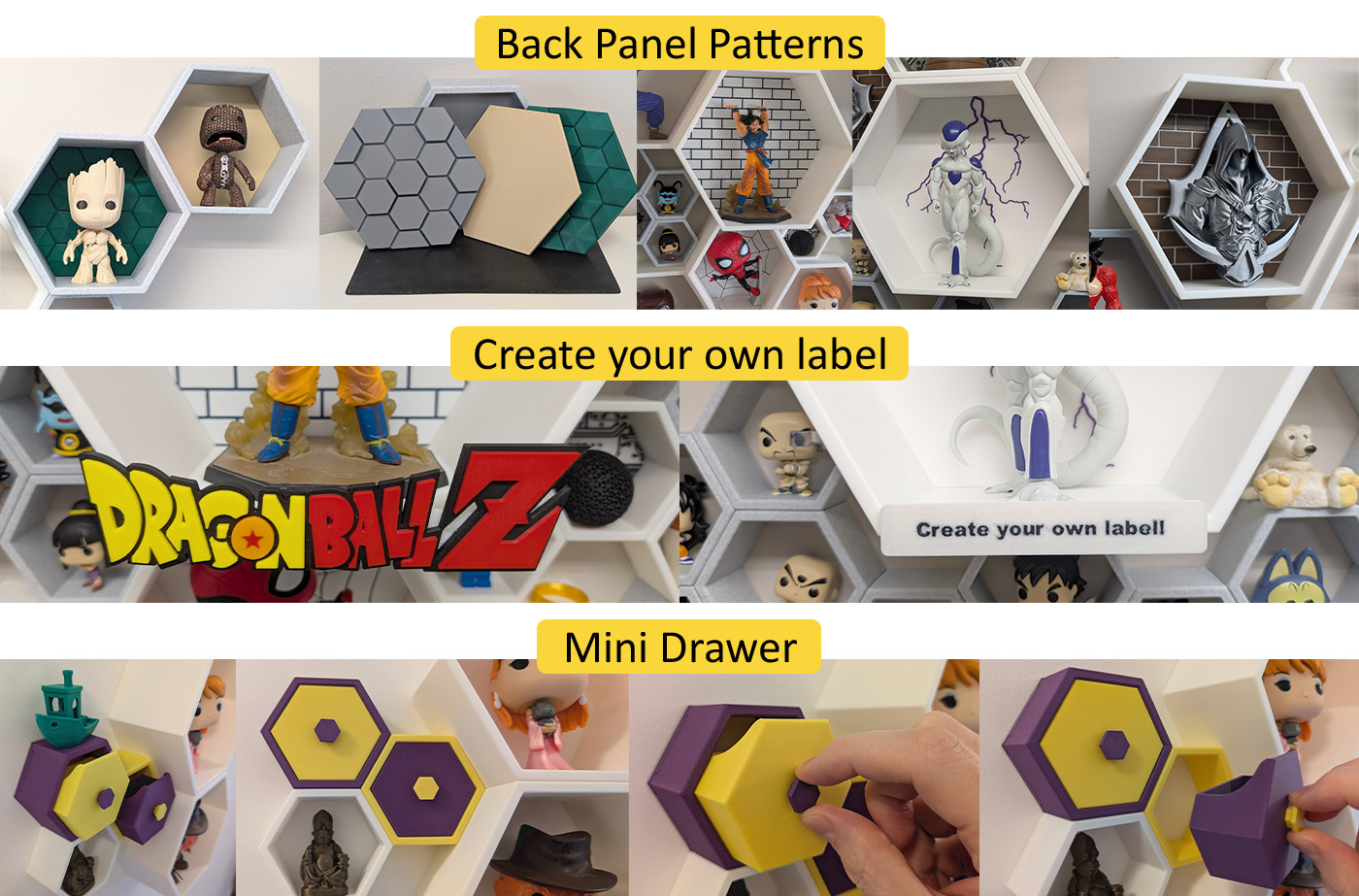

Optional Components

• Back Panels are available here: [https://makerworld.com/en/models/1654320](https://makerworld.com/en/models/1654320)
• Labels are available here: [https://makerworld.com/en/models/2253931](https://makerworld.com/en/models/2253931)
• Mini Drawer is available here: [https://makerworld.com/en/models/626189](https://makerworld.com/en/models/626189)
