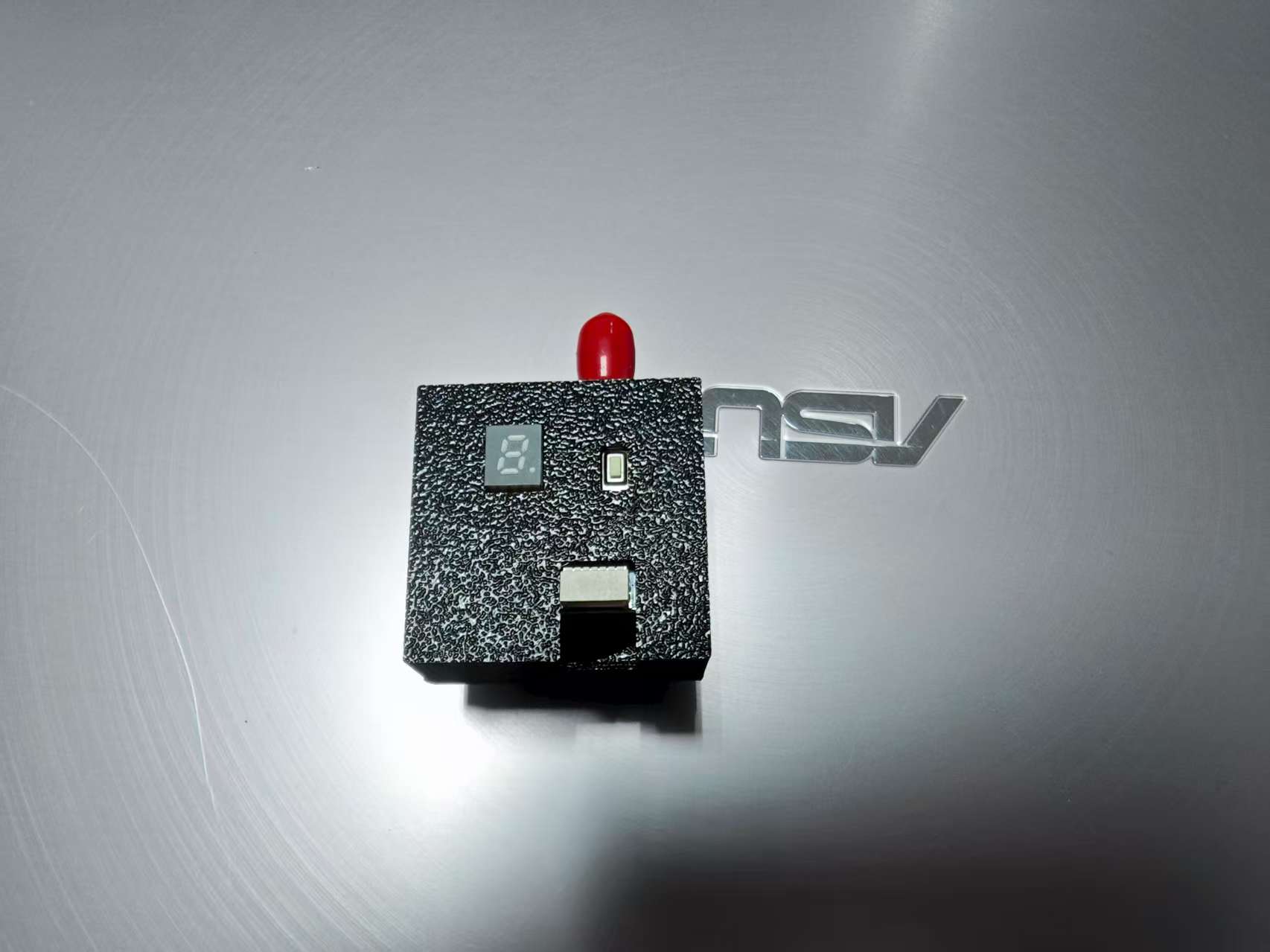

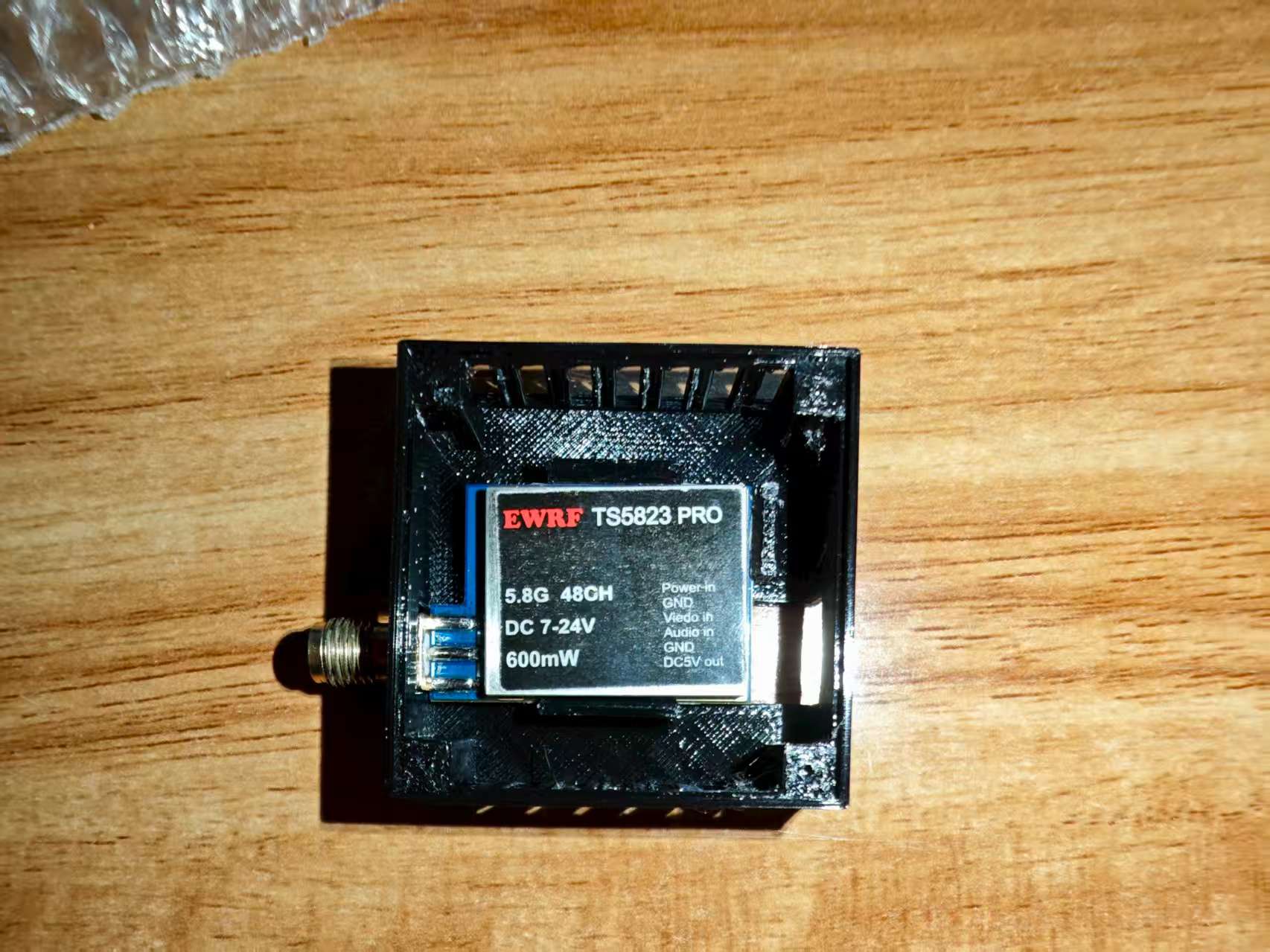

这是按照5.8G图传芯片TS5823Pro外观尺寸制作的散热保护罩。装配完成以后的尺寸是35.8*35.8*24.5mm。

保护罩预留了接线孔和屏幕按键的位置。

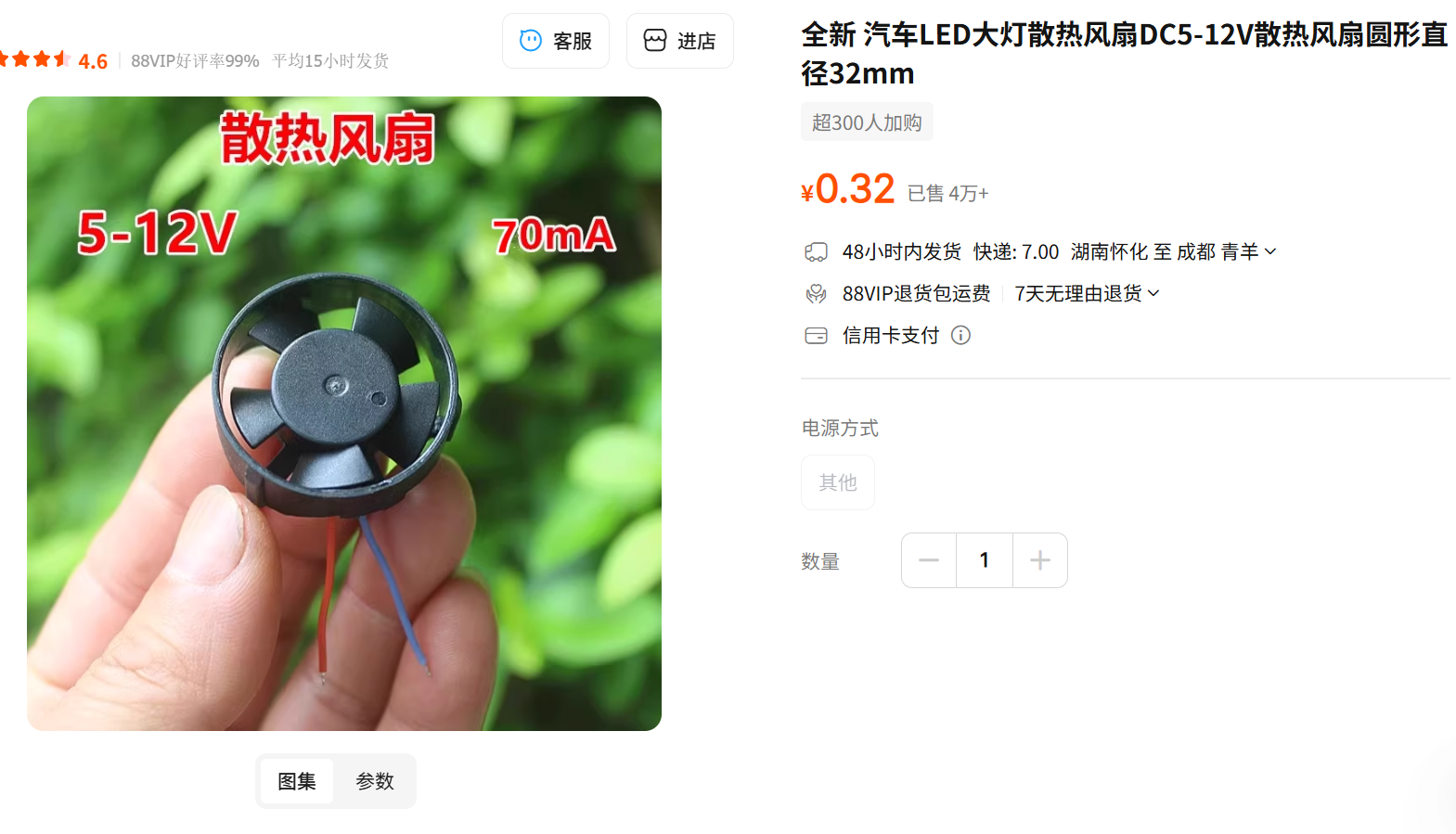

风扇采用3mm的LED散热风扇。风扇供电可以直接接图传的7.4V电源。

购买链接：[https://item.taobao.com/item.htm?id=788493685567&pisk=gY44Gaj8lZQ2xj95l83wLyZJJ00xXVWCIPMss5ViGxDcXj_M75Pn1sBOMulgC8COMqNiQRySeFG1DOLaU-N3cmw_cAciE8VXlA_xbRPQpRT1koGM78NtjRaa6FlgsRCxCsI7MS3tS96IQwNYMtgvKbUqiamuwXxisgiD0aPfN96CRNSDZVWVdRNlIqwoTX0iicxmE_ls9dYgIcYuZYhtsKcMo_PoeYYMoVYmZ7cs9K0MoFAoZjG9jdcmi3voef0isA2gZ_lZEA0iSRVowg2gHUkrm_jkKmDfqTcqKSDySeRK4mbbghT65Ylm0P4iU_17zjoqK0tRjez0F54bk0IvcVF7YRrgBMt-u5qmoXNAuUu3iuaZNP16bxV7z74-mCx0aPkqxrmy_FNEof2ibuBeRjub4Dz4D1puiJM4xqF6TtNrYuoKZ0AwmqZQOPn3oZJKFDhahYwh-UuojgSBBbfzXPE2IhomwbkCa_kr97qT54j17hKt4ghrd6CpXhnmwFt45sx9X0zqav1ct&spm=tbpc.boughtlist.suborder_itemtitle.1.6a912e8dti1sFk&skuId=5773850881517](https://item.taobao.com/item.htm?id=788493685567&pisk=gY44Gaj8lZQ2xj95l83wLyZJJ00xXVWCIPMss5ViGxDcXj_M75Pn1sBOMulgC8COMqNiQRySeFG1DOLaU-N3cmw_cAciE8VXlA_xbRPQpRT1koGM78NtjRaa6FlgsRCxCsI7MS3tS96IQwNYMtgvKbUqiamuwXxisgiD0aPfN96CRNSDZVWVdRNlIqwoTX0iicxmE_ls9dYgIcYuZYhtsKcMo_PoeYYMoVYmZ7cs9K0MoFAoZjG9jdcmi3voef0isA2gZ_lZEA0iSRVowg2gHUkrm_jkKmDfqTcqKSDySeRK4mbbghT65Ylm0P4iU_17zjoqK0tRjez0F54bk0IvcVF7YRrgBMt-u5qmoXNAuUu3iuaZNP16bxV7z74-mCx0aPkqxrmy_FNEof2ibuBeRjub4Dz4D1puiJM4xqF6TtNrYuoKZ0AwmqZQOPn3oZJKFDhahYwh-UuojgSBBbfzXPE2IhomwbkCa_kr97qT54j17hKt4ghrd6CpXhnmwFt45sx9X0zqav1ct&spm=tbpc.boughtlist.suborder_itemtitle.1.6a912e8dti1sFk&skuId=5773850881517)

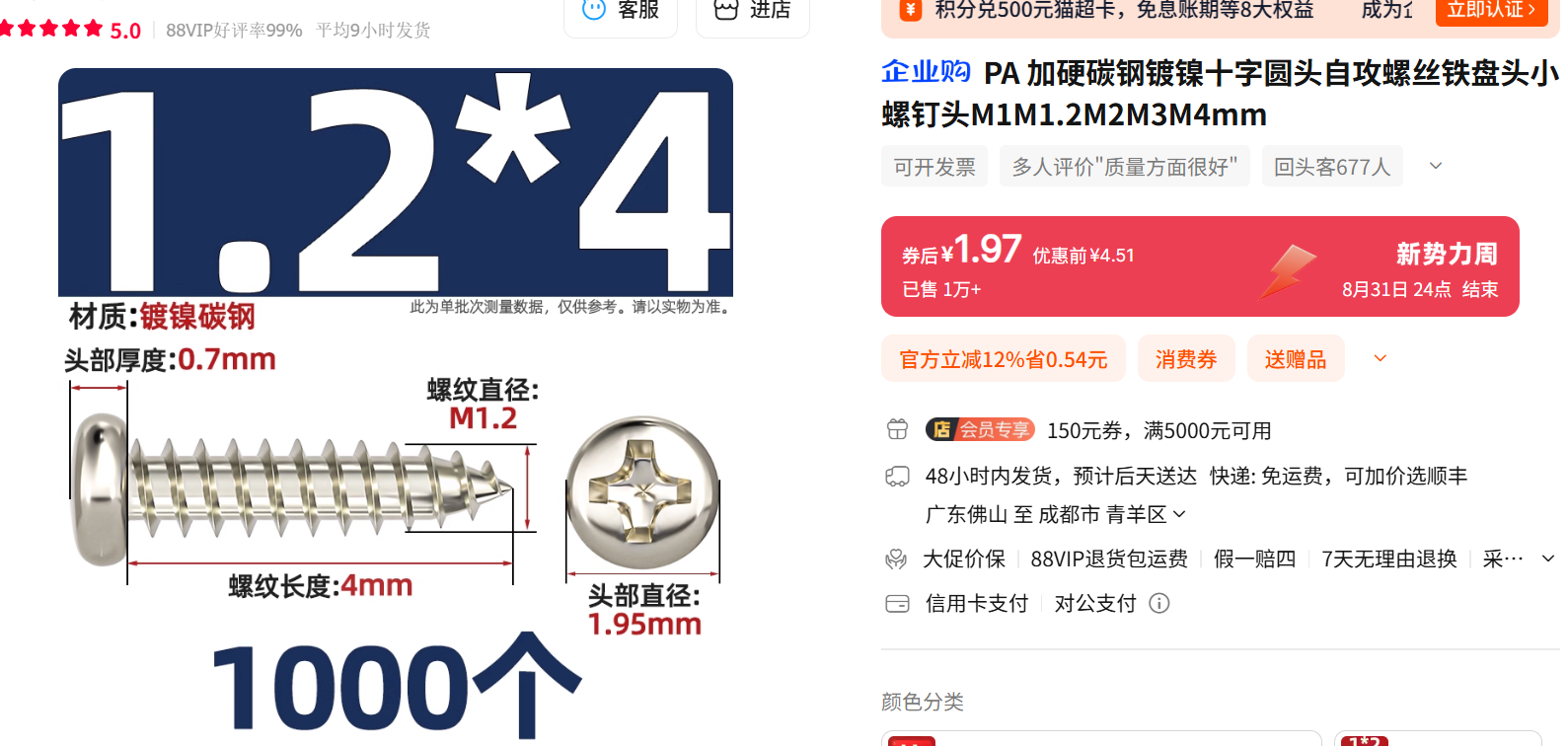

装配还需另外配备4颗M1.2*4的螺丝。

购买链接：[https://detail.tmall.com/item.htm?id=601878555289&pisk=gG1aGHwd15FNpqoQ1Mdq4_6KwpA9eIr7mstXoZbD5hxgHFNmgZ7klPEYW98ccMUYWC_D0iSBvjTbBohVYG_lCdsfCnYDxMbs1nN93i752iGb6OTmgM_vni1Vkj8coiU9cPeCWNdviuZW07_OWlOtqeCwmvVhJUKmIJ9iQW7_RuZ7NSyi-IraVi_3oLSHzUADSKDMxy8XrEccmKch-HLvocYmsy7HvHcmsIcM-wYXycADoIAn-UYiIAYMn2VHvEADonjc-y82xnADiibnwAIcXX-eIy2nqdx_CRX2qNxEibuJTdcF5xG-wC8MQsvpYyaCTFJwqpMLnb5GAZf16petCIQCUiWcD8Mp_ZXMsU_T_XRlS912Rsaj3hbCTwfpIqDG8s-wE1vEuj_ysEjD39ErNFR1LL5NBrnhSgtNECQjzl_eU9JJ-p0qIC65Pspls5oJALLVfHsuZXRHng7IDe4FHsBZmxJMJe-78y-eywXAGB2bgxHvLJLeVzU-HxpMJjMNGPDxHp5w83agr&spm=tbpc.boughtlist.suborder_itemtitle.1.6a912e8dti1sFk&skuId=4206801064607](https://detail.tmall.com/item.htm?id=601878555289&pisk=gG1aGHwd15FNpqoQ1Mdq4_6KwpA9eIr7mstXoZbD5hxgHFNmgZ7klPEYW98ccMUYWC_D0iSBvjTbBohVYG_lCdsfCnYDxMbs1nN93i752iGb6OTmgM_vni1Vkj8coiU9cPeCWNdviuZW07_OWlOtqeCwmvVhJUKmIJ9iQW7_RuZ7NSyi-IraVi_3oLSHzUADSKDMxy8XrEccmKch-HLvocYmsy7HvHcmsIcM-wYXycADoIAn-UYiIAYMn2VHvEADonjc-y82xnADiibnwAIcXX-eIy2nqdx_CRX2qNxEibuJTdcF5xG-wC8MQsvpYyaCTFJwqpMLnb5GAZf16petCIQCUiWcD8Mp_ZXMsU_T_XRlS912Rsaj3hbCTwfpIqDG8s-wE1vEuj_ysEjD39ErNFR1LL5NBrnhSgtNECQjzl_eU9JJ-p0qIC65Pspls5oJALLVfHsuZXRHng7IDe4FHsBZmxJMJe-78y-eywXAGB2bgxHvLJLeVzU-HxpMJjMNGPDxHp5w83agr&spm=tbpc.boughtlist.suborder_itemtitle.1.6a912e8dti1sFk&skuId=4206801064607)
