Simple Recharge Remote

This is the first direct rechargeable Remote for CyberBrick!

After the great success and the enthusiasm of many users for the “Simple Remote,” I set out to create a new remote controller solution. The following points were to be achieved — and have been implemented:

• Use of the Li-ion battery pack, with the option to charge it directly via a port.
• Fast and easy single plate print <3h
• Simple assembly.
• Same layout as the Official Remote, with the 2-way joystick located at the back right.
• Easy access to the core and other components.
• Ergonomic also for kids → Top is more rounded which feels better
• Simple customization of the cover.
• LED Indicator shows up in the “C” from “CyberBrick”

Assembly

Check the Assembly PDF for details

Info for the optional recharge port:

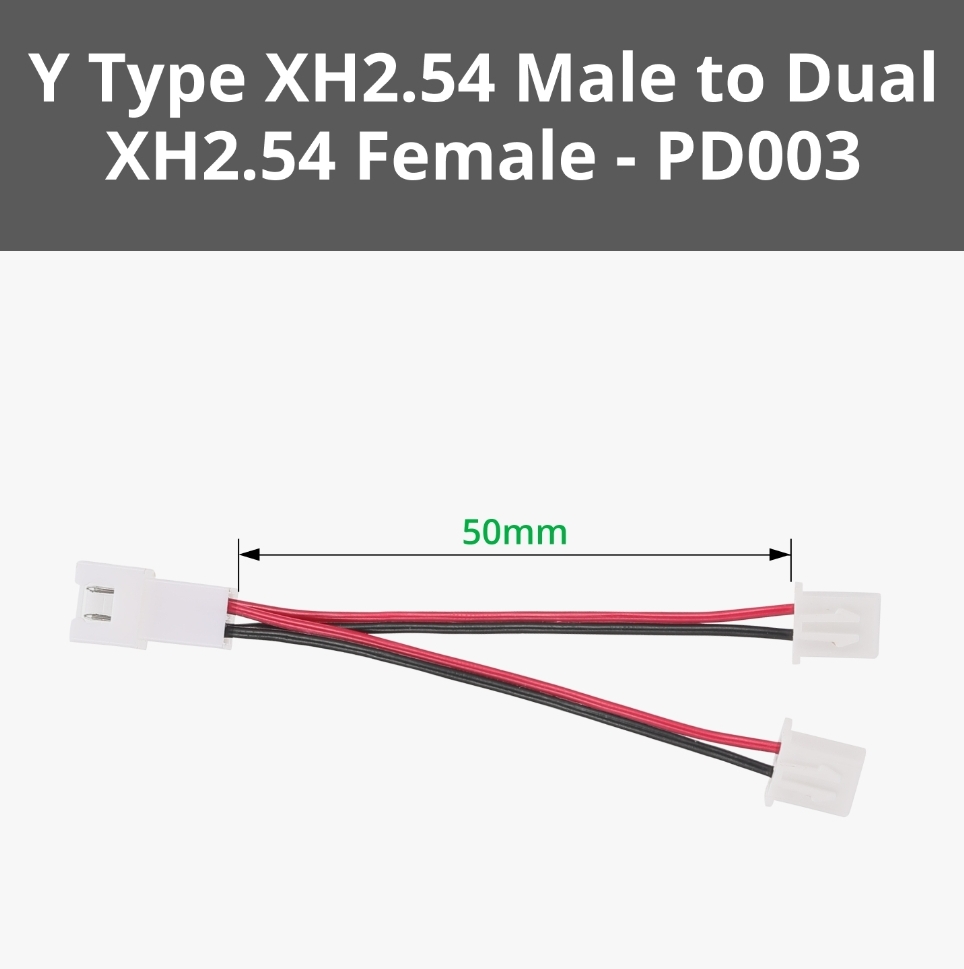

I used a XH2.54 Male/Female Cable set (Reflink: [https://amzn.to/45RAILF](https://amzn.to/45RAILF)) to solder my own. The cable fits between switch board and battery. To be safe, turn off the switch when you charge the controller!

Update: Y-cable has arrived in Bambu Shop → You have not to solder it anymore! Link in BOM

The remote controller also works very well without the charging port!

The cover can be easily removed and the battery can be unplugged for charging.

Changelog:

V1.01

• More space for 3-way switch
• Washer optimized
• Optional “direction blocker” print profile for the cover:

Hope you like the remote controller…. more is coming… stay tuned and leave a follow.

Happy Printing 😉👍

Disclaimer: I added all non printed parts and the kit which includes all used parts, as well. Decide if you want to use single parts or the kit. The kit includes various non-printed parts to accommodate multiple popular models. As a result, some parts may not be necessary for this specific model. If you only need to purchase the non-printed parts required for this model, please uncheck the Kit option when making your purchase.
