led灯条控制器，借用typec接口
配置文件中加入了暂停层，需要自行嵌入螺母，需要m3螺母，m3*8螺丝m3*10沉头螺丝，键盘轴体

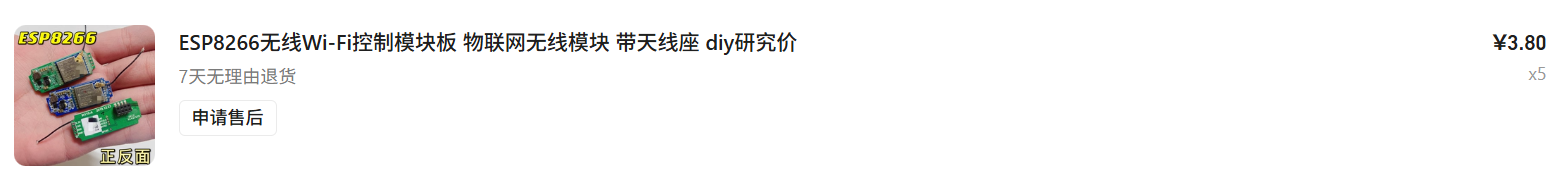

esp8266

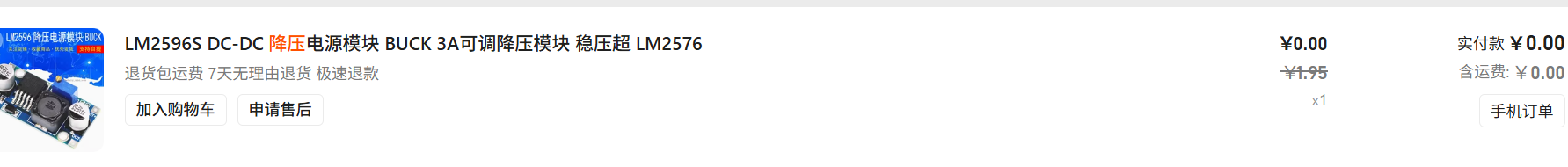

降压模块

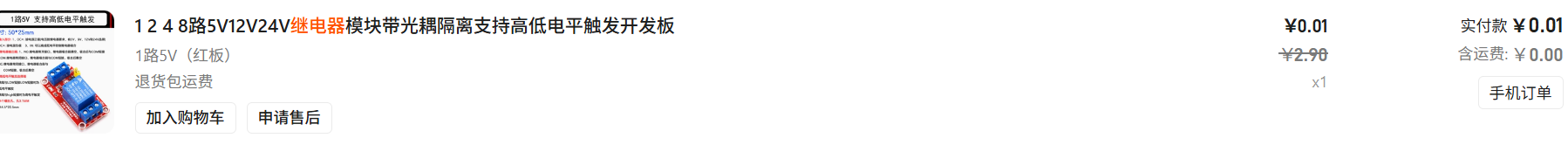

继电器

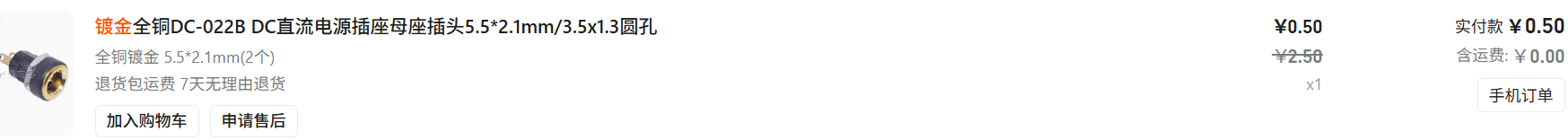

c口母座
5521母座

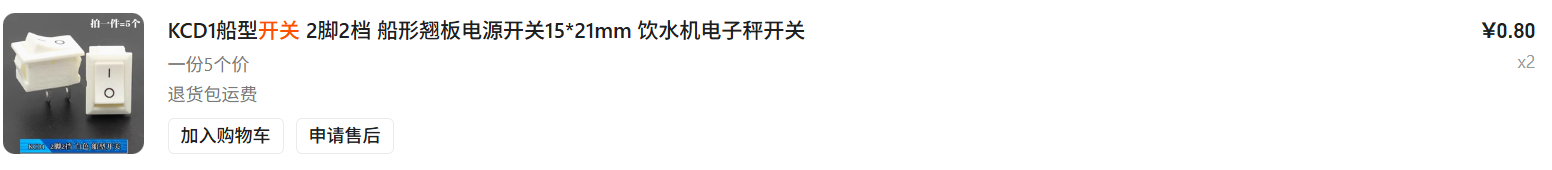

kcd1 开关

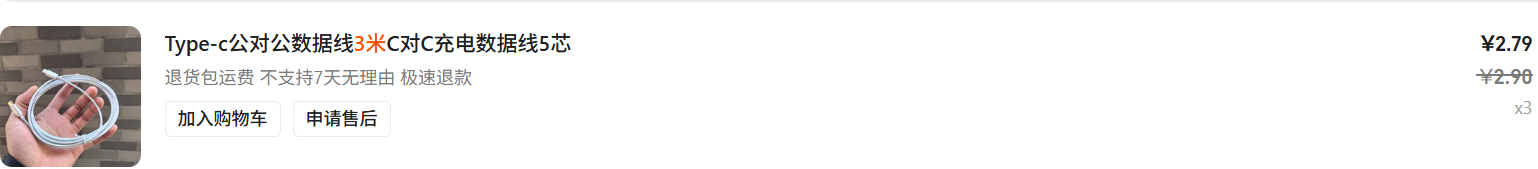

c2c数据线

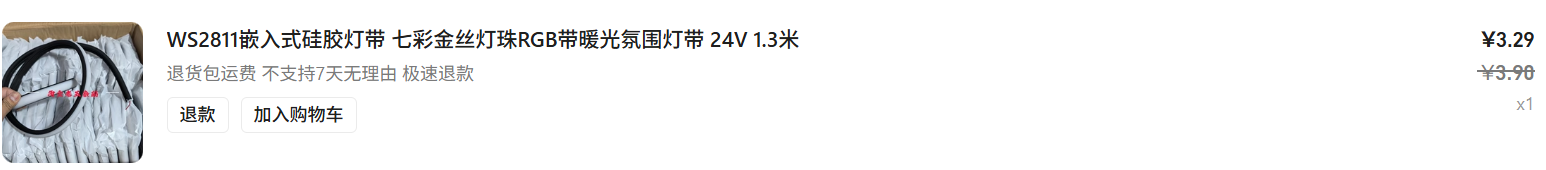

测试用的灯条：
esphome 配置
web_server:
port: 80
globals:
- id: option
type: int
restore_value: no
initial_value: '2'
- id: dimmer_lvl
type: float
restore_value: no
initial_value: '0.9'
script:
- id: apply_dimming
then:
- lambda: |-
auto call = id(WS2811).turn_on();
call.set_brightness(id(dimmer_lvl));
call.perform();
- logger.log:
format: "dimmer_lvl = %.2f"
args: ['id(dimmer_lvl)']
switch:
- platform: gpio
name: "relay"
pin: GPIO3
id: relay
restore_mode: RESTORE_DEFAULT_ON
inverted: no
on_turn_on:
- light.turn_off: WS2811
- delay: 0.1s
on_turn_off:
- delay: 0.1s
- platform: template
id: pure_white
turn_on_action:
then:
- switch.turn_off: warm_white1
- switch.turn_off: warm_white2
- switch.turn_off: warm_yellow
- switch.turn_off: relay
- light.turn_on:
id: WS2811
effect: none
brightness: !lambda 'return id(dimmer_lvl);'
red: 100%
green: 96.8%
blue: 86.7%
- platform: template
id: warm_white1
turn_on_action:
then:
- switch.turn_off: pure_white
- switch.turn_off: warm_white2
- switch.turn_off: warm_yellow
- switch.turn_off: relay
- light.turn_on:
id: WS2811
effect: none
brightness: !lambda 'return id(dimmer_lvl);'
red: 100%
green: 93.7%
blue: 74.9%
- platform: template
id: warm_white2
turn_on_action:
then:
- switch.turn_off: warm_white1
- switch.turn_off: pure_white
- switch.turn_off: warm_yellow
- switch.turn_off: relay
- light.turn_on:
id: WS2811
effect: none
brightness: !lambda 'return id(dimmer_lvl);'
red: 100%
green: 90.98%
blue: 63.14%
- platform: template
id: warm_yellow
turn_on_action:
then:
- switch.turn_off: warm_white1
- switch.turn_off: warm_white2
- switch.turn_off: pure_white
- switch.turn_off: relay
- light.turn_on:
id: WS2811
effect: none
brightness: !lambda 'return id(dimmer_lvl);'
red: 100%
green: 87%
blue: 50.2%
binary_sensor:
- platform: gpio
pin:
number: 15
inverted: false
name: "button1"
id: button1
on_click:
- min_length: 20ms
max_length: 450ms
then:
- lambda: |-
if (id(dimmer_lvl) > 0.9) {
id(dimmer_lvl) = 1.0;
} else {
id(dimmer_lvl) += 0.1;
}
id(apply_dimming).execute();
on_press:
then:
- delay: 0.5s
- if:
condition:
binary_sensor.is_on: button1
then:
- light.turn_on:
id: WS2811
brightness: 100%
- lambda: |-
id(dimmer_lvl) = 1.0;
- platform: gpio
pin:
number: 2
mode:
input: true
pullup: True
inverted: True
name: "button4"
id: button4
on_click:
- min_length: 20ms
max_length: 450ms
then:
- lambda: |-
if (id(dimmer_lvl) < 0.7) {
id(dimmer_lvl) = 0.6;
} else {
id(dimmer_lvl) -= 0.1;
}
id(apply_dimming).execute();
on_press:
then:
- delay: 0.5s
- if:
condition:
binary_sensor.is_on: button4
then:
- light.turn_on:
id: WS2811
brightness: 60%
- lambda: |-
id(dimmer_lvl) = 0.6;
- platform: gpio
pin:
number: 01
mode: INPUT_PULLUP
inverted: True
name: "button2"
id: button2
on_click:
- min_length: 20ms
max_length: 450ms
then:
- if:
condition:
light.is_off: WS2811
then:
- if:
condition:
- switch.is_on: relay
then:
- switch.turn_off: relay
else:
- if:
condition:
lambda: |-
return id(option) == 0;
then:
- switch.turn_on: pure_white
- if:
condition:
lambda: |-
return id(option) == 1;
then:
- switch.turn_on: warm_white1
- if:
condition:
lambda: |-
return id(option) == 2;
then:
- switch.turn_on: warm_white2
- if:
condition:
lambda: |-
return id(option) == 3;
then:
- switch.turn_on: warm_yellow
else:
- light.turn_off: WS2811
- switch.turn_off: relay
on_press:
then:
- delay: 0.5s
- if:
condition:
binary_sensor.is_on: button2
then:
- switch.toggle: relay
- platform: gpio
pin:
number: 0
mode:
input: true
pullup: True
inverted: True
name: "button5"
id: button5
on_click:
- min_length: 20ms
max_length: 450ms
then:
- lambda: |-
if (id(option) > 2) {
id(option) = 0;
} else {
id(option) += 1;
}
- if:
condition:
lambda: |-
return id(option) == 0;
then:
- switch.turn_on: pure_white
- if:
condition:
lambda: |-
return id(option) == 1;
then:
- switch.turn_on: warm_white1
- if:
condition:
lambda: |-
return id(option) == 2;
then:
- switch.turn_on: warm_white2
- if:
condition:
lambda: |-
return id(option) == 3;
then:
- switch.turn_on: warm_yellow
on_press:
then:
- delay: 0.5s
- if:
condition:
binary_sensor.is_on: button5
then:
- if:
condition:
- switch.is_on: relay
then:
- if:
condition:
lambda: |-
return id(option) == 0;
then:
- switch.turn_on: pure_white
- if:
condition:
lambda: |-
return id(option) == 1;
then:
- switch.turn_on: warm_white1
- if:
condition:
lambda: |-
return id(option) == 2;
then:
- switch.turn_on: warm_white2
- if:
condition:
lambda: |-
return id(option) == 3;
then:
- switch.turn_on: warm_yellow
else:
- switch.turn_on: relay
light:
- platform: neopixelbus
type: GRB
variant: WS2811
pin: GPIO13
num_leds: 14
name: "NeoPixel Light"
id: WS2811
on_turn_on:
then:
- switch.turn_off: relay
effects:
- random:
name: "Slow Random Effect"
transition_length: 30s
update_interval: 30s
- addressable_rainbow:
- addressable_twinkle:
- addressable_random_twinkle:
default_transition_length: 1s

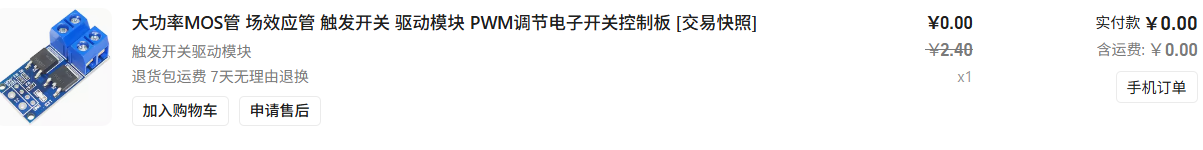

也可以将继电器改为mos管
