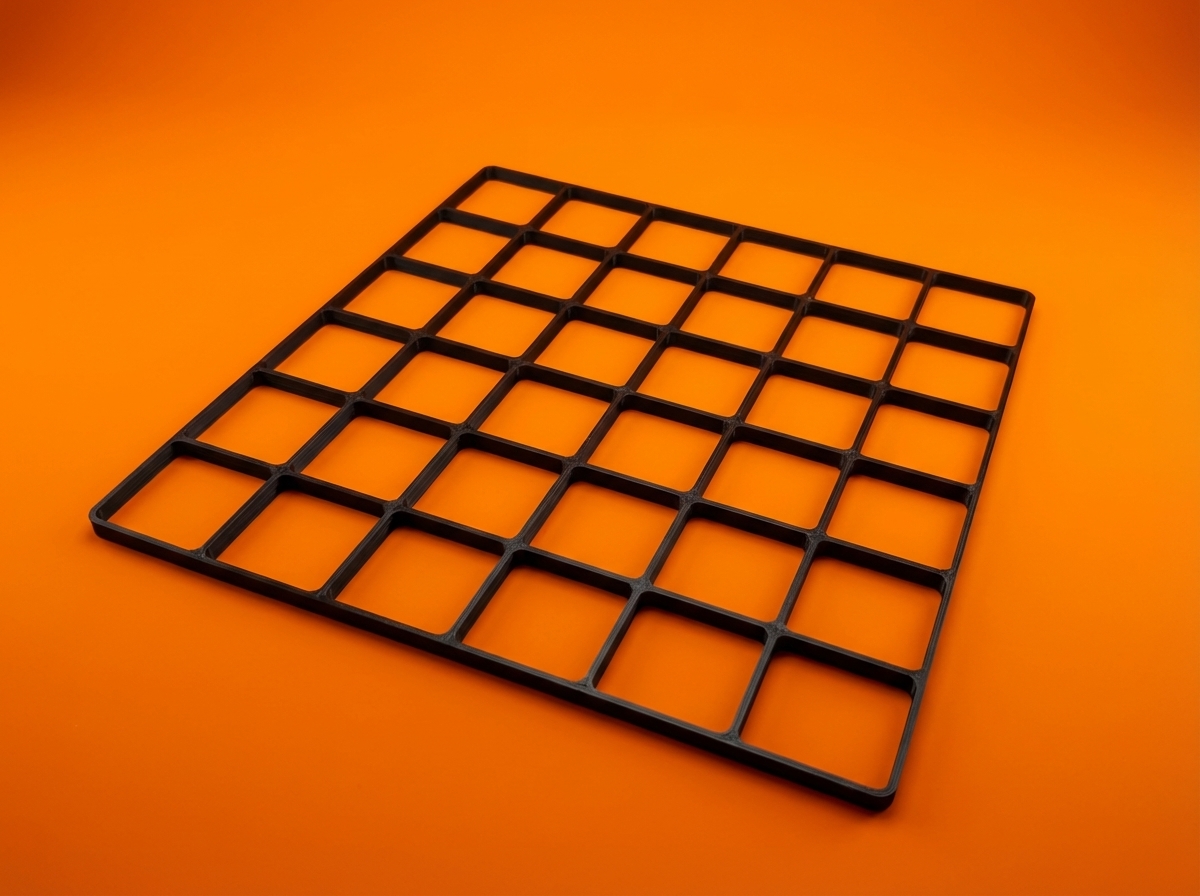

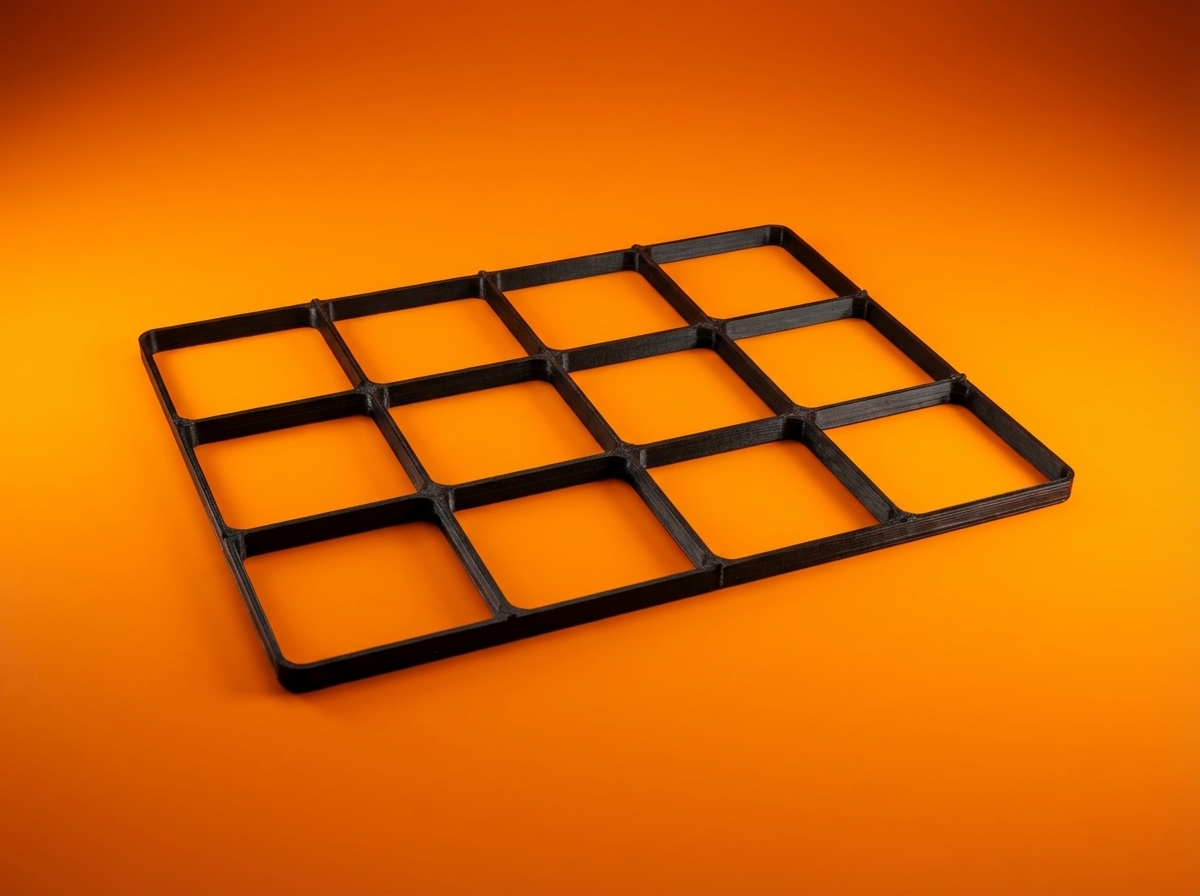

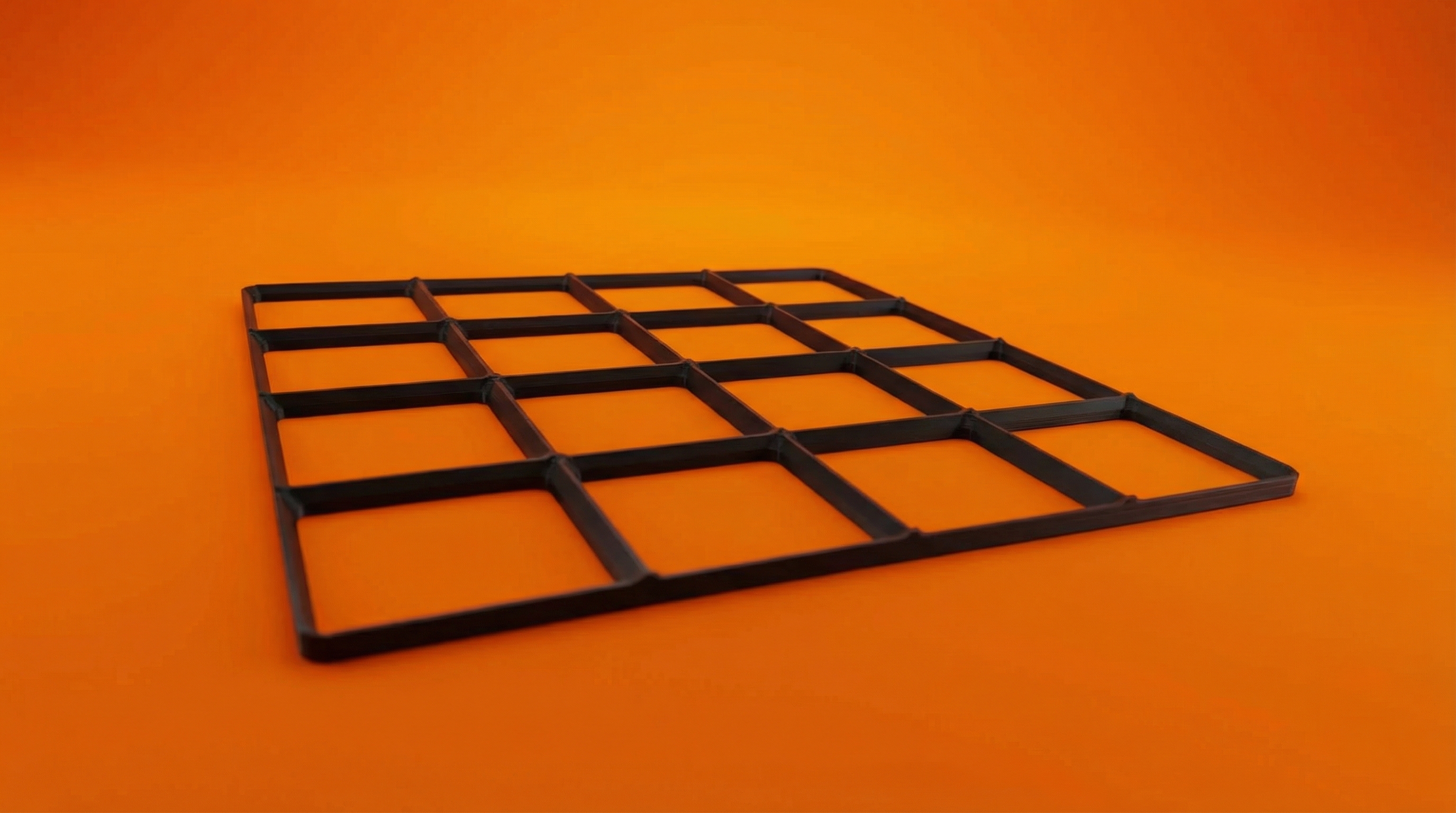

Wish you could create a perfect, wall-to-wall Gridfinity layout with zero wasted space? This fully parametric OpenSCAD model lets you generate a high-quality Gridfinity baseplate of any size you want. Just enter your desired dimensions in grid units, and create the perfect foundation for your ultimate organization system.

🧠 Behind the Design (For Makers & Moderators)

While this might look like a simple flat plate, this is a fully parametric OpenSCAD tool designed with strict engineering tolerances. Instead of a static STL, the code uses dynamic arrays and hull/minkowski transformations to perfectly replicate the universal Gridfinity standard. This ensures that any generated size (from a 1x1 up to a massive 30x30 plate) maintains the exact 42mm grid units, chamfer angles, and interlocking distances required for seamless modular organization.

🛠️ What can you customize?

This model gives you complete control to generate the perfect baseplate for your exact needs, right from the MakerWorld customizer.

• Custom Grid Size: Use the grid_units_x and grid_units_y sliders to define the exact width and depth of your baseplate, from a tiny 1x1 to a massive workshop-covering layout.
• Perfect Fit: This is ideal for creating baseplates that fit flawlessly inside IKEA Alex drawers, tool chests, or any custom shelf space you have.
• 100% Gridfinity Compatible: The  generated baseplate perfectly adheres to the Gridfinity standard, ensuring all your existing and future bins will fit flawlessly.
• Seamless Tiling: Design multiple custom-sized plates that tile together perfectly to cover large or irregularly shaped work surfaces.

🖨️ Print Settings

Printing your custom baseplate is easy. All filaments should work and you can choose what infill fits the best based on strength, even 0% should work. No supports are needed obviously.

💡 Why did I make this model?

I wanted to make a model so I could choose what size plate I needed. For example in my Alex Drawer I need a 4x4 and 4x3 so this makes it easy to just make what I need. Because it's openscad everyone kan make what they want of it, so if you need for example a 10x7 and it fits your printer you can just make it!

❤️ Like my work?

If this baseplate generator helps you achieve good organization, a like, download, or a picture of your perfectly-fitted setup in the reviews would be incredible! It helps other makers discover the power of customization.

Happy printing! :)
