This is a 3d printed CNC Machine, it has a similar design philosophy as the generic 3018 machines.
It uses a mix of mechanical and 3d printed parts.

All the 3d printed parts are shared as STLs, and a Bambu Lab print file has also been been attached.
The picture of the Final assembly is shown below


ASSEMBLY

1. Assemble the Frame in the given picture
   Attach bearings to the Y-Axis and fit is inside the frame in the given pictures

   1. If the bearings are tight, use sandpaper
   2. If the bearings a loose, take tissue paper (as a filler) and surround the hole with it and fit the bearings.

   The 380 mm extrusions run across right to left, giving the width of the machine
   The 340mm extrusions run along the x-axis
   The 280mm extrusion run from bottom to top, giving the height







2. Then attach all the corner bracket pieces with M4 SHCS screw (6mm length) washer and t nuts.



3.  Attach the vertical supports, or the Long L bracket with M5 screws and t nuts



4. Attach the Side mounts for the y axis.



5. Attach stepper motors with M3 SHCS length 20mm screws with 12mm spacers(3d printable)



6. Attach the 8mm lead screw end support bearings



7.  Attach flexible couplers to both the motors



8.  Attach the 2 8mm rods and the lead screw



9. Now, fit bearings on to the z axis assembly
   and also attach the T8 nut on it with M3 SHCS screws of length of 6mm



10. Now, complete the whole Z-axis assembly with lead screws, 8mm rods.



11. Now, let's make the bed of the CNC

    1. Attach 4 2040 extrusions along their length with the help of long brackets

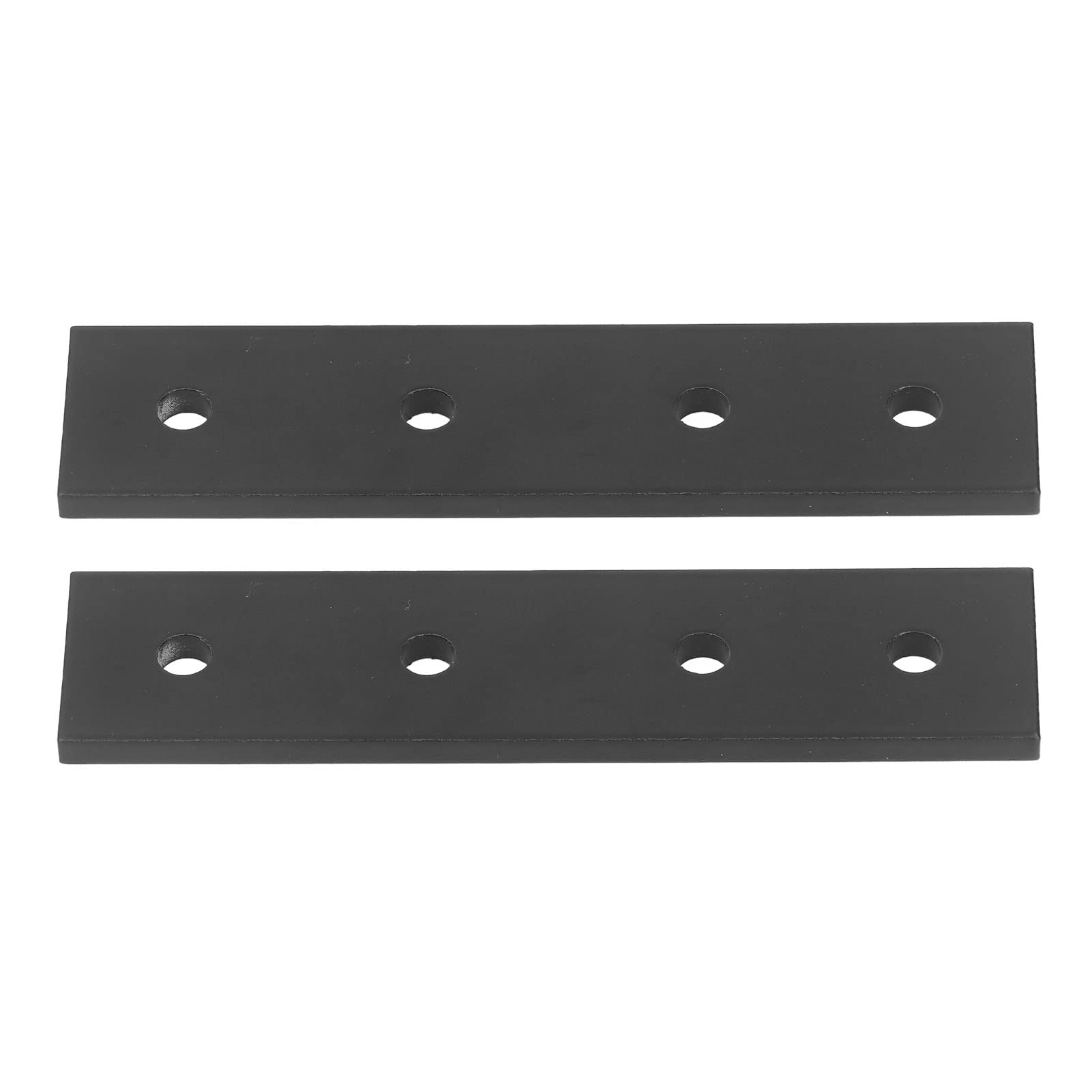

       shown below.  4 of them can be used in conjunction to connect them.






    2. Attach the bearings blocks on the adapter block with Philips round head screws length 6mm, then attach the block onto the bed with M4 SHCS screws of length 6mm



    3. Attach the T8 Nut coupling and the X-axis limit switches with the help of M4 SHCS screws, length 6mm
       Also attach the T8 nut onto the coupling with M3 SHCS screws of length 6mm



12. Now attach the stepper motor to the adapter bracket with M3 SHCS screws of length 6mm
    Then attach the block to the frame with M5 SHCS screws of length 14mm
    also attach the Flexible coupling



13.  Now attach the linear motion shaft support to the frame, Make sure they are equally spaced from the stepper motor and not so far away from it.



14. Now attach the supporting bearing block(KP08( of the 8 mm lead screw on the other side of the stepper motor with M4 SHCS Screws of length 8mm. with 4mm 3d printed spacers between the frame and the block



15. Now attach the 8mm rods, the lead screw, the bed on to the rest of the machine in a systematic manner



16. Then attach the adapter for the X-axis limit switches, making sure they align with the part that presses on them on the bed.



17. Now attach the limit switches on the y-axis, x-axis, and z-axis.



18. That's it!
    Make sure you oil up the smooth rods, the lead screws, the bearings and especially the extrusions the y-axis is riding on!
