MAJOR UPDATE (3-1-2026) - Find the newest version of the HeatSync right HERE! Cleaner design, hardware fixes, better instructions, ability to use new custom jigs (coming soon). Follow my profile for the latest on the HeatSync Project. Thanks for all your continued support! :)

____________________________________________________________________

Back Story of Original HeatSync Project:

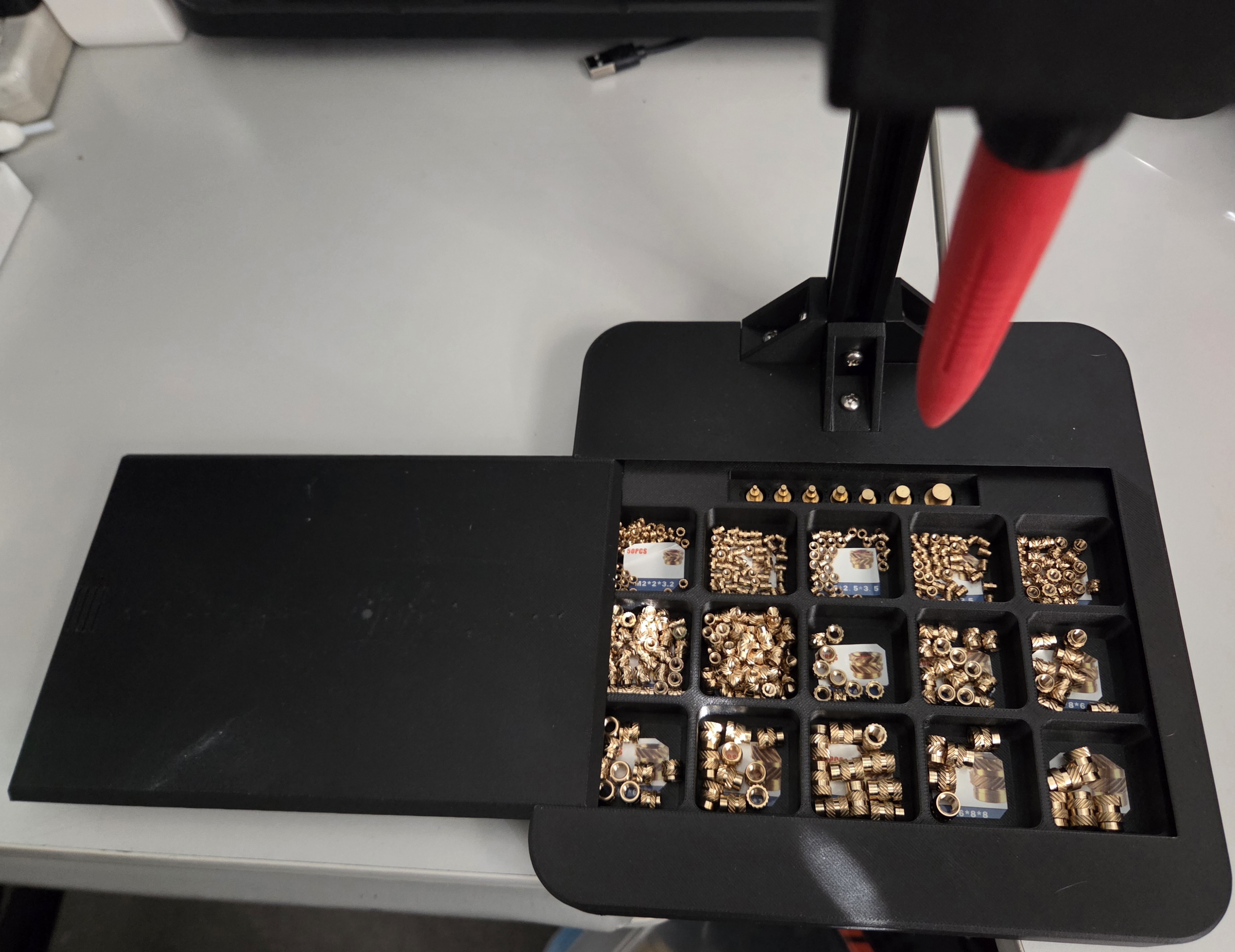

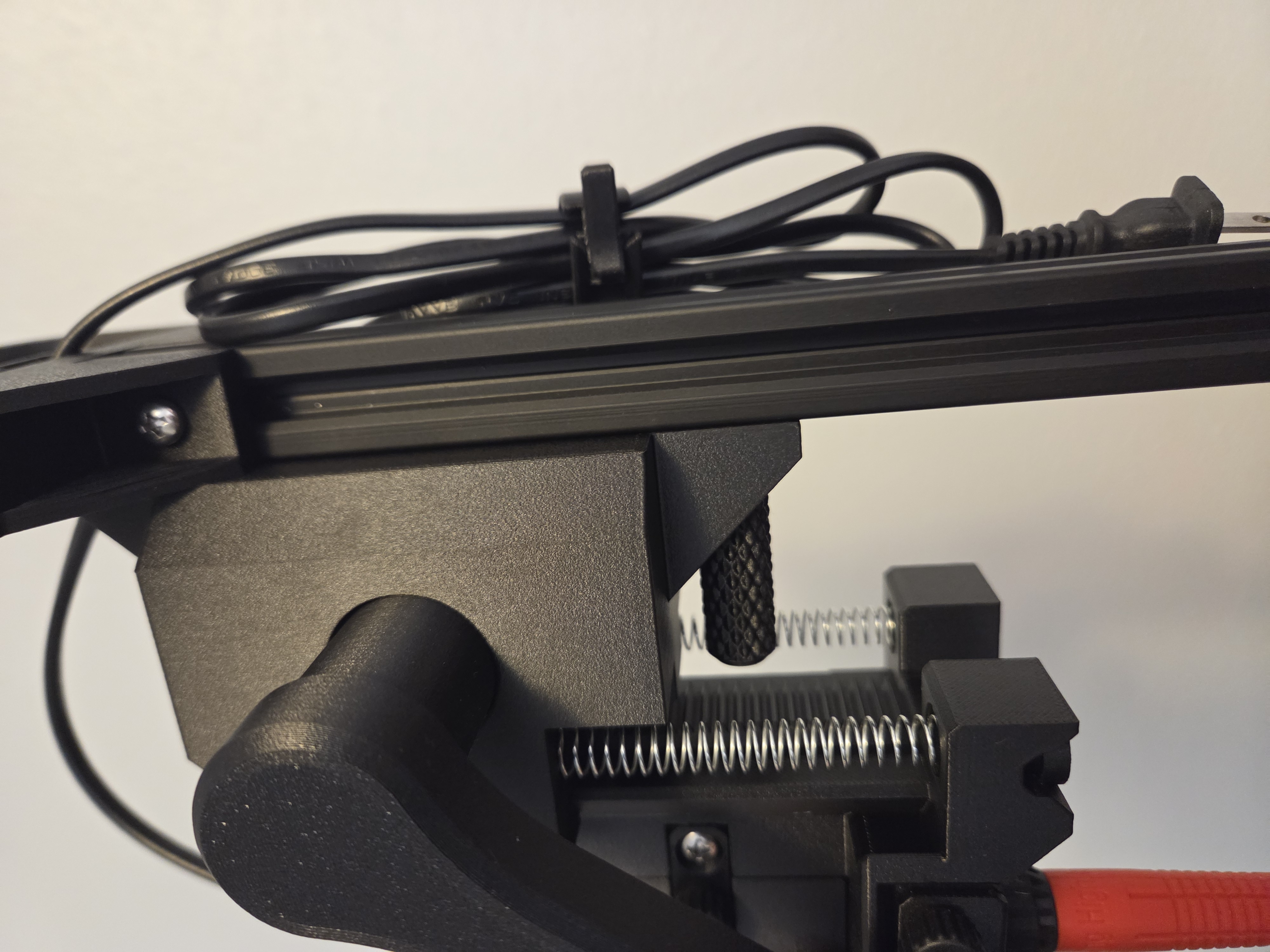

Over the past 2 years I've made and sold 3D prints that need metal threads to attach screws, and I got sick of using my cheap heat insert press from Amazon, so I decided to make my ideal version! I've produced 1000's of parts with this tool so far and it is my proudest creation. This is by far my most unique and useful tool in my 3D printing workshop. This soldering iron press uses both 3D printed parts as well as metal inserts and mountings to make it as sturdy and professional as possible. The main thing that I wanted to have in my own custom insert press was the ability to use jigs to hold my specific parts that I manufacture almost like a conveyor belt system for maximum efficiency. The other truly unique feature is the ability to swap out different soldering irons for different size inserts. I got tired of waiting for the iron to cool down to unscrew the M4 tip (and prevent burning myself again). Hopefully it will help you as well! Let me know in the comments your thoughts and be sure to post your creations as well.

What you will need for this project:

For your convenience I've added affiliate links to where you can buy the hardware needed for this project. *Not all 3rd party soldering irons will be compatible with this system.*

Filament:

• PETG-HF : (heat resistant material REQUIRED for the soldering iron housing. They can get kind of hot with extended use)
• PLA : Should be fine to be used for the rest of the parts.

Hardware: *Amazon links attached*

1. Compatible Soldering Iron
2. Heat Insert Tips M2 M3 M4 M5 M6 M8
3. M4x10mm Screws (x21 needed)
4. Extension Hook Spring (9x60mm or similar size)
5. M4 Extrusion Nuts (x9 needed)
6. 300mm Aluminum Extrusion Bar
7. M4x10mm Thumbscrews (x3 needed)
8. M4 threaded inserts (x24 needed)

Total Cost of Non-Printed Materials (7-28-25): $77.43

Assembly: (The newest version has in depth instructions)

The assembly process should take around 10-15 minutes. You will need a Phillips head screwdriver and 2 sets of needle nose pliers.
