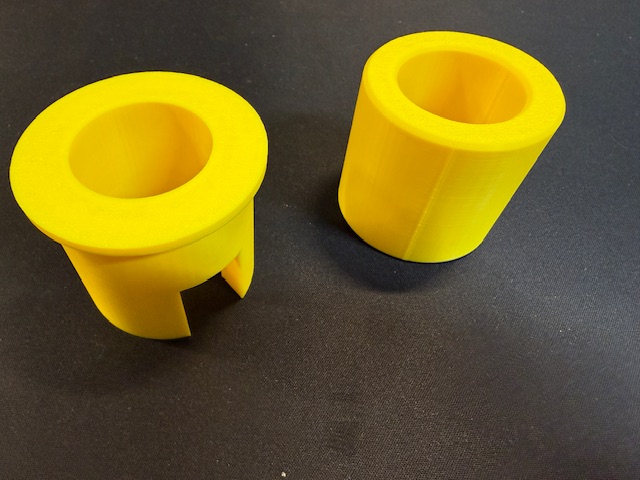

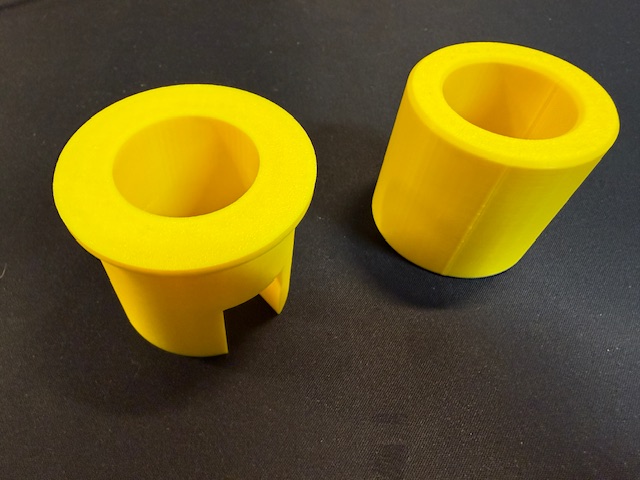

I designed this spacer system to address a common problem with many patio umbrella bases: instability. The standard spacers that came with my umbrella bases were ineffective, causing the umbrella to tilt and even topple over during windy conditions, even when closed. This two-piece system provides a secure fit. The first component is a simple cylindrical spacer that slides into the umbrella base tube. The second, flanged piece sits at the top of the tube and features a clearance slot for the umbrella's thumbscrew, ensuring a tight and stable installation.

This system has worked great for me, and I hope it works for you also. Here are the descriptions of the print profiles:

Umbrella Stabilizer V1 - 1.38" (35 mm) ID x 2.13" (54 mm) OD

This design was created for an umbrella with a post diameter of just under 1.375" (~35 mm) and a base tube with an internal diameter of just over 2.125" (~54 mm). These dimensions are typical for many budget-friendly patio umbrellas and bases found at major retailers like Home Depot and Lowe's.

Umbrella Stabilizer V2 - 1.38" (35 mm) ID x 2.13" (54 mm) OD

I made this print profile with thicker walls and increased infill density since noticing that the V1 version warped a bit after extended use outdoors. This design was created for an umbrella with a post diameter of just under 1.375" (~35 mm) and a base tube with an internal diameter of just over 2.125" (~54 mm). These dimensions are typical for many budget-friendly patio umbrellas and bases found at major retailers like Home Depot and Lowe's.

Umbrella Stabilizer V2 - 1.50" (38 mm) ID x 2.13" (54 mm) OD

I made this print profile with thicker walls and increased infill density since noticing that the V1 version warped a bit after extended use outdoors. This design was created for an umbrella with a post diameter of 37.5 mm and a base tube with an internal diameter of just over 2.125" (~54 mm). The dimensions for this print profile were created per request and user comments.
