Descrição

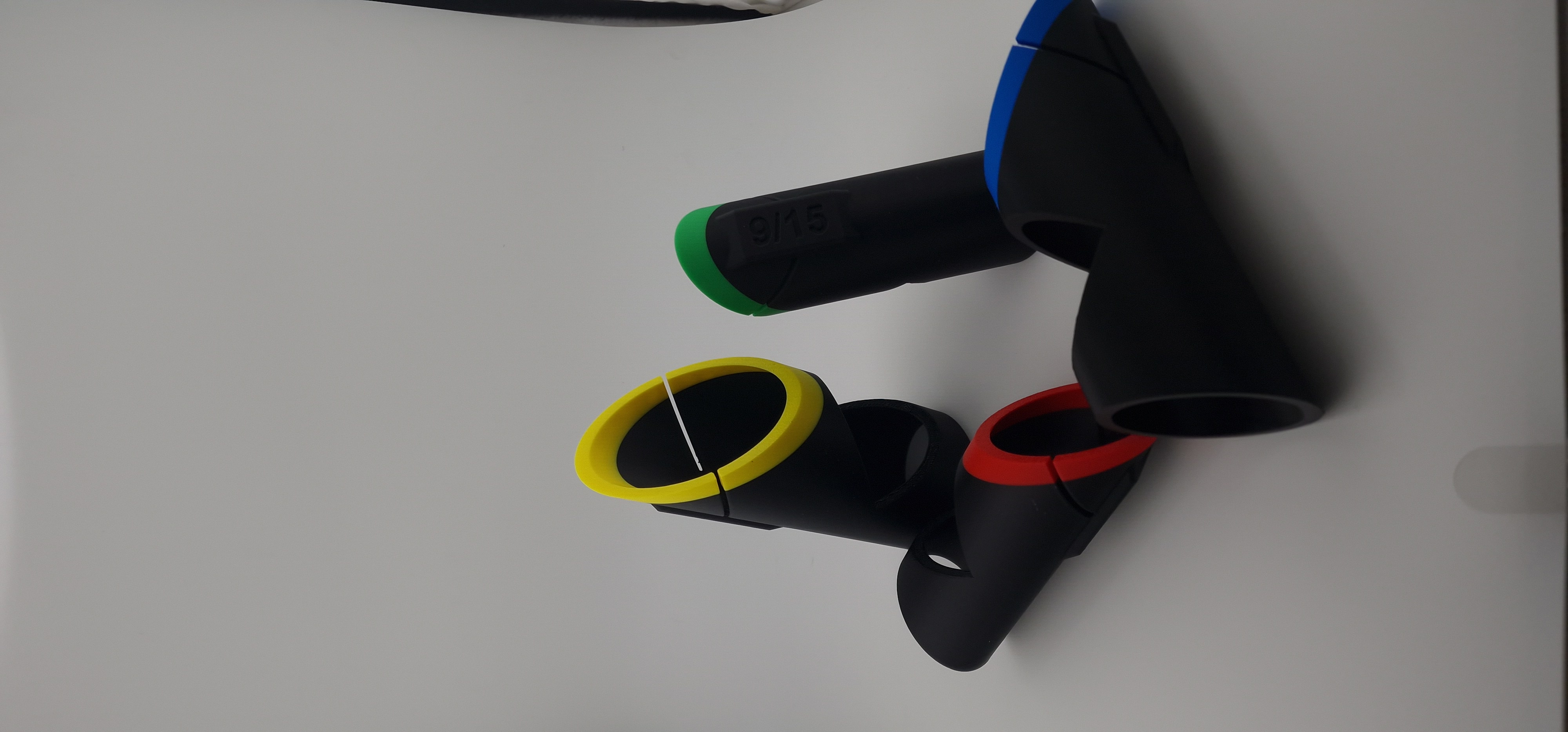

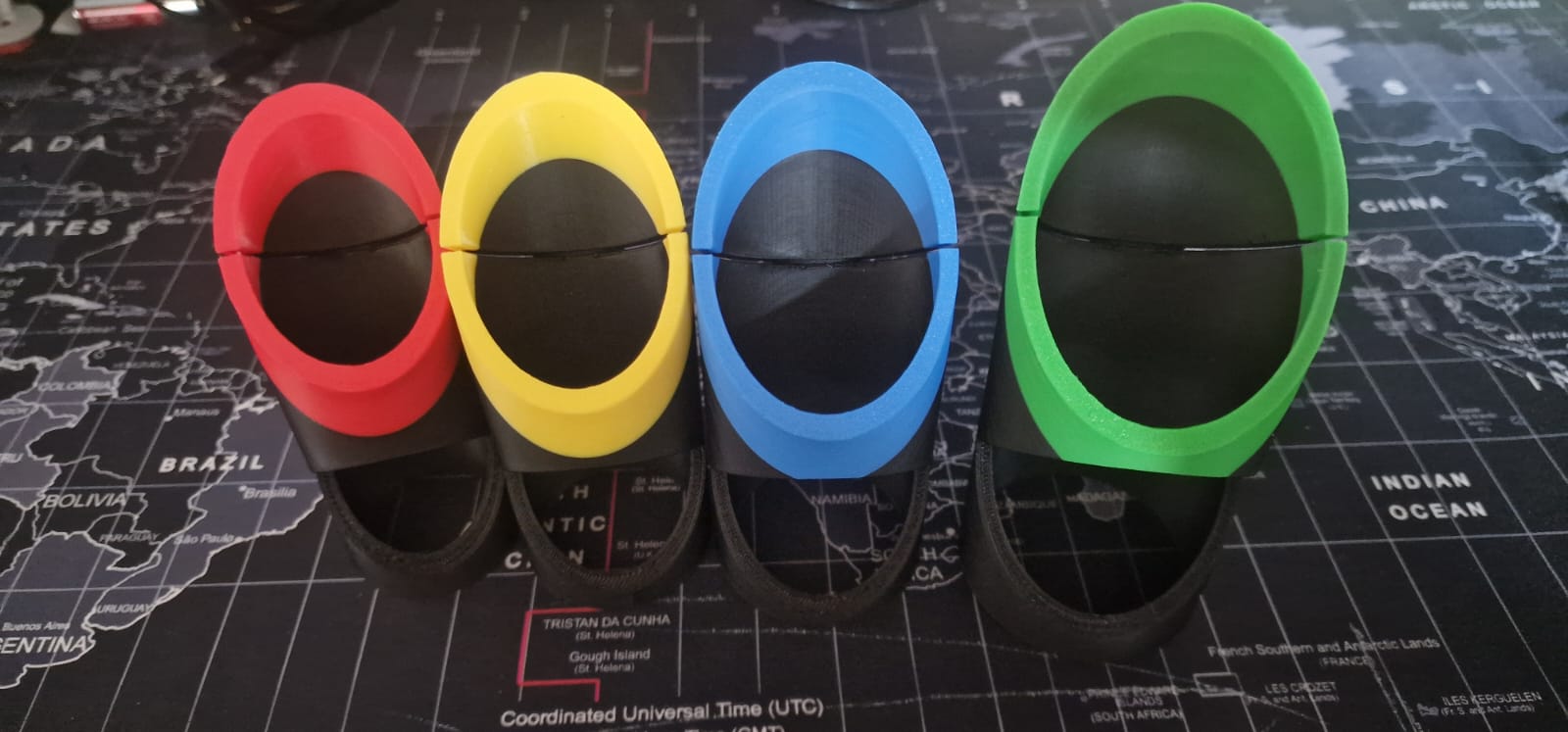

🛠️ Pipe Insulation Cutting Jig – 9/13 mm Wall | 45° + Straight Cuts
Precision tool for perfect 45° miters and straight cuts on 9mm and 13mm wall pipe lagging / foam insulation. Say goodbye to crooked cuts and messy joints!
Perfect for plumbers, HVAC installers, heating engineers, and anyone who wants clean, professional-looking pipe insulation.
📏 Available Sizes (9 mm wall thickness)
| File Name | Size | Inner size (mm) | Inner size (approx inches) |
|---|---|---|---|
| 9wall-15inner-… | 9/15 | 24mm | 0.94" |
| 9wall-18inner-… | 9/18 | 27mm | 1.06" |
| 9wall-22inner-… | 9/22 | 31mm | 1.22" |
| 9wall-25inner-… | 9/25 | 34mm | 1.34" |
| 9wall-28inner-… | 9/28 | 37mm | 1.46" |
📏 Available Sizes (13 mm wall thickness)
| File Name | Size | Inner size (mm) | Inner size (approx inches) |
|---|---|---|---|
| 13wall-15inner-… | 13/15 | 28mm | 1.10" |
| 13wall-18inner-… | 13/18 | 31mm | 1.22" |
| 13wall-22inner-… | 13/22 | 35mm | 1.38" |
| 13wall-25inner-… | 13/25 | 38mm | 1.5" |
| 13wall-28inner-… | 13/28 | 41mm | 1.61" |
📦 Models Included
For each of the 5 sizes above I prepared two variants:
- 45° version → replaces straight end with a clean 45° cut (great for corners, offsets, and neat miters)
- Classic version → straight end + additional configurations (straight butt joints)
Why this jig stands out
- Super accurate knife / utility blade guidance - Insulation sits rock-solid – no slipping during cut - Repeatable, clean results every time - Compact and tough (print in PETG for best durability)
Custom sizes?
If you need a non-standard internal diameter (different wall thickness or pipe size), just leave a comment below with the details – I'll see if I can create a custom version for you!
