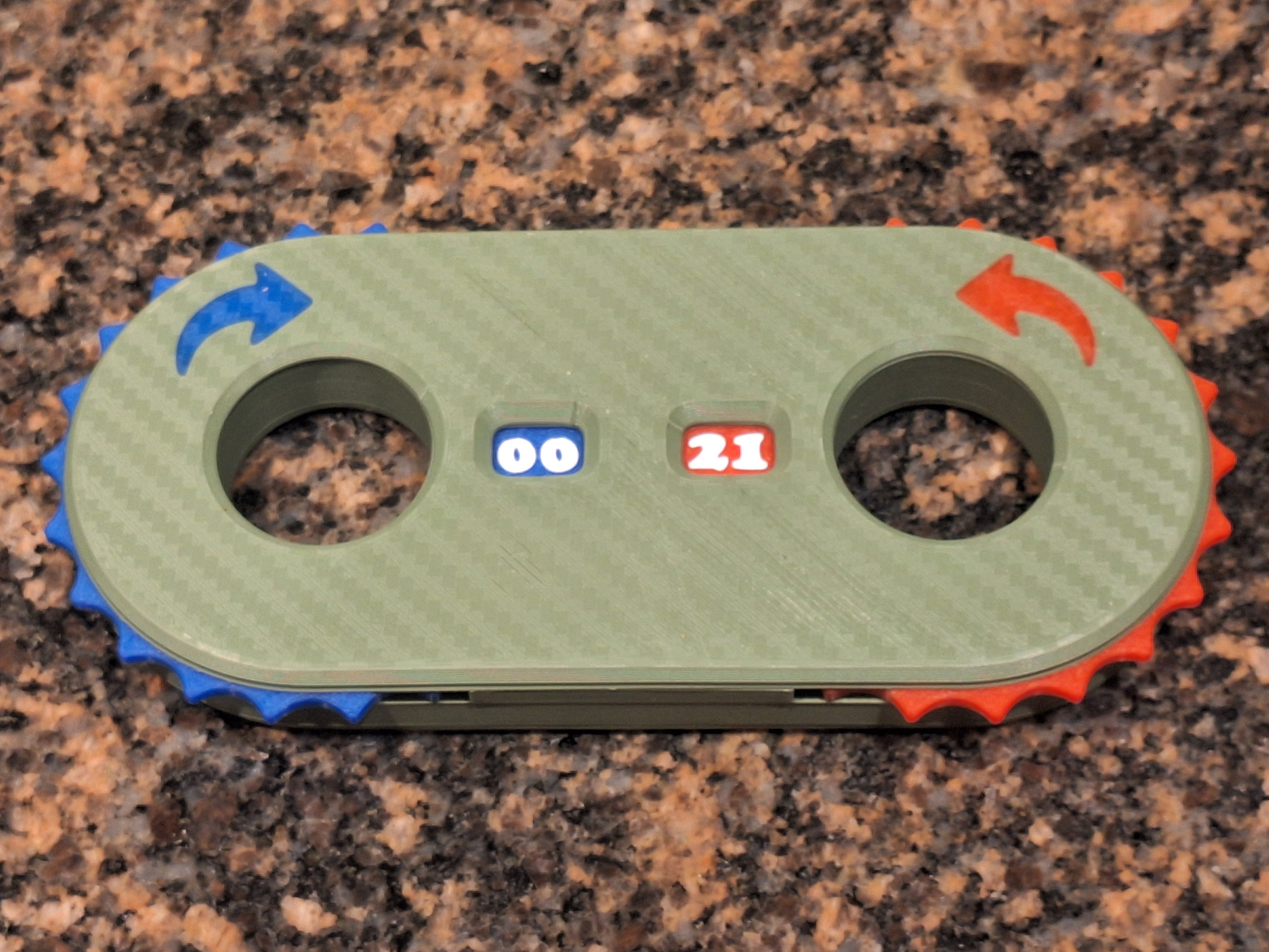

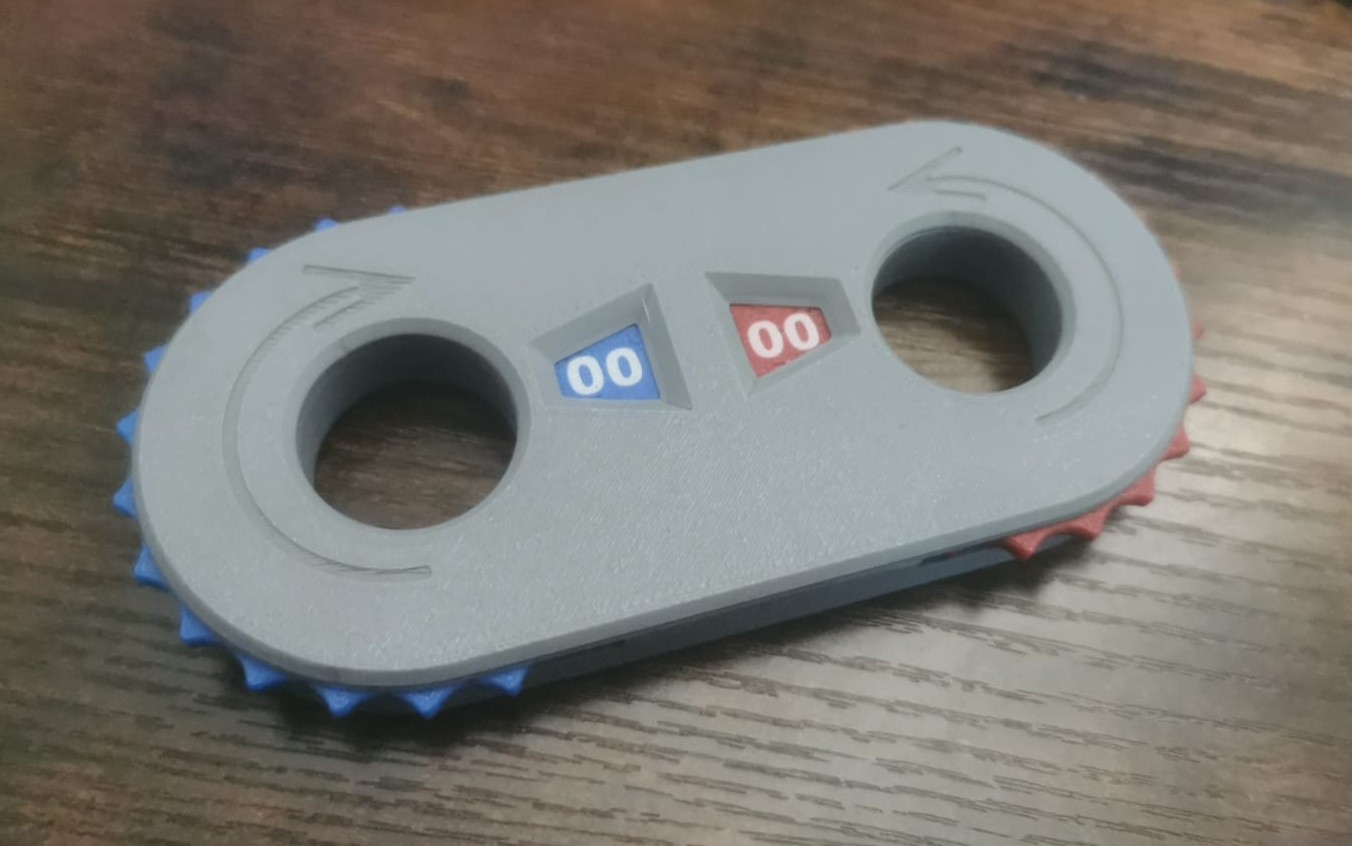

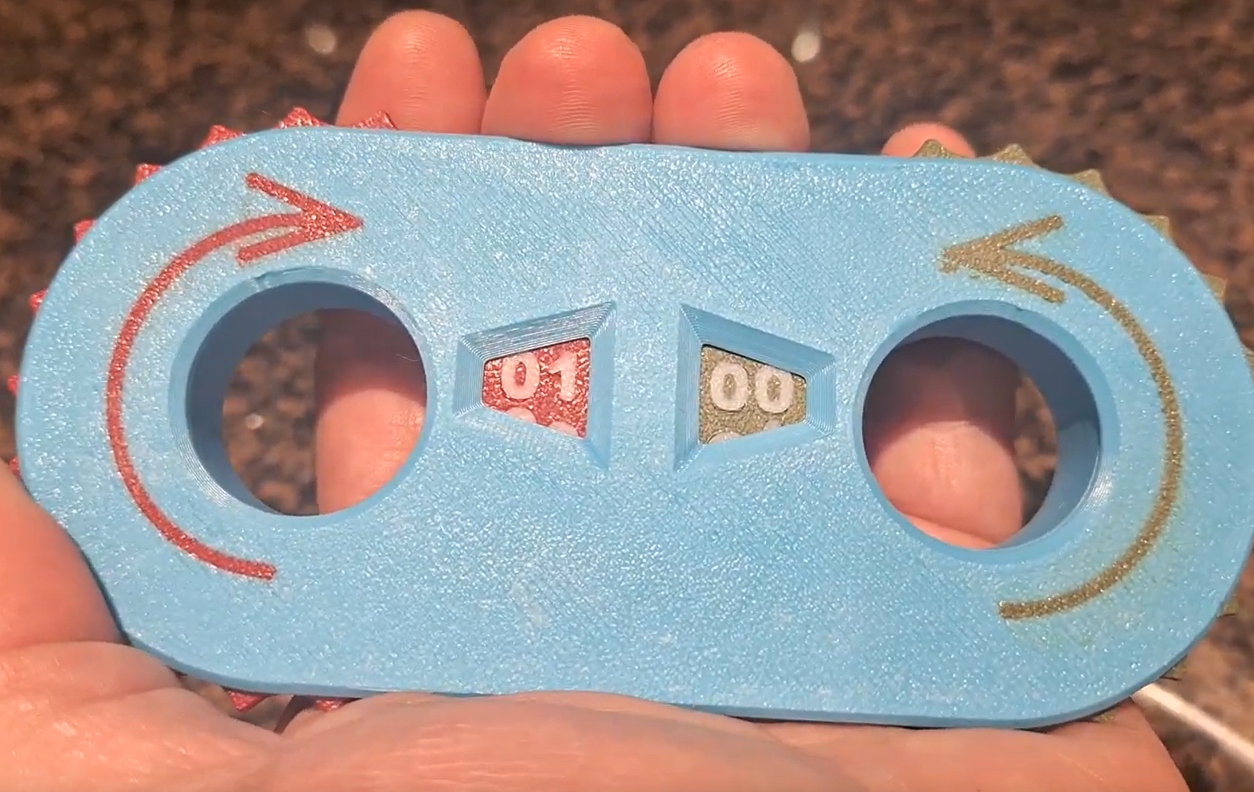

Cornhole 21 points counter

Cornhole Points Counter

Keeping track of the points while drinking and playing cornhole can be challenging. This helps.

I printed this without an AMS. Just lots of filament changes.

In STUDIO, on the PROCESS tab change from view from GLOBAL to OBJECTS

Of course you can change this as you see fit but this is how I did it.

Turn off everything but NUMBER 1 and 2 and print those in white.
While the numbers are on the bed, scrape off the FLOW LINE and the SKIRT LOOP
Then in STUDIO turn off NUMBER 1 and 2 and turn on GEAR 1 and SPRING 1 and
Change the filament to red. The faster you do this the better. You don't want the bed to cool off too much. You can also manually raise the bed temperature to keep it hot.
Print those in RED
Remove the FLOW LINE, SKIRT LOOP and the RED gear and spring but leave the numbers
DO NOT REMOVE THE PLATE FROM THE PRINTER
In STUDIO turn off GEAR 1 and SPRING 1 then turn on GEAR 2 and SPRING 2
Change the filament to green.
Print this in GREEN
Remove the FLOW LINE, SKIRT LOOP and the GREEN gear and spring
Change the filament to green.
From plate 2, turn off everything but ARROW 2 and print it in GREEN
Remove the FLOW LINE and SKIRT LOOP then turn off ARROW 2
Change the filament to red.
Turn on ARROW 1 and print it in RED
Remove the FLOW LINE and SKIRT LOOP then turn off ARROW 1
Change the filament to teal.
Turn on BOTTOM and TOP and print it in TEAL

Alternatively, I added another print profile with pauses to change the filament.

ASSEMBLY

Take all your parts and start assembling them by putting the spring in the bottom part textured side up (mirrored from each other)

Put the gears in. Make sure they turn and snap into place

Add a dab of glue at the top and bottom

Add something heavy on top and let it sit for a few minutes while the glue sets
