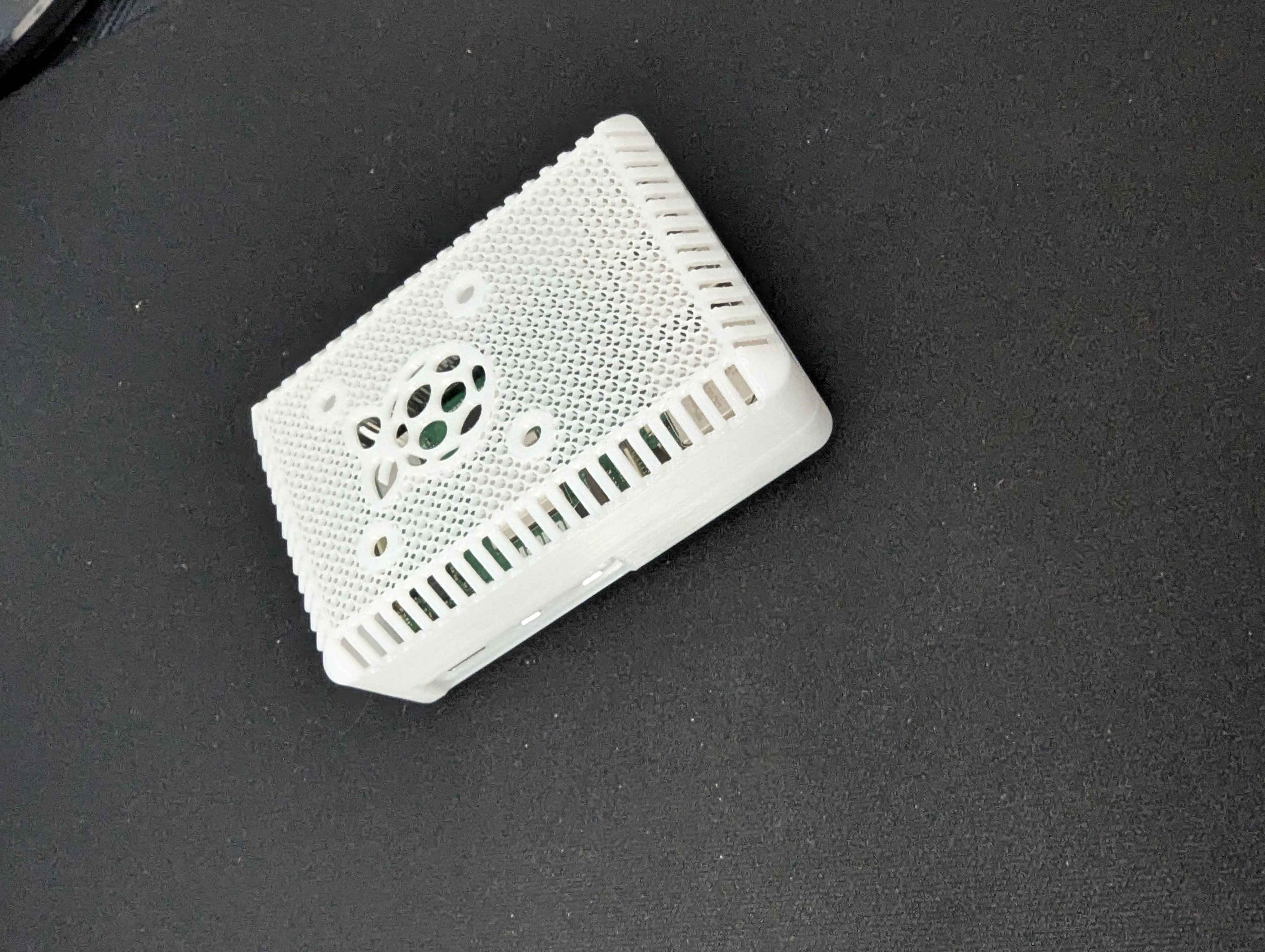

🧱 Modular Raspberry Pi 5 Case

A versatile, snap-fit enclosure system designed specifically for the Raspberry Pi 5 — whether you need a slim profile or extra room for cooling and expansion, this modular case adapts to your setup

🔧 Features

• Snap-fit design (no screws needed)
• Access to reset button
• Opener as a RasPi design
• Multiple size options:
  • Big – Space for M.2 board and cooling fan
  • Middle – Space for cooling fan only
  • Slim – Minimal footprint
  • Slim w/ Connector Holes – For direct cable access

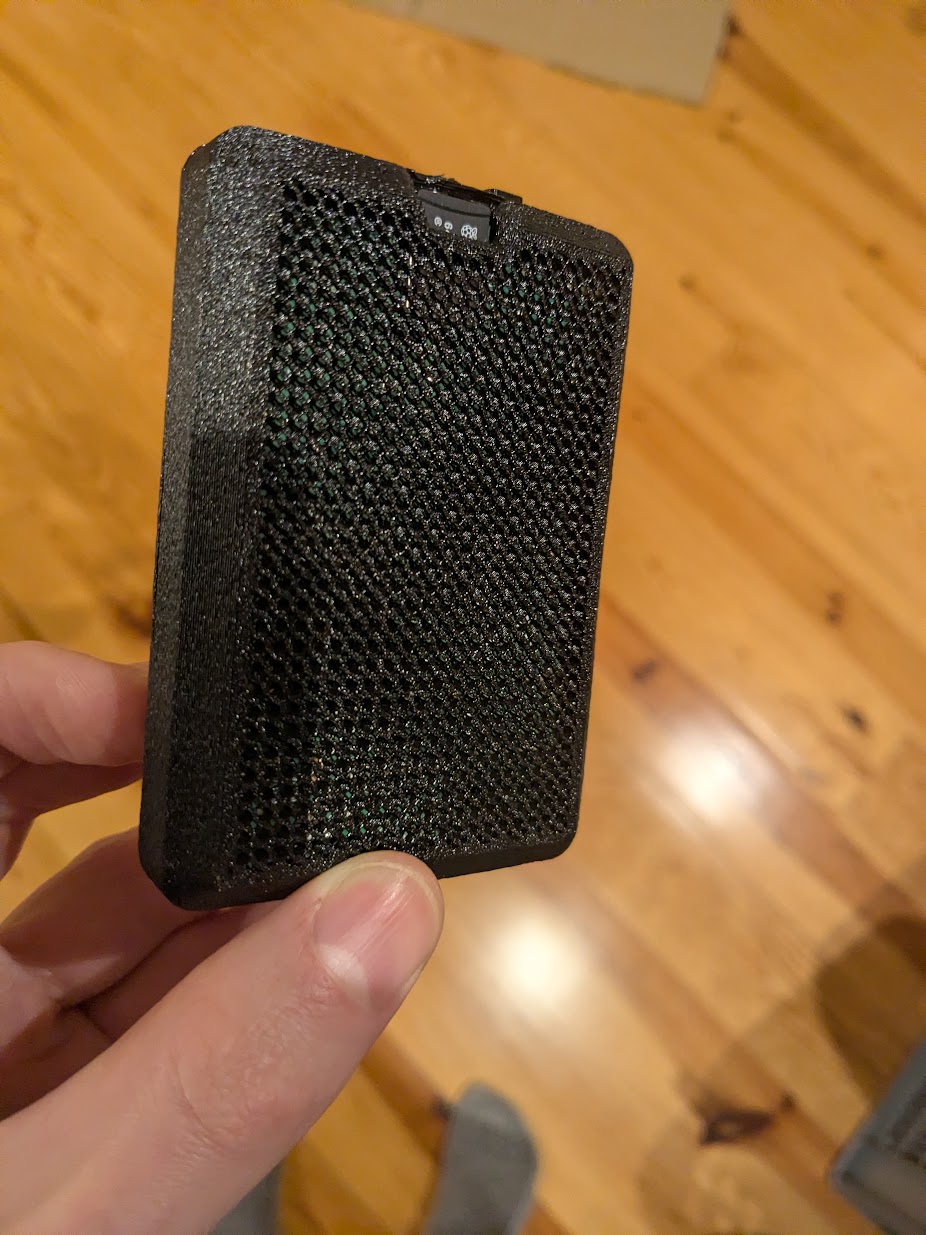

🧰 Customize the Infill Pattern (Optional):

You can create cool visual patterns or lightweight structures using the built-in infill pattern design.

Steps:

1. Select the object labeled “Box/Lid Infill Pattern”
2. Go to the Sparse Infill section under the Strength tab
3. Adjust these settings:
   • Sparse infill density: ~15%–40%
   • Sparse infill pattern: choose from the dropdown
   • Infill direction: adjust the angle (default is 45°)

🔁 Repeat this for each “% - Infill Pattern” object you want to customize.
✅ Always hit [Slice Plate] and preview the result before printing.

🖨️ Print Settings:

• Nozzle: 0.4 mm
• Layer height: 0.20 mm
• Supports: Not required
• Tested with: PLA (multiple brands), BambuLab X1C & A1
• Best results on: Cool Plate Super Tack

Got feedback or ideas? I’m happy to hear from you!
