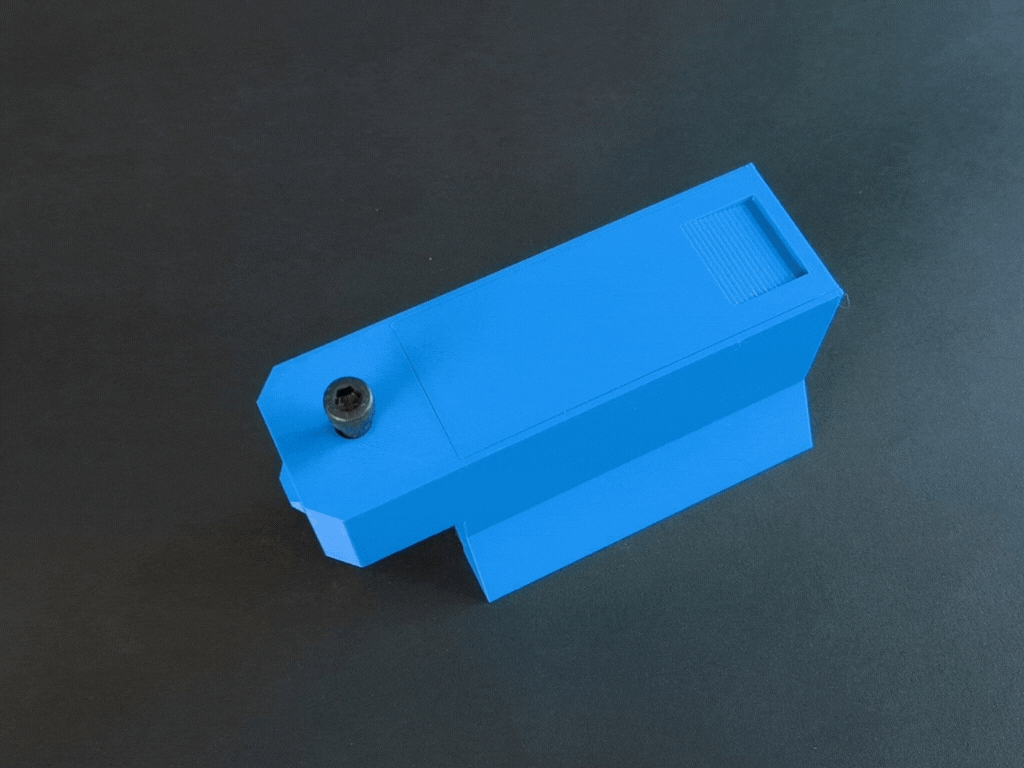

Meet your new best friend Guide Doggo. The dog-shaped Threaded Insert Jig.

Tired of crooked threaded inserts making your projects look like they were assembled by a blindfolded raccoon? Say hello to your new four-legged workshop buddy! This 3D-printed dog-shaped jig isn’t just cute—it’s a precision tool that guarantees your inserts go in perfectly square every single time. No more eyeballing, no more cursing, just pure, unadulterated alignment bliss.

Assembly: Easy as Teaching a Dog to Sit

Pop the friction-fit lid on this clever canine’s body, which includes two secret chambers to stash your threaded inserts.

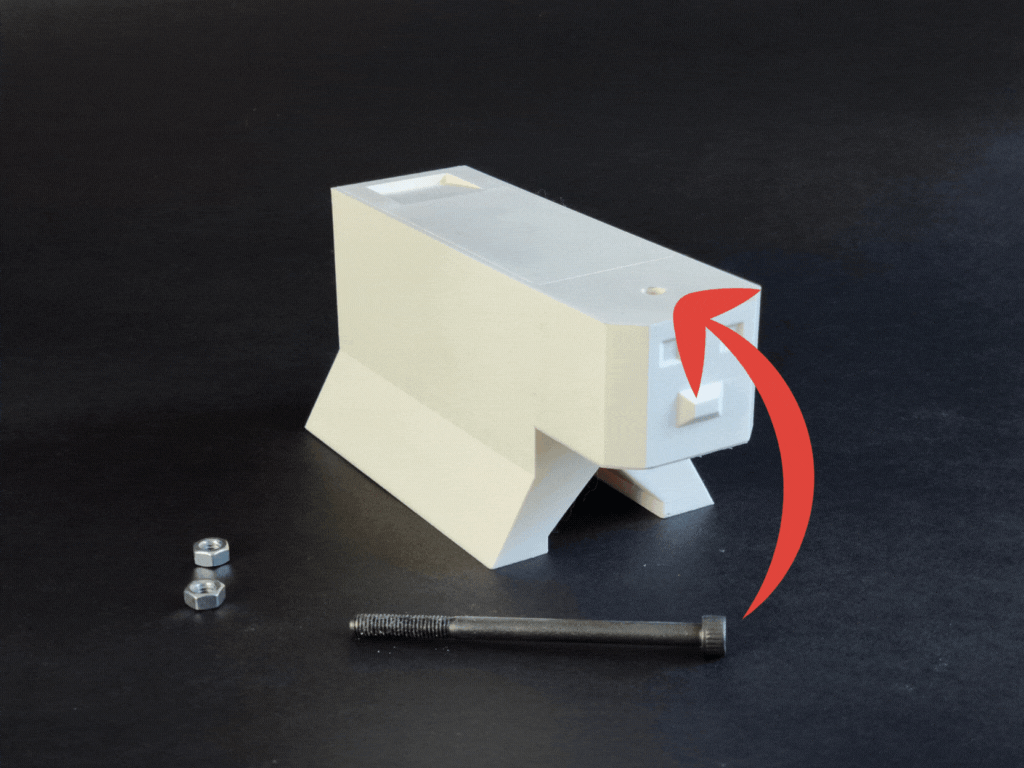

Slide a screw through the dog’s head (don’t worry, it’s designed for this), lock two nuts together on the end, and leave a bit of thread exposed.

Screw Lenght: 90mm or longer

Usage: Screw It, Literally

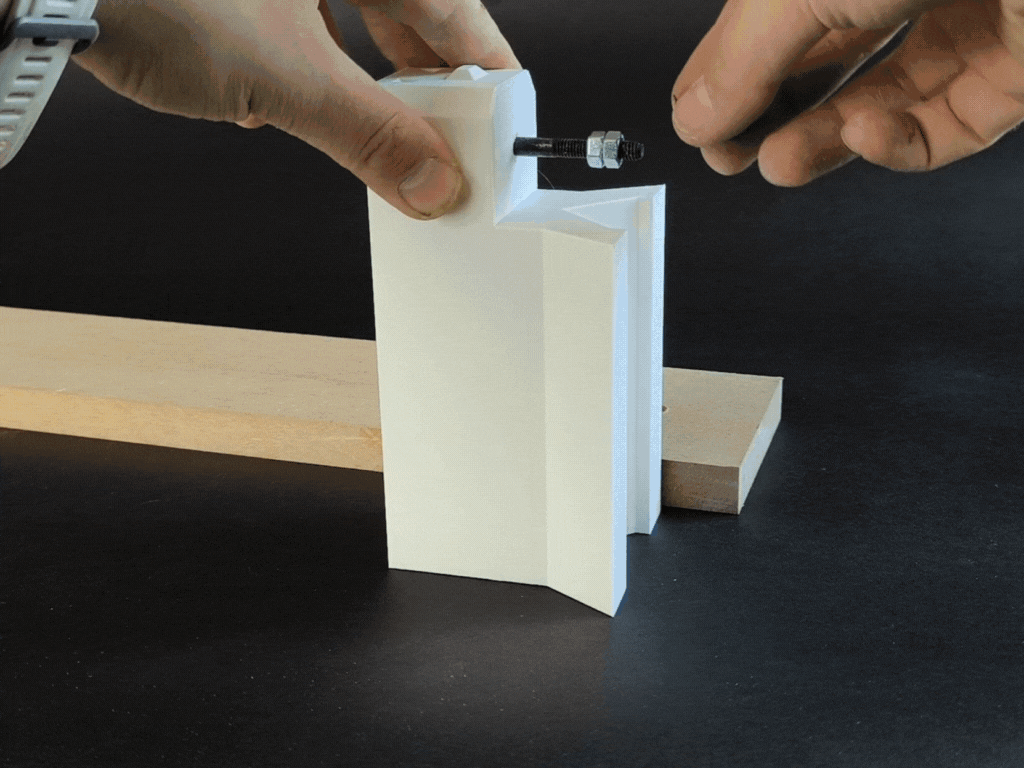

Attach your insert, and the nuts will stop it at just the right spot. Screw it into your pre-drilled hole and voilà: your insert is now square, secure, and ready for action. Just remove the screw and watch your insert sit perfectly aligned.

Storage: Hide and Seek Champion

When you’re done, just lift the lid and stash your leftover inserts in the dog’s body. Close it up, and your workspace stays as neat as a dog’s conscience (which, admittedly, is pretty clean).

Ready to ditch crooked inserts and add a little canine charm to your workshop? Fetch this jig and start working smarter, not harder.

PS: Few supports needed to hold the head in the right place.
