M6.3 批头磁吸收纳弹夹说明

Instructions for M6.3 Magnetic Bit Holder Magazine

• 磁吸 + 叠加结构：

  • 侧边设磁铁孔位，通过磁力吸附实现无限拓展，可自由组合收纳模块。

    The side is equipped with magnet holes, which can be expanded infinitely through magnetic adsorption, and the storage modules can be freely combined.

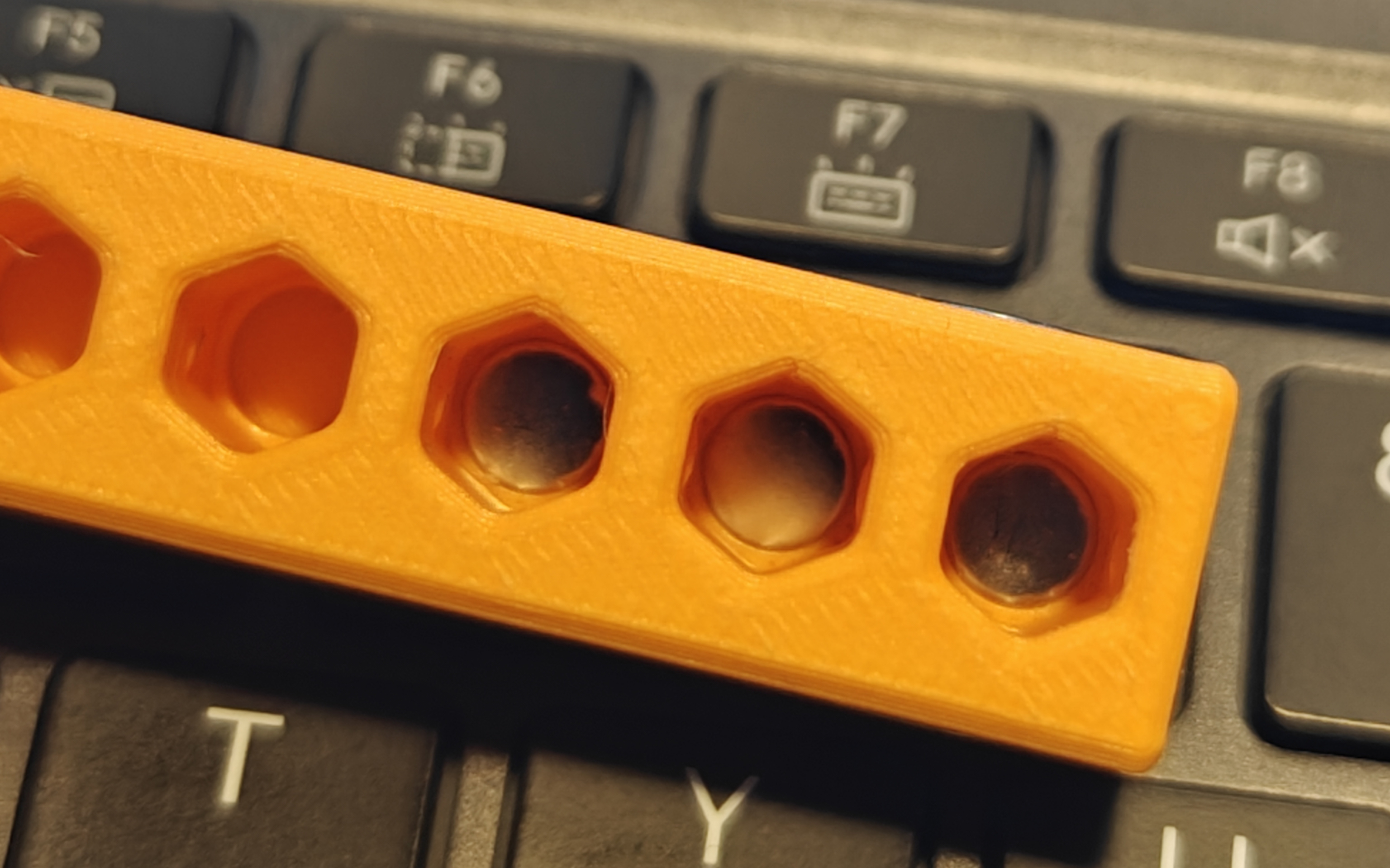

• 批头固定机制：

  • 孔位两侧设凸起卡扣，卡住 M6.3 批头防止脱落；底部同步配置磁铁孔位，形成 “双保险” 磁吸设计，增强批头固定稳定性，实现双重固定。

    There are raised buckles on both sides of the hole to prevent the M6.3 batch head from falling off; the bottom is synchronously equipped with magnet holes to form a "double insurance" magnetic attraction design to enhance the fixing stability of the batch head and achieve double fixing.



• 规格：

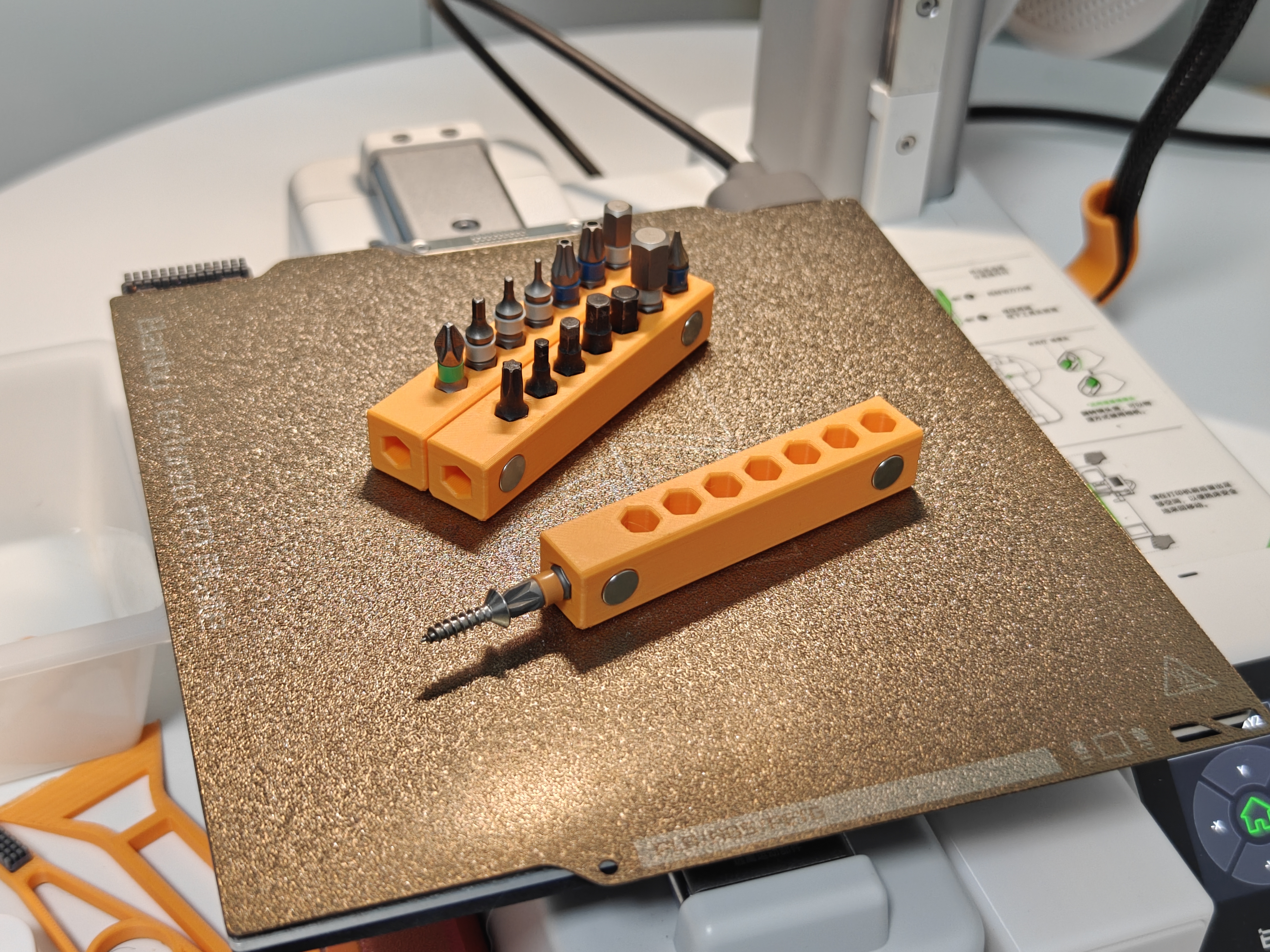

  • 批头收纳弹夹15mm*15mm*82mm，可容纳7枚批头，将批头置入方块顶面可作为零时螺丝刀使用。

    The batch head stores the magazine 15mm * 15mm * 82mm, which can accommodate 7 batches. Placing the batch head into the top surface of the square can be used as a zero-hour screwdriver.

划重点！！！

磁铁规格：钕铁硼磁铁 4*8mm*2mm（侧面）+8*6mm*2mm（批头底部）（502胶水固定，注意磁铁两极）

Key Points!

Magnet Specifications:

• Neodymium iron boron magnets
• Side magnet: 4×8×2mm (length×width×thickness)
• Bit bottom magnet: 8×6×2mm (length×diameter×thickness)
• Fixed with 502 glue (pay attention to the two poles of the magnet)

欢迎各位下载打印。

Welcome to download and print.
