Jewellery Box - stackable

Customise your box with your favourite design!
With up to 3 inserts
The jewellery box is stackable
For jewellery or other small items
Inserts can be removed upwards
Various knob designs
No support needed!
Size: 140mm x 140mm, Height (without knob): 53mm| 5,5" x 5,5" x 2,08"

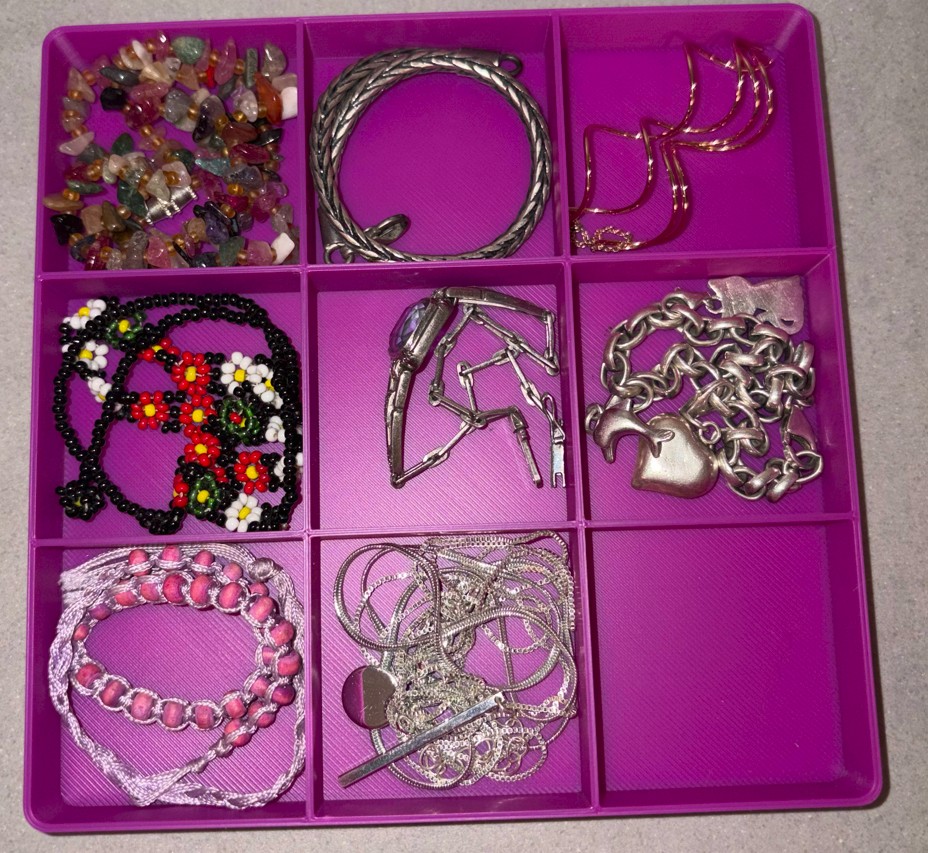

Inserts

The inserts are available in many designs.

Number and layout of compartments
Different heights

Knobs

The knobs are available in many designs.

Case Stackable

Filament

All the jewellery boxes I printed were made of PLA. The material is sufficiently stable and easy to print.
With PLA-CF, I noticed that when the lid was printed, it often had an internal tension that bent the lid. Normal PLA/PLA matt worked better. PLA-CF worked normally well with the case.

Print Information

All parts are printed in 0.2 mm layer height. There are exceptions for the following parts:
- The lid is printed in 0.08mm layer height to improve the thread for the knob
- The threaded part of the knobs is printed in 0.08mm
No support needed!
Internal Project settings for A1 & X1C available. These are the printers I used to print and test the parts.
The following settings are selected:
- Quality
  Precision
  X-Y hole compensation: 0,1mm
  Precise Z height: yes

  Wall generator
  Wall generator: Arachne

  Advanced
  Order of walls: outer/inner
- Strength
  Walls
  Wall loops: 2

  Sparse infill
  Sparse infill desity: 40%
  Sparse infill pattern: Gyroid

Knob assembly

The knob is mounted on the lid with a thread. This allows you to combine your favourite design. Print out your favourite knob and attach it to the lid by turning it clockwise. Please do not overtighten!
