Laboratory stand

Laboratory rack [ Requires some hardware ]

____________________________________________________________________________________________________________

Attention!
Some components there CAN use 110-120-220-230-240V AC electricity and USB power up to 100W , DO NOT allow kids without supervision interact with powered rack without AT LEAST cover for IEC connector.

____________________________________________________________________________________________________________

Hey fellow makers!

I wanted to share my latest project – a semi-modular laboratory rack made using 3D printed components and some standard hardware. It’s designed to hold DIN rails, which makes it ideal for experimenting with anything DIN-mountable.

Currently I'm working on more things made specifically to component DIN rail system, you can use added bellow clips and clamps to make your own clamping parts, they use or plain M3x10 screws or use some M3x4.2+ hot inserts.

For clips distance between screw holes [ center to center ] - 20 mm

For clamps distance between screw holes [ center to center ] - 60 mm

If you have some requests and ideas for accessories feel free to share your thoughts in comments.

Translation of my file names

MT	Rack base [ Main design with additional DIN slots ]
LT	Rack base [ Main design ]
MT / LT + L / R + POWER	Rack base + Nut slot side + Power / usb panel
UE	Upper extension [ Is first one to increase rack height ]
TS	Small section that extend rack height for 1 slot
TE	End piece that encloses rack area pointing down

Accessories as work in progress [ Links on my accessory collections will be added there soon ]
Accessory type	Progress
Soldering accessories	[ Solder wire holder ]
Lighting accessories	[ Stand lamp ]
Chemistry accessories	Under question [ comment if needed faster ]
Wiring accessories	WIP
Electrical accessories	Under question [ comment if needed faster ]
Robotics accessories	Under question [ comment if needed faster ]
Cyberdeck MOD	Frozen

____________________________________________________________________________________________________________

Rack base [ Final chosen form factor ] [ Has 2 options with/without power/usb ]

Requires:

No power/usb
Hardware	Amount
DIN rail 35 cm	4 pcs
M6 nut	8 pcs
M6x10 screw/bolt	8 pcs

With power/usb
Hardware	Amount
DIN rail 35 cm	4 pcs
M6 nut	8 pcs
M6x10 screw/bolt	8 pcs
IEC C14	1 pcs
M4x20 screw/bolt	2 pcs
USB-C female	4 pcs
M2x6 scew/bolt	8 pcs

Expanded build:

With power/usb
Hardware	Amount
DIN rail 35 cm	6 pcs
M6 nut	20 pcs
M6x10 screw/bolt	12 pcs
M6x20 screw/bolt	4 pcs
IEC C14	1 pcs
M4x20 screw/bolt	2 pcs
USB-C female	4 pcs
M2x6 scew/bolt	8 pcs

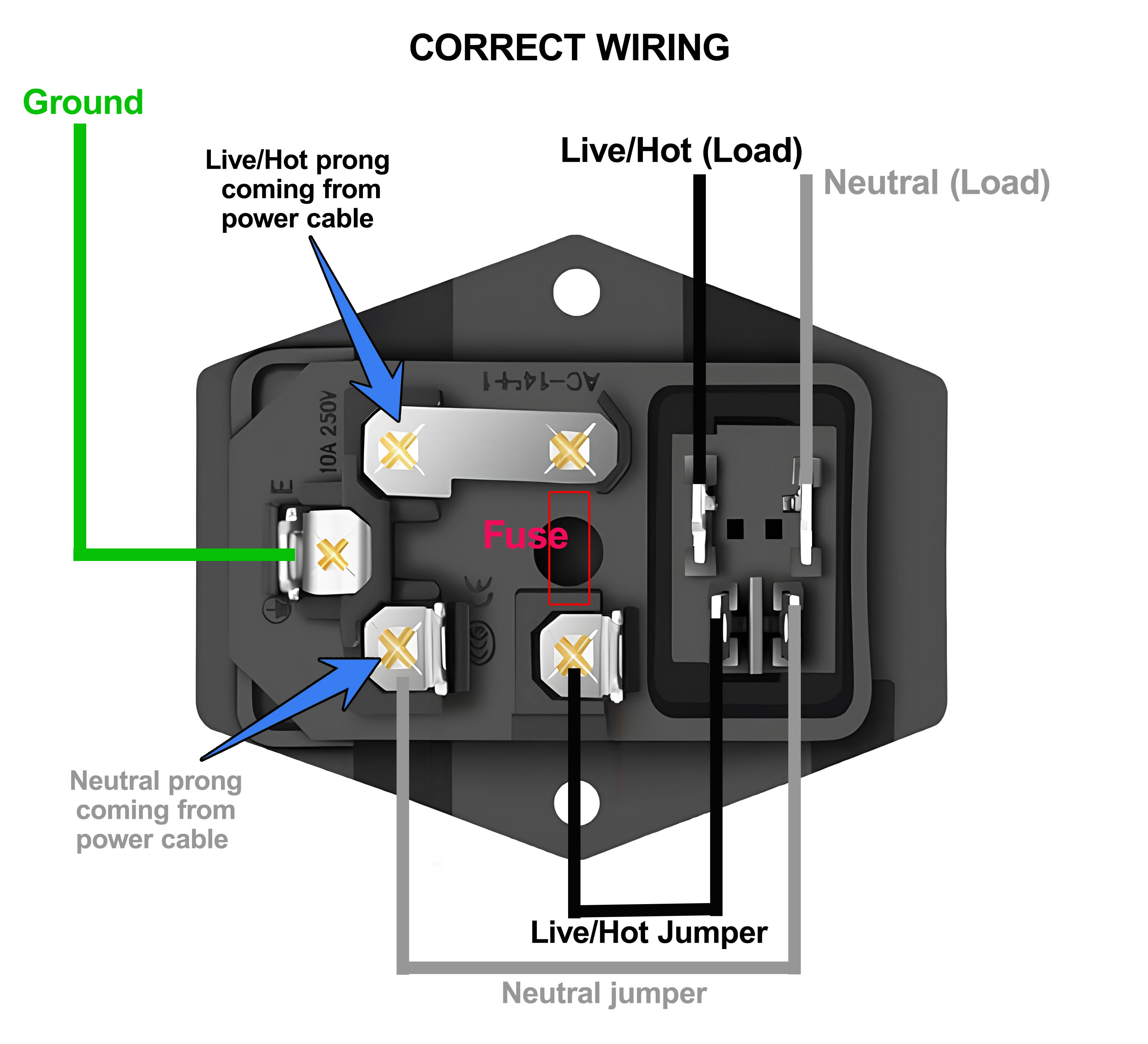

IEC320 C14 Wiring diagram [ L - live / positive ] [ N - neutral ] [ GND - ground / earth ]

USE STRICTLY WITH SAFETY COVER

Used parts for usb and power

[ For some reason it's marked AC-17 ]
