Modelo 3D 360 Degree Platform for Microscope por Magmabow no MakerWorld

Descrição

Inspired by Steve mould's latest video, except the same effect is achieved mechanically rather than with optics.

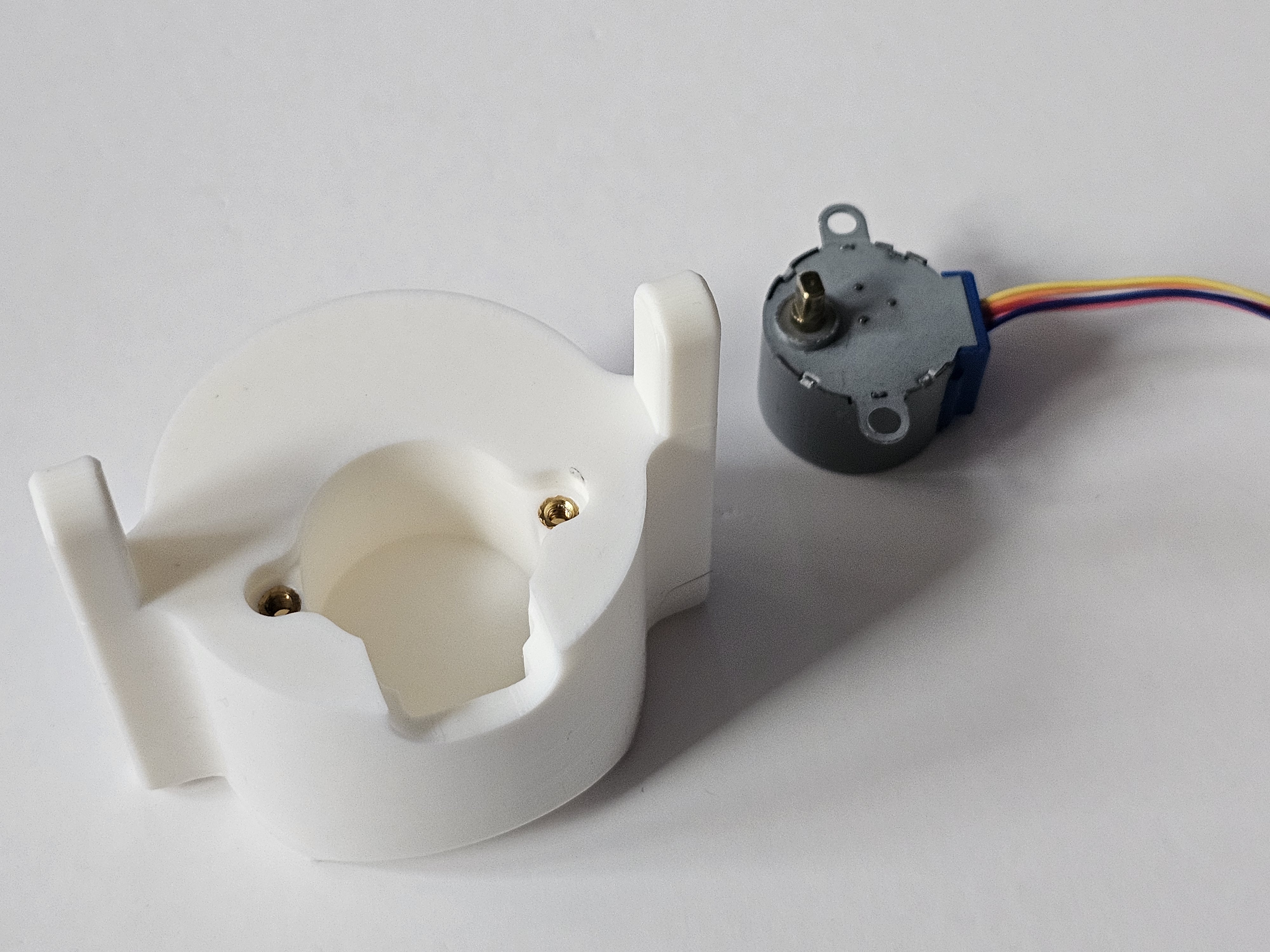

Some 28byj-48 drivers may not fit into the screw holes. If they dont, use super glue to attach.
I suggest using an arduino nano without pins and desoldering IN1 to IN4 on the stepper driver. Solder all wires together instead.

The arduino nano attaches with glue, along with the thin elecronics cover.

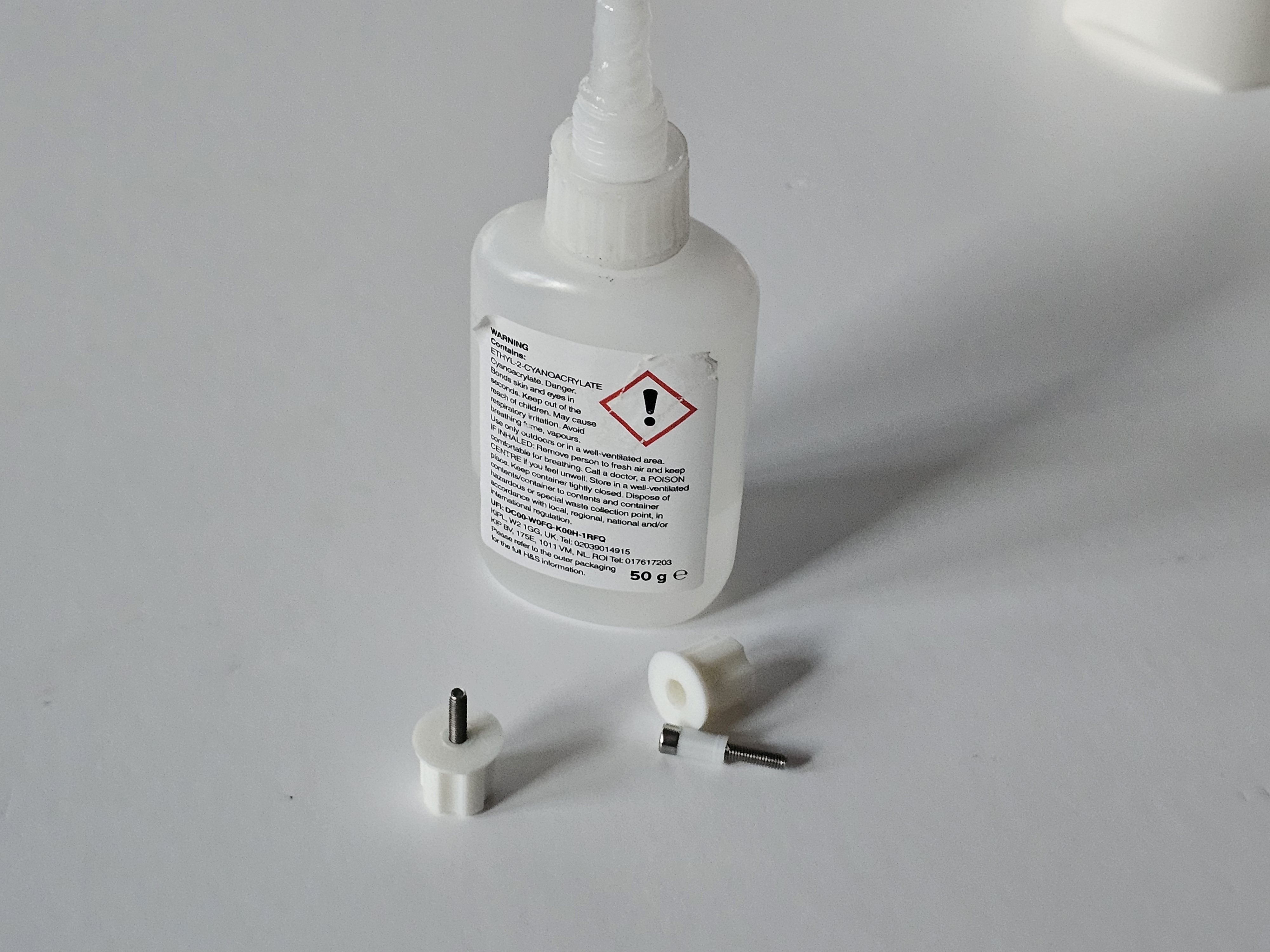

When assembling the white screw, drill/ream the hole with 5mm. Hammer in screw with the spacer installed. I used a small amount of CA glue too

How to use:

1. Record a video of the target doing a 360 degree spin. I suggest leaving a few seconds extra
2. In an editing software, rotate the whole video 360 degrees in the opposite direction to cancel the spin.
3. Add a circular mask (optional)

 Hardware:

  • 28byj-48 Stepper motor
  • 28byj-48 Stepper driver
  • Arduino nano
  • 10k potentiometer
  • 2mm*12mm pin x6
  • m3*6 machine screw x16
    m3*(12 to 20) machine screw x2
  • m3*4 heatset insert x18


Wiring:

Potentiometer wiper → A7
IN1 → D8
IN2 → D9
IN3 → D10
IN4 → D11
Connect together all GNDs and VCCs.

Code:

//28byj-48 Controller by Magmabow
const int IN1 = 8;
const int IN2 = 9;
const int IN3 = 10;
const int IN4 = 11;

const int potPin = A7;

const int steps[8][4] = { {1, 0, 0, 0}, {1, 1, 0, 0}, {0, 1, 0, 0}, {0, 1, 1, 0}, {0, 0, 1, 0}, {0, 0, 1, 1}, {0, 0, 0, 1}, {1, 0, 0, 1} };

void setup() { pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(IN3, OUTPUT); pinMode(IN4, OUTPUT); }

void loop() { int potValue = analogRead(potPin); int center = 512;

int diff = potValue - center;

if (abs(diff) < 20) { return; }

int direction = diff > 0 ? 1 : -1; int speed = map(abs(diff), 20, 511, 10, 1);

static int stepIndex = 0; stepIndex = (stepIndex + direction + 8) % 8;

stepMotor(stepIndex); delay(speed); }

void stepMotor(int stepIndex) { digitalWrite(IN1, steps[stepIndex][0]); digitalWrite(IN2, steps[stepIndex][1]); digitalWrite(IN3, steps[stepIndex][2]); digitalWrite(IN4, steps[stepIndex][3]); }



MakerWorld

360 Degree Platform for Microscope

Publicado em 13 de mai de 2025

8
Curtidas
10
Downloads
23
Coleções
Categoria Electronics
Tags
rotation holder stand rotating scope platform microscope
Licença Standard Digital File License
