Modelo 3D 40mm涵道风扇可调速暴力风扇吹吸两用 por 尽欢 no MakerWorld

Descrição

已更新V2版本：

[https://makerworld.com.cn/zh/models/1949424-bao-li-feng-shan-v2han-dao-feng-shan-40mm#profileId-2165954](https://makerworld.com.cn/zh/models/1949424-bao-li-feng-shan-v2han-dao-feng-shan-40mm#profileId-2165954)

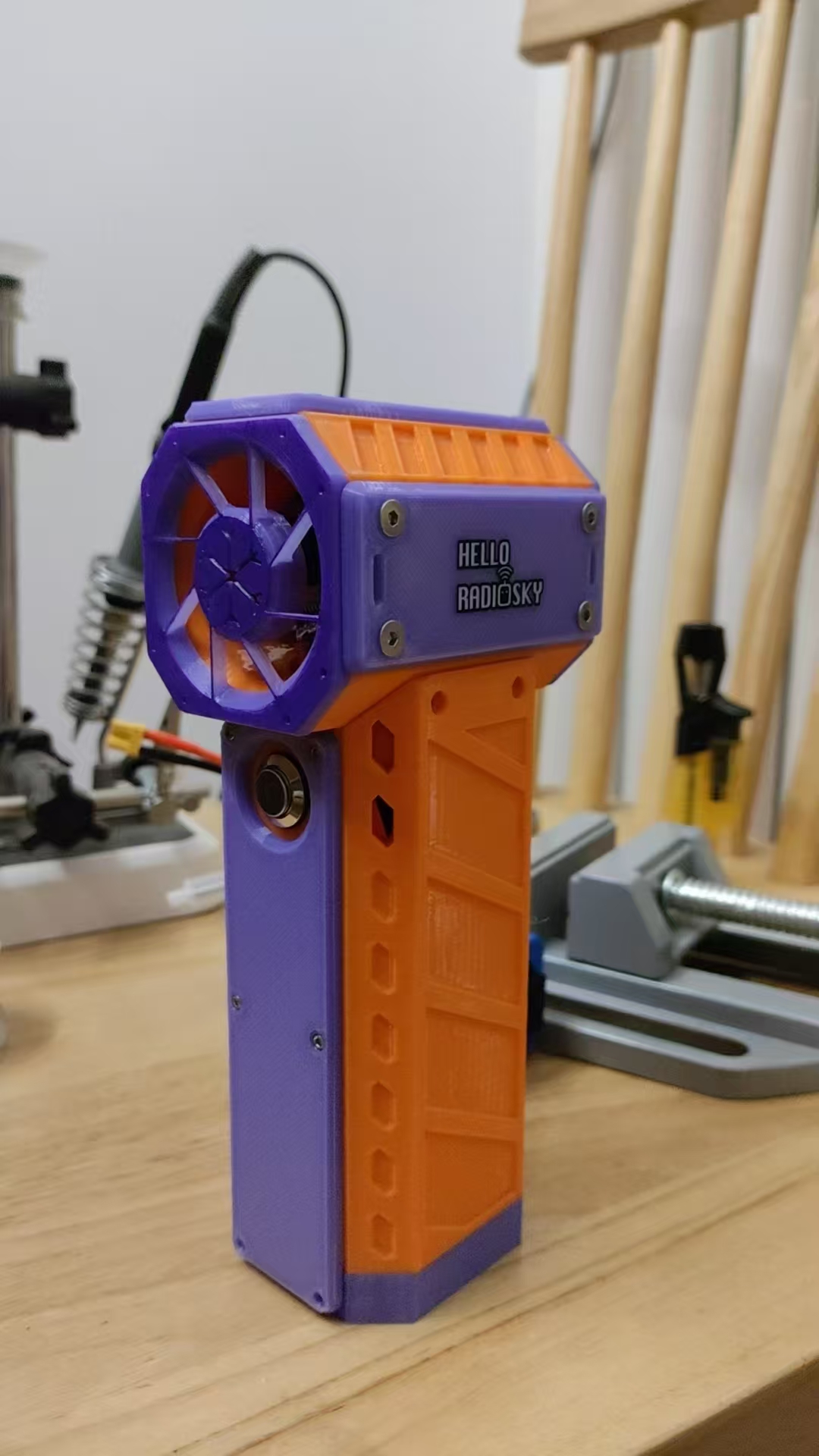

40mm涵道暴力风扇：

风压450g左右

电压16.8v

电流30A

使用4节21700电池

磁吸聚风嘴

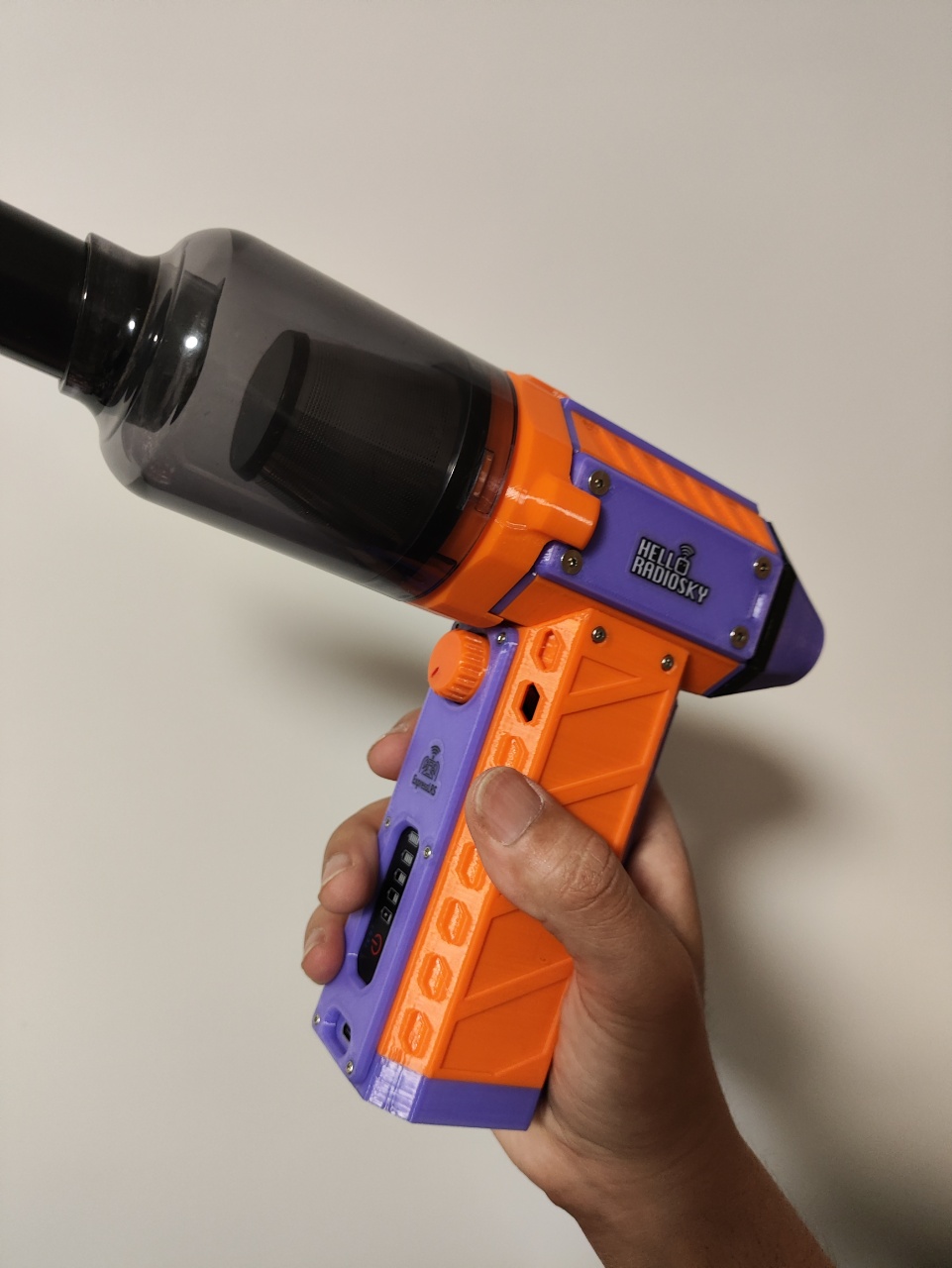

可转接吸尘器，匹配内径55M毫米双卡口吸尘头

使用吸尘器尽量不要长时间满功率运行，避免电机过热

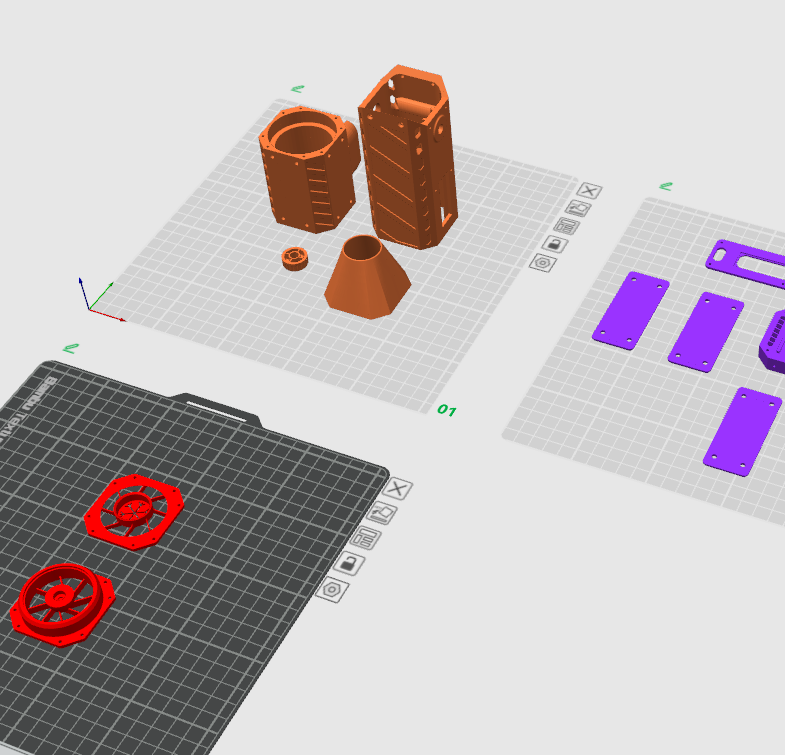

已加粗进风口和出风口的支撑结构，提高强度和便于打印

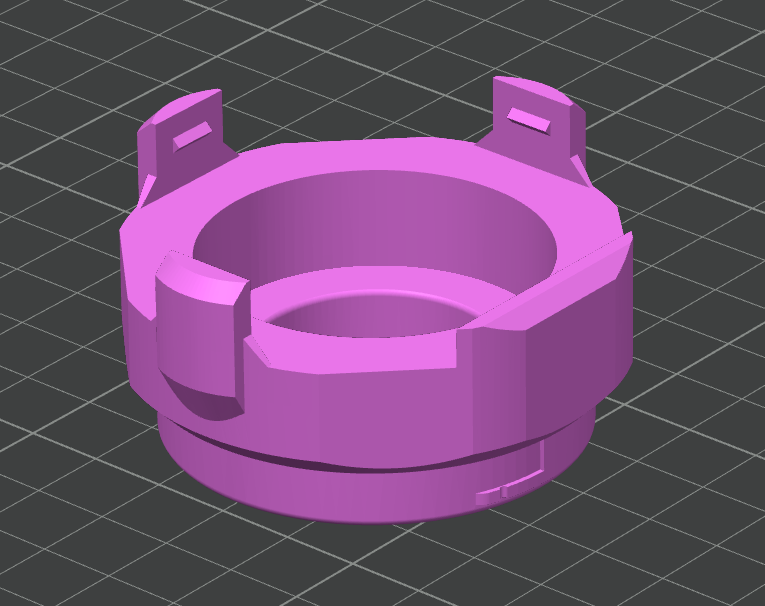

更新了通用吸尘转接卡口，默认比较紧不容易松脱

安装时可以适当打磨风扇尾部使其平滑

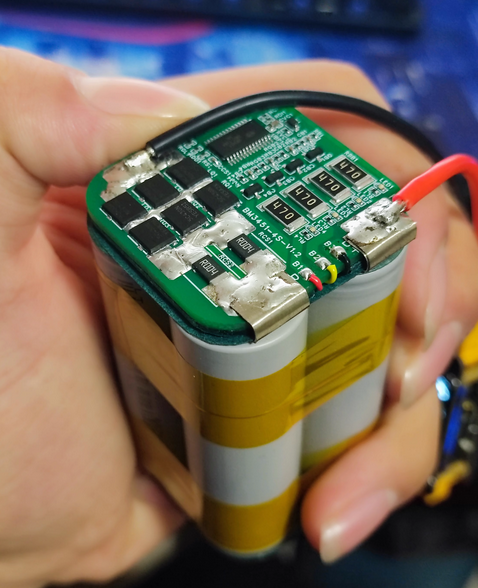

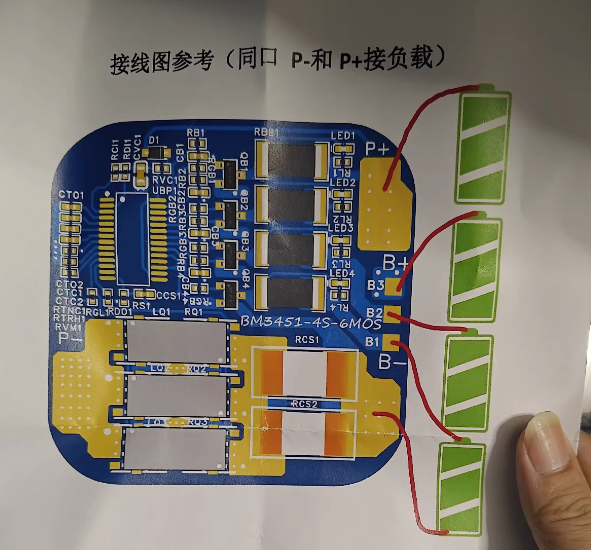

4节21700串连，均衡板接线参考，充电模块接均衡板P+ P-正负极

集尘仓套件内径52mm：[https://mobile.yangkeduo.com/goods.html?ps=LiSi0vcoRV](https://mobile.yangkeduo.com/goods.html?ps=LiSi0vcoRV)

物料	数量	参考链接
16.8v 40mm电调驱动板一体调速电机	1	[https://www.goofish.com/item?id=912620692956&spm=widle.12011849.copy.detail&ut_sk=1.ZQQTIIeZadgDAC++HJ8l969V_21407387_1753685642690.copy.detail.912620692956.33807930](https://www.goofish.com/item?id=912620692956&spm=widle.12011849.copy.detail&ut_sk=1.ZQQTIIeZadgDAC++HJ8l969V_21407387_1753685642690.copy.detail.912620692956.33807930) 优惠口令：尽欢
电池均衡保护板	1	[https://www.goofish.com/item?id=922966153231&spm=widle.12011849.copy.detail&ut_sk=1.ZQQTIIeZadgDAC++HJ8l969V_21407387_1753685642690.copy.detail.922966153231.33807930](https://www.goofish.com/item?id=922966153231&spm=widle.12011849.copy.detail&ut_sk=1.ZQQTIIeZadgDAC++HJ8l969V_21407387_1753685642690.copy.detail.922966153231.33807930)

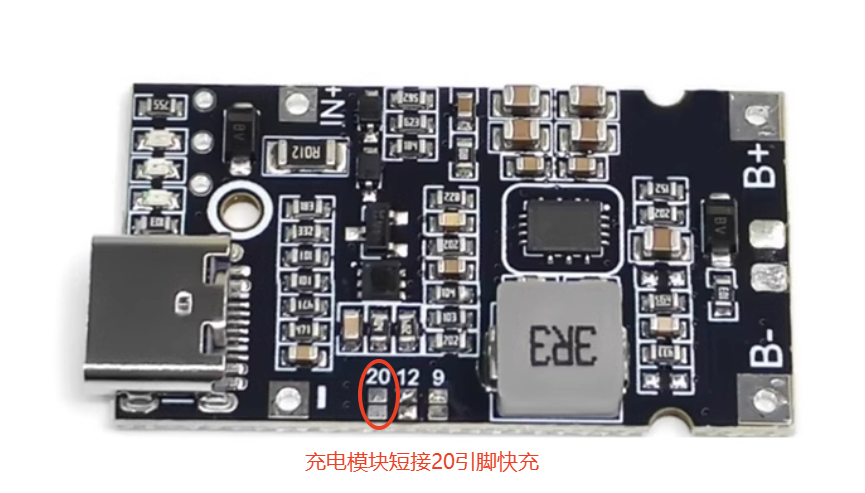

4S锂电池充电模块	1	[https://e.tb.cn/h.6GC7K5xSWyVz7fi?tk=z2K4V9CeR1Q](https://e.tb.cn/h.6GC7K5xSWyVz7fi?tk=z2K4V9CeR1Q)
电量显示模块，4串锂电充饱16.8v	1	[https://e.tb.cn/h.6u19dn7Y4jjMmFz?tk=xvGaV9Cdp2l](https://e.tb.cn/h.6u19dn7Y4jjMmFz?tk=xvGaV9Cdp2l)
力神21700锂电池4000ma，10c放电	4节（也可自行购买4节串联点焊好的）	[https://e.tb.cn/h.6GCmpF6IwMHlgrj?tk=l1JFV9CSWud](https://e.tb.cn/h.6GCmpF6IwMHlgrj?tk=l1JFV9CSWud)
金属按压开关12mm，12-24v无灯自锁	1个	[https://makerworld.bblmw.com/makerworld/draft/6153361/b66ad70f-db5f-4e53-ac56-088f103474be](https://makerworld.bblmw.com/makerworld/draft/6153361/b66ad70f-db5f-4e53-ac56-088f103474be)
M1.6*5杯头内六角螺丝	12颗
M1.6*8杯头内六角螺丝	16颗
M1.6*16杯头内六角螺丝	4颗
M2.5*16杯头内六角螺丝	4颗
M3*6沉头内六角螺丝	12颗
圆形强磁铁20mm*5mm	2个
可能还需要一些连接线，可以按需购买
