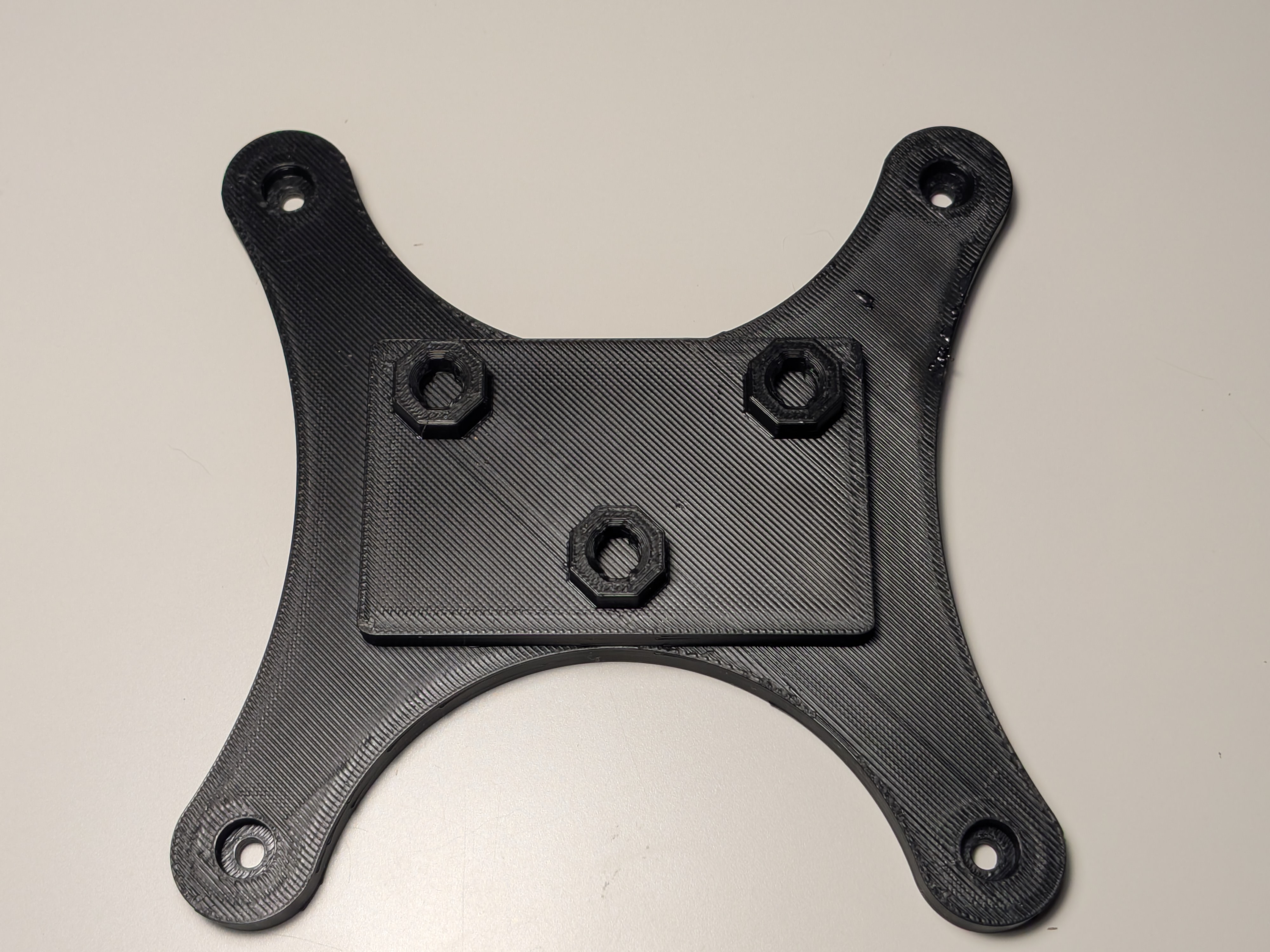

Remix of 463n7's 75mm VESA Mount for HSW adapted for Multiboard bolt-lock snaps.

Uses 3 bolt-lock snaps in a 3-long by 2-high Multiboard grid pattern - 2 on top and 1 on bottom. I recommend to use a medium weight bearing snap on the bottom and heavy weight bearing snaps on the top 2 mounting points, but - disclaimer - I wasn't able to get the heavy snaps to actually snap into the board due to the angle required to insert them. I use 3 moderate weight bearing snaps and have had no issues with my monitor.

Medium Weight Snaps and Lite Multipoints are included on the build plate but are disabled by default.

Note: My print profile(s) are comprised of three parts - the 100x100mm VESA base, an additive Rounded Rectangle to offset the VESA mount from the Multiboard (necessary for my monitor for reasonable cable routing and to be able to actually angle the snaps into the Multiboard), and the three additive Multipoint bolt lock components. This should allow easy remixing if you want less or more offset between Multiboard and the VESA mount, want to add more bolt-lock snap points, or scale it up or down to other VESA sizes (ex. 75mm like the original model).
