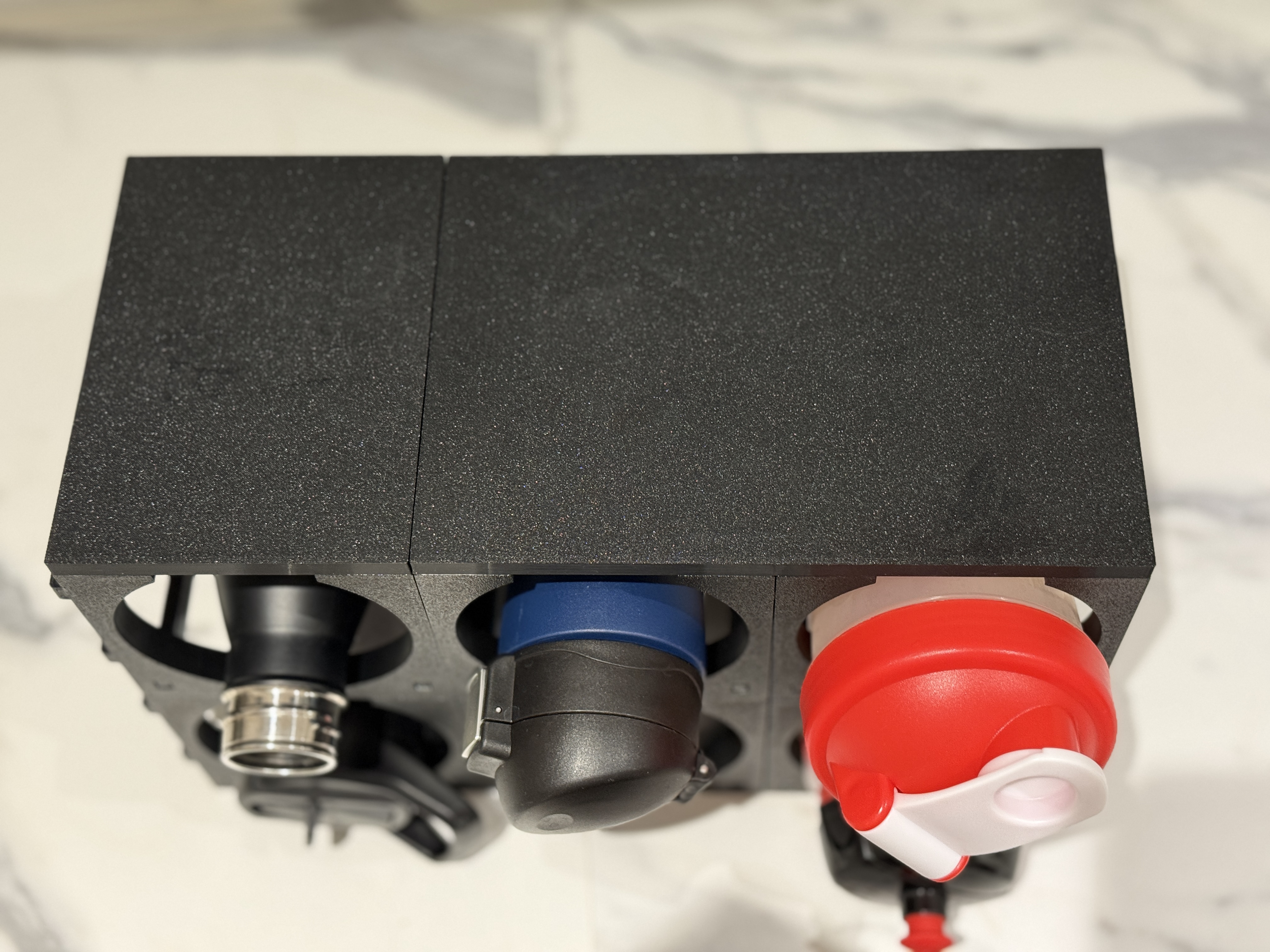

Bottle Rack - Now with top cover for additional storage.

This design was created to provide a low weight bottle storage solution.

The hole diameter is approximately 94mm so should fit most bottles. The height is 107mm and the width is 117mm (7mm is the pin length, so for as an example, the rack in the images is 207mm high and 447mm wide)

The print profile uses PETG with PLA support interfaces (which means it'll require an AMS). This allows the interfaces to fit together much more precisely and without the need for glue. This method only produces about 4.5g of waste and adds 15 minutes to the print time.

The model could be used as a wine rack, though I have not tested it for the purpose and you may need to use glue to ensure it's structurally secure.

Please let me know if you have any feedback on the profile.
