A modular storage system designed for workshops, garages and maker spaces where access matters as much as capacity.

Instead of stacking heavy bins and lifting them every time you need something from the bottom, this system allows each bin to slide out individually while the structure remains stable and expandable.

🧱 Rack System

The rack modules form the structural backbone of the system. Each module can be stacked vertically and connected side-by-side using M3 bolts and nuts, allowing you to build a fully customizable storage wall.

Maximum supported bin dimensions (external)

• Width: 110 mm
• Depth: 155 mm
• Height: 78 mm

Any bin within these dimensions will fit.

Features

• Modular and stackable construction
• Side-by-side expansion
• M3 bolt connection points
• Anti-slip front lip to prevent accidental sliding
• Optional top cover element for a clean finish

You can scale the system as large as your workspace requires.

Note: Except when printing on the A1 Mini, two rack modules can be printed simultaneously to reduce production time.

🧺 Storage Bins

The matching storage bins are optimized for smooth sliding inside the rack while maximizing usable volume.

Internal dimensions

• Width: 100 mm
• Depth: 150 mm
• Height: 69 mm

Designed for screws, bolts, small parts, electronics components, or general workshop supplies.

Two versions available

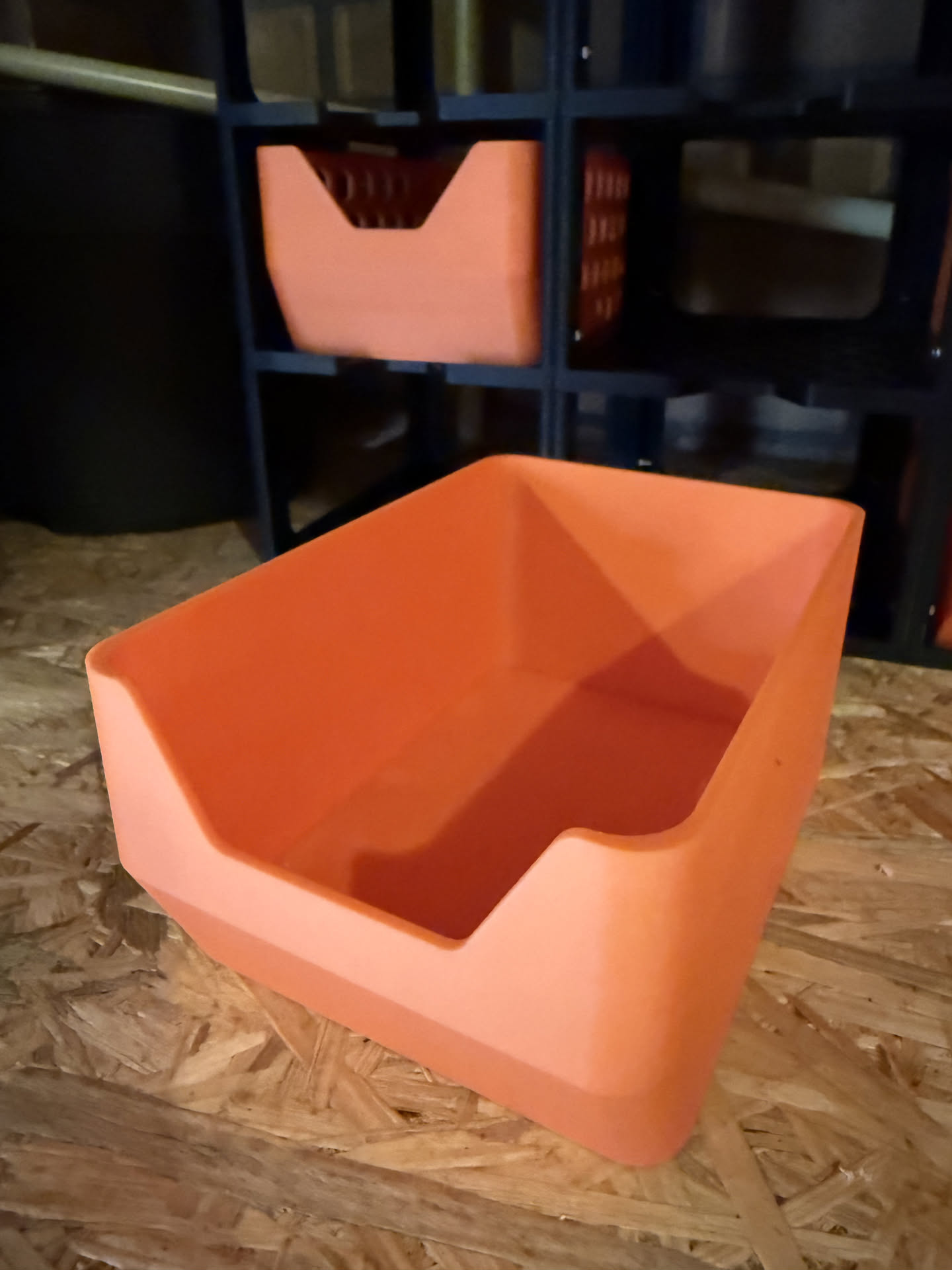

Solid Version

• Maximum rigidity
• Clean, uniform appearance
• Ideal for heavier contents

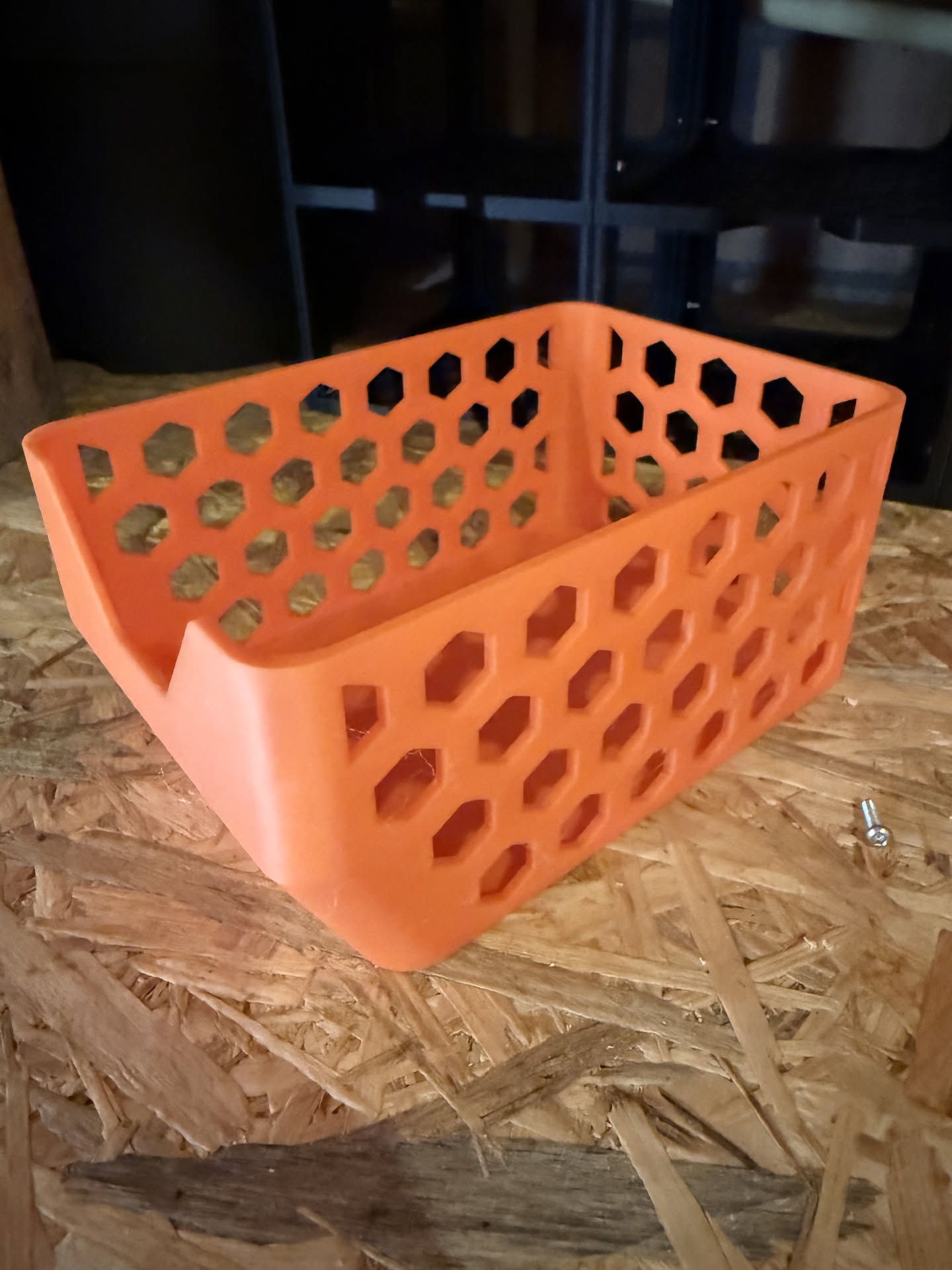

Hexagon Version

• Approx. 10% filament reduction
• Maintains structural integrity
• Lighter and visually distinct

Both versions are fully compatible with the rack system.
