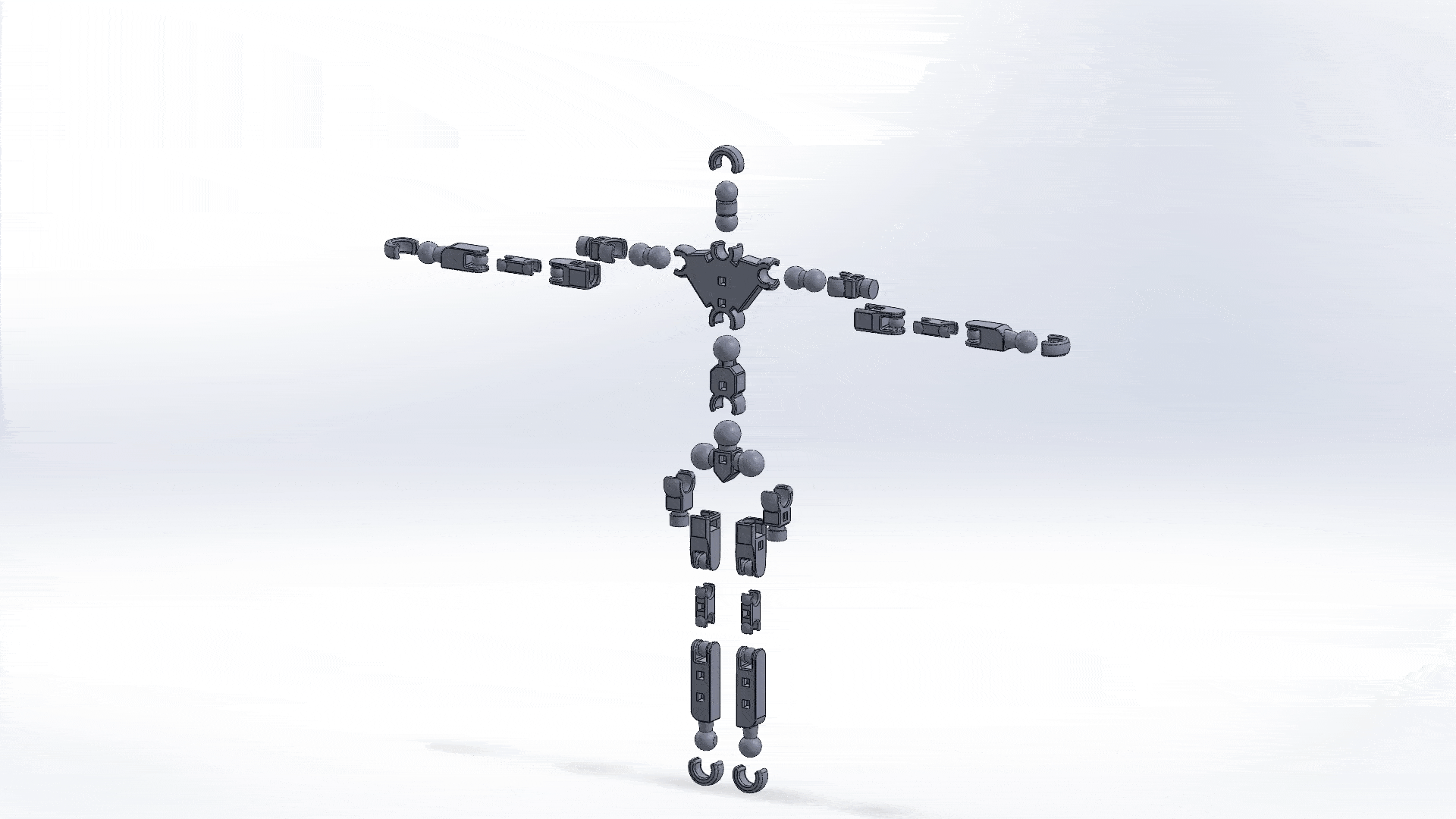

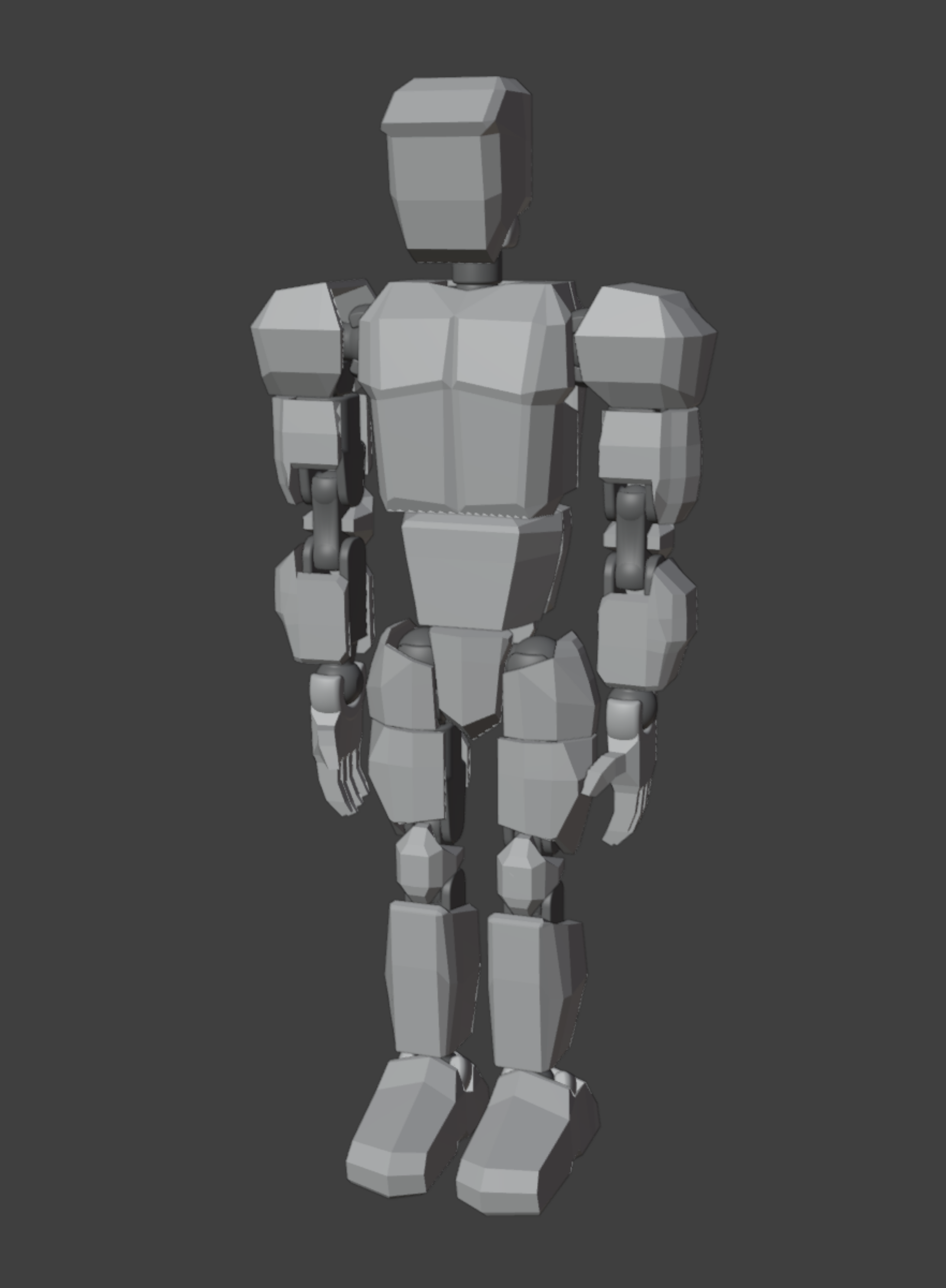

MODULYR - a poseable action figure built on the thought of modularity in customization and ease of remixing. It has 26 points of articulation for pose-ability and display. Using an attachment key system to attach armor pieces to the base figure, it enables all pieces to be support free.

Video guide for this model:

Printing and Assembly Guide;

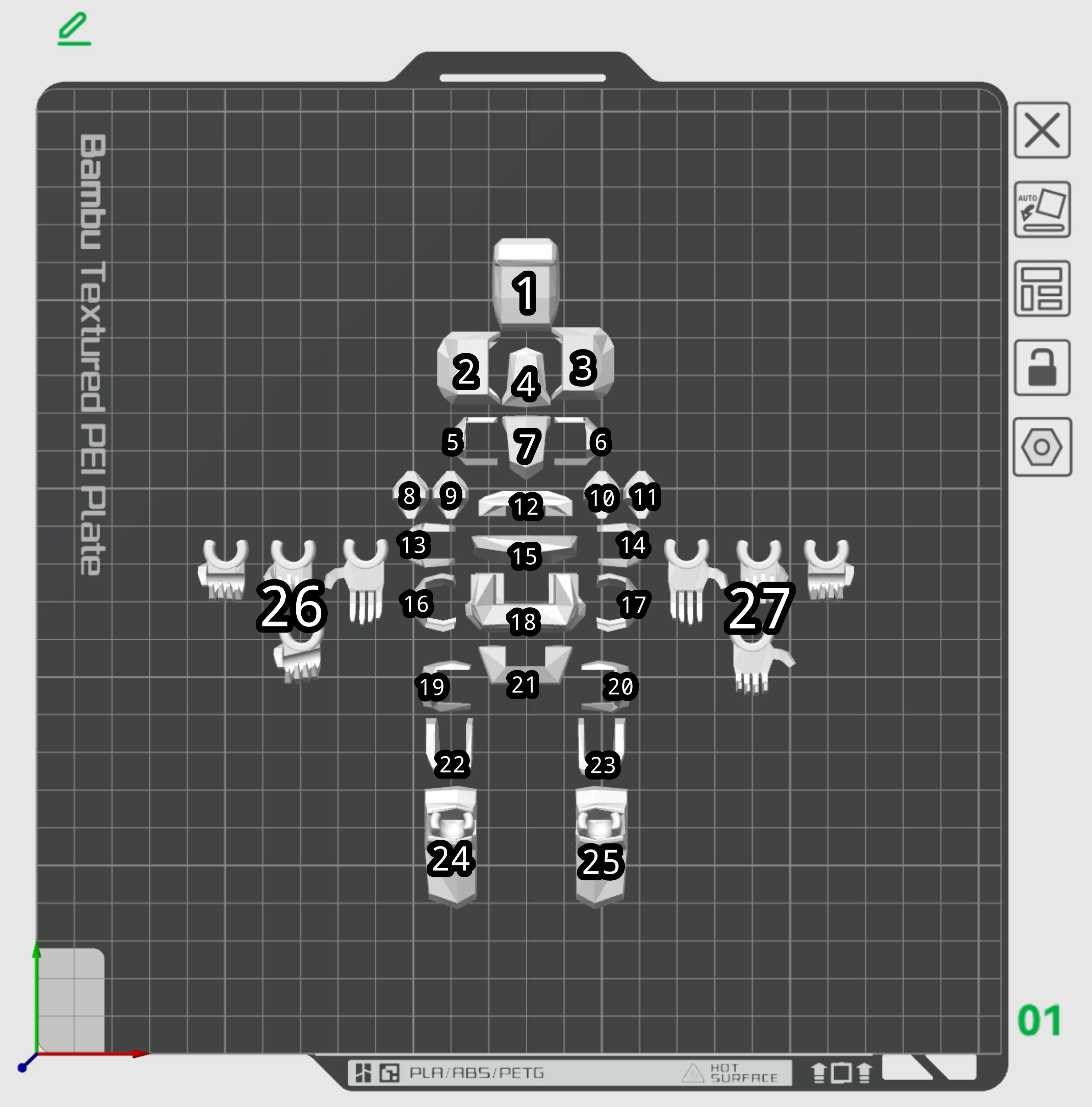

The figure is printed in pieces, which need to be assembled. On the 3mf file, one build plate has the base pieces, and the other plate has the armor pieces.

The base pieces need to be printed in PETG or ABS for the sake of flexibility on the joints.

The armor pieces can be printed in almost any filament as long as it isn't too soft like TPU.

Assembling the Base:

Take note:

• The Hip and Shoulder piece look similar, but the Hip piece is longer
• Keep the Attachment Key socket locations in mind;
  • The build plate side of the pieces are going to be the back of the figure or the inside of the arms / legs
  • The elbow sockets face the back of the figure, while the knee sockets face the front of the figure

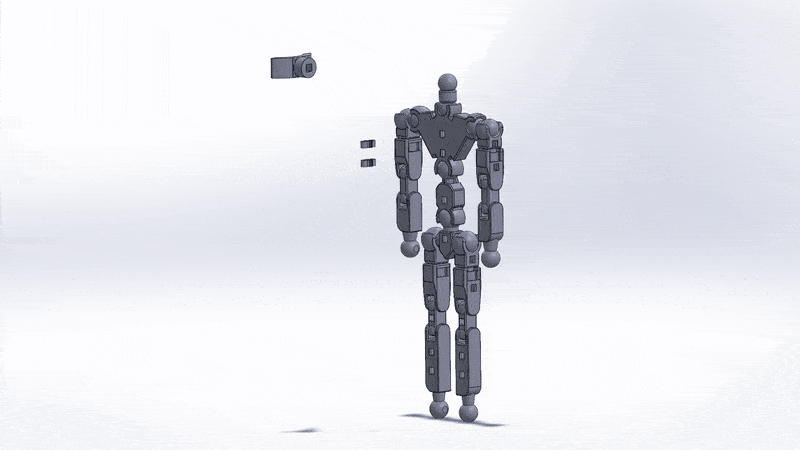

Inserting the Attachment Keys:

Use the Attachment Key tool to fit the keys into the figure. Place an Attachment Key into the tool, and use your thumb to press the key into the socket on the figure.

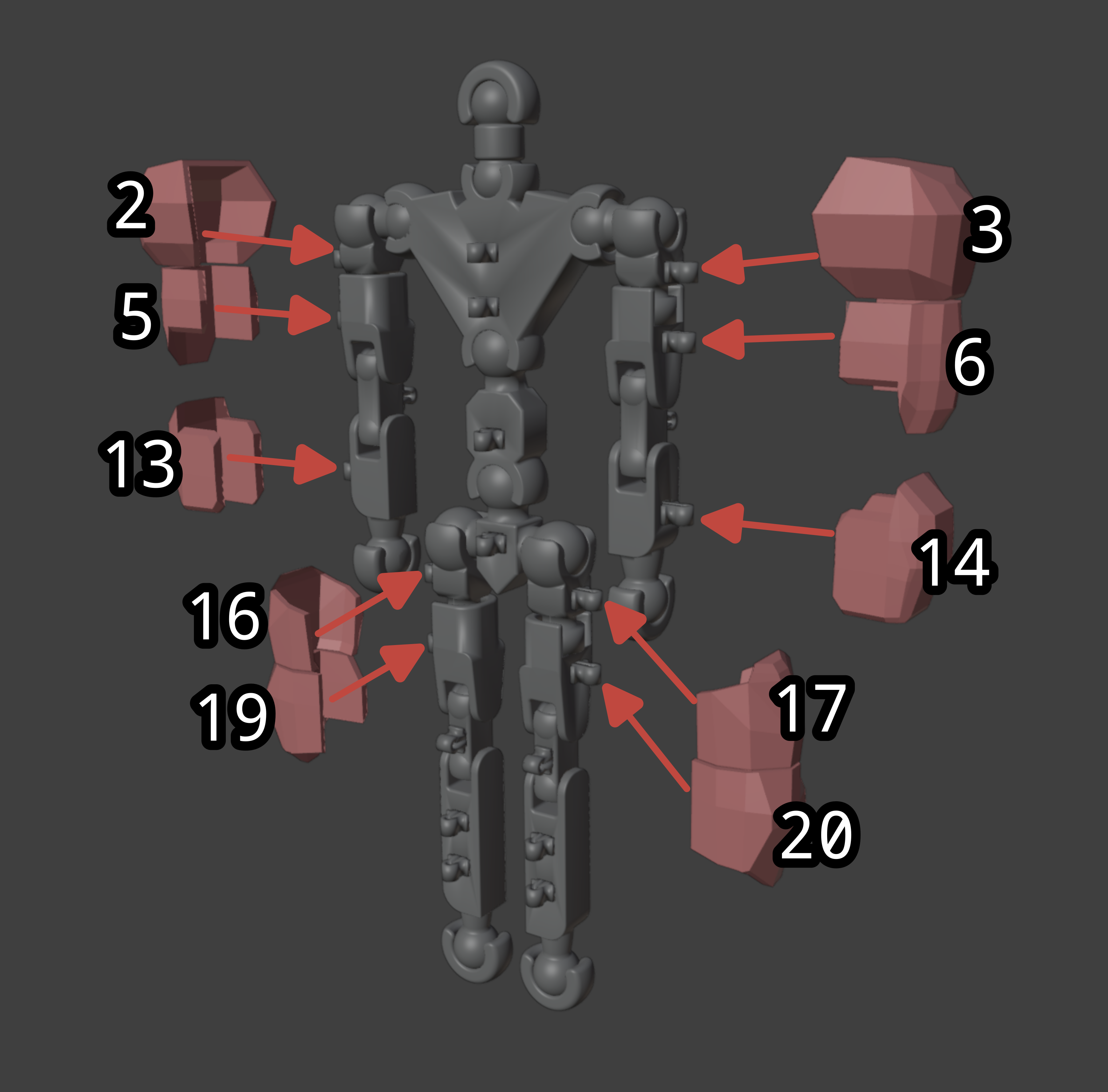

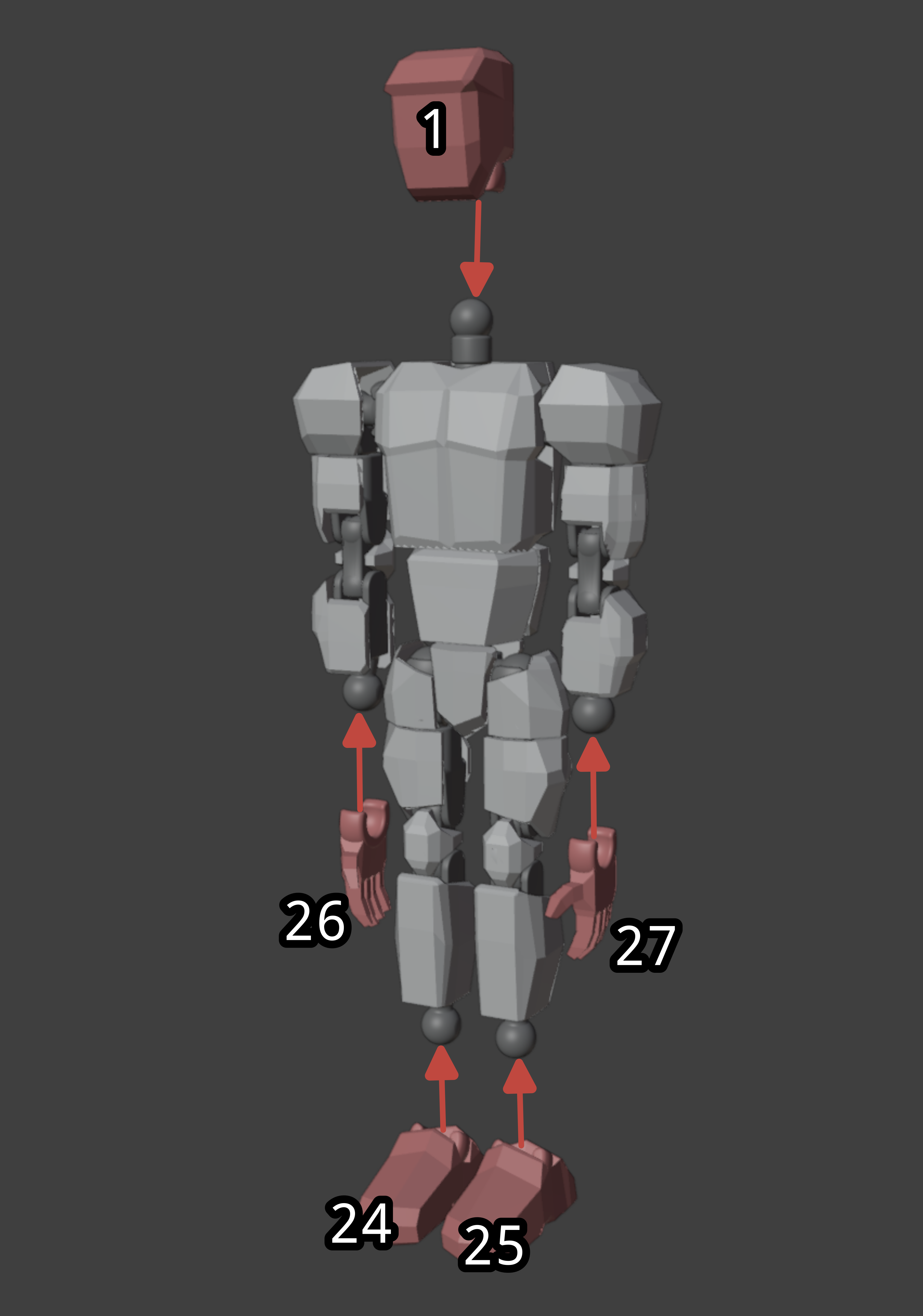

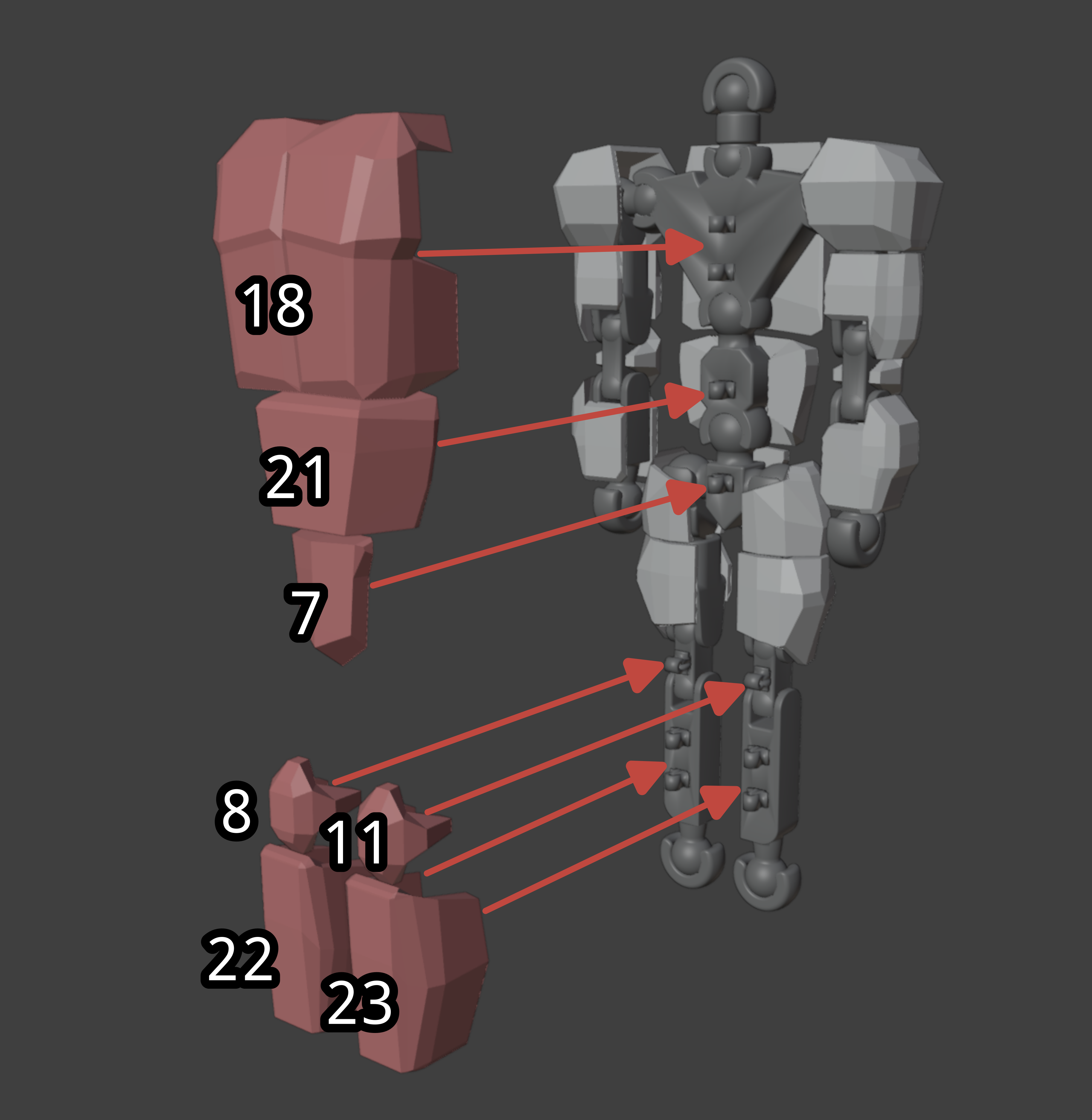

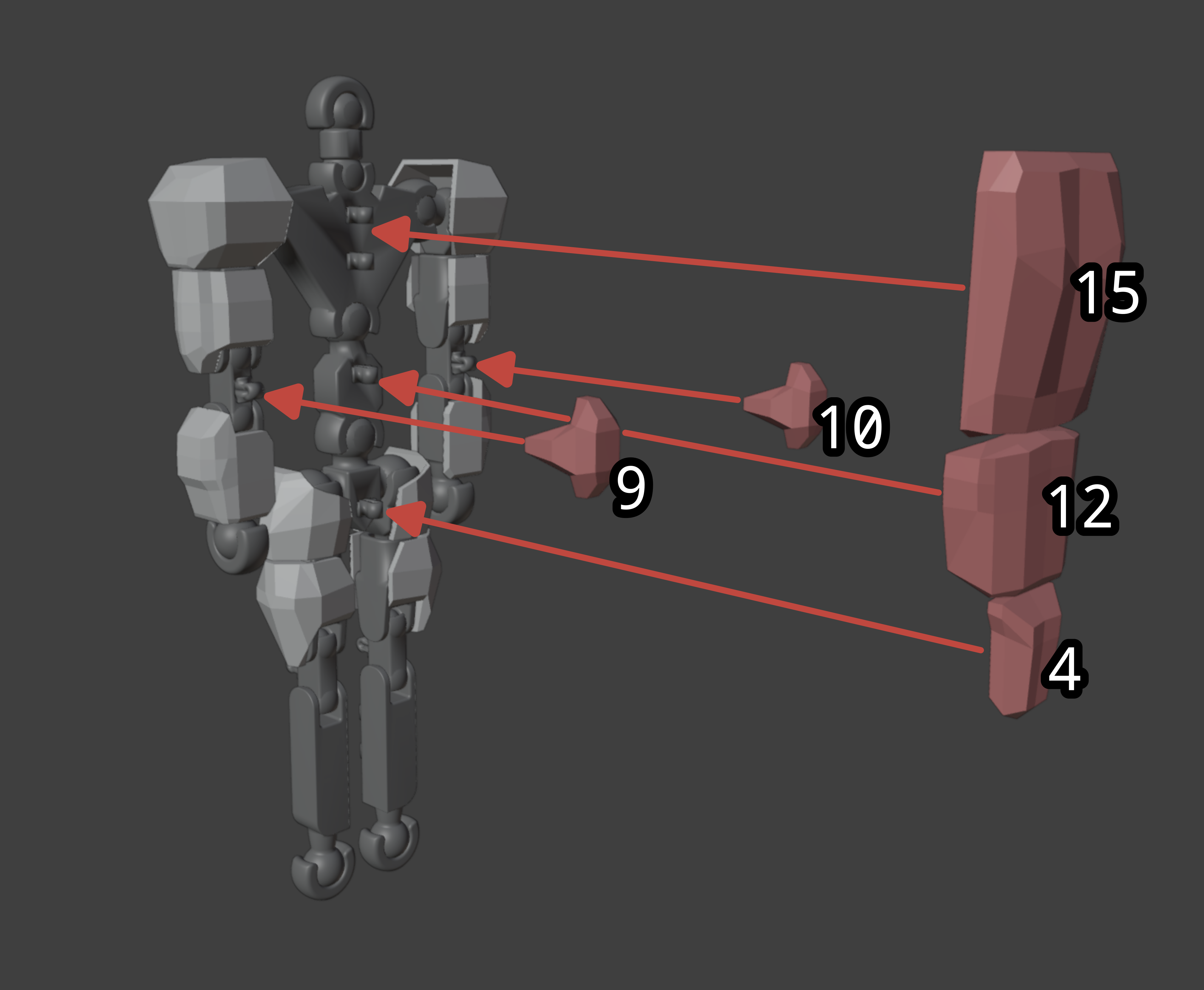

Attaching the Armor pieces:

Please look at the Printing & Assembly guide video as well if further clarity is needed, or let me know in the comments if anything is confusing.

The goal of this project is to release more armor, base, and accessory options for lots of customization.

I will be making a remix guide as well, so that anyone can modify and create new pieces to their liking.

Hope you enjoy!
