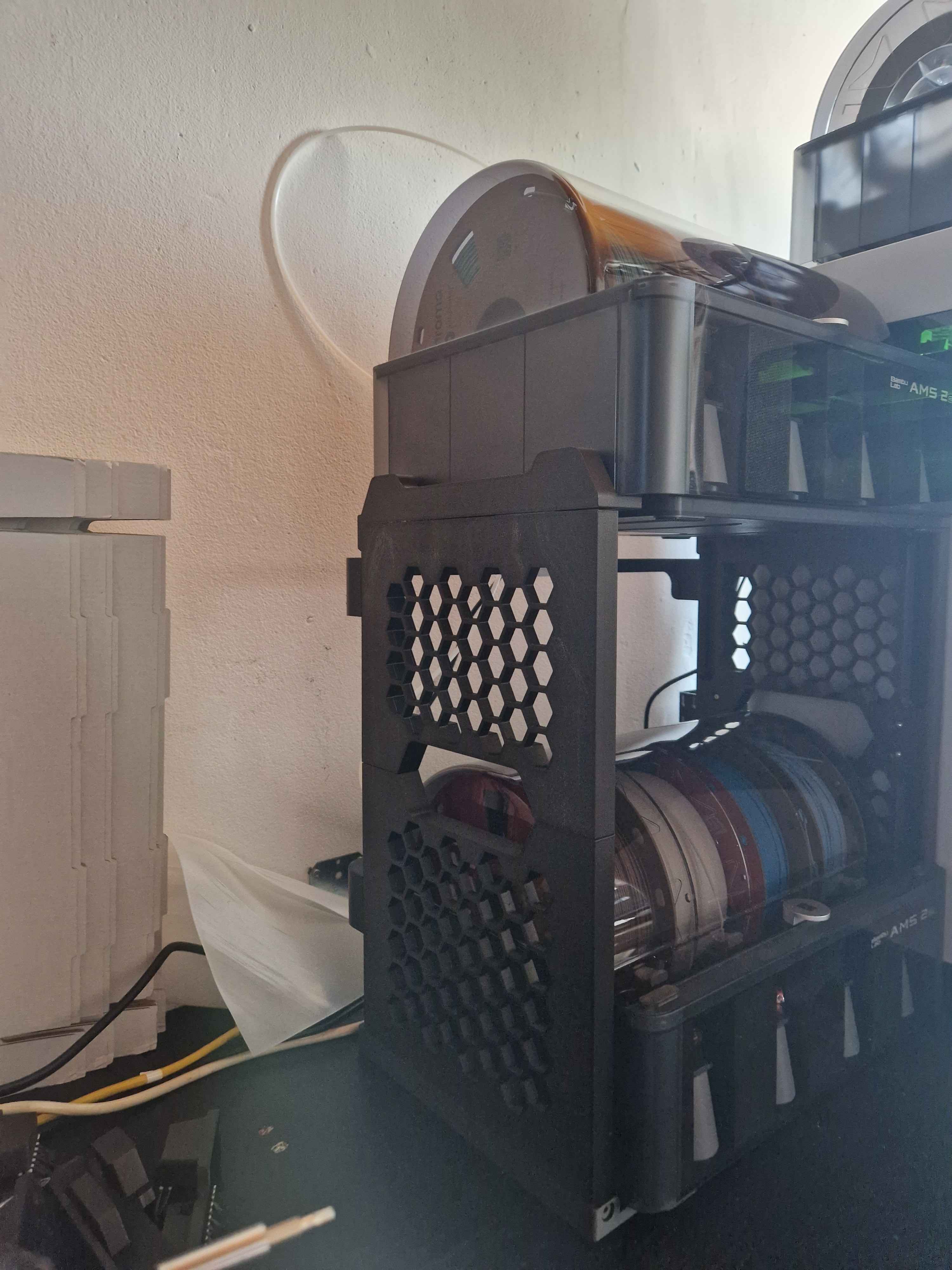

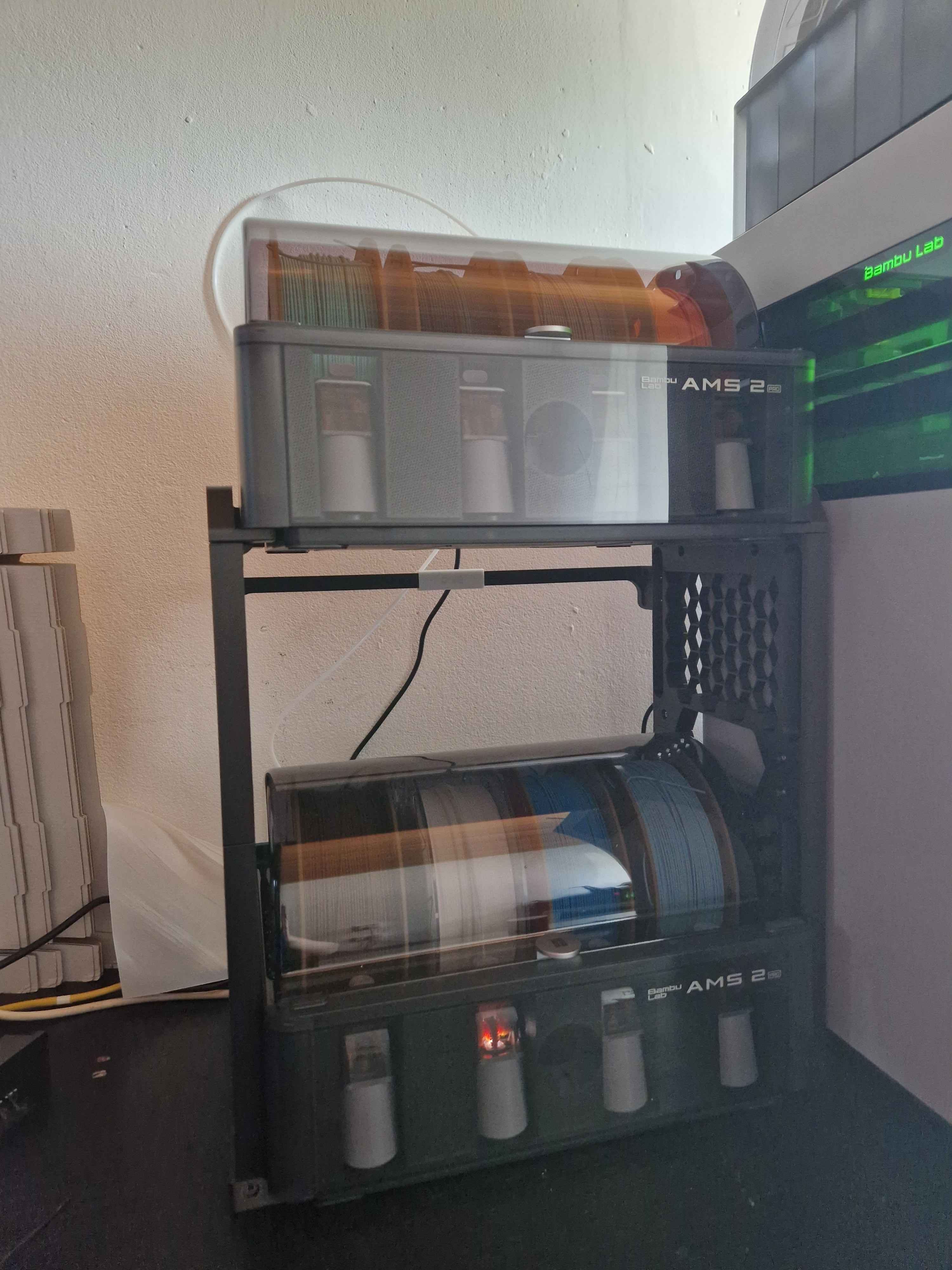

Meet the very first stacker for the AMS 2 Pro!

If you're like me and grabbed two AMS 2 Pros (one for each nozzle of your H2D), this is what you need to stack both on top of one another.

04/10/2025 - v2 has launched! This model introduces more modularity and sets up the unit to allow for AMS v1 stacking as well (coming soon) through the use of interchangeable AMS mounts.

Changes with v2:

1. Introduced modularity
2. Included revised upper and lower mounting systems for AMS
3. Improved rigidity
   1. New overlapping contact points
   2. More areas to screw down
   3. Tighter tolerances in some areas
   4. Redesigned back brace system

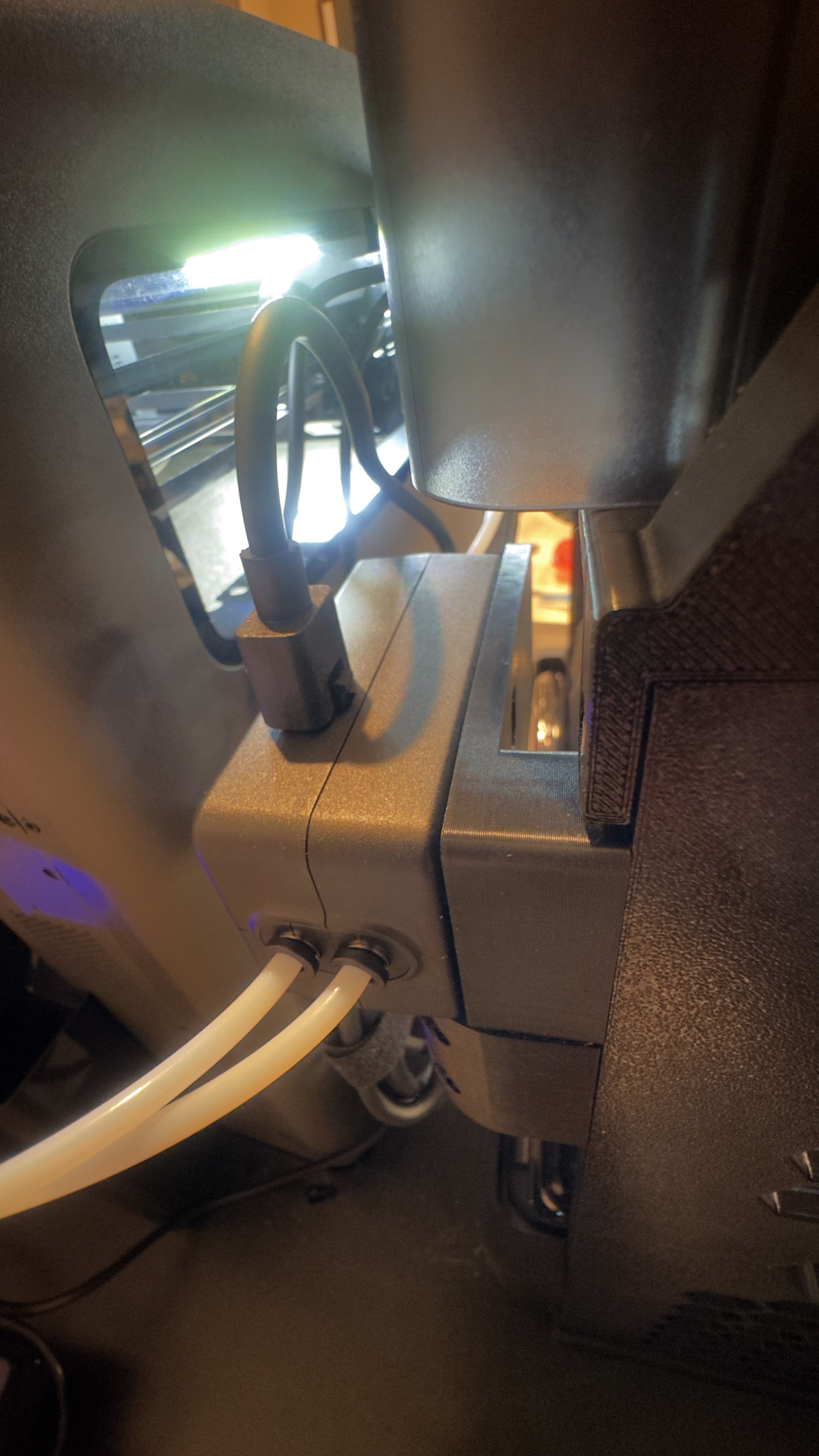

4. Introduced new cable/PFTE runner add-ons
5. Slightly shorter for more compact mounting

----

This stacker is compatible with all accessories for the Honeycomb storage wall. I included a few accessories in the print profiles based on jodameister's deburring support and my flush snipper holder.

Note: One of my AMS 2 Pro units had the cylinders on the bottom tapped from the factory, while the other did not. I'm not sure if they're supposed to, but I found that interesting.

This unit was specifically designed so that it can be printed from an X1/P1 series printer! Meaning, if you upgraded to an AMS 2 Pro and not an H2D, this will still be useful to you :)

----

Please consider boosting if this model was helpful :)

----

Renders Showing Assembly

Check out the assembly guide attached for v2 (current) and v1 (legacy) for help with assembly. It also includes information on what hardware (screws) are needed.

----

Assembly guides:

• v2 and v1 guides are attached
  • Be sure you're using the right one :)
