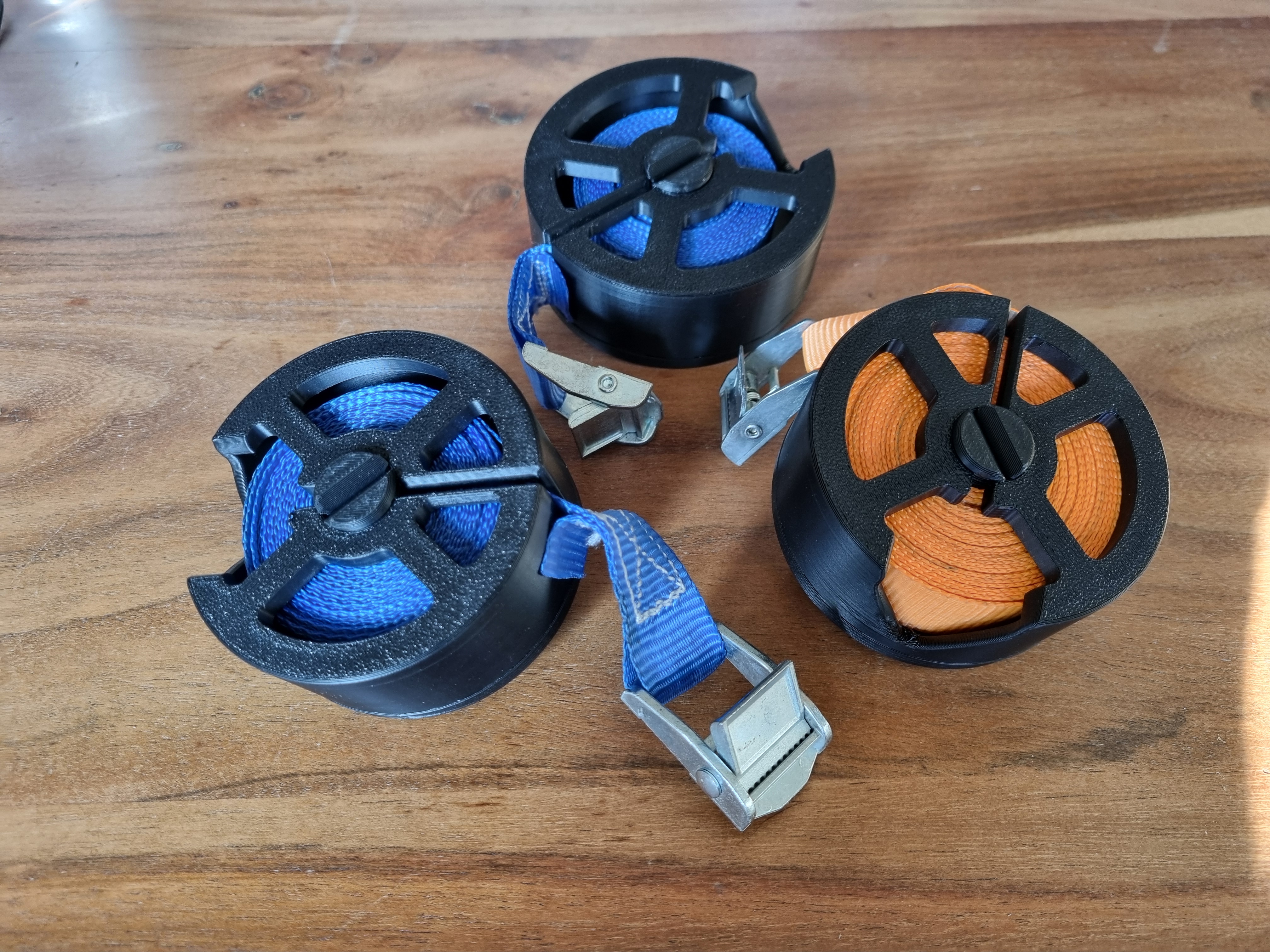

Ratchet strap reel V4 (clicky assembly)

[https://paypal.me/radicalreel](https://paypal.me/radicalreel)

Version 4!!!

Finally integrated locking mechanism, more rigid, BETTER!

Mini Version can still be found here:

[https://makerworld.com/en/models/697578-ratchet-strap-reel-clicky-assembly#profileId-644945](https://makerworld.com/en/models/697578-ratchet-strap-reel-clicky-assembly#profileId-644945)

Always secure your items adequately when traveling and make it easier to roll up the tensioning straps ...with this print.

Printed parts only!

Recommended print settings for sufficient stiffness:

PETG (PLA may get soft if stored in car)

wall loops: 4

infill: triangles 18%

top/bottom layers: 4

Crank is print in place. Break the small sleeve free to achieve a better winding experience.

This is intended for belts with width <30mm however you can scale the parts for wider or thicker belts. As a reference: a 5m belt with a thickness of 1mm will fit very good.

Whats new and how to use

Assembly
