Futuristic Train with Electric Motor - Compatible with Brio and HexTracks

Bring a modern touch to your Brio or Hextracks set with this futuristic train! Powered by an electric motor, it can pull all sorts of wagons around your railroad.

❗❗ IMPORTANT ❗❗

If you are building the electric train, you must print the button before the casing, as you need to add the button during the print of the casing. A pause is already programmed in the available print profile.

What you need 📌

• Bambu PLA Basic - Black
• Bambu PLA Metal - Dark Grey
• Bambu PLA Basic - Accent color of choice
• Socket Head M3x25 screws
• Socket Head M3x10 screws
• Socket Head M3x5 screws
• N20 Dual Shaft Worm Motor Gear
• 100mm Y Type PH2.0 to Dual SH1.0 Conversion Wire
• Self Locking Buton Switch
• AAA Battery Spring Contact Plate with PH2.0 Connector
• 24mm O-ring

Complete BOM is available further down

❗❗ IMPORTANT ❗❗

If you are building the electric train, you must print the button before the casing, as you need to add the buton during the print of the casing. A pause is already programmed in the available print profile.

Electrical connection ⚡

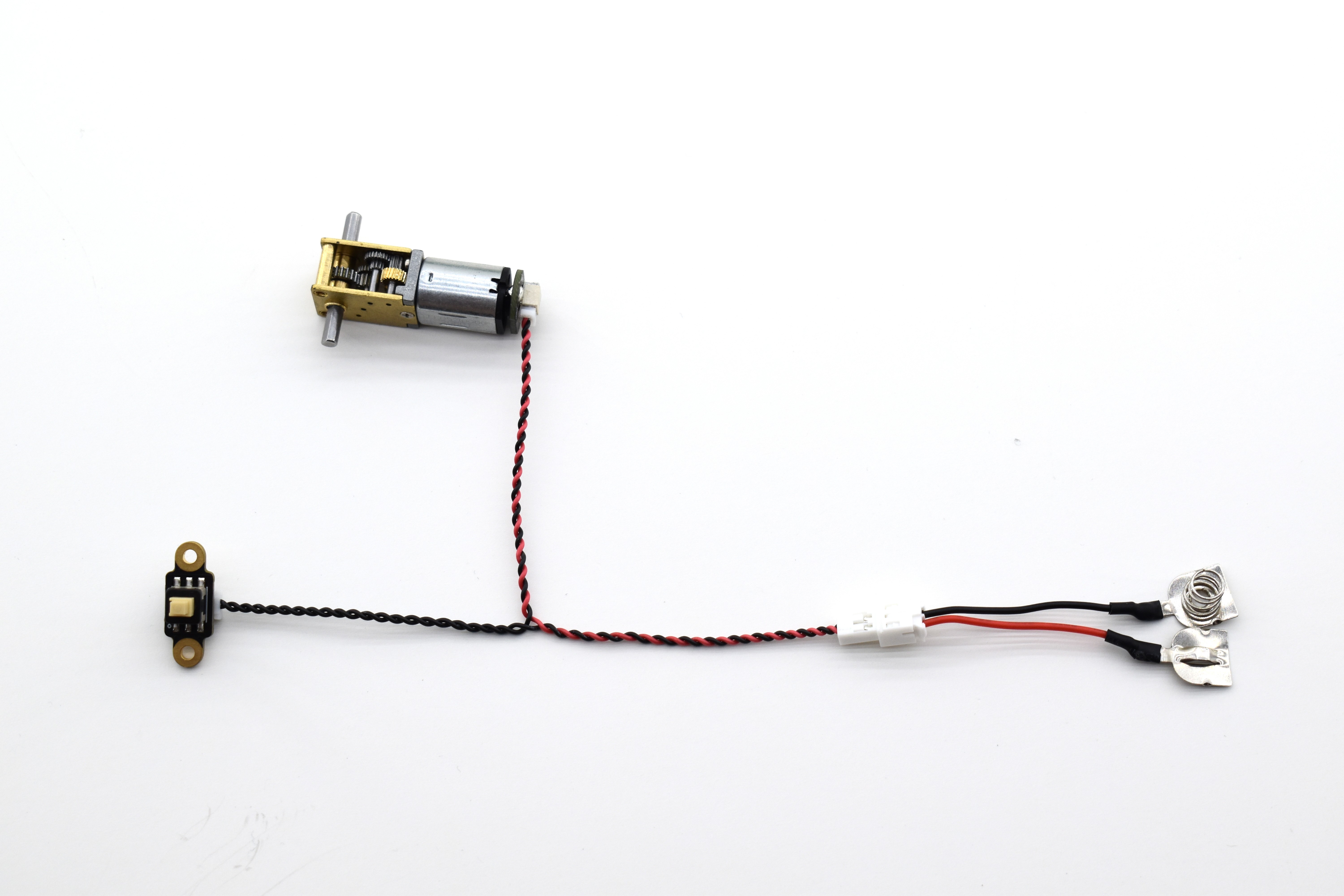

For anyone struggling with the electrical connections, here's how everything should be connected inside the train:

 ❗For flat layouts only ❗

Due to its long size, this train cannot climb multi-level tracks. However, a shorter version will be available to solve this issue.

This train is compatible with Brio, but it is designed primarily for HexTracks. You can print your own HexTracks below:

HexTracks Starter Set

If you have any questions about the model or the assembly, please leave them in the comments below, and I will answer as soon as I can.

Enjoy the build!
