Exciting update alert – this is the most vital upgrade for this model! As frame size needs vary and one-size-fits-all isn’t feasible, we’re introducing the all-new combinatorial frame. This printable frame enables custom lengths above 200mm (all multiples of 10), e.g., 210mm, 320mm, 430mm, 550mm, 660mm – you decide the exact length.

Principle: The set {10, 20, 50} covers all multiples of 10 within 100 (10, 20, ..., 100) via pure addition. Specific combinations:
10 = 10
20 = 20 / 10+10
30 = 10+20
40 = 20+20 / 10+10+20
50 = 50 / 10×5 / 20+20+10
60 = 50+10 / 20×3
70 = 50+20 / 50+10+10
80 = 50+20+10 / 20×4
90 = 50+20+20 / 50+10×4
100 = 50+50 / 50+20+20+10

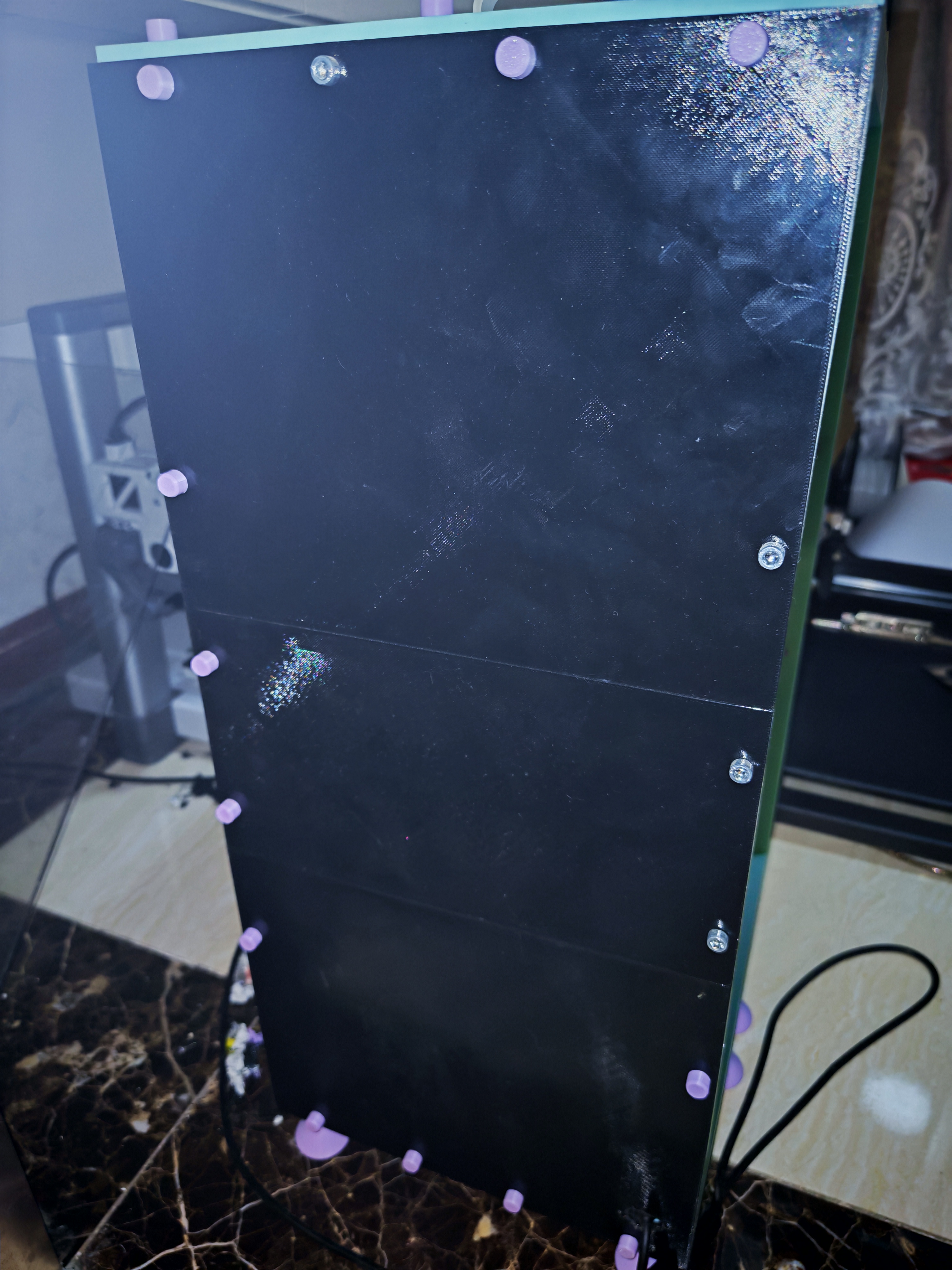

AMS lite 封箱 框架榫卯，无需铝型材！板面固定仅需螺栓和3个螺母！侧面快拆！！换料便捷。

承重力MAX！9斤蓝胖子无压力，见图！

封箱尺寸：

框架尺寸 24.5X33X53cm

内部尺寸 21.5X30X50cm

螺栓尺寸及数量：

M5X15  7个

M5X10  16个

注意螺栓头直径7.8，头部厚度4.6

若购买亚克力板进行封箱，参照框架尺寸。

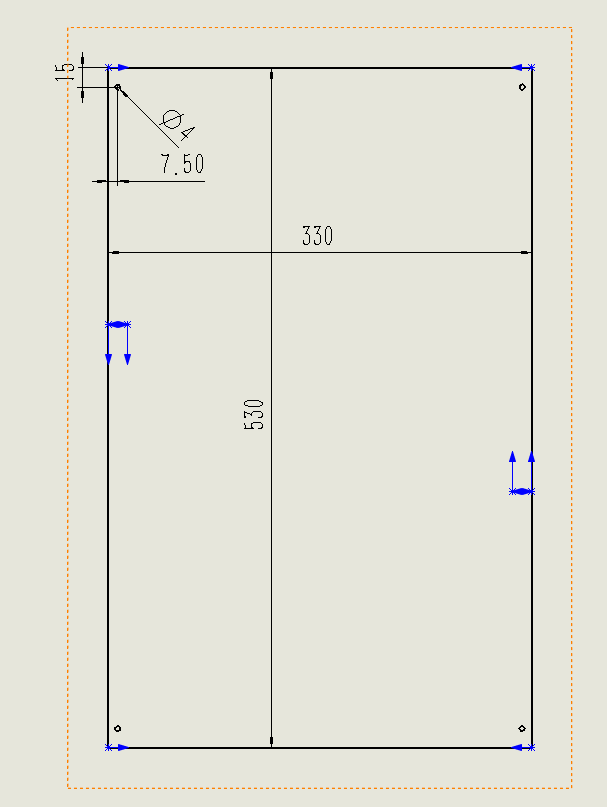

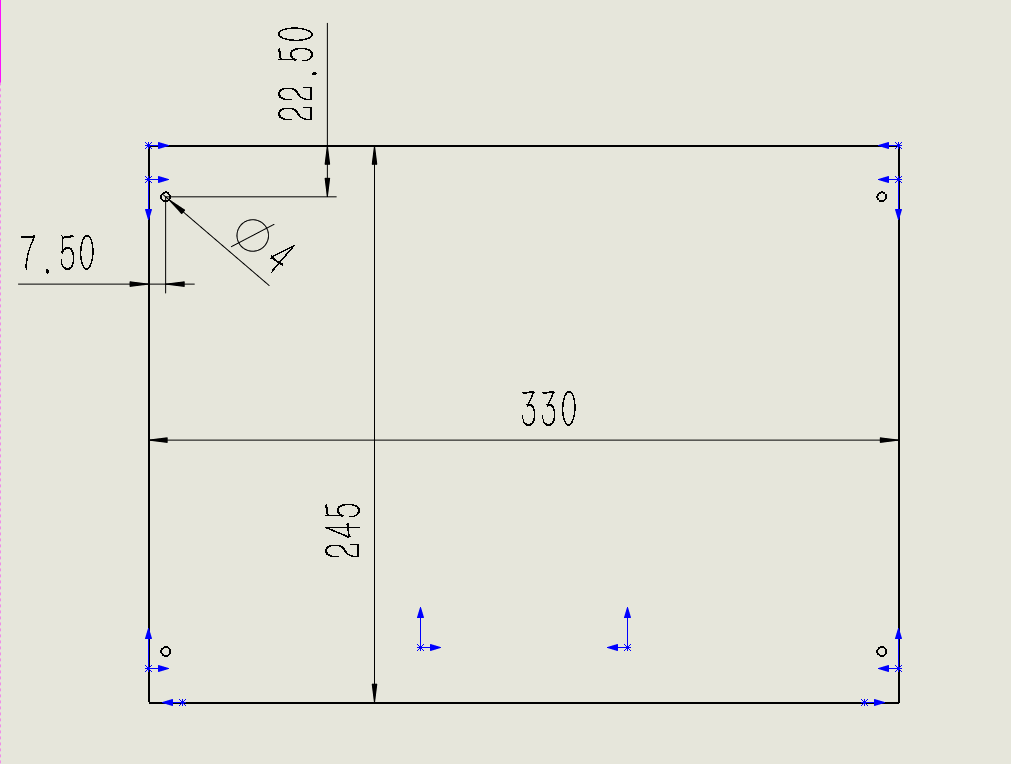

具体亚克力立板尺寸及打孔位置见图。

如需STEP模型，助力后私我，也可以帮助修改。
