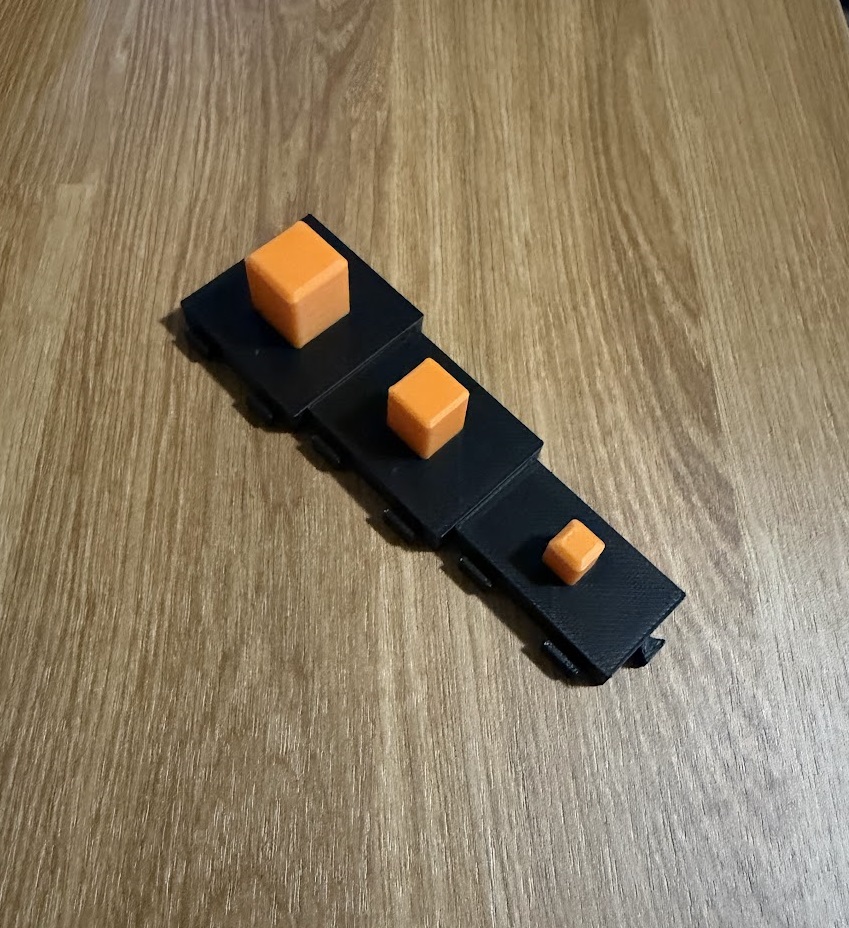

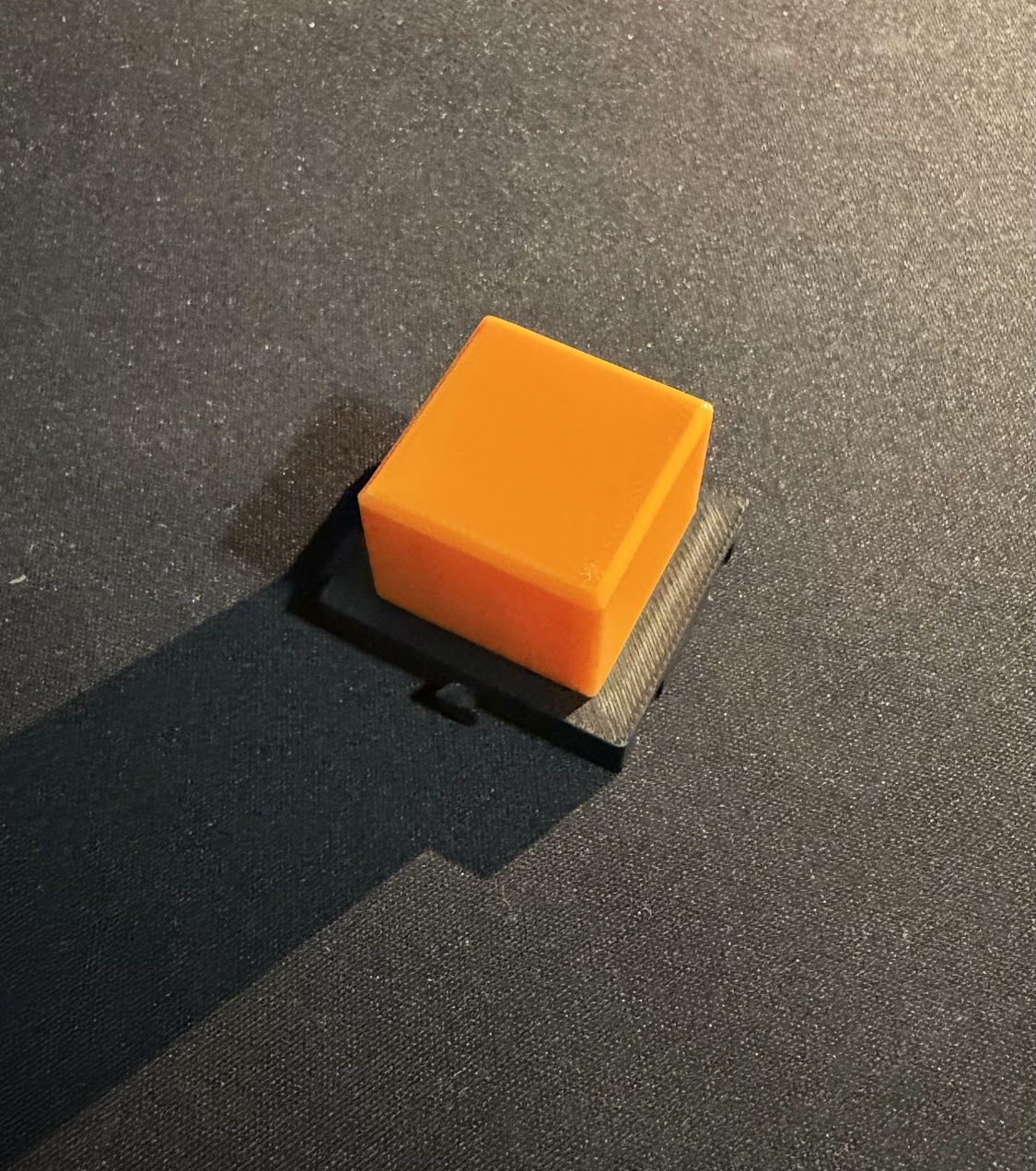

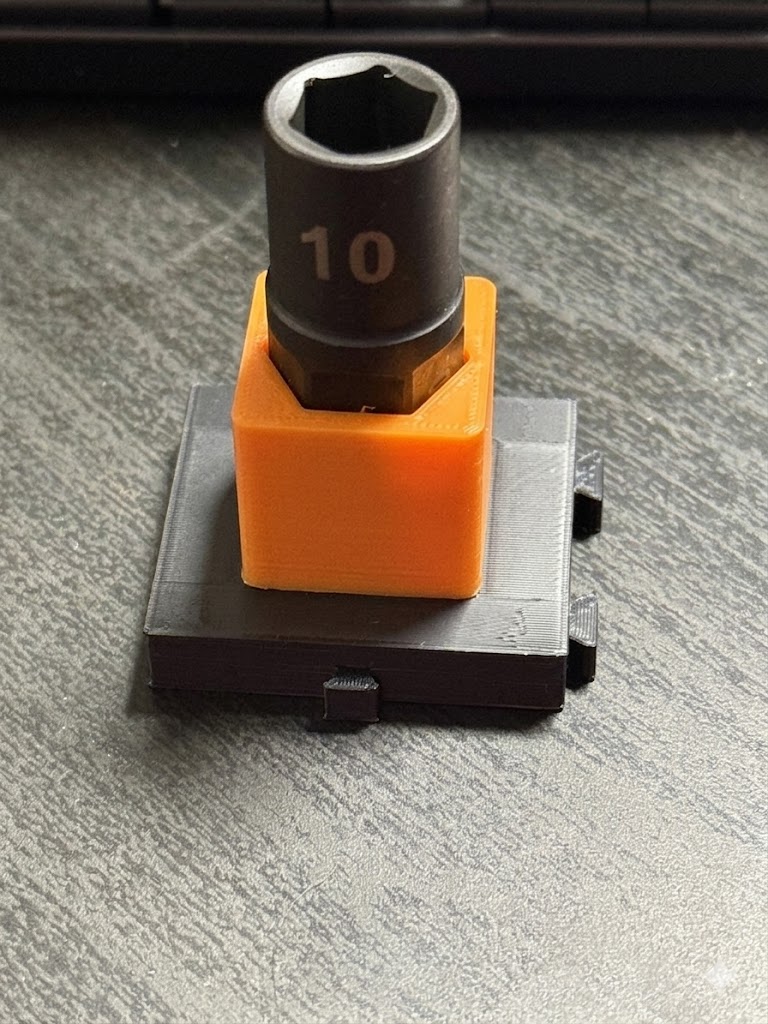

Keep your sockets organized and easily accessible with the Socket Mod socket organizer. Designed to work with 1/4", 3/8", and 1/2" drive sockets. The Socket Mod features high-visibility pegs that instantly show when a socket is missing, making it easy to keep your set complete. A 12x3mm magnet securely holds the organizer in place inside your tool drawer, preventing movement while keeping your sockets neatly arranged.

Each Socket Mod connects using a hidden dovetail joint, providing a secure fit while maintaining a sleek look. The modular design allows for endless customization, and an 8mm Spacer is included to accommodate larger sockets or create additional layout flexibility.

For easy identification, the organizer includes both SAE and metric labels, which can be placed on either side of the Socket Mod. Additionally, I have included both customizable labels and blank labels for use in Bambu Studio.

For Ratchet Organization see my new Ratchet Mod (ratchet Organizer)

This is also fully compatible with the Socket Mod system!

For Wrench Organization see my new Wrench Mod (Wrench Organizer)

This is also fully compatible with the Socket Mod system!

For  Screwdrivers, Plier, etc Organization see my MULTI Mod Organizer

For  Pliers, Cutters, Crimpers, etc Organization see my  Rack Mod Organizer

UPDATES

6/29/2026

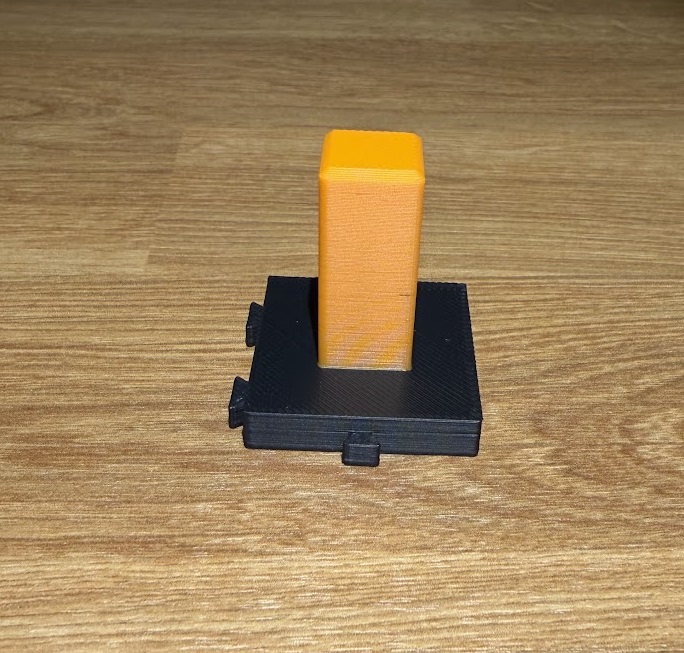

I have added another print profile! (½" Drive Double Height Socket Mod)

This socket mod is for 1/2  drive sockets and the peg is 15mm taller than the standard socket mod.

6/4/2026

I have added another print profile! (Wider Spacers)

There are 16mm and 24mm wide spacers.

5/20/2026

I have added another print profile! (1 Inch Socket Mod)

4/6/2026

I have added another print profile. (Milwaukee Insider Socket Mod.)

These are for the Insider Sockets.

3-19-2026

I have added another print profile. (Socket Mod Inner Dovetail)

These are designed to attach rows directly together without using the row connectors.

This allows for a more compact footprint.

2-23-2026

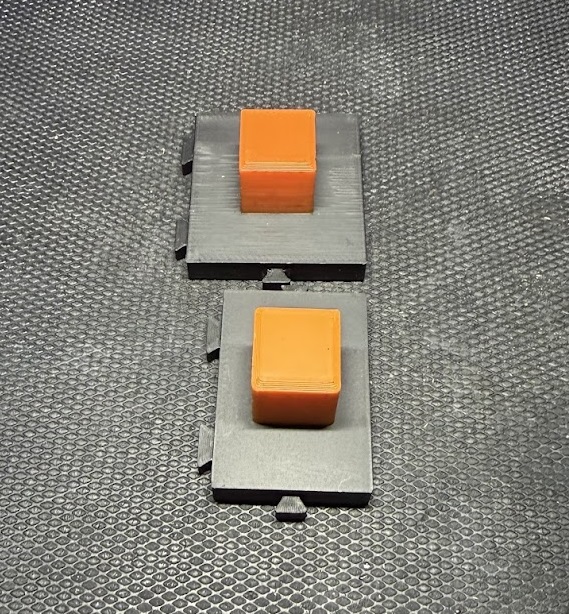

I have added another print profile. (Skinny 1/2" Socket Mod)

This ½" Socket Mod is 7mm smaller that the standard 1/2  socket mod)

1-10-2026

I have added another print profile. (Extended 8mm Spacers)

These spacers extend an extra 9mm, so they are now flush with the labels.

There are 3 different versions depending on which side the label is on.

12-2-2025

I have added another print profile. (Additional Label Row Connectors)

I created additional label row connectors for 3/8" and 1/2".

11-30-2025

I have added another print profile.

I created a 3/4" Socket Mod!

10-3-2025

I have added another print profile.

I created a Hex Mod!

The same customizable Socket Mod but for ¼" hex bits!

I also included one with a customizable label!

These will attach to all the other socket mods using the dovetail system and use the same 12x3mm magnets.

9-22-2025

I have added another print profile.

I created customizable End Labels, so you can label an entire row if needed.

9-11-2025

I have add the following new print profiles!

Socket Mod Chamfer

These Socket Mods have a 0.75mm chamfer on all of the corners of the socket mod.

This should allow for easier installation and removal of sockets.

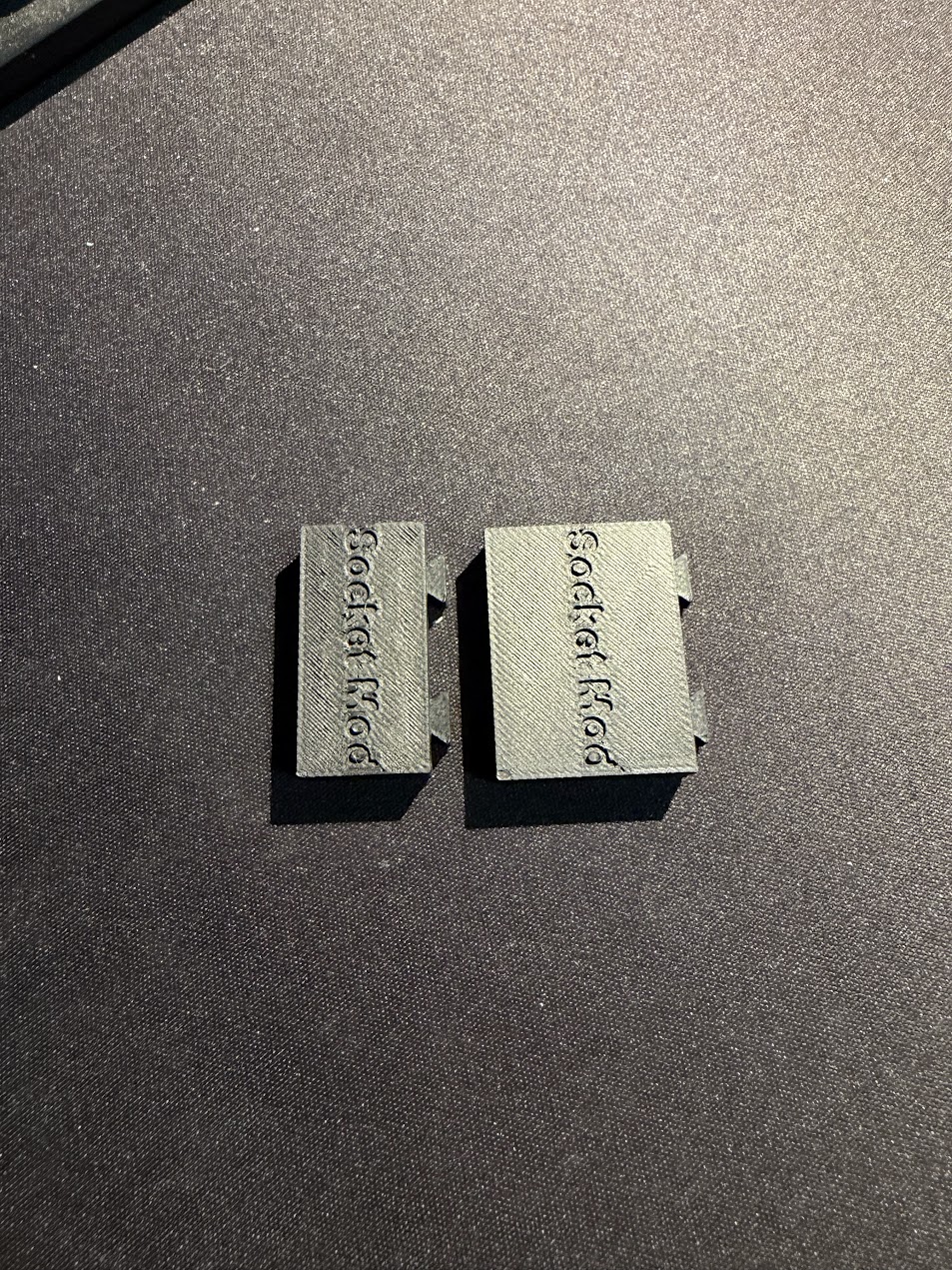

Wide Labels for 3/8 and 1/2

I have created 2 wider labels to match the widths of both 1/2" and 3/8" Socket mods.

This will allow for a cleaner look if desired.

Socket Mod V2 - 3-27-2025

I have added 3 new Socket Mods (0.25, 0.375, 0.5) with added clearance on the dovetail connectors.

This should help for anyone having fitment issues.

4-5-2025

I have added a profile for the A1 MINI.

You could not use the original profile to print from the app.

I had to reduce the number of Socket Mods to fit on the A1 MINI bed.

7-19-2025

I have added a larger row connector.

This row connector is the same depth as the socket mod. (32mm)
