ExoPurse

This is a modular multi-part hard-body purse that uses a living edge for a hinge and magnets for a clasp.

It's very customizable and I will be releasing more additions to it as time goes on!

BOM

Qty	Name	Url
20	6x3mm Magnet	[https://amzn.to/3XxGH4C](https://amzn.to/3XxGH4C)
5	M3x8 BHCS	[https://amzn.to/3Dpx419](https://amzn.to/3Dpx419)
2	M3x10 SHCS	[https://amzn.to/3QP9duO](https://amzn.to/3QP9duO)
3	M3x6 FHCS	[https://amzn.to/3XwpQiB](https://amzn.to/3XwpQiB)
10	2x30mm Pin	[https://amzn.to/3XwpIj7](https://amzn.to/3XwpIj7)
10	M3x4x5 Heat Set Inserts	[https://amzn.to/3FaPIKG](https://amzn.to/3FaPIKG)

Assembly

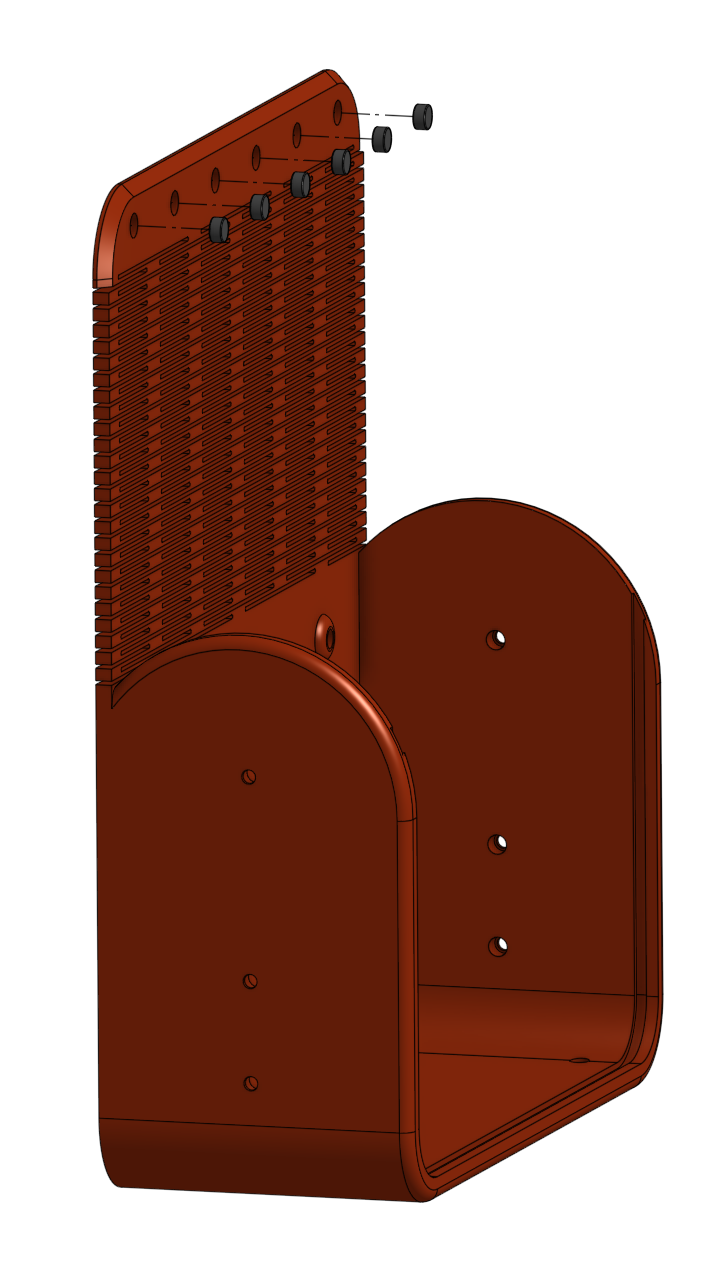

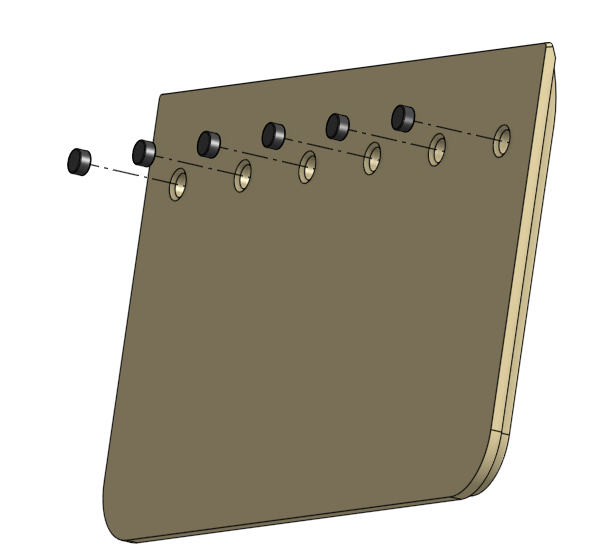

Step 1: Insert Magnets into Main Compartment

Magnets should be facing the same position when inserting to ensure correct polarity.

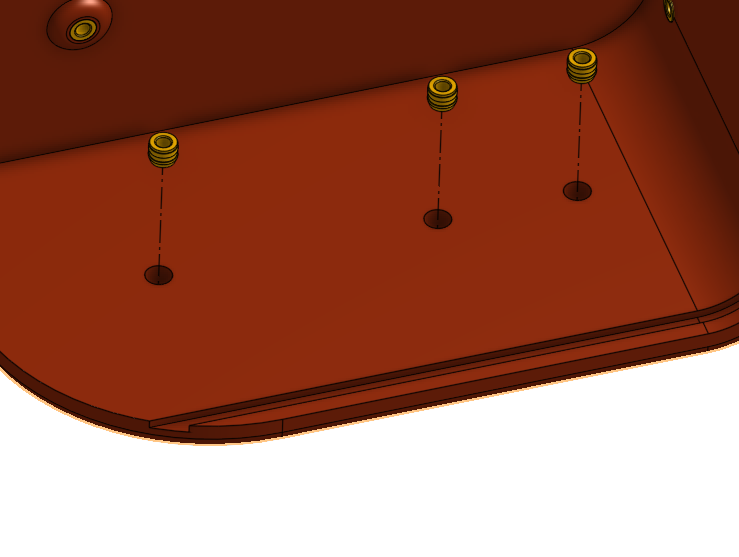

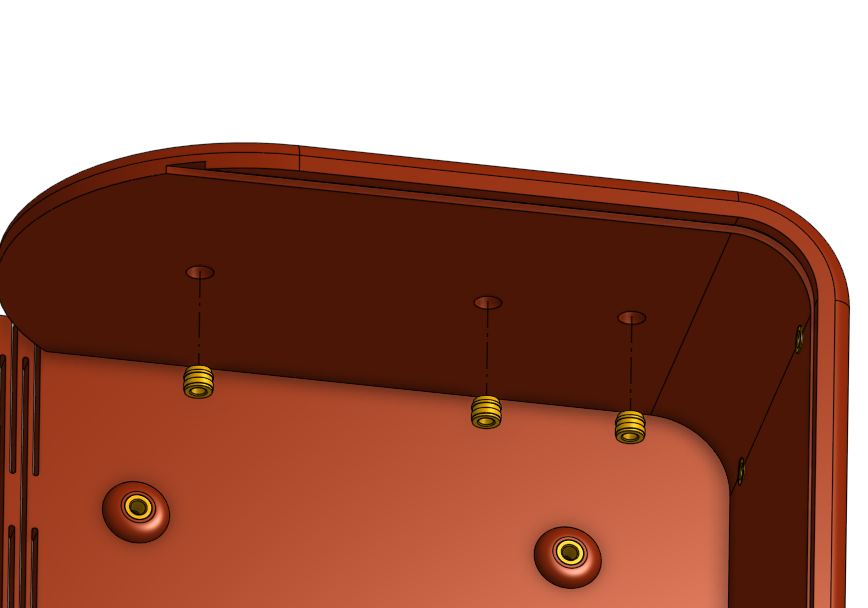

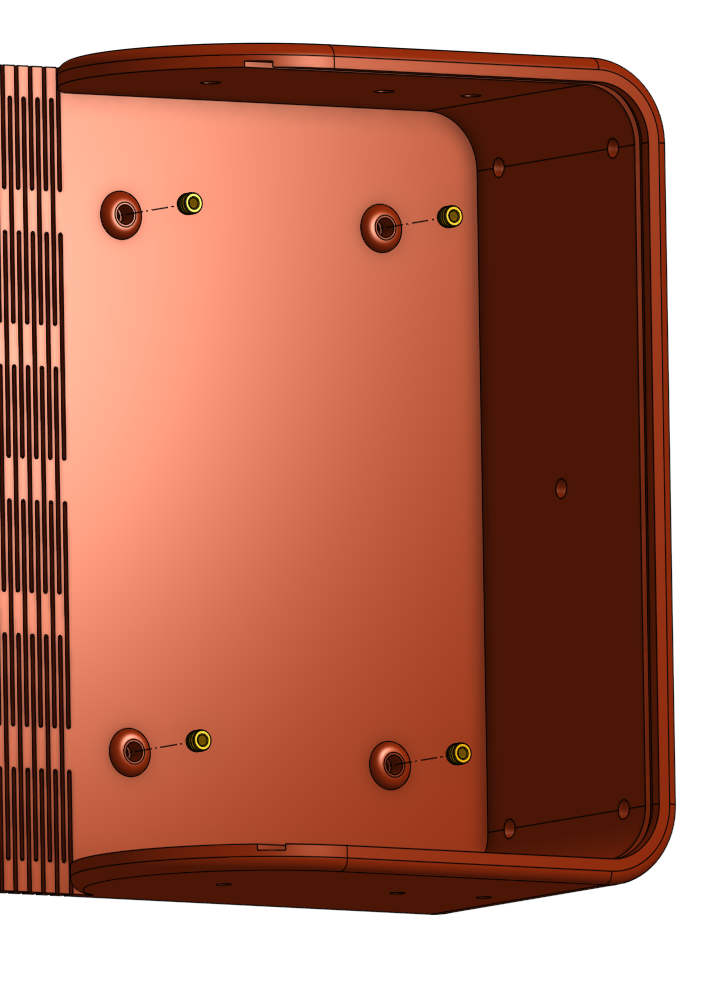

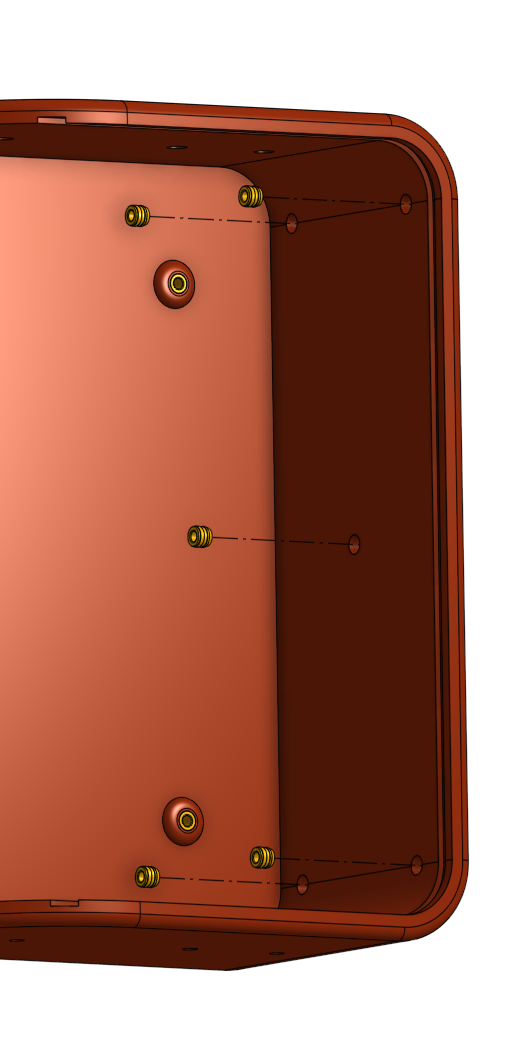

Step 2: Insert Heat Inserts

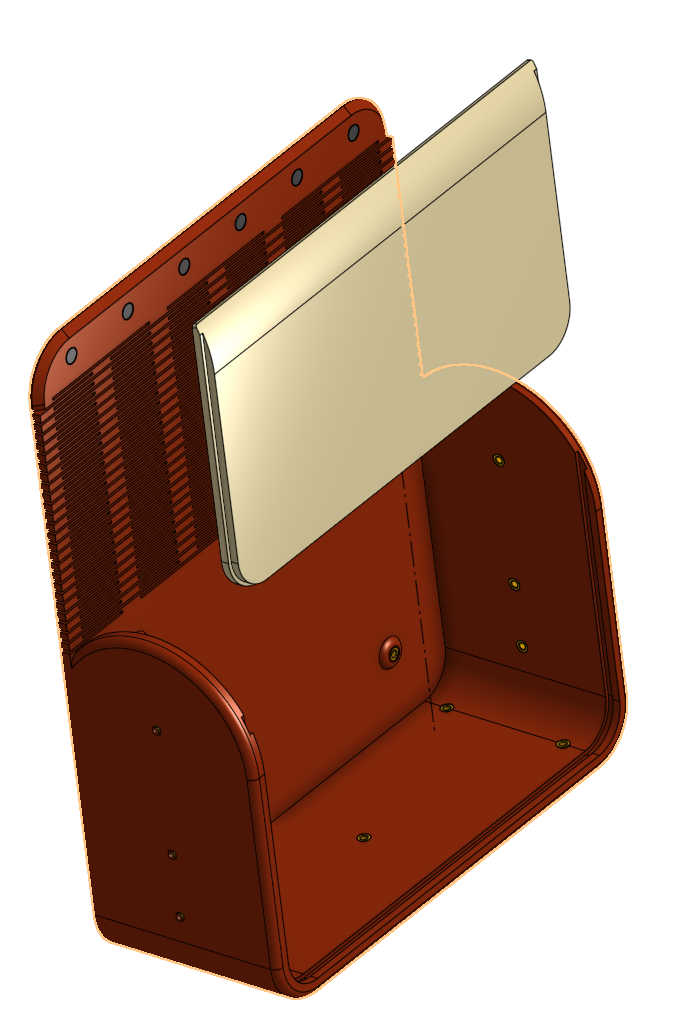

Step 3: Glue in Face Plate

Step 4: Heat Gun Main Compartment Hinge

If the hinge isn't properly meeting the magnets at this point, take a heat gun and carefully heat the hinge where it meets the back of the purse while gently pulling the magnets towards each other, sweeping the heat gun side to side to evenly heat the hinge. Keep this up until it clasps correctly

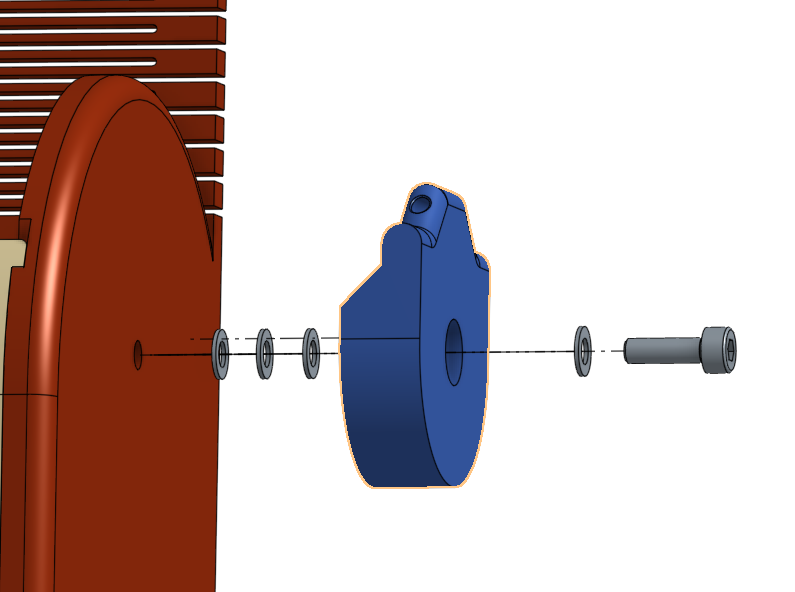

Step 5: Assemble Strap

Using the 2mm pins, attach the strap components together

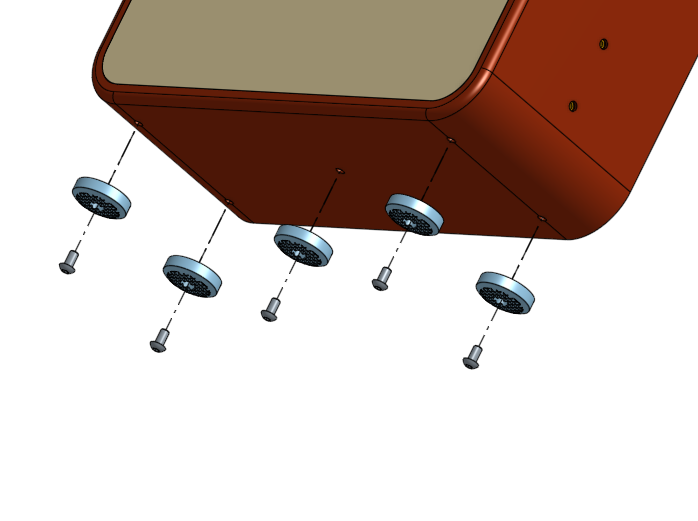

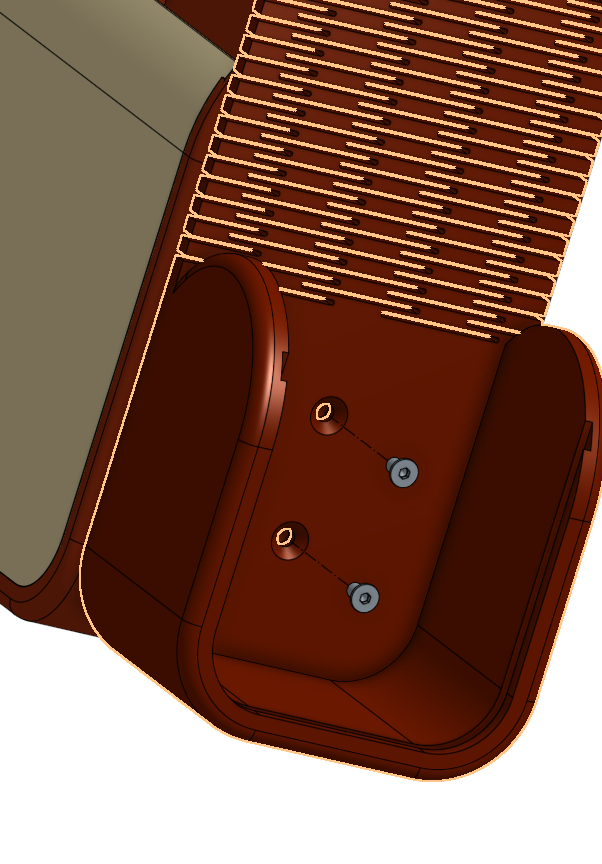

Step 6: Attach Strap to Main Compartment

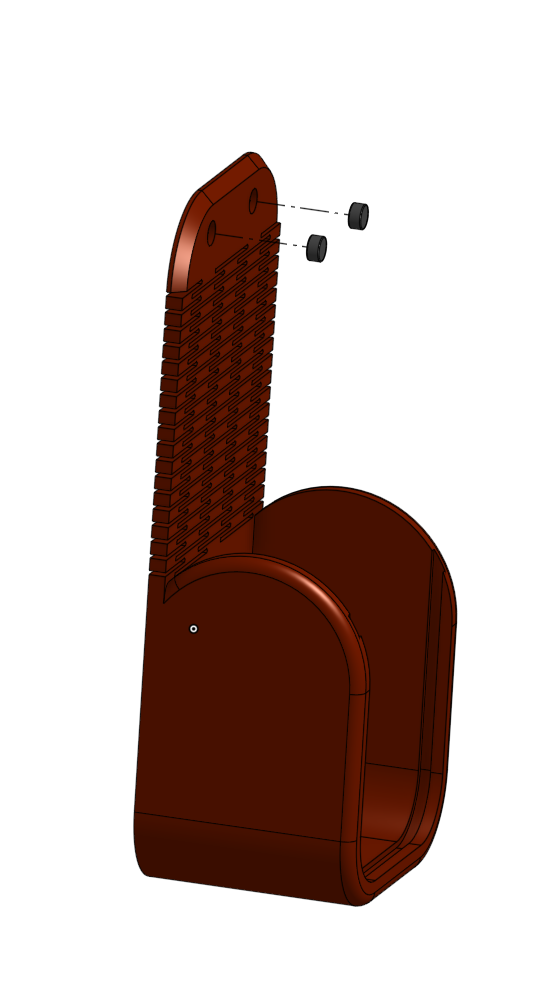

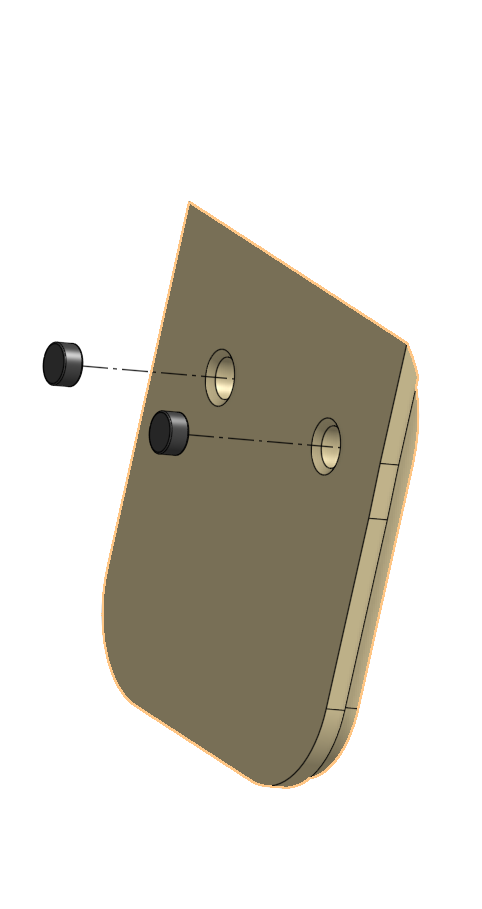

Step 7: Insert Magnets into Side Compartments

Magnets should be facing the same position when inserting to ensure correct polarity.

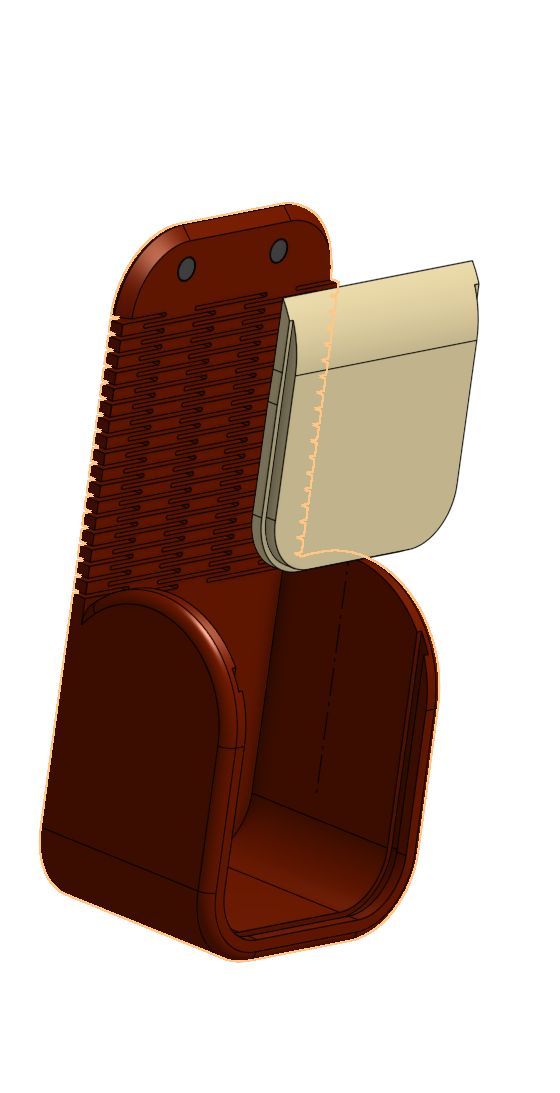

Step 8: Heat Gun Side Compartments Hinges

If the hinges aren't properly meeting the magnets at this point, take a heat gun and carefully heat the hinge where it meets the back of the compartment while gently pulling the magnets towards each other, sweeping the heat gun side to side to evenly heat the hinge. Keep this up until it clasps correctly
