Disclaimer 1: This is NOT a L e g o Technic.

Disclaimer 2: Model is huge, 57 cm long and needs almost 5 kg of filament. PLA recommended.

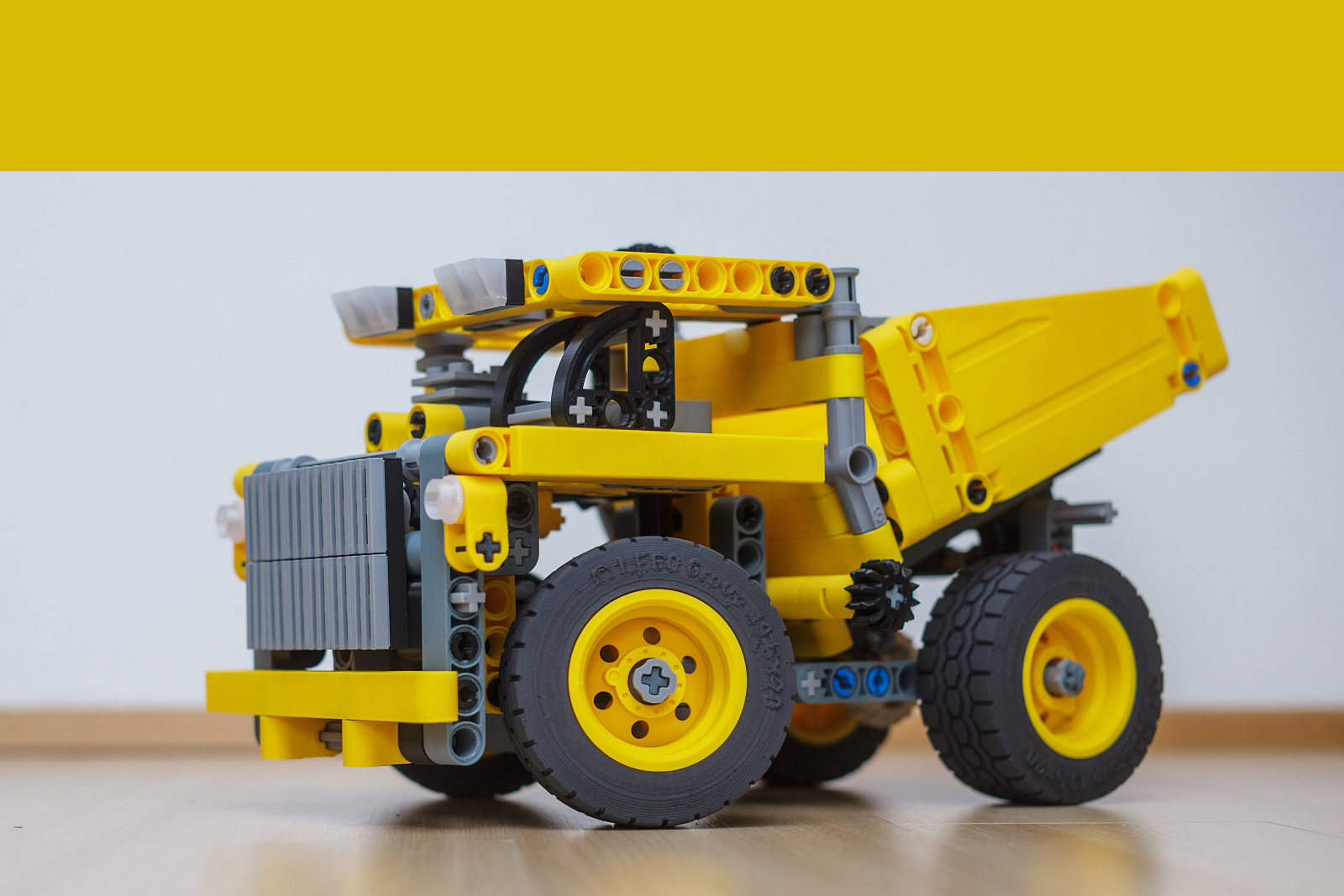

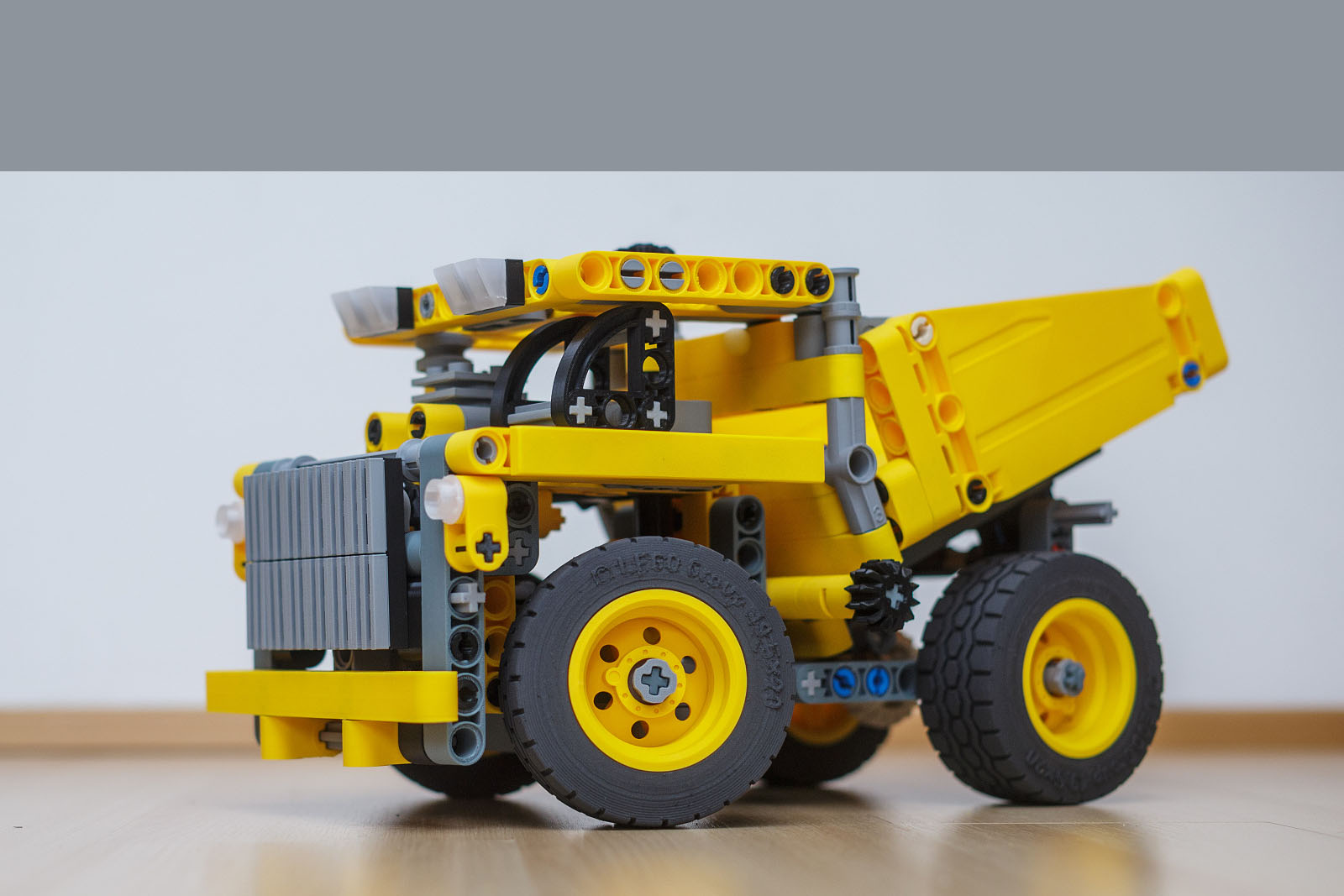

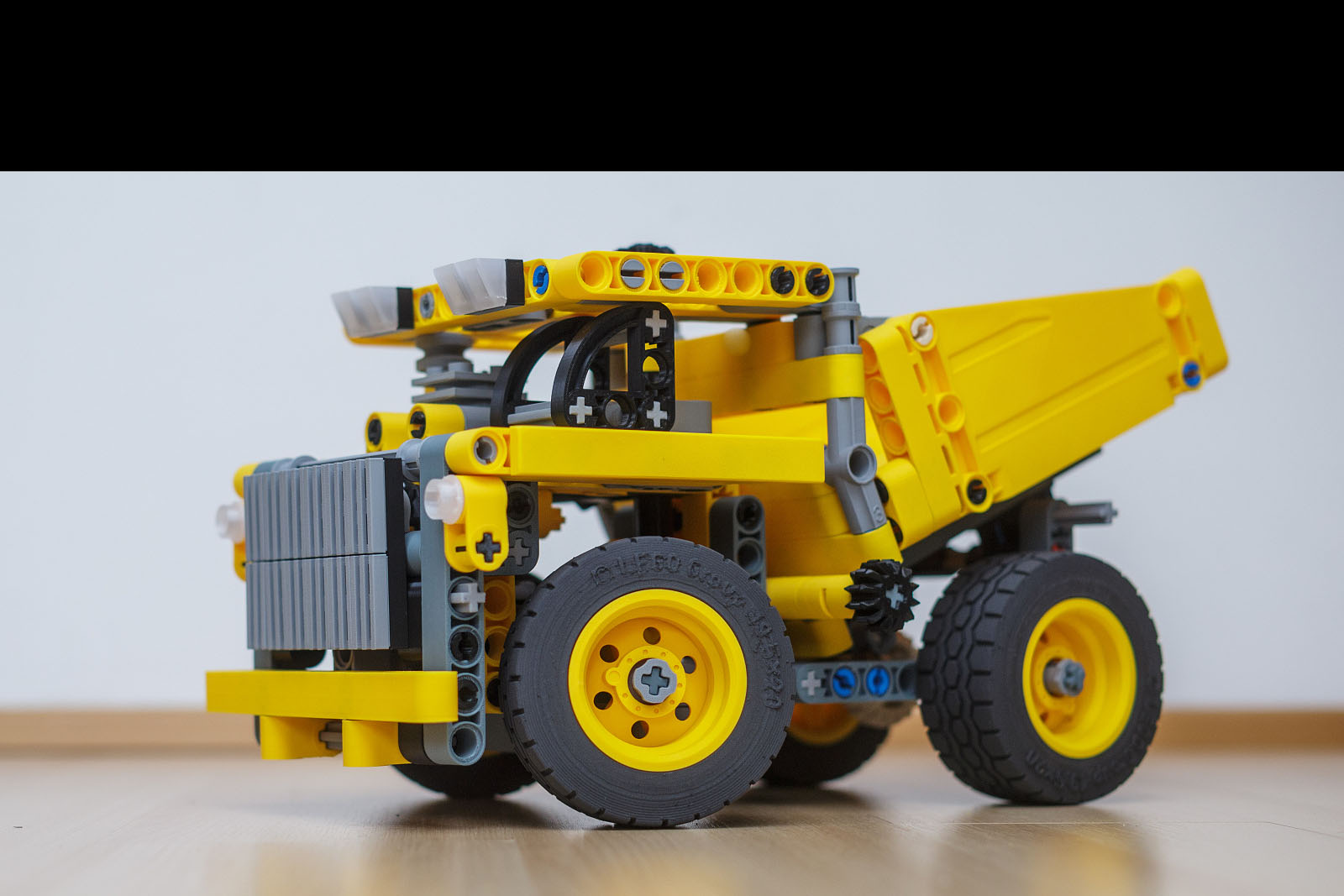

Print profiles have been divided by color into 9 different 3mfs. Each 3mf file contains several plates. Please don't forget to download and print them all. For better orientation print profile images has appropriate color stripe at the top of the image.

Postprocessing

• Remove supports.
• Use deburring tool to remove sacrificial bridging inside the holes.

Assembly

• See attached assembly guide.
• Due to the printer tolerances and nature of FDM printing, sometimes you'll need to apply more strength to assemble, some parts will be little loose and need a glue to secure it in position and whole drive train will need a lubrication in order to make it work smoothly (PTFE lubrication or silicion oil in spray recommended).
