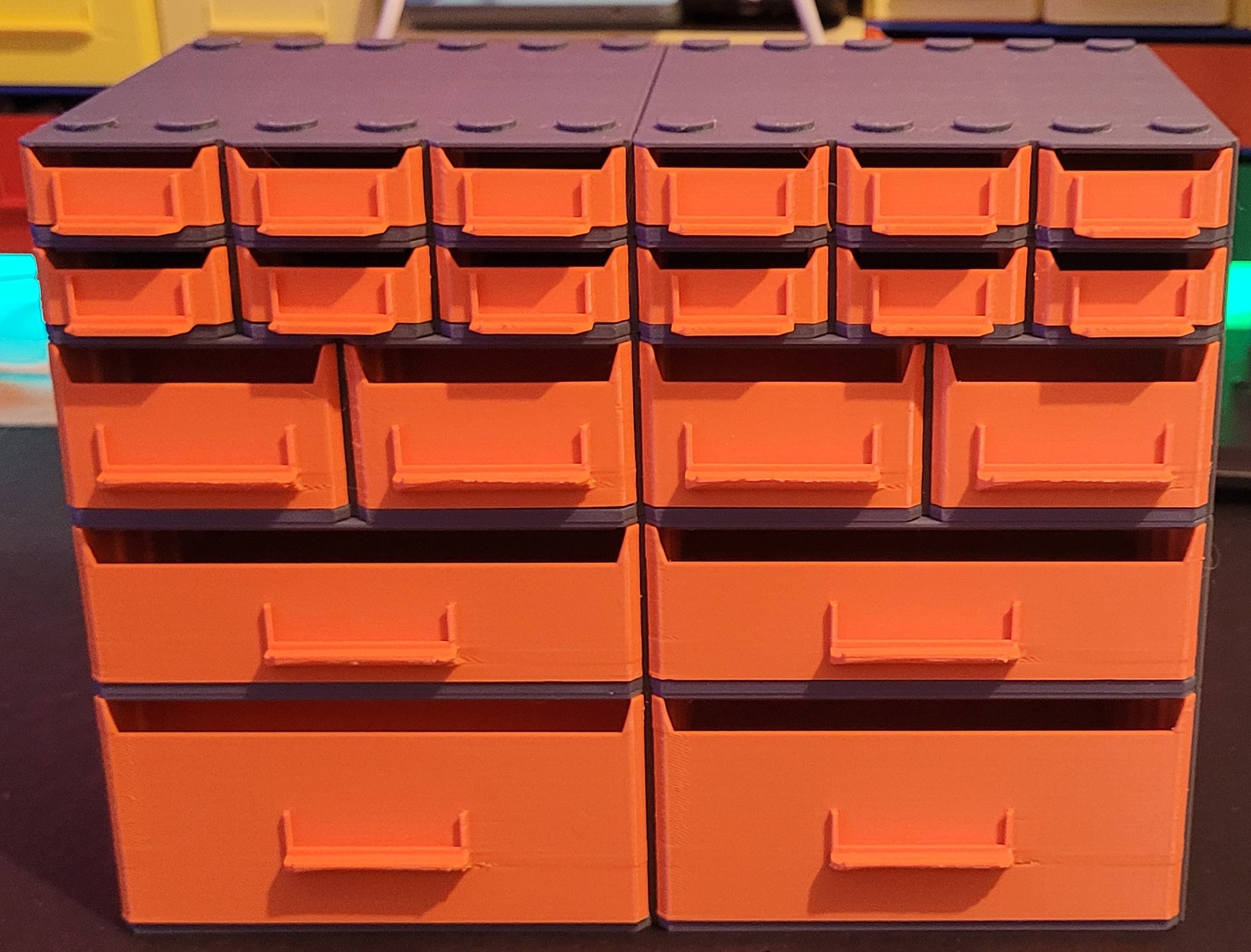

Stackable & Parametric/Customizable Drawers

Customizable drawers to organize your desk!

Features:

Fully customizable
Create and combine different drawer sizes to suit your needs (must use the same grid size)
Includes dividers for the drawers
Includes label which can be customized in Bambu Studio to add you custom text
No support needed

Customizer Interface

In the customizer the following settings are available

Parameter Name	Description
drawerFrameWidth	Specifies how wide (left to right) should be the frame of each drawer. The number given is in gridSize units. For example for a grid size of 20mm and a drawerFrameWidth of 3 the resulting drawer Frame width will be 60mm.
drawerFrameLength	Specifies how long/deep (front to back) should be the frame of each drawer. The number given is in gridSize units. See above for explanation. If you plan to make multiple segments to connect to each other i would recommend to keep this value the same to have a more rigid connection since the attaching points are only at the front and back of the frame.
drawerFrameHeight	Specifies the height of the frame for each drawer. The number given is in gridSize units. See above for explanation.
gridSize	Grid size in mm. Make sure you use the same value for all your drawers so you can attach one to another. The minimum value should be 15mm. Going below this value will yield weird results and the parts might not fit.
numberOfDrawersAlongWidth	Define how many drawers will be placed along the width of the frame (Left to Right).
numberOfDrawersAlongHeight	Define how many drawers will be placed along the height (Top to Bottom).

You can create a single frame for drawers to fit the whole plate if needed but it might be better to break it down to smaller segments to provide more flexibility.

Printing Instructions

The can be printed without any supports with the same orientation as they are created in the customizer.

I have tried both PLA and PETG and both printed without any special adjustments.

I would recommend to use brim in the corners of the drawers and frame to avoid any corner adhesion issues. I've used the Brim Ears option and selected auto generate to place in the corners. Have a look at the print profile.

Customizing Labels

For the labels you can customize the text on them through Bambu studio by following the procedure below

Switch to object mode
Select the label you want to edit
right click on the text_shape under and select Edit Text
If you want to have different text color then you can either manually paint the text or add a filament change at 1mm height.

If you find any issues or need help to adapt the drawers to your needs let me know.

Consider giving me a Boost if you found it useful and please post photos of your creations.

** Updated scad to V2. Added Drawer lip for better grip

Thank you!
