Descrição

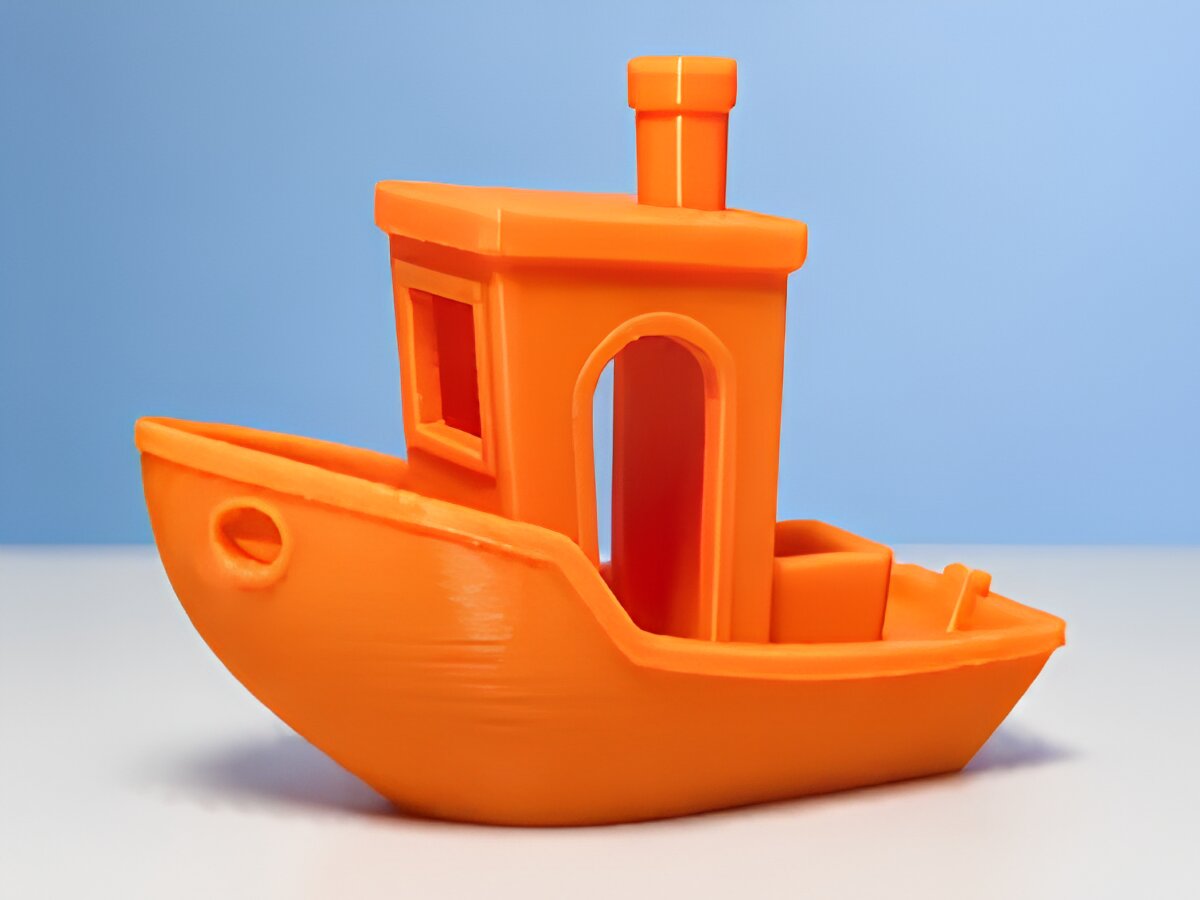

The Original Benchy model became Public Domein so i reuploaded it to MakerWorld!
The Original Benchy is a test print released in 2015 by Creative Commons Official Website
Tips for printing:
- Filament: PLA
- Layer height: 0.2mm (optimal)
- Wall loops: 2
- Infill: 10% Gyroid
Print Profiles:
- Normal Version!
- Mini Benchy Version (50%, 75%, 35%, 50% and With Keychain)
- Keychain Version!

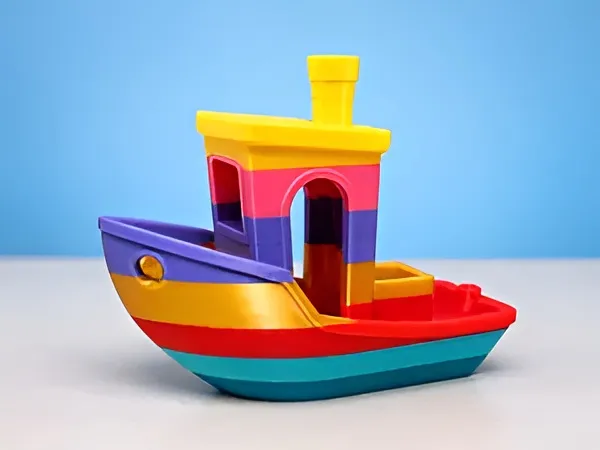

- Multi Colored Version (H2C Test)

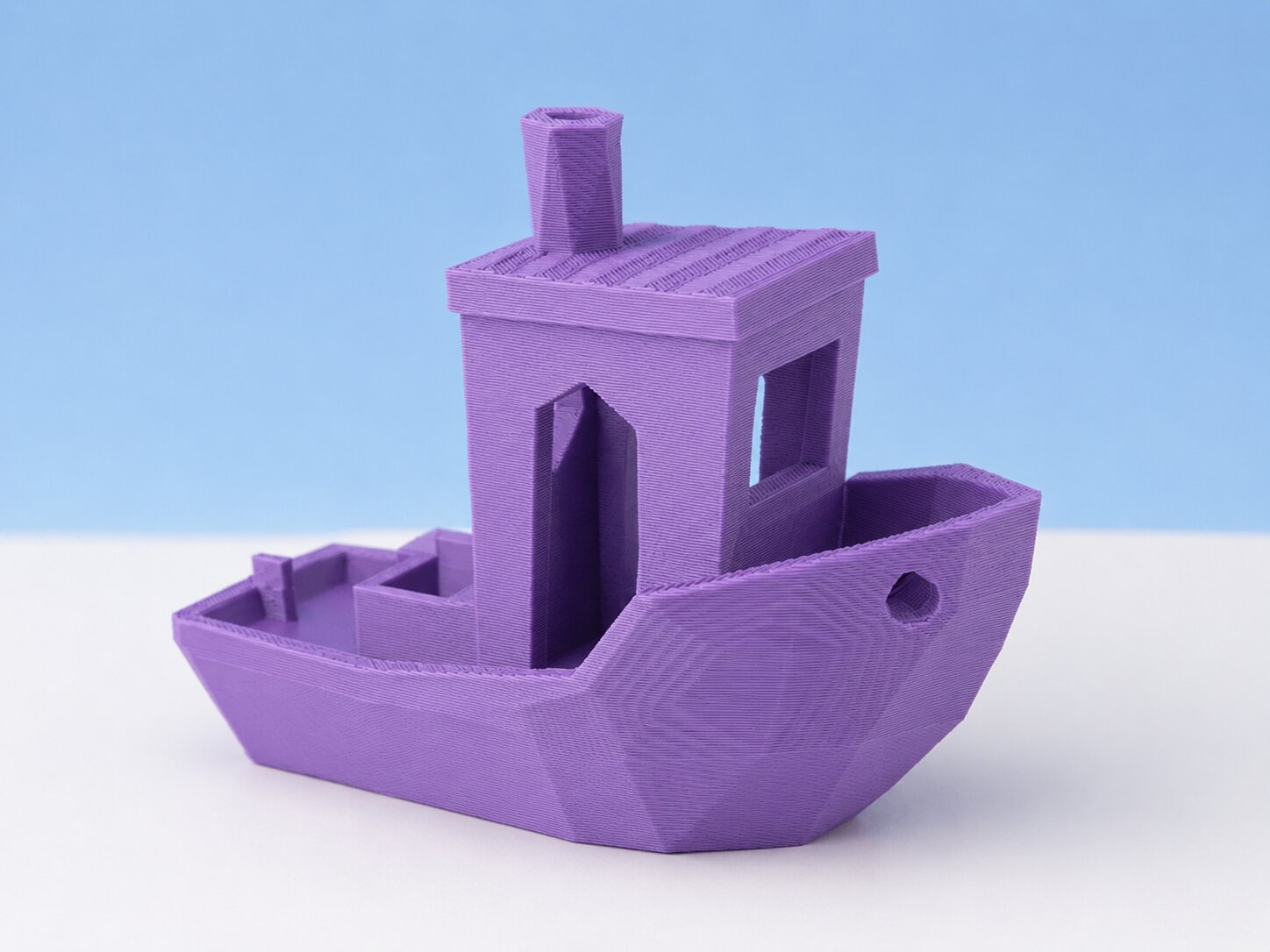

- Low Poly Version

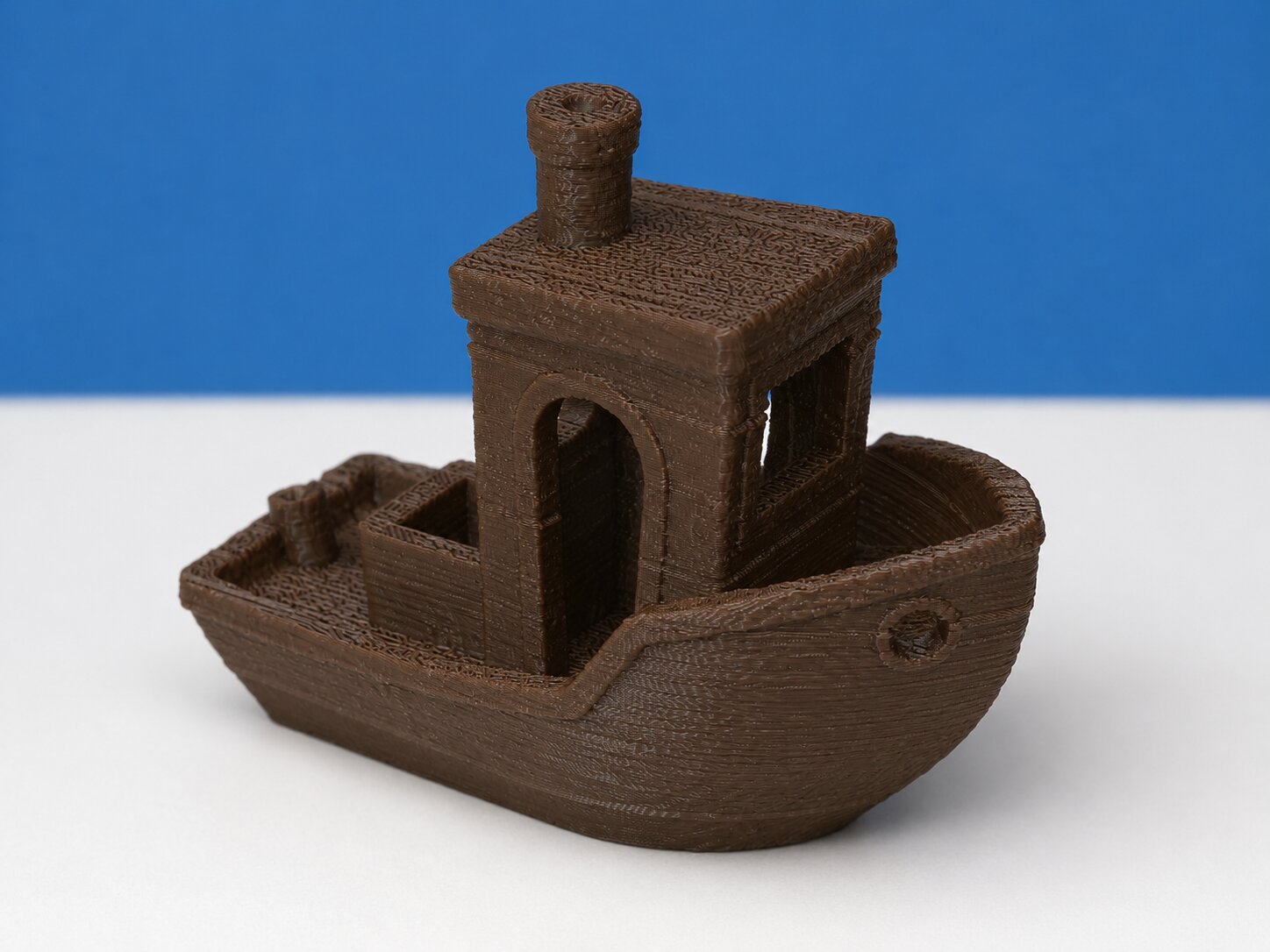

- Wooden Benchy Version (Made with Bump Mesh by CNCKitchen)

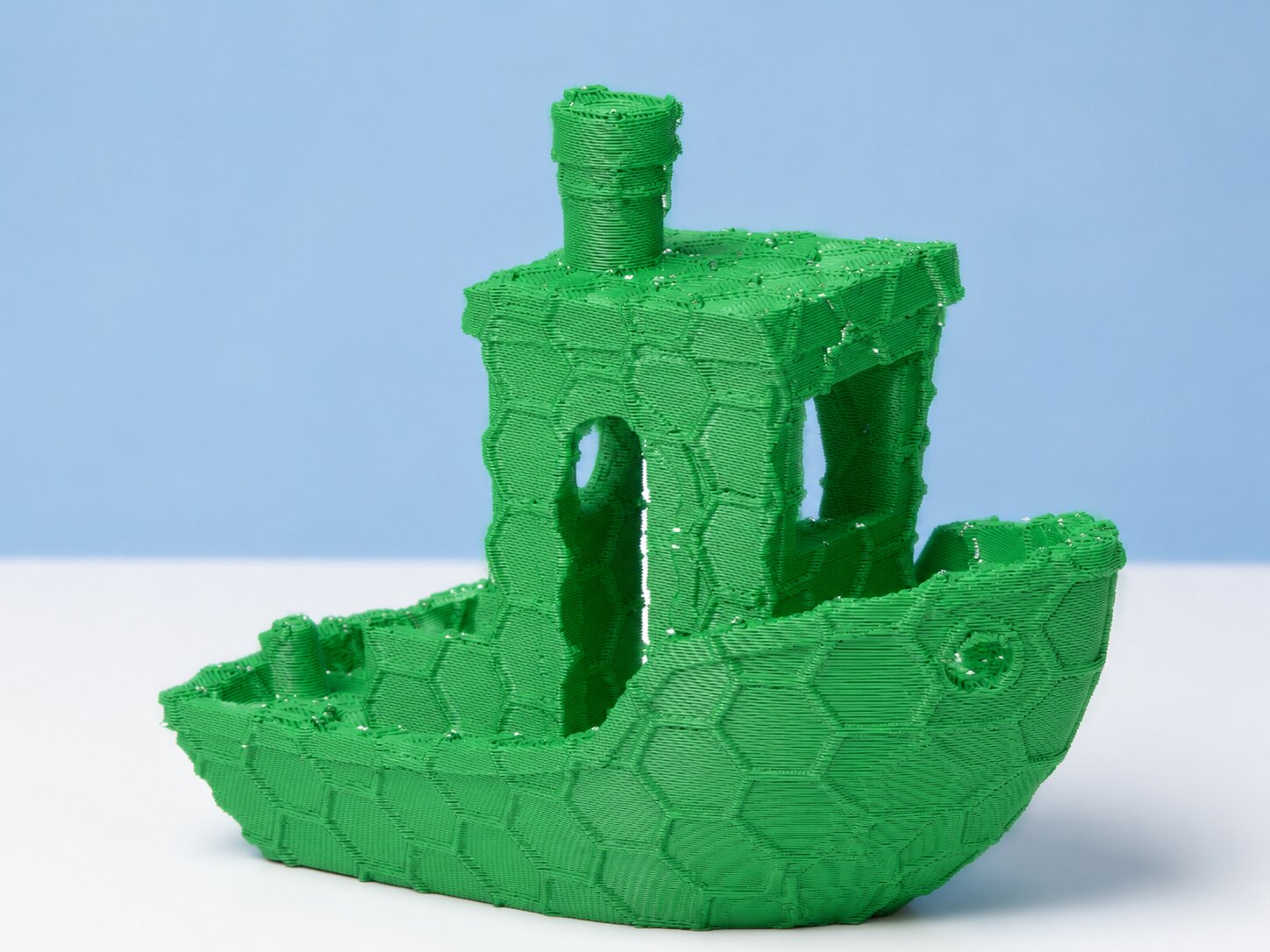

- Hexogon Benchy (Made with Bump Mesh by CNCKitchen)

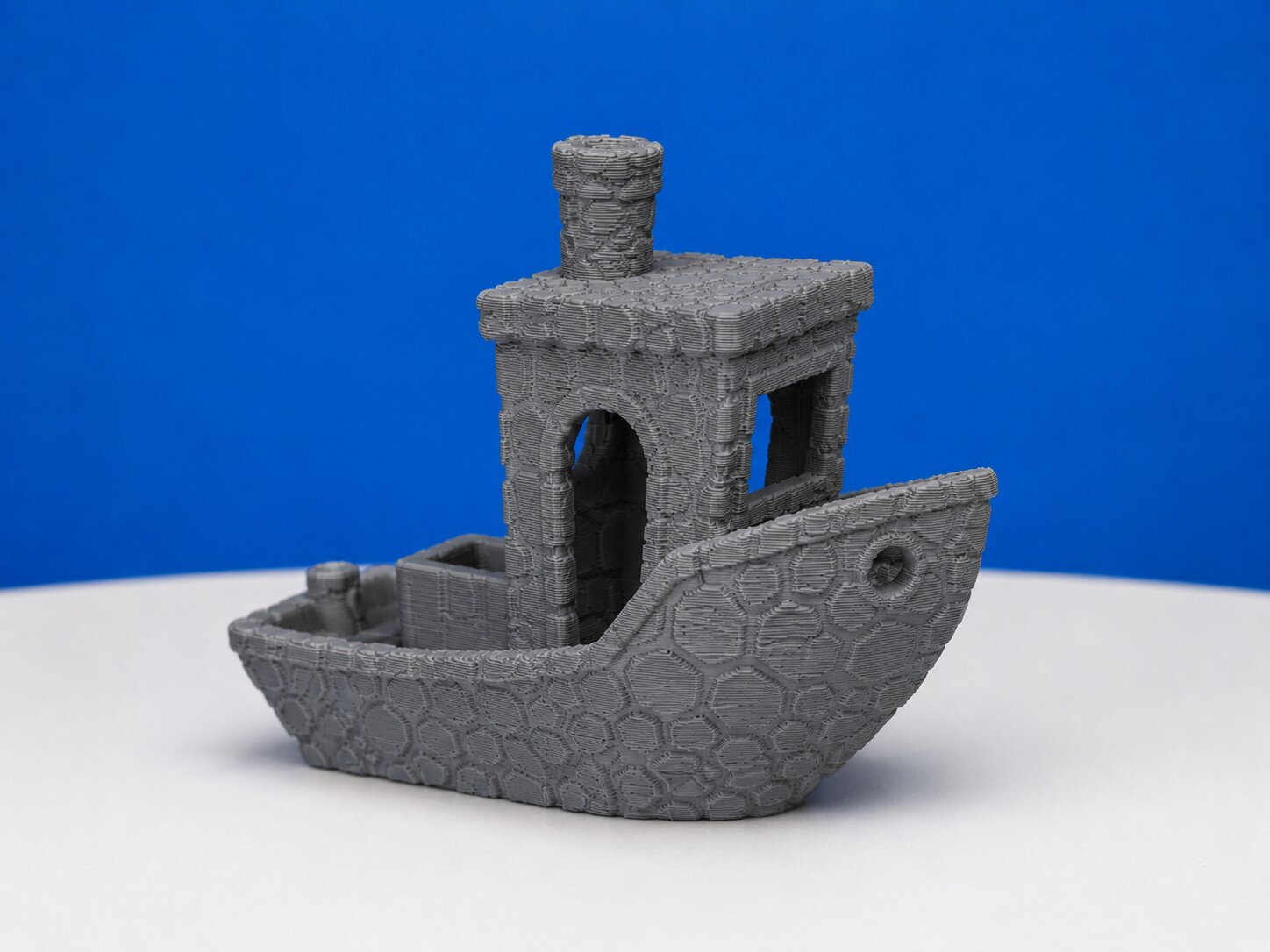

- Stone Benchy (Made with Bump Mesh by CNCKitchen)

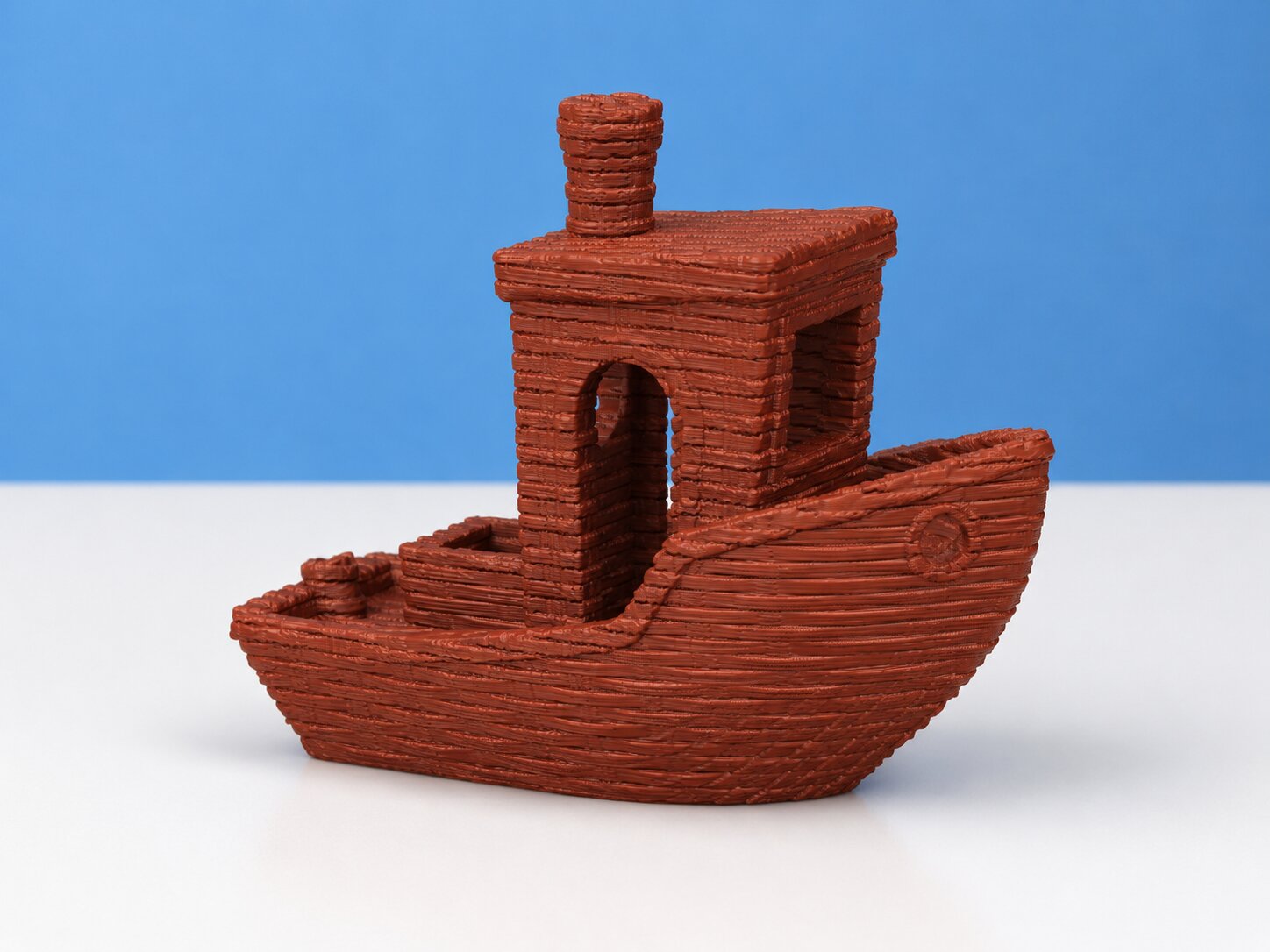

- Brick Benchy (Made with Bump Mesh by CNCKitchen)

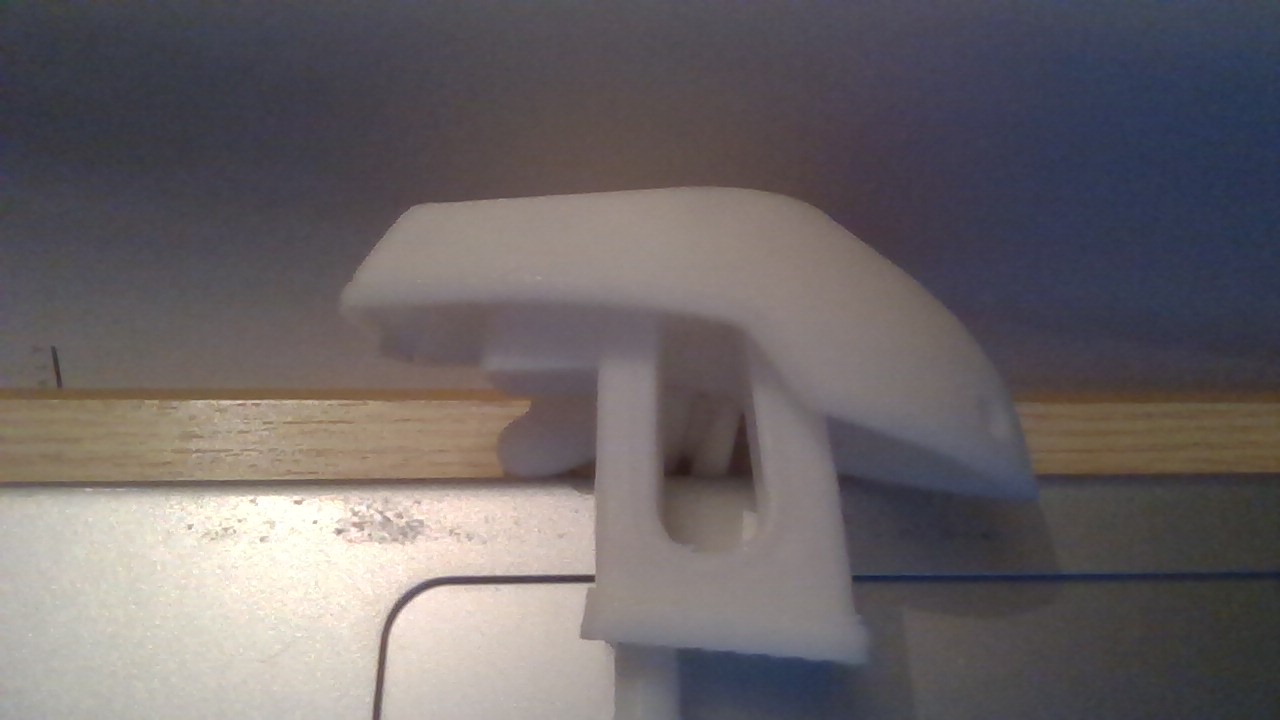

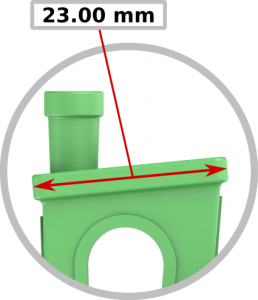

Bridge roof length
The front and rear surfaces of the roof are parallel at a distance of 23.00 mm.

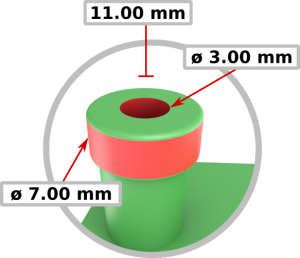

Chimney roundness
The cylindrical hole and outer top part of the chimney measure 3.00 and 7.00 mm in diameter. The depth of the blind hole measures 11.00 mm.

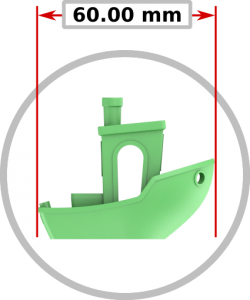

Horizontal overall-length
#3DBenchy’s horizontal overall-length from bow to stern measures 60.00 mm.

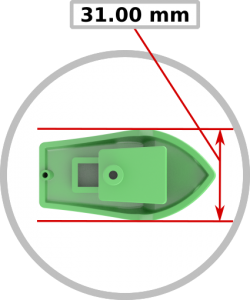

Horizontal overall-width
#3DBenchy’s horizontal overall-width from port to starboard measures 31.00 mm.

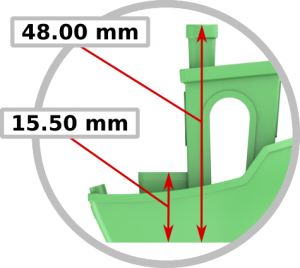

Vertical overall-height
#3DBenchy’s vertical overall-height from top to bottom measures 48.00 mm. The top of the box measures 15.50 mm above the bottom surface.
