Filament painted print made using HueForge - Filament swaps ONLY, no mmu/ams required

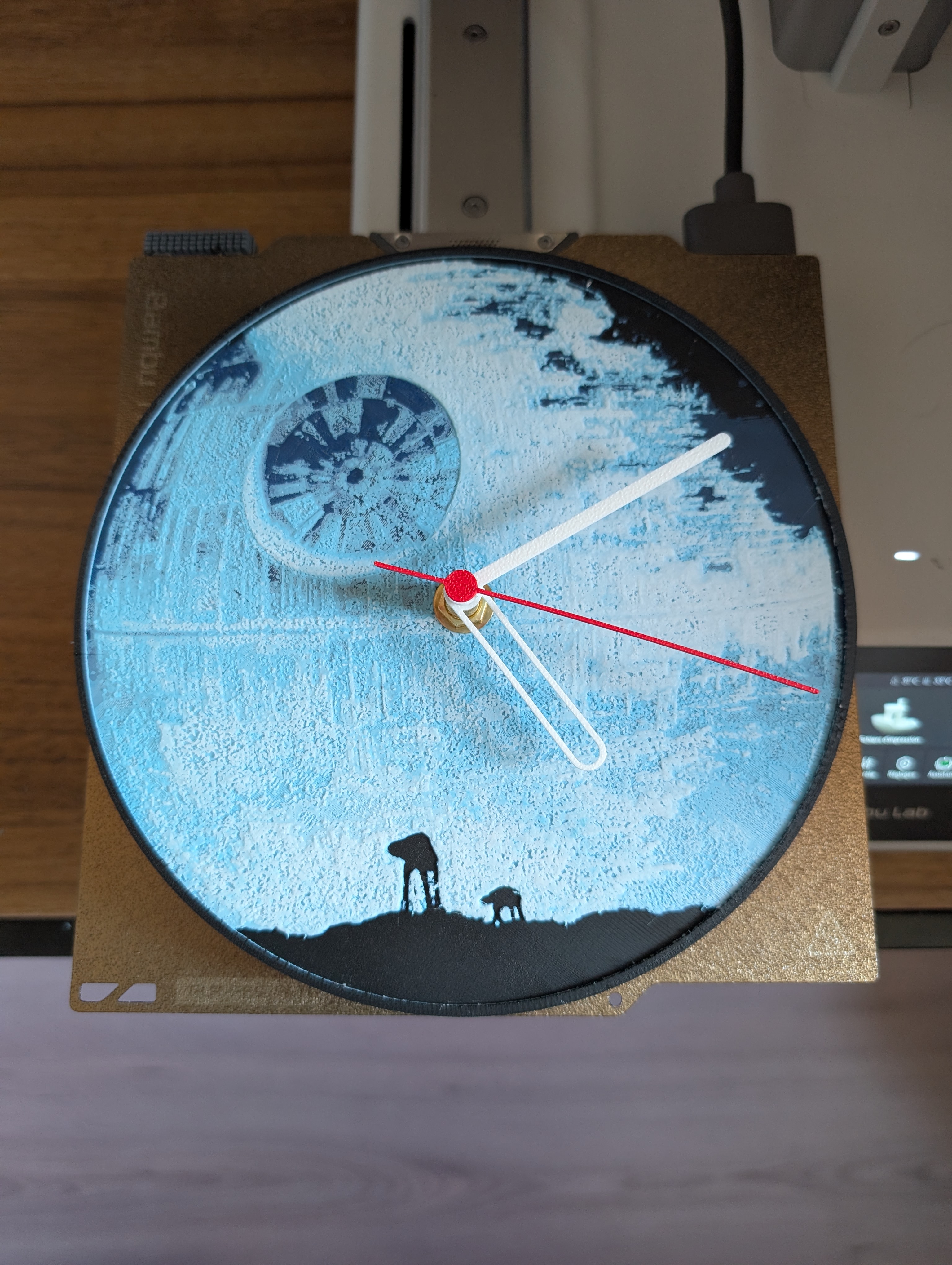

5 Color HueForge model. 'Death Star Clock' filament painting made using Bambu and Sunlu filaments.

Print at 100% infill with a layer height of 0.04mm with a base layer of 0.24mm

(I recommend the following speed settings for the bambu with 0.04 layers, inner walls, outer walls and gap infill - 200mm/s, sparse infill, internal solid infill and top surface - 150mm/s)

Filaments Used:
PLA Sunlu PLA+ Black Transmission Distance: 0.6
PLA Bambu PLA Matte Dark Blue Transmission Distance: 1
PLA Sunlu PLA+ Blue Transmission Distance: 3.5
PLA Sunlu PLA+ Sky Blue Transmission Distance: 4
PLA Sunlu PLA+ White Transmission Distance: 6

Swap Instructions:
Start with Black
At layer #11 (0.64mm) swap to Dark Blue
At layer #12 (0.68mm) swap to Blue
At layer #13 (0.72mm) swap to Sky Blue
At layer #19 (0.96mm) swap to White

At layer #29 (1.36mm) swap to Black for the rest (or the colour you would like for the frame)

This is a filament blending model, I would recommend trying to match the td as close as possible if not using the exact filaments to get the best results

Use the exact numbers in your slicer to match up properly.

The Model is designed to print with 0.4 nozzle.

**If re-scaling model make sure not to alter the Z height of the model**

add a negative cylinder to the Centre of the model in slicer to create the correct size hole for your movement or alternatively mark the Centre at the rear and drill the required size hole.

Link for the movement that I used is listed below but any standard movement will be fine (be sure to check the size of the hands)

Clock Mechanism Kit, Silent Quartz Clock Mechanisms Quartz Clock Movement Kit Clock Mechanism Parts wite White Clock Hands,Clock Mechanisms with Hands Battery Powered for DIY Clock or Repair Tool : Amazon.co.uk: Home & Kitchen
