Wood universal Connectors

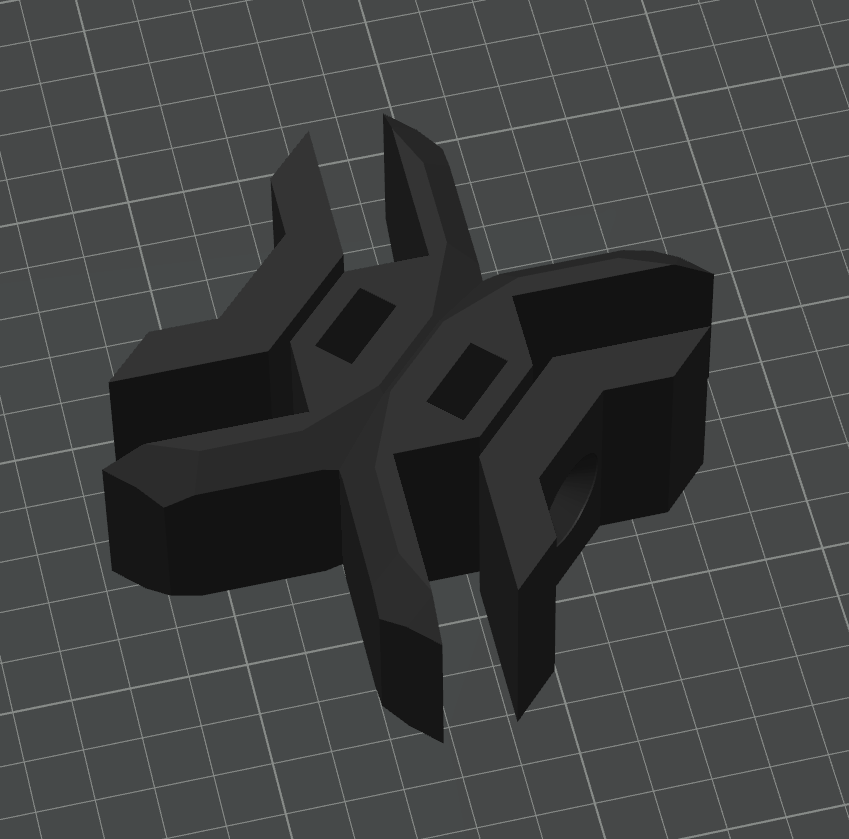

This connector allows you to obtain a right angle between two panels without the use of special tools or knowledge. Anyone, thanks to the connector, will be able to design and create their own furniture without effort or without the need for particular manual skills and experience. the connectors can be reused infinitely for multiple uses.

Printing:

For printing I created a print profile with settings that I used and tested myself. on plate 1,2,3 there are the parts used for the shelf in the photo while on 4 and 5 there are 90° and T joints

Additional parts:

For the shelf in the photo I reused 19mm wood scraps and M8x30 screws. It is also possible to use other thicknesses by replacing the locking screws with different lengths.

Future updates:
Im working on a parametric design for changing the angle but this would need a while…
